-----Model description-----

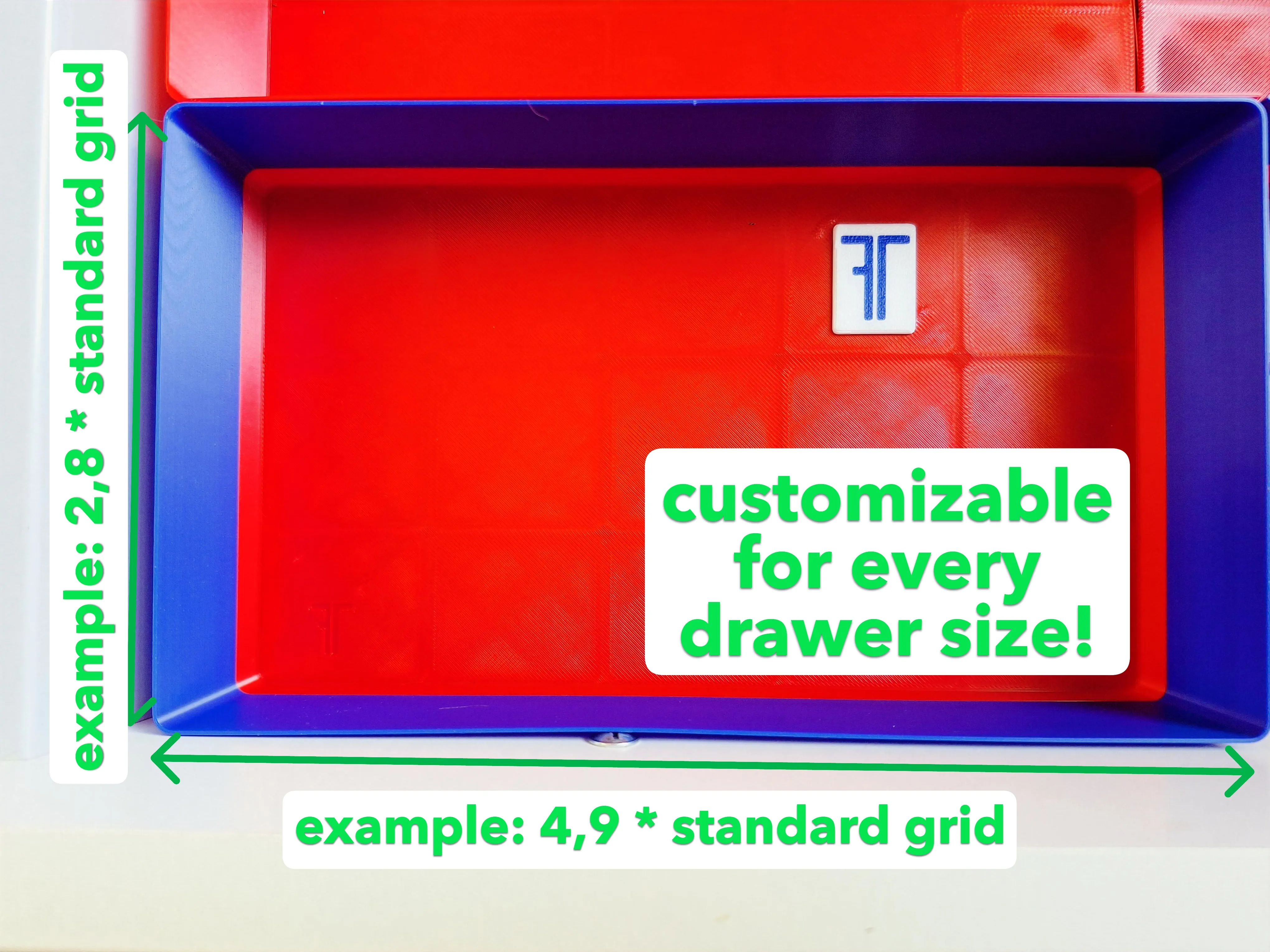

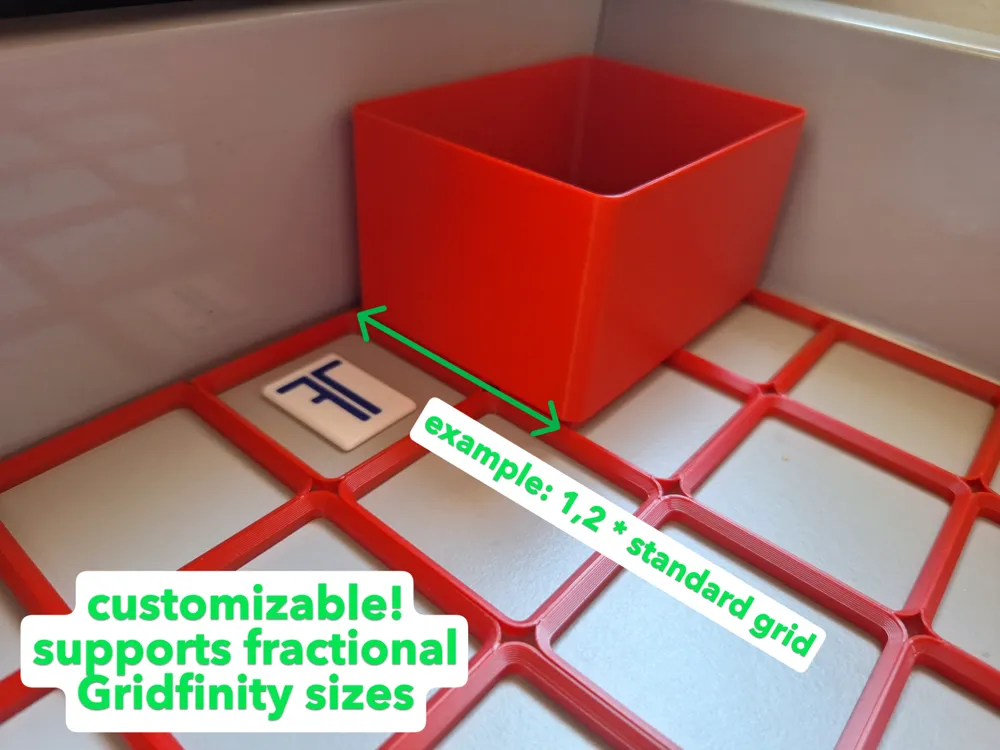

This parametric bin model is designed to be compatible with the reduced row and column of the model: link Customizable Gridfinity Full-Drawer Grid.

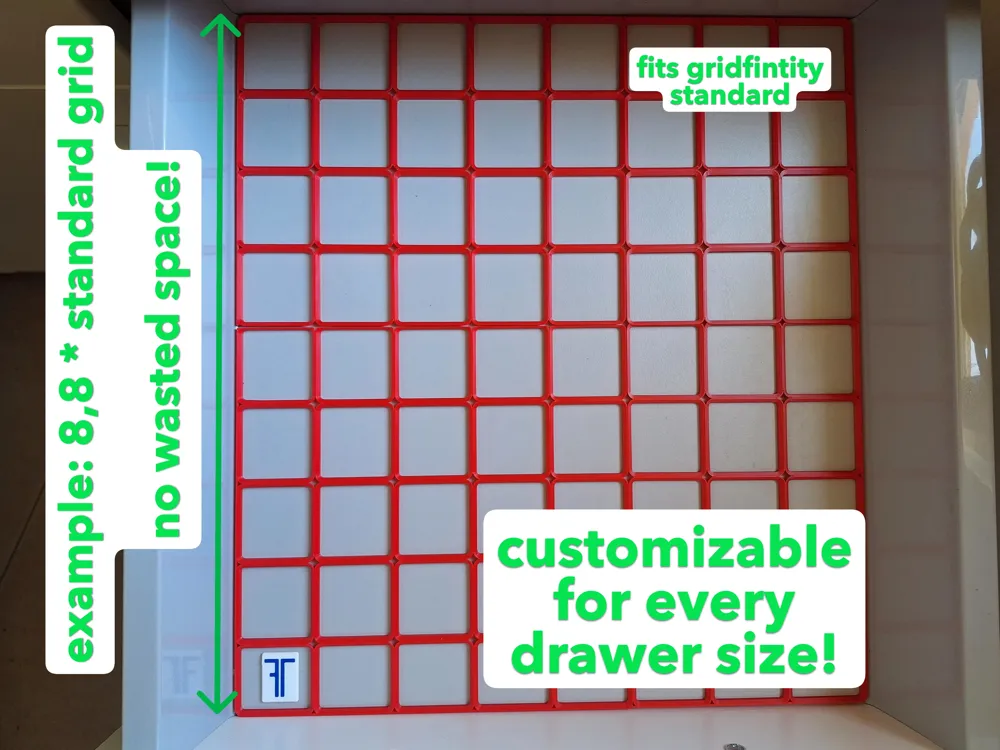

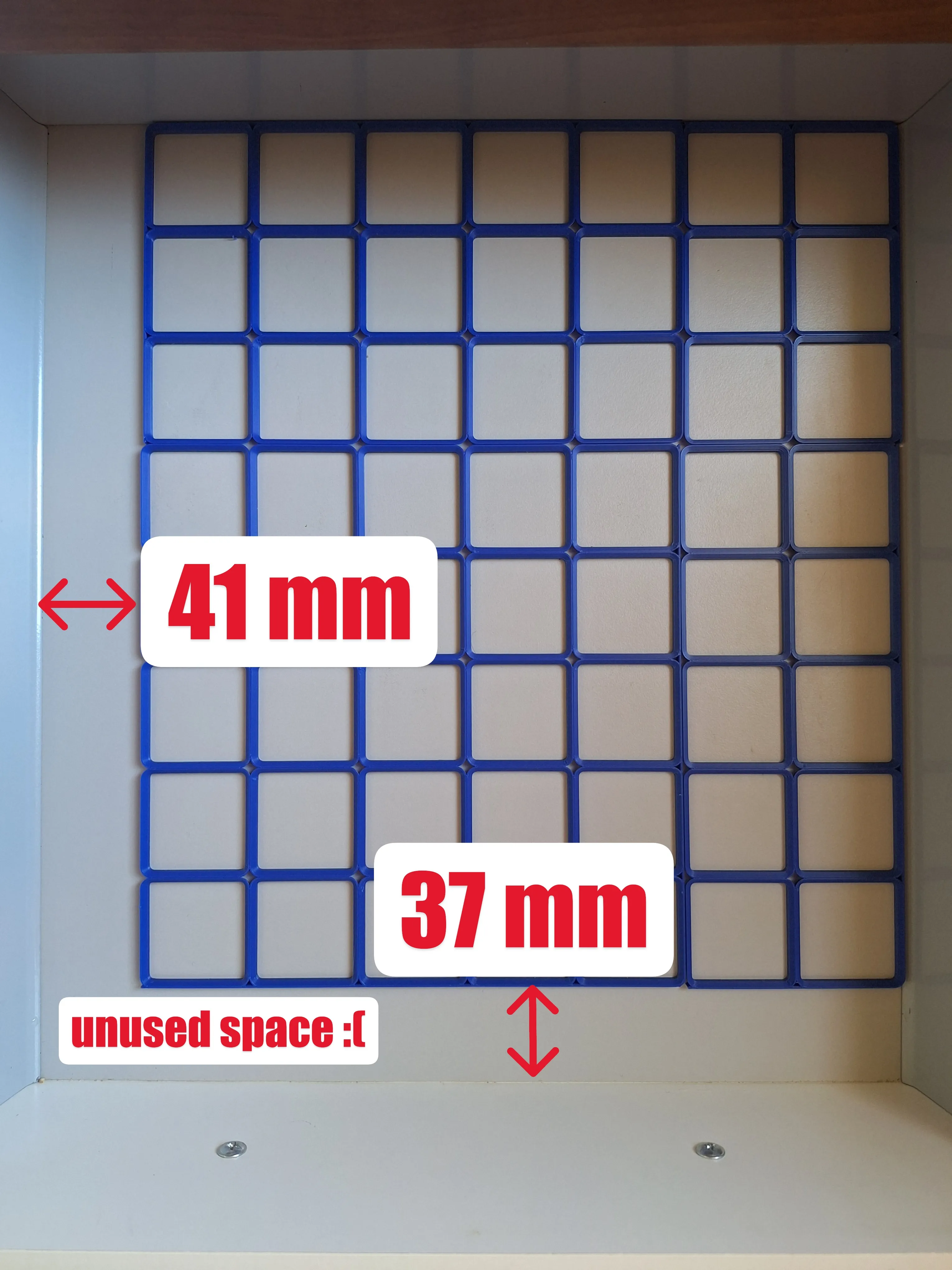

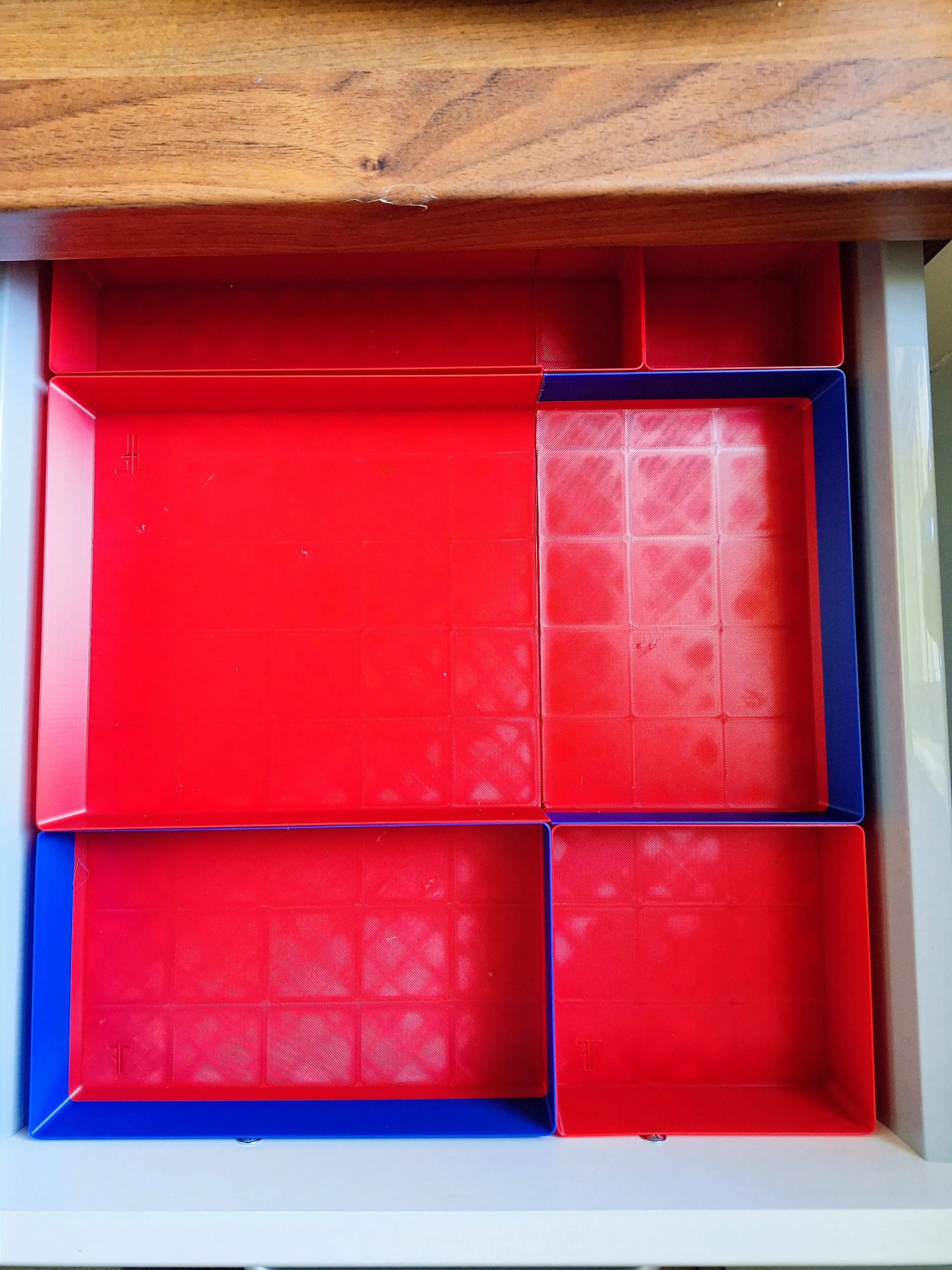

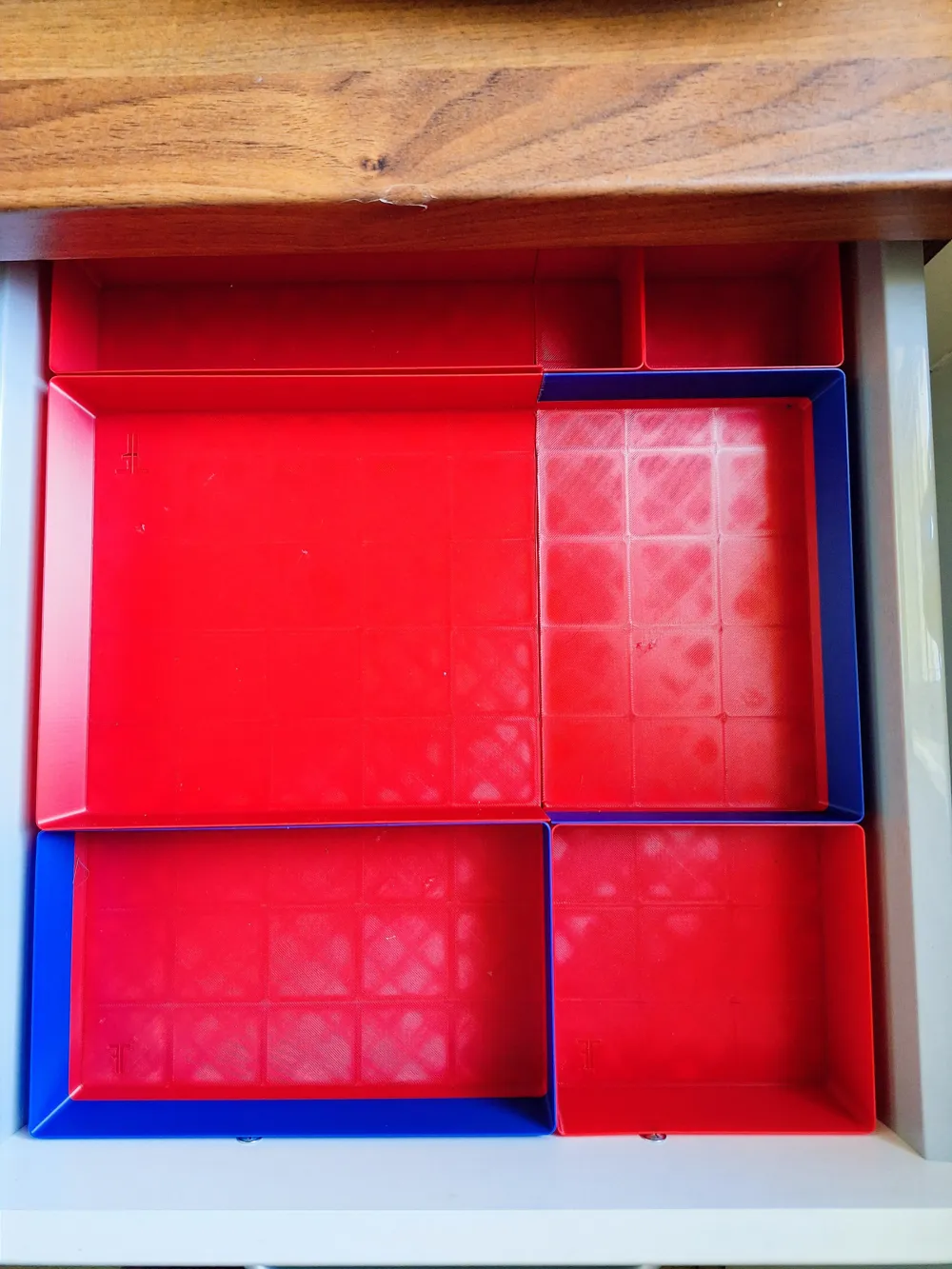

It enables full utilization of the available drawer space, even if the drawer dimensions do not match the standard 42 mm × 42 mm Gridfinity layout.

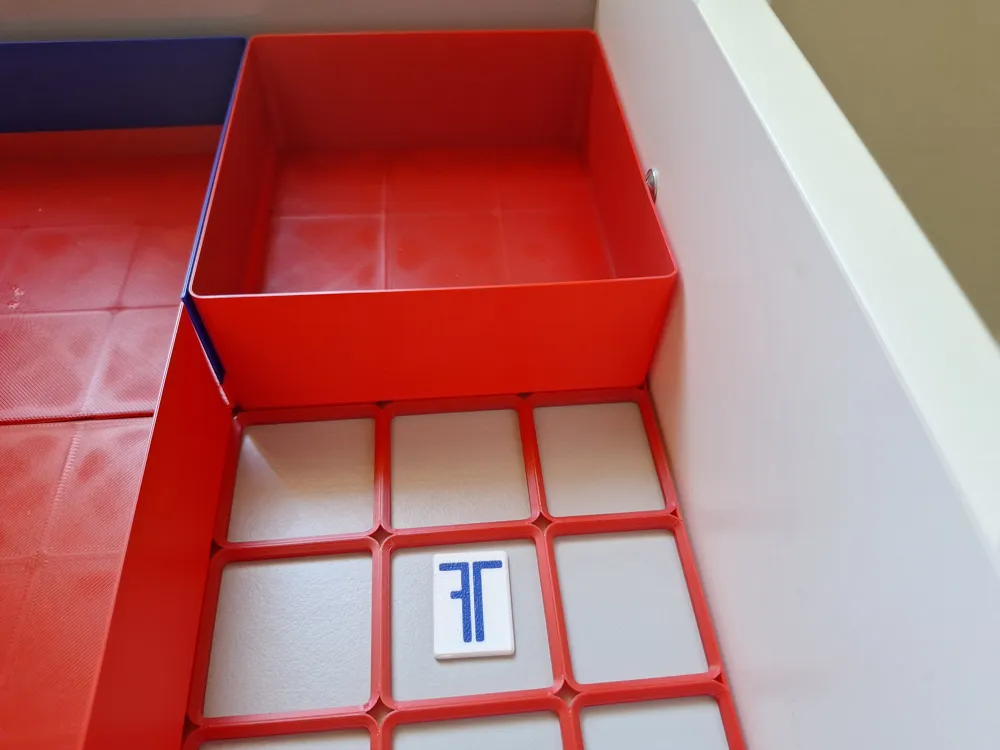

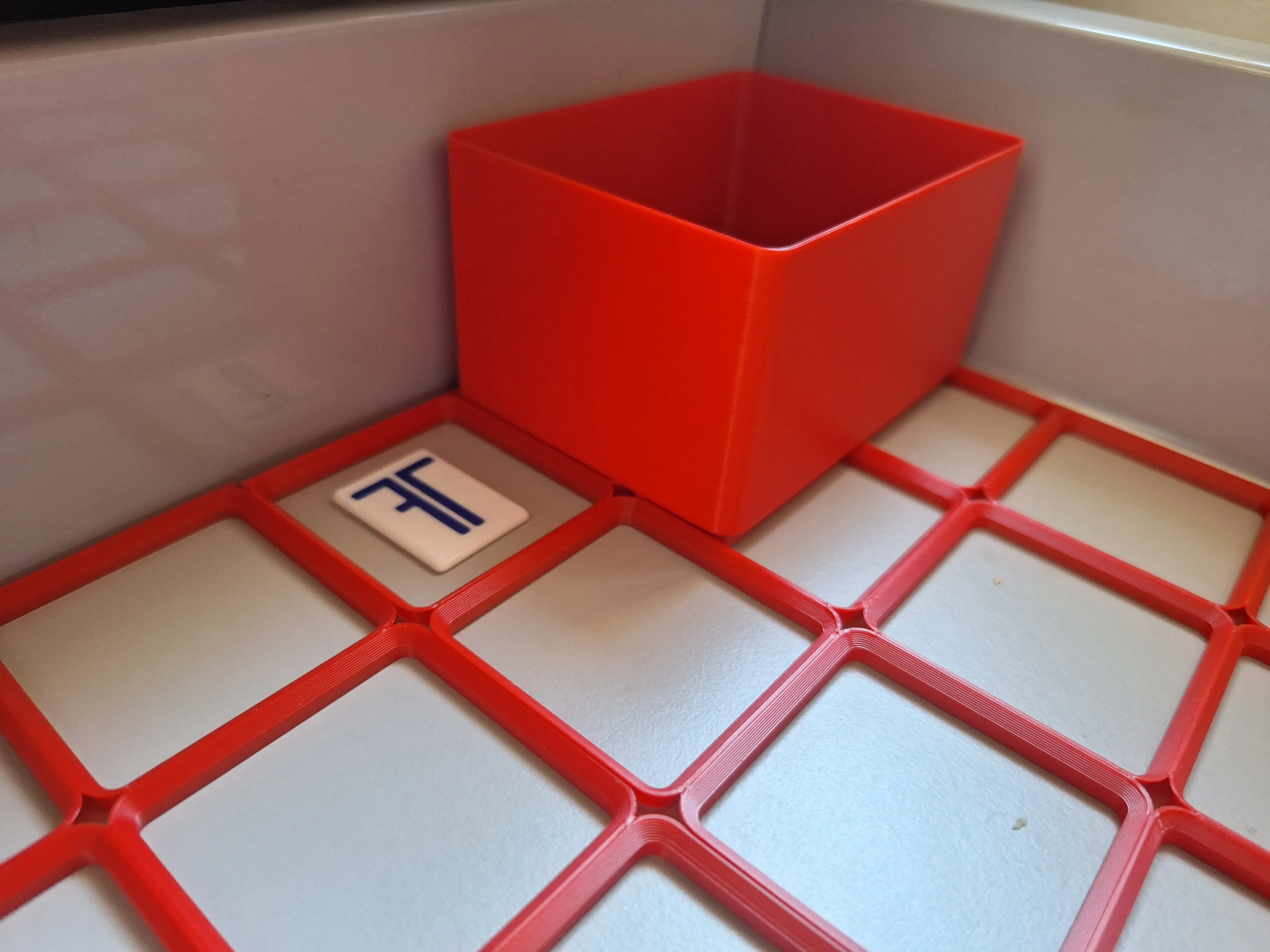

The model maintains compatibility with the standard Gridfinity interface and can also be used on regular grids. If required, only a portion of the grid can be used.

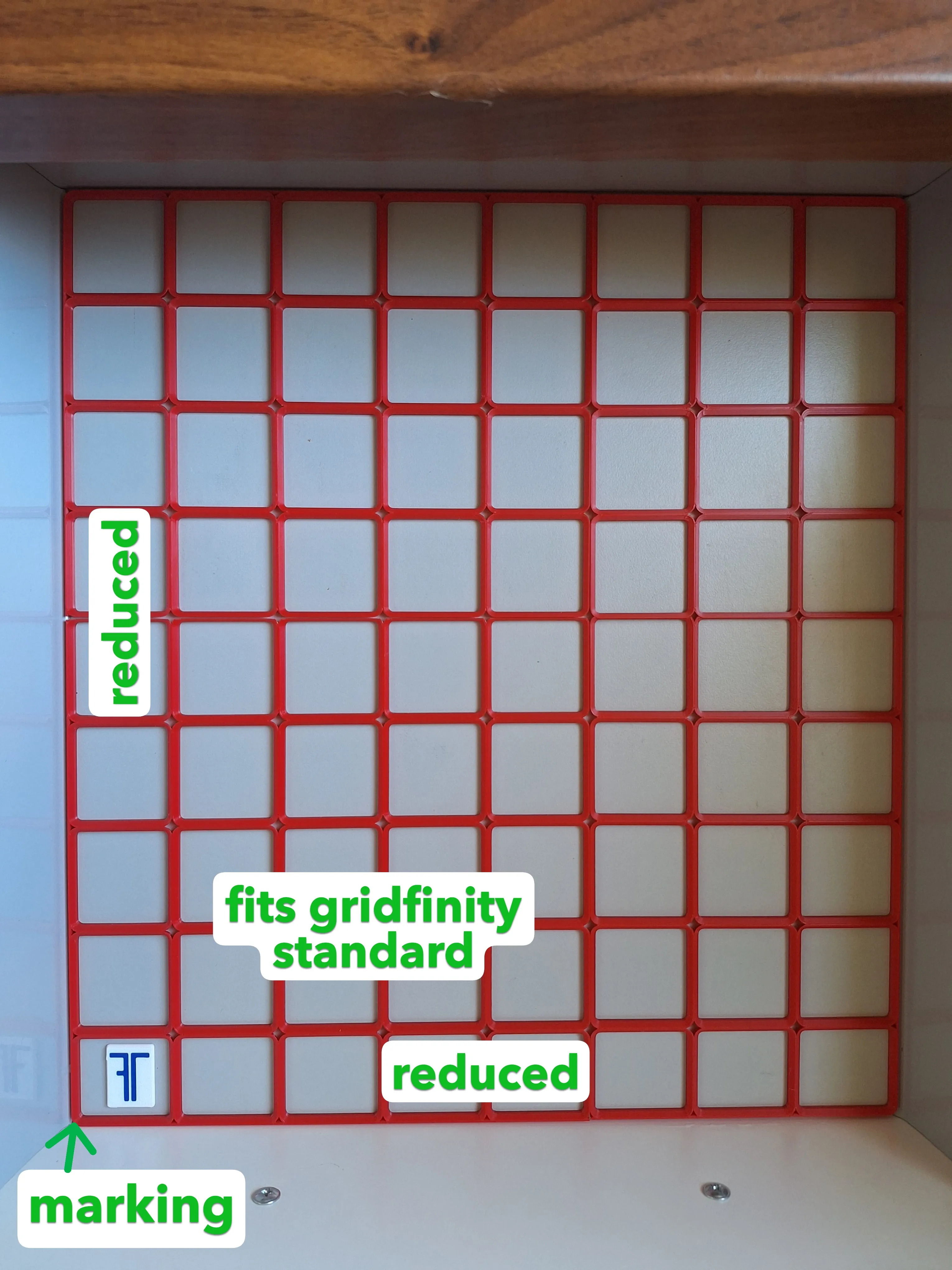

The geometry adapts the left column and bottom row. A corner marking is included to clearly identify which row and column are reduced. If the opposite side is required, the model can be mirrored in Bambu Studio.

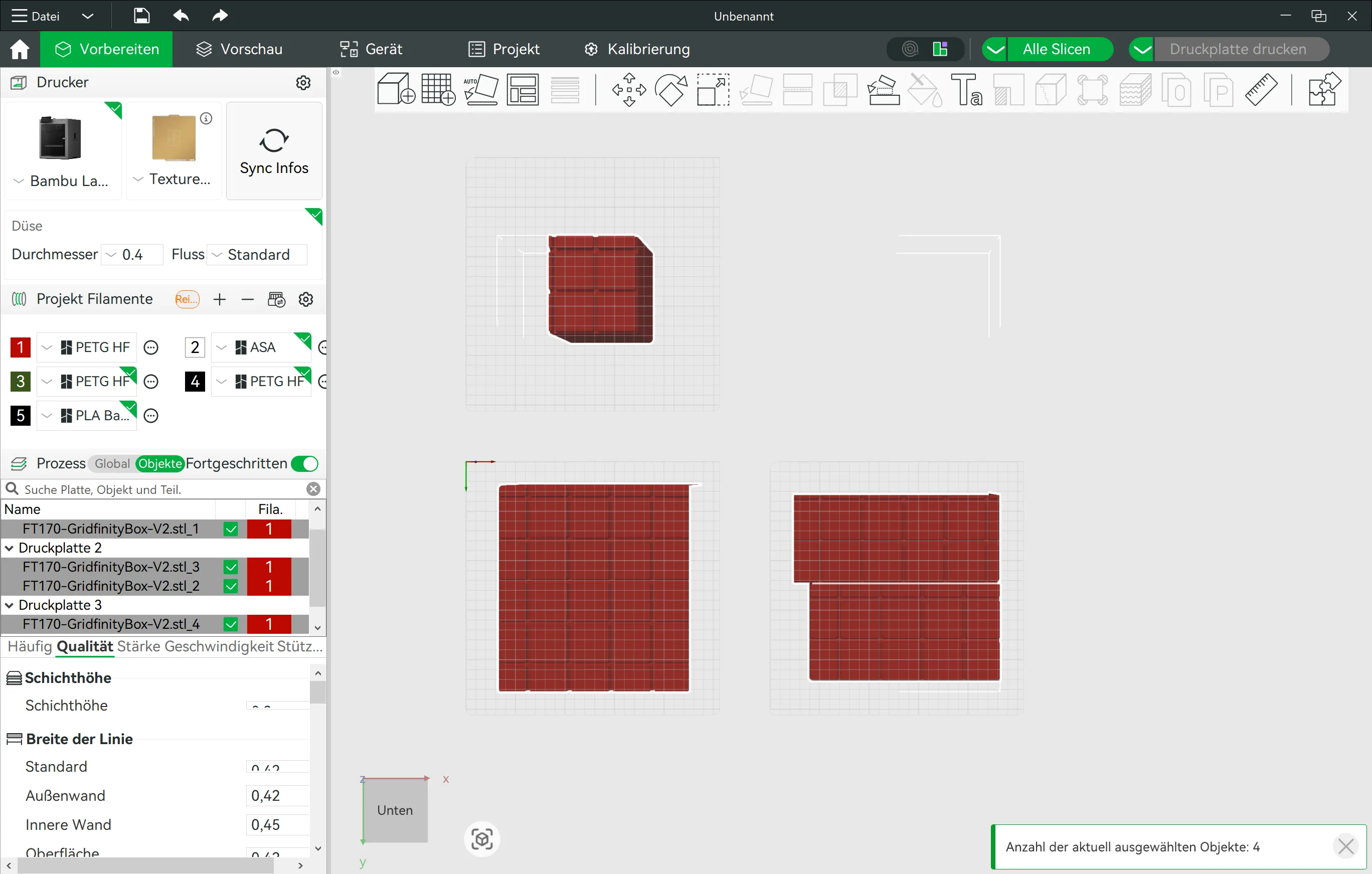

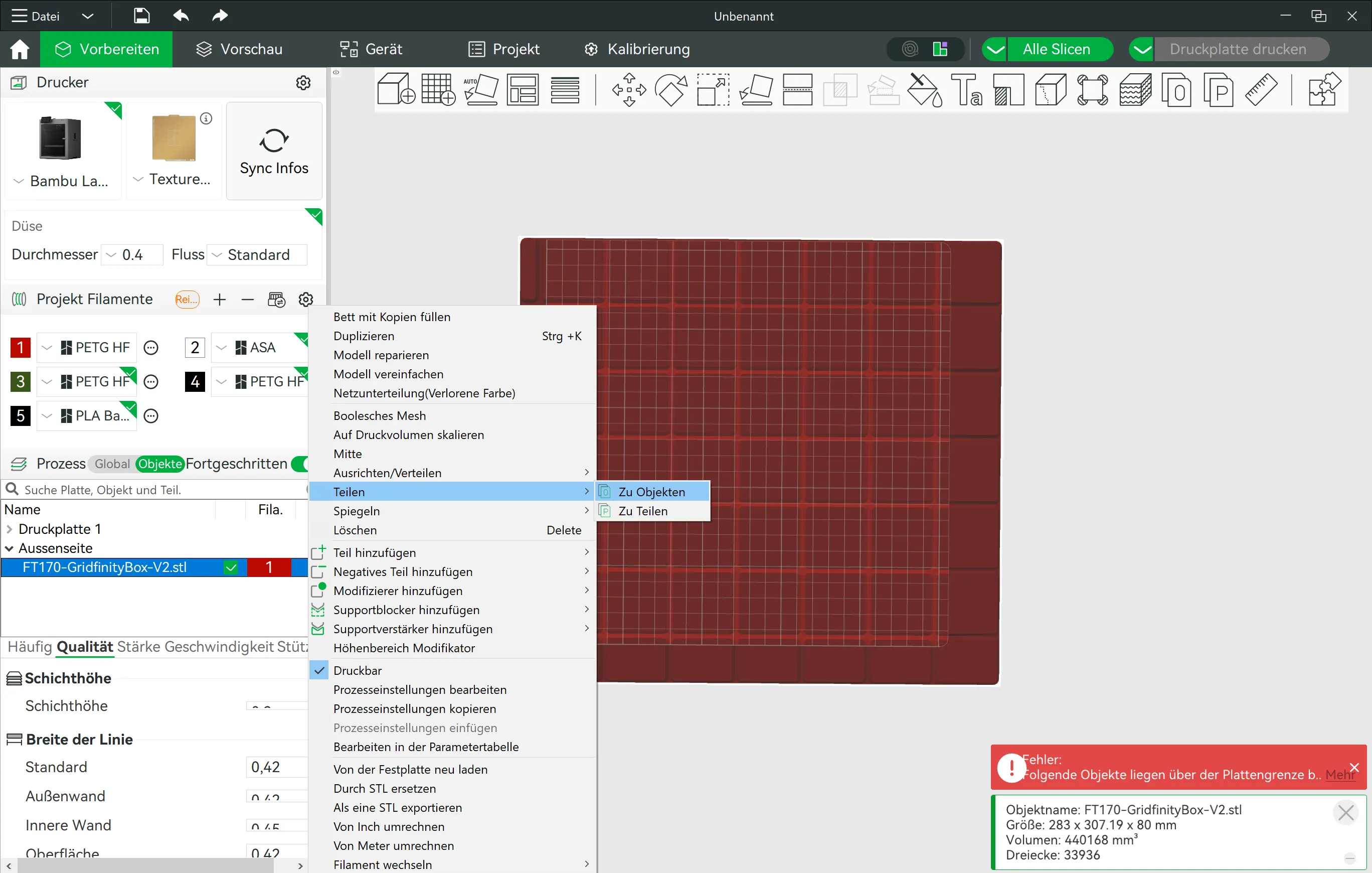

Users can define the required parameters to generate a matching bin. If the resulting model exceeds the build volume, it is automatically segmented. In Bambu Studio, the model must be separated into individual objects before printing.

Note: Model generation time may increase depending on parameter selection due to internal geometric calculations.
