NVIDIA Jetson Orin Nano + SSD Heatsink Case

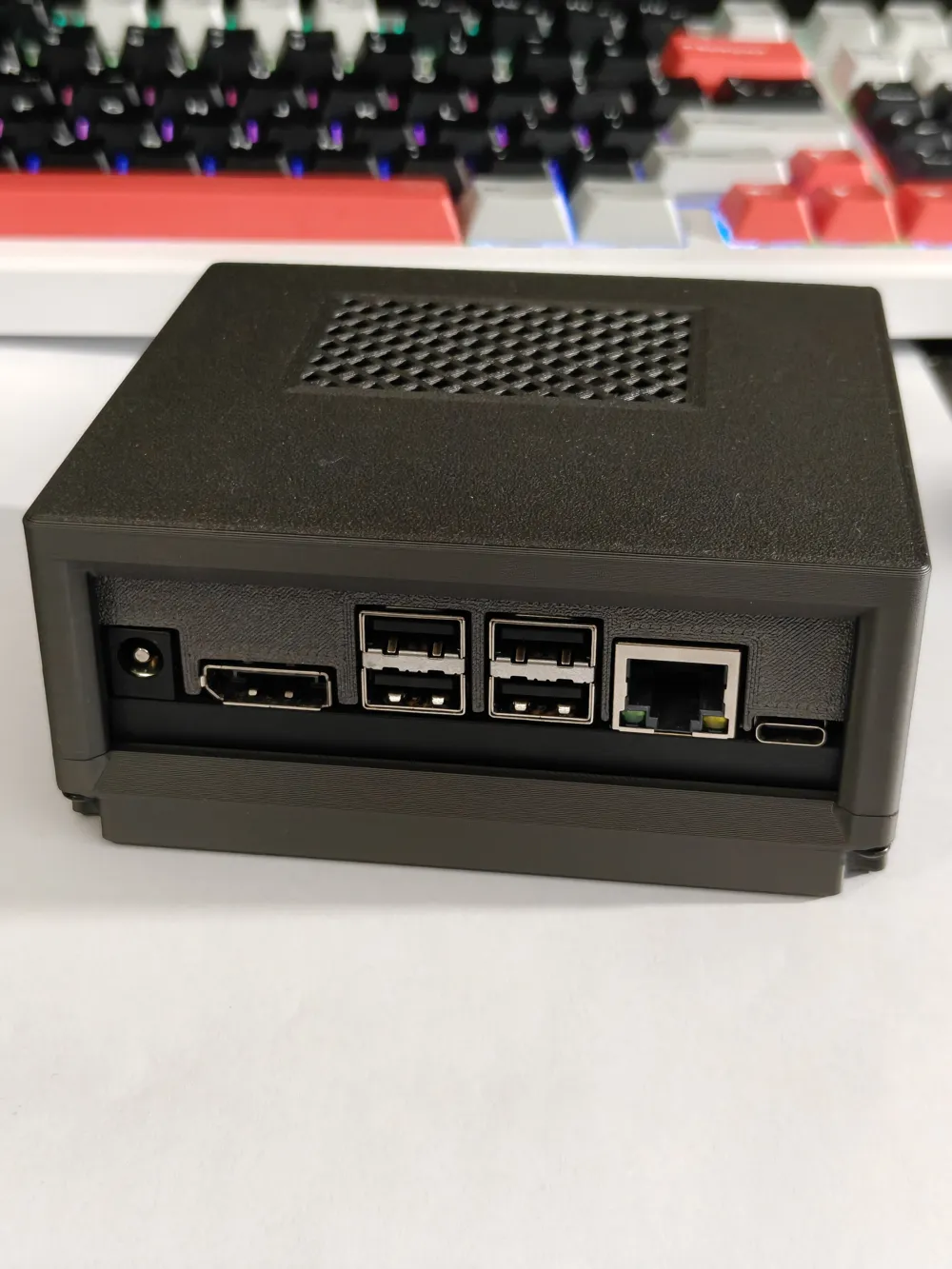

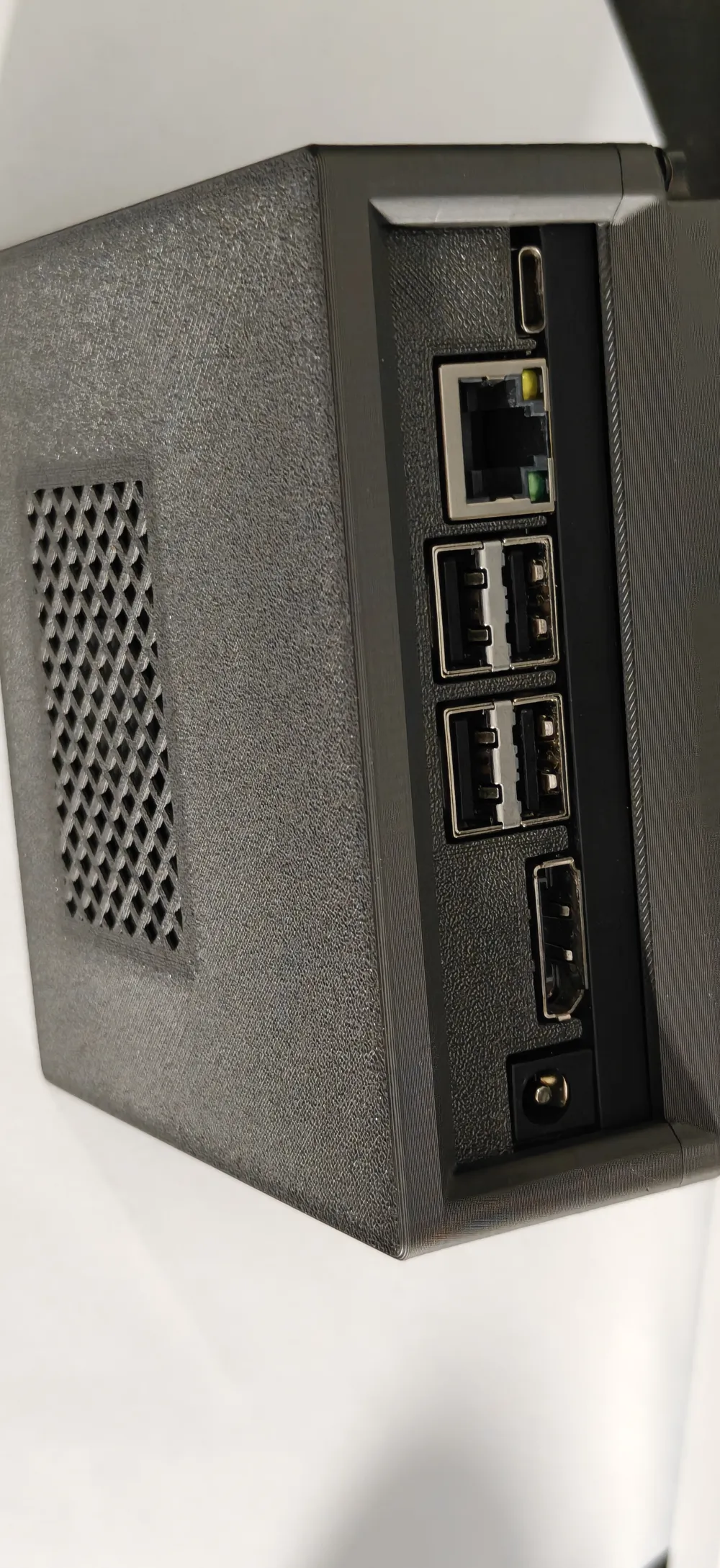

Another case for NVIDIA Jetson Orin Nano (Developer Kit) board, but this one allows you to use a heatsink for the SSD :) And the IO shield won't break your board (there are SMD components between the USB ports that were overlooked in the original case and the IO shield was pressing on these components).

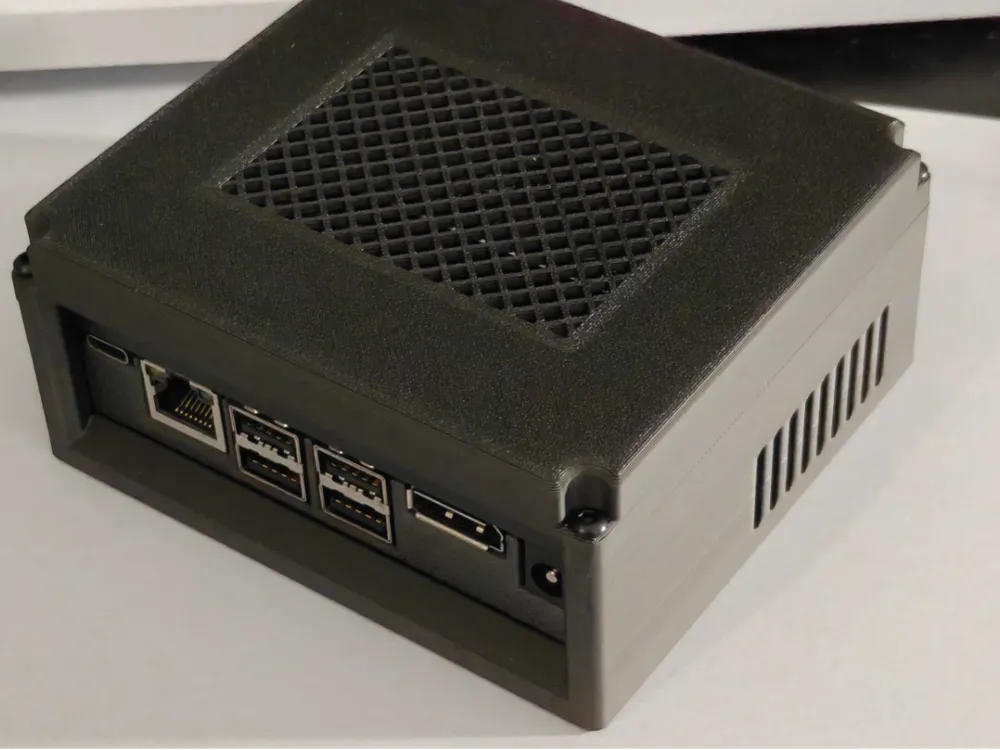

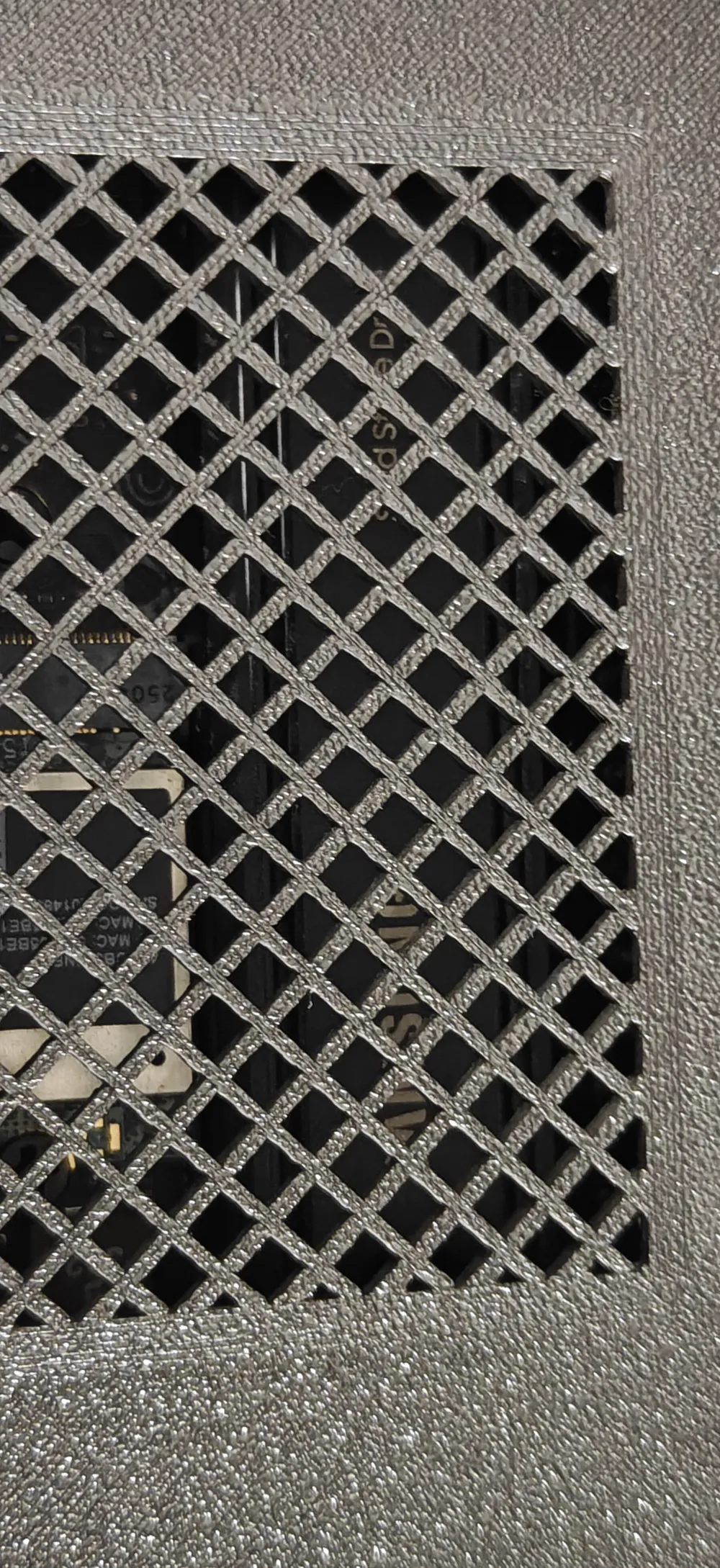

And yes, there is a cover for the fan intake… I mean, who wants a “clogged” fan/heatsink.

BOM:

-4x M3x12mm (or longer) screws, ideally self tapping.

Note: I used Samsung 980 Pro with a stock heatsink. But you can install a much taller heatsink, approx. 2 cm. I have not tested it on taller heatsinks yet, so please leave a comment and I'll tweak the model to fit your specific heatsink, if you measure it.
