Plant pot | with filter screen | three sizes, A1 mini can also print

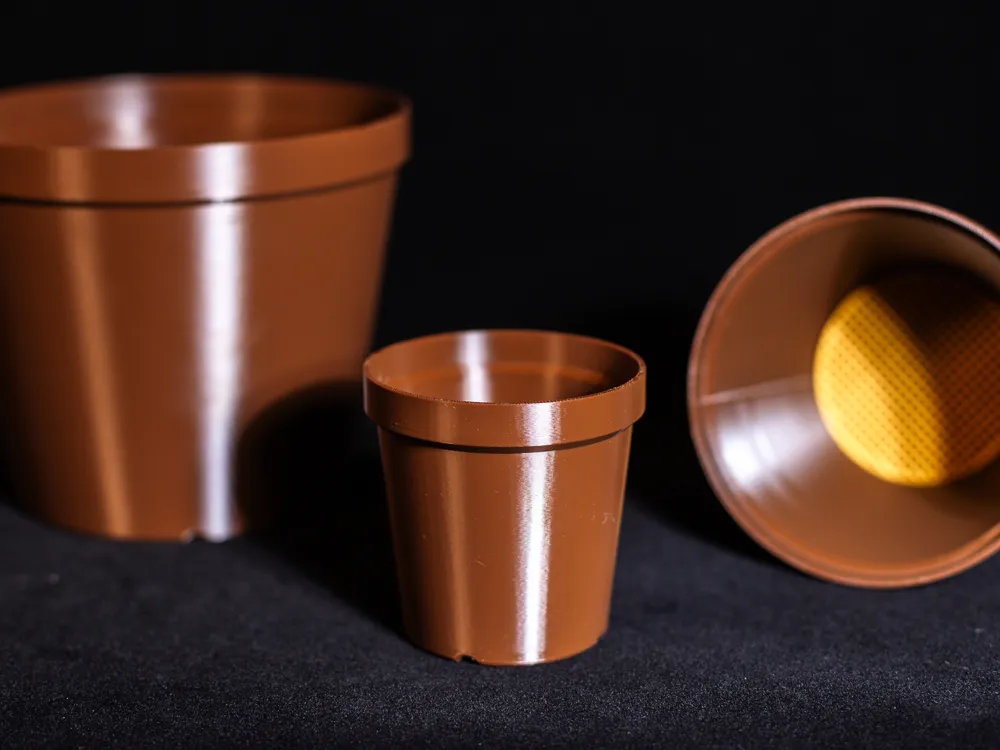

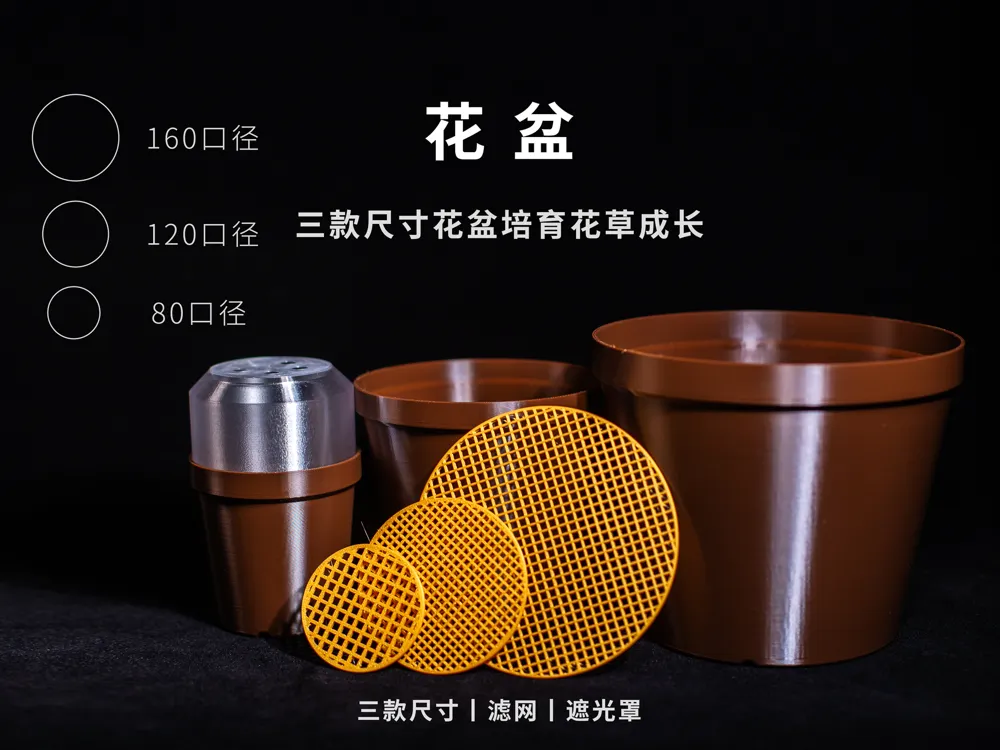

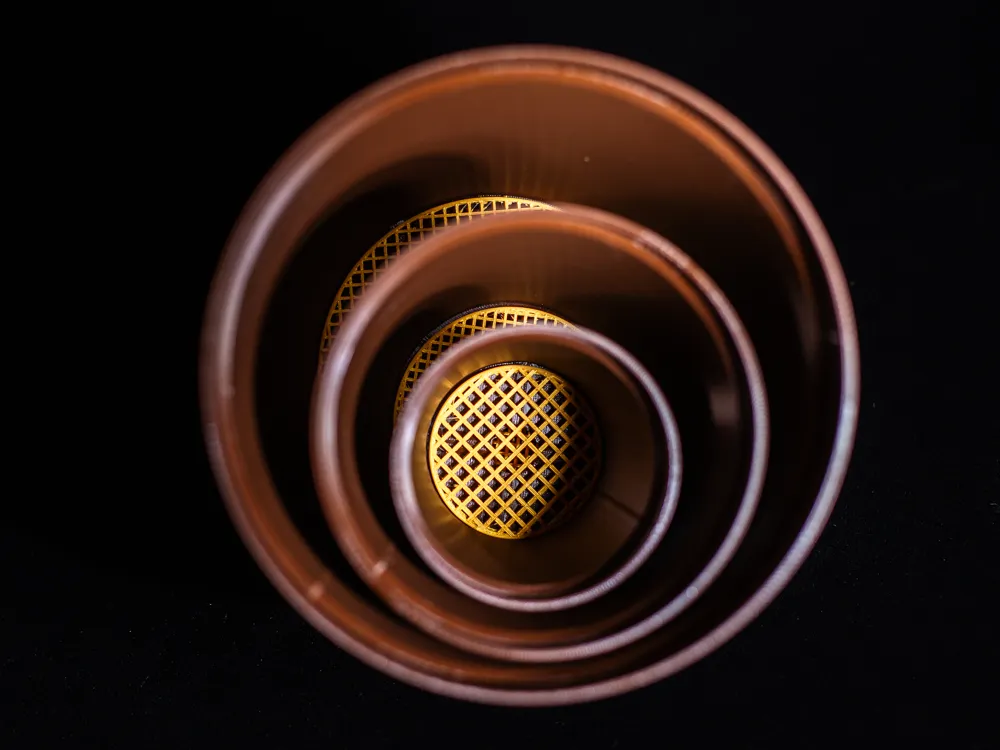

Three sizes (large, medium, small) are suitable for the A1 mini printing platform
Large: top diameter 160MM, bottom diameter 120MM, height 135MM, wall thickness 2MM, filter screen thickness 2MM
Medium: top diameter 120MM, bottom diameter 80MM, height 110MM, wall thickness 2MM, filter screen thickness 2MM
Small: top diameter 80MM, bottom diameter 60MM, height 80MM, wall thickness 2MM, filter screen thickness 2MM

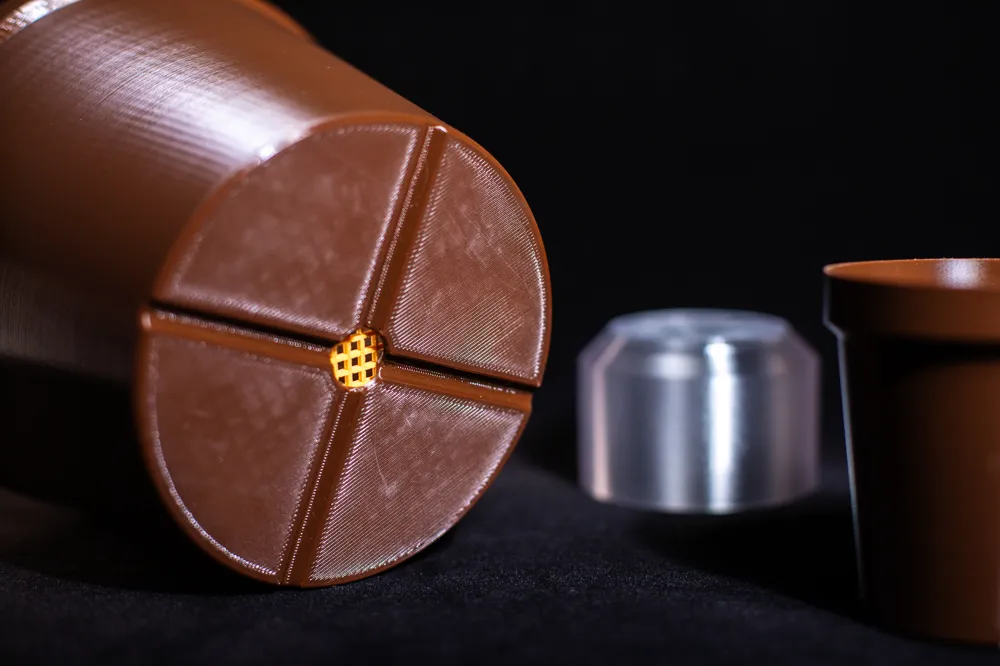

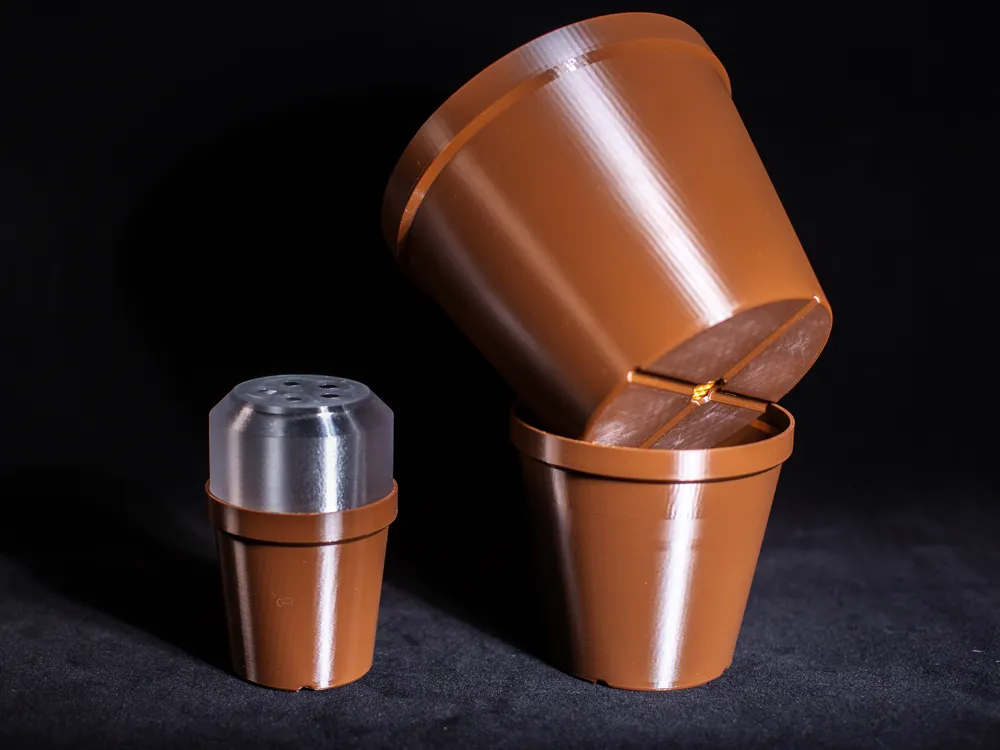

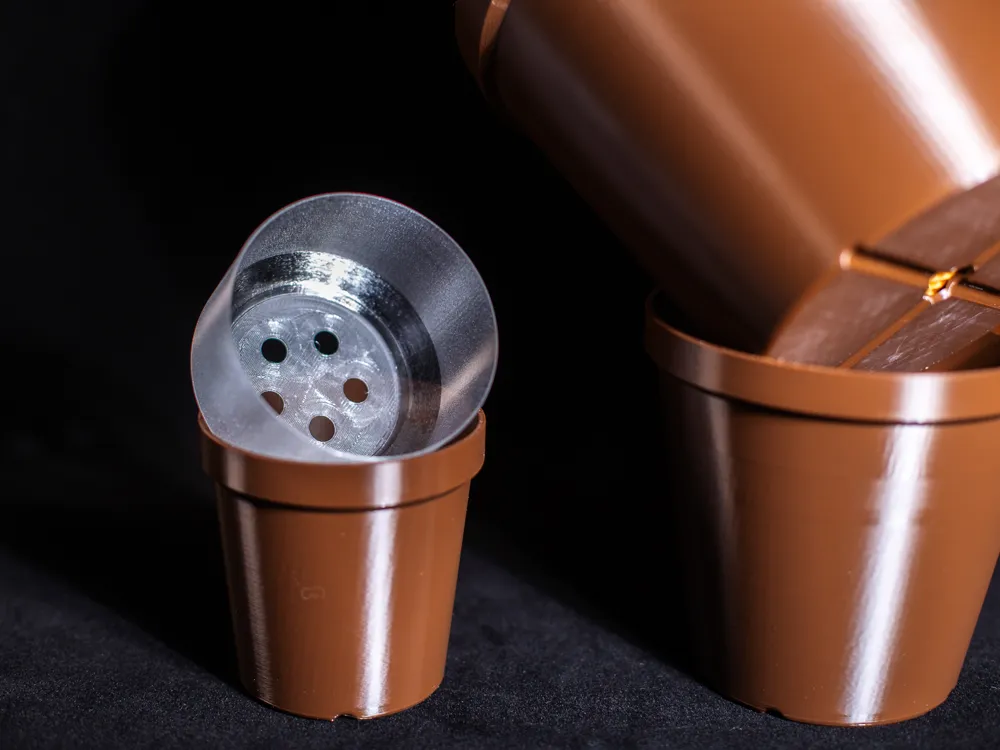

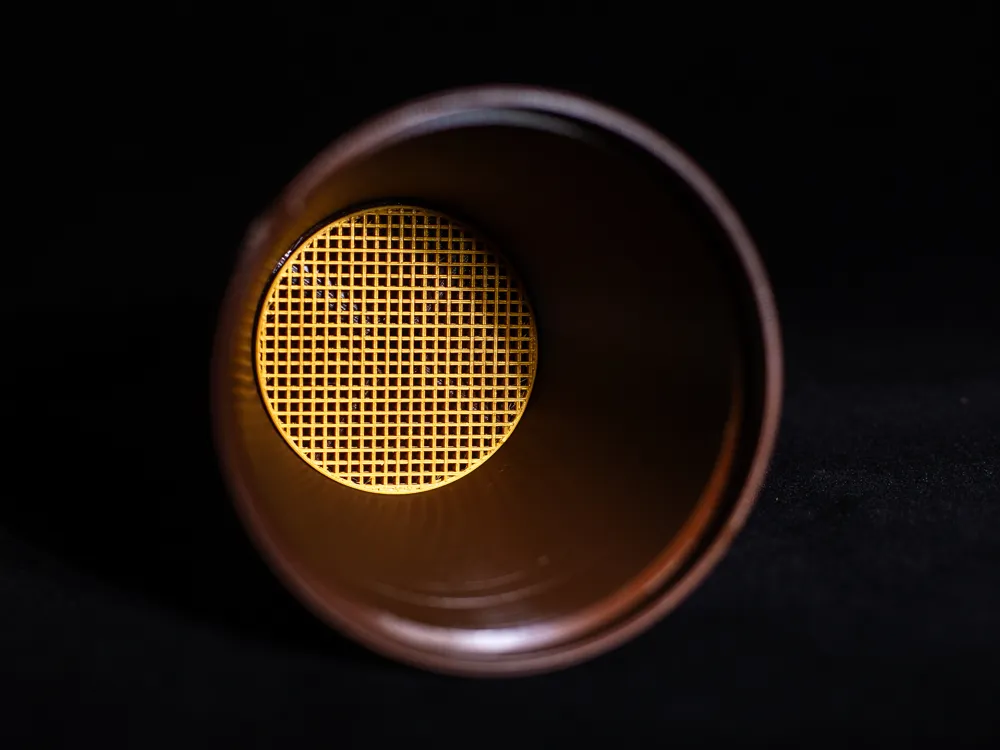

Considering that the small size can nurture seedlings, a sunshade was designed. The other two sizes do not include sunshade configurations. If there is a demand later, sunshade profiles can be released. All three sizes come with correspondingly configured bottom filter screens (the filter screen itself is modeled without holes, the holes are formed by the slicing software settings, and it can be printed directly. For friends who need to set the hole style and size themselves but don't know how, you can check the previously published setup video or parameter images on my homepagehttps://makerworld.com.cn/zh/models/2192046-bambustudioshi-yong-ji-qiao-fen-xiang-gun-bu-jing#profileId-2460645), the plant pot's bottom design includes four grooves for water filtration and breathability, requiring no supports for printing. The top diameter has been expanded to facilitate adding a sunshade or for tying and hanging later. Any filament can be used for printing. For outdoor cultivation under strong sunlight, it is recommended to use PETG filament or higher strength filaments.

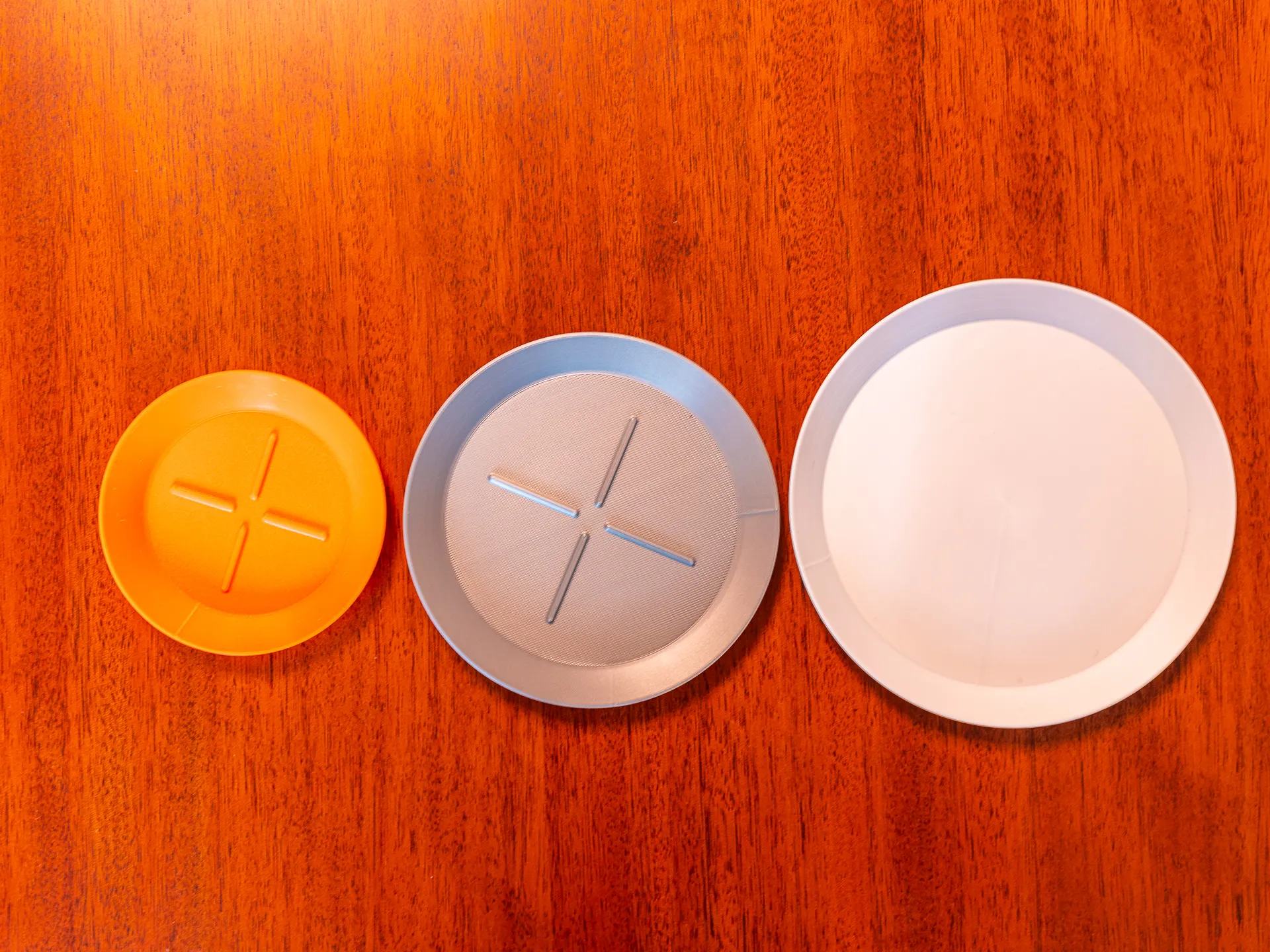

The drip tray can be printed from a previously released model.

https://makerworld.com.cn/zh/models/1014585-hua-pen-jie-shui-tuo-pan#profileId-1043273
