Gridfinity Insert for Milwaukee M12 Stapler

Gridfinity Tool Insert for Milwaukee M12 3/8" Crown Stapler 2447-20

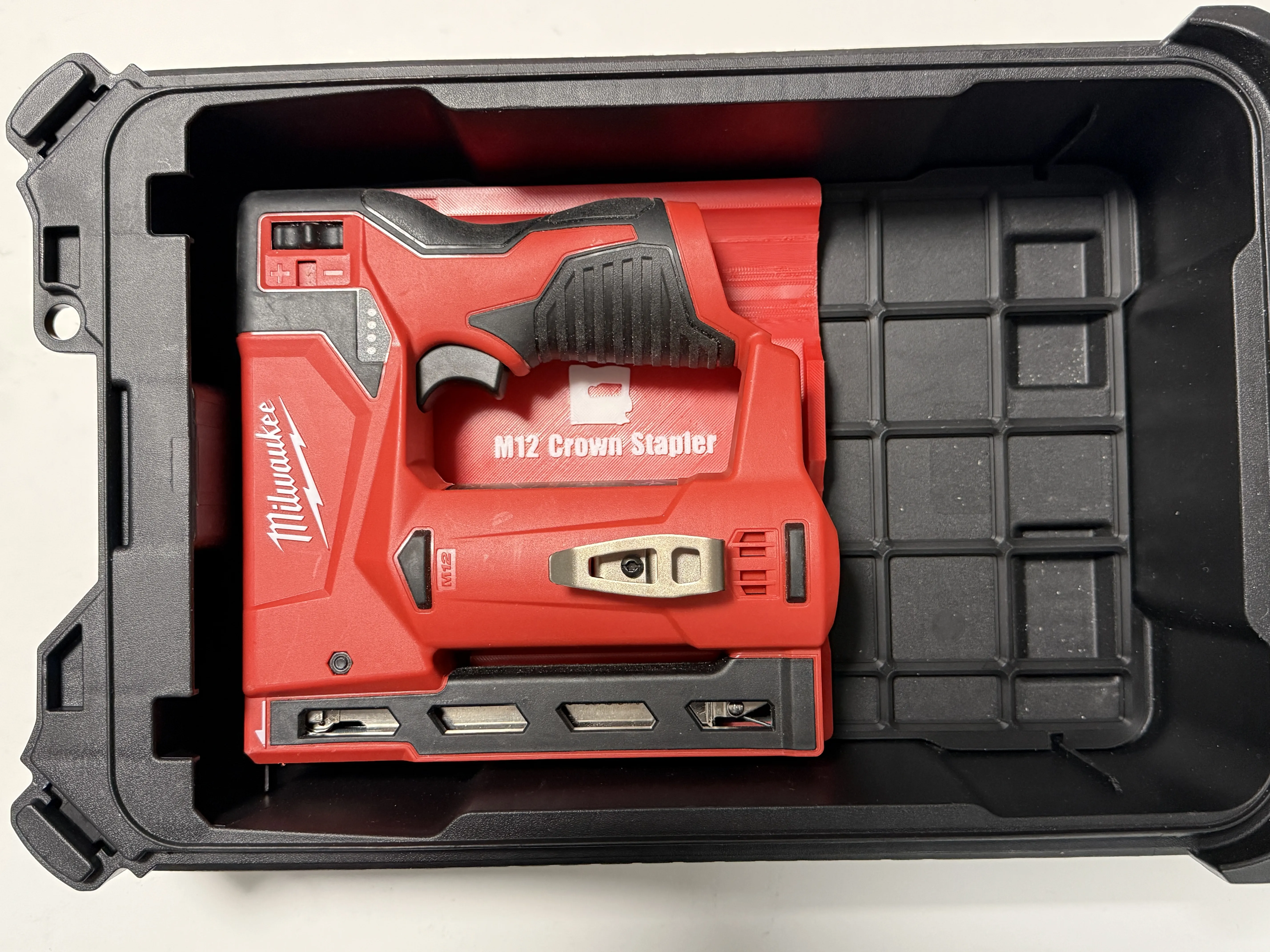

This tool insert lets you store the Milwaukee M12 3/8" Crown Stapler (model 2447-20) in any standard Gridfinity storage system.

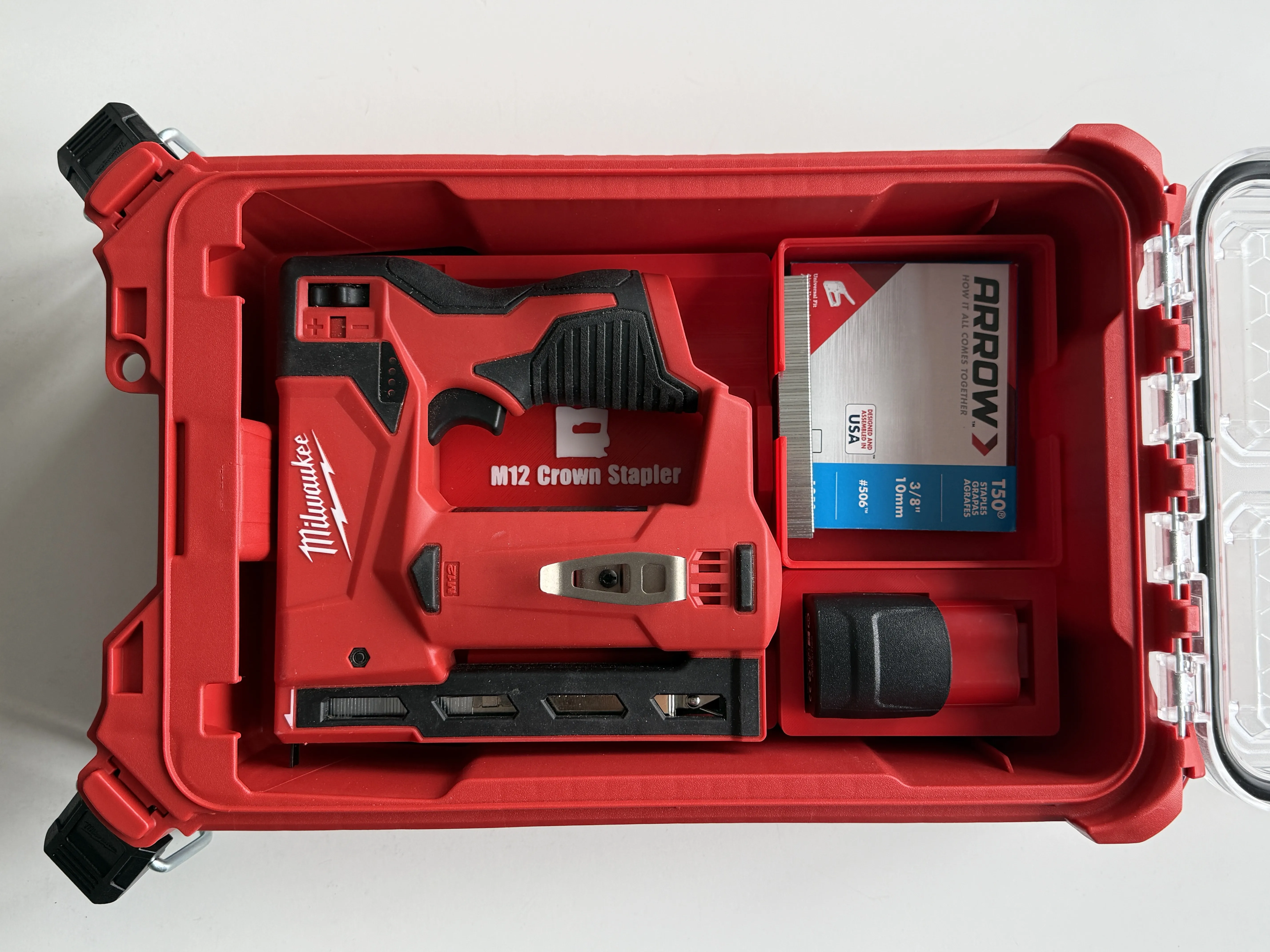

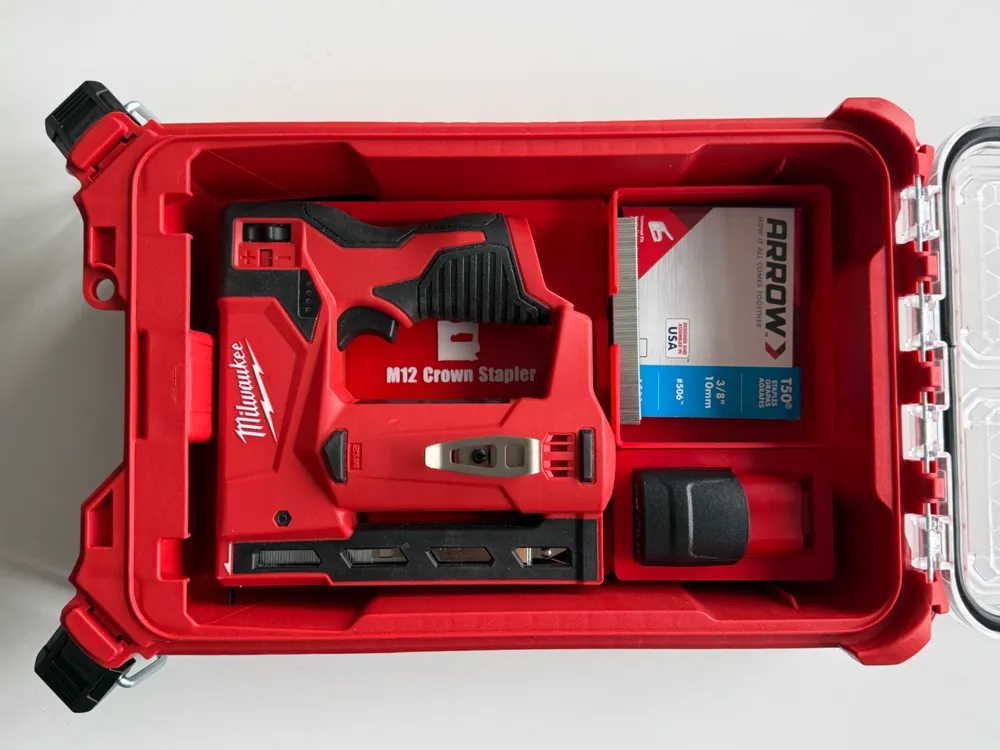

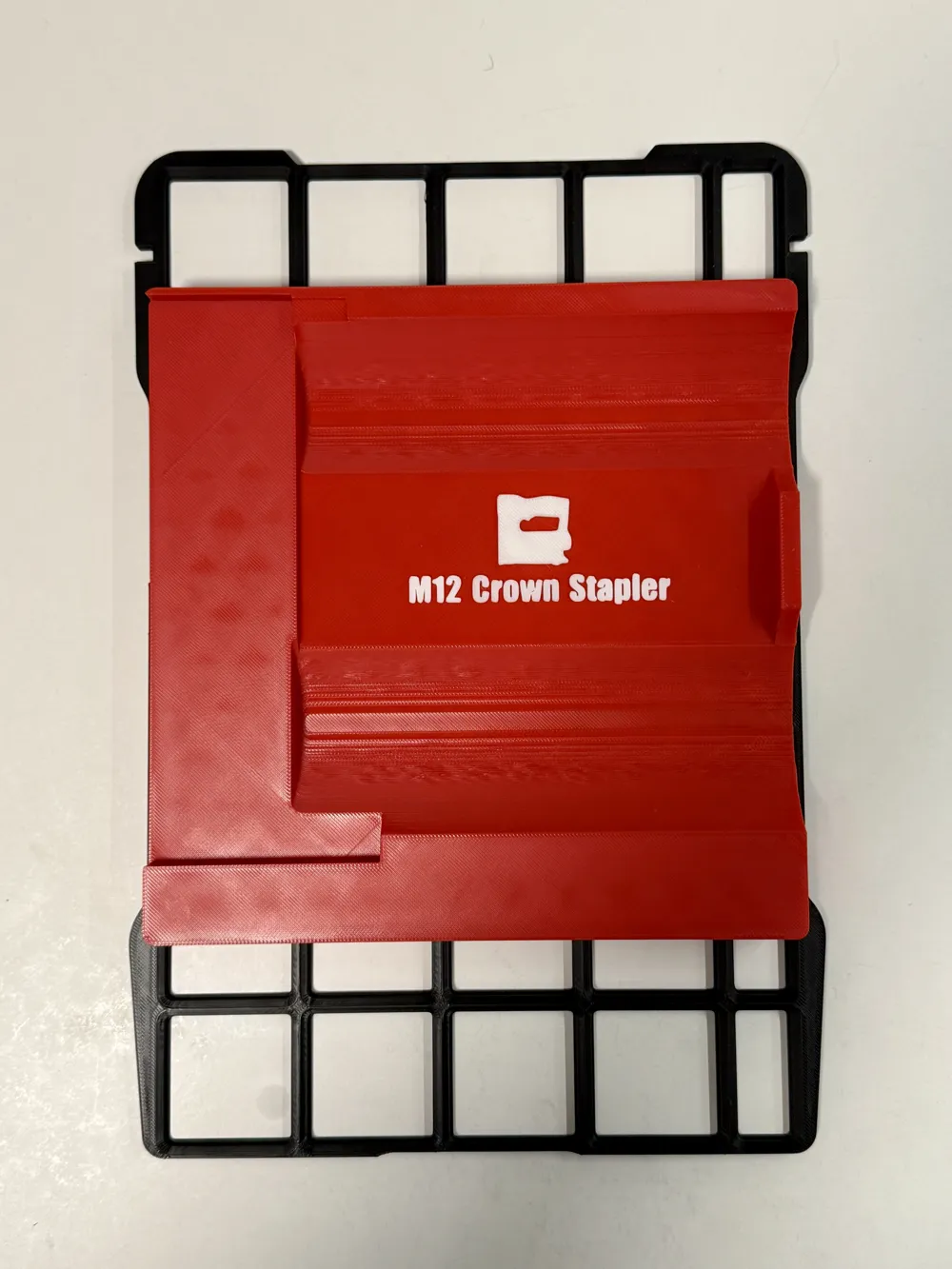

• The insert occupies 4.5 x 4.5 standard Gridfinity units. This makes it a perfect fit for the Packout Organizer base grids that I created, leaving just enough space in the rest of the organizer for storage of staples and an extra battery using additional Gridfinity bins (see below for links).
• It also fits in a standard 5 x 5 Gridfinity layout, of course, with a little extra room around the edges.
• Can be printed on any “Ender” size (220x220) or larger printer.
• The insert is low profile and space-saving. With the stapler, you'll need available height of about 3.5" or 12U in Gridfinity units.
• The insert can be mirrored to accommodate whichever side you install the belt clip.
• There is room for a compact M12 battery to remain in the tool and it will still fit.
• Features a pictorial icon and the name of the tool, to remind you where it goes. You can choose to print this in contrasting colors if you have an AMS.

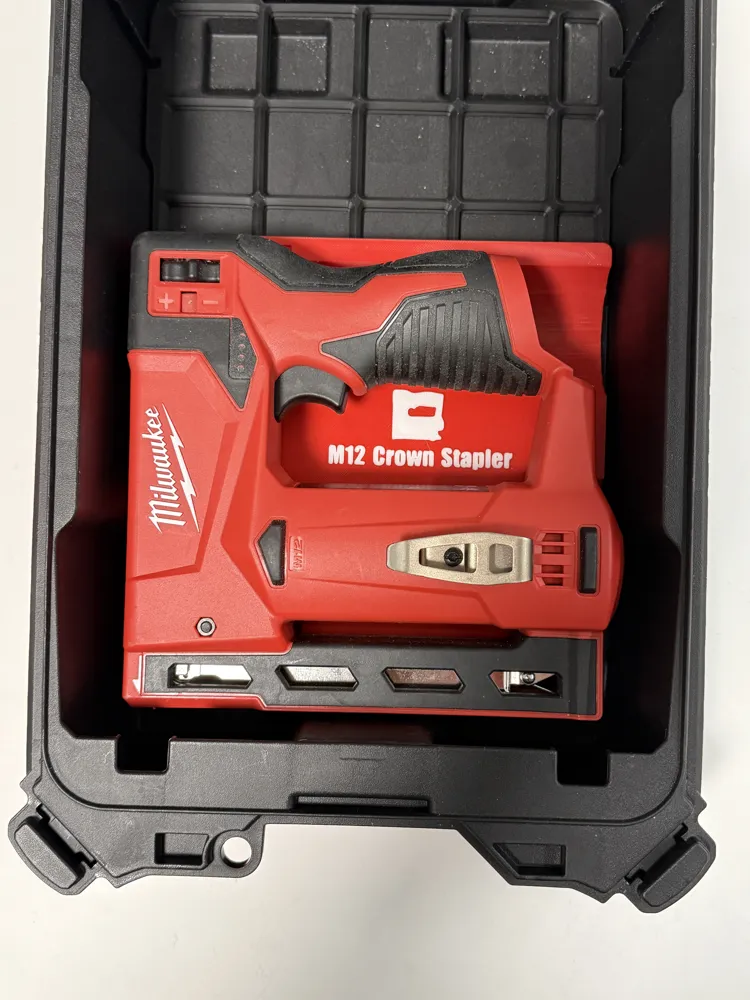

You can place this insert wherever you have set up a base grid, including Packout organizers, Packout drawer units (the stapler will fit in the 2-drawer Packout, and maybe the 3-drawer, but not the 4-drawer), DeWalt ToughSystem (2-drawer unit), etc.

The M12 stapler insert pairs well with the following other Gridfinity tool inserts:

• Store your T50 staples inside this stackable 3 x 2.5 x 6U bin, featuring a cut-out to easily reach in and grab some loose staples or get to a box (link coming soon)
• Store an extra M12 compact battery in this 1.5 x 2.5 bin. (link coming soon)

The benefit of using Gridfinity is that you can easily move the insert to different containers or toolboxes as you see fit, and you can mix and match which accessories go with your tools.
