Super Mario TV Unit

📺 Super Mario TV Unit: Level Up Your Living Room! 🍄


Ready to bring the Mushroom Kingdom straight into your living room?

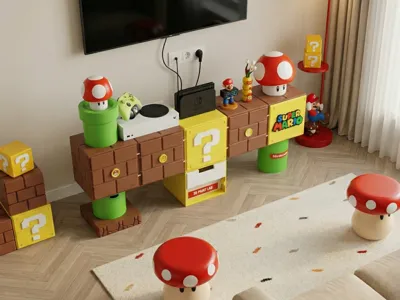

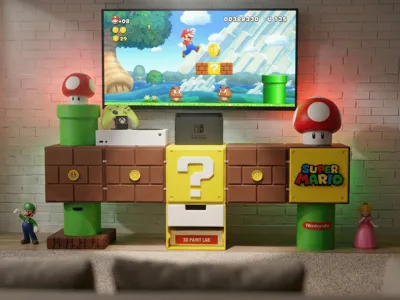

This is not just a TV unit it’s a massive 3D-printed art piece designed for retro gaming enthusiasts.

Blending classic Super Mario elements with modern storage solutions, this modular system will become the true “Hero Shot” of your setup! 🎮✨

✨ Key Features

🟨 Iconic Design
Inspired by classic Question Blocks, Brick Blocks, and Warp Pipes instantly recognizable!


📦 Modular Storage System
Each block includes spacious drawers to store controllers, cables, and accessories.

👉 Clean space, organized setup.

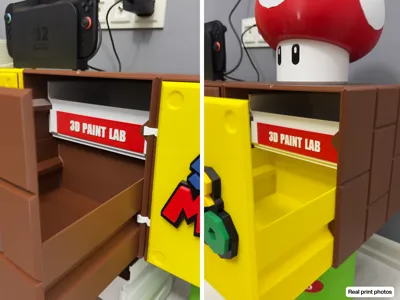

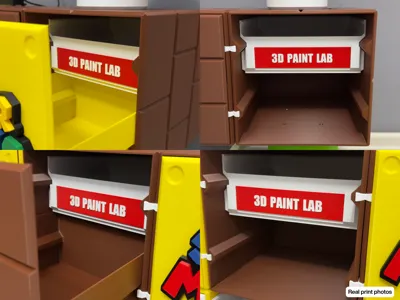

🧩 Removable Hidden Drawers
Take them out → stack them → use them anywhere (desk, shelf, workspace).

✍️ Customizable Drawer Options

• Plain version (no text)
• Custom label version (add your own text)

🎮 Console-Friendly Layout
Top platform designed to fit Nintendo Switch Dock, Xbox, PlayStation, and more.


🪙 Iconic Details
Drawer handles inspired by Coin 🪙 and Star ⭐ elements.

🍄 Mushroom Modules

• Use as storage
• Or as plant pots 🌱
  👉 Fully customizable to your style.

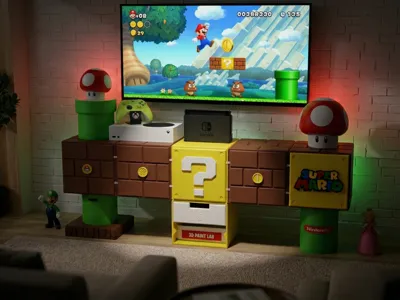

💡 LED-Ready Design
Top pipes are compatible with Bambu LED Kit for ambient lighting.

🛠️ Printing & Assembly

🖨️ Print Compatibility
All parts are split and optimized for 256x256mm build plates.

🧵 Material Recommendation

• PLA or PETG
• Matte Yellow 🟨
• Brown 🟫
• Green 🟩

🧱 Infill
➡️ 10–15% Gyroid recommended

🧗 Supports
➡️ Minimal (mainly pipe openings & inner sections)

🔩 Assembly Method

• Snap-fit connections
• M3 screws for secure structure

❗ Glue Required?
Only for 🍄 Mushroom parts:

• White top
• Eye details

👉 No glue needed for any other parts!

🔧 Required Hardware

• 🔩 M3x8 mm (countersunk) → 19 pcs
• 🔩 M3x10 mm (countersunk) → 12 pcs
• 🔩 M3 nuts → 31 pcs
• 🧴 Glue (for mushroom parts only)

🧵 Filament Usage (Estimated)

🟫 Brown PLA → ~5 kg

🟨 Yellow PLA → ~2 kg (slightly more recommended)

⬜ White PLA → ~2 kg

🟥 Red PLA → ~1 kg

🟩 Green PLA → ~1 kg (slightly more recommended)

⚠️ Note: Actual filament usage may vary depending on your slicer settings (infill, walls, supports, etc.).


💡 Pro Tip

Add an LED strip behind the unit to create a stunning depth effect with light leaking between the blocks 🌈

👉NEXT LEVEL GAMING SETUP

🚀 Join the Community

If you print this model:

📸 Share your photos
💬 Leave a comment
🚀 Drop a “Boost” to support the project

Every bit of support helps bring new designs to life!

🙏 Thank you

I would like to thank Polyture for their support of this project. The filaments and support they provided played a significant role in bringing this design to life.

🎮 Build your own world. Level up your space! 🍄
