Description

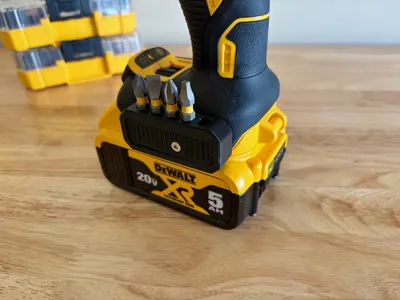

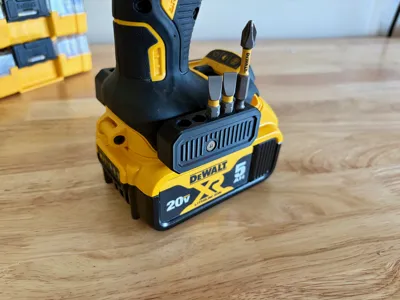

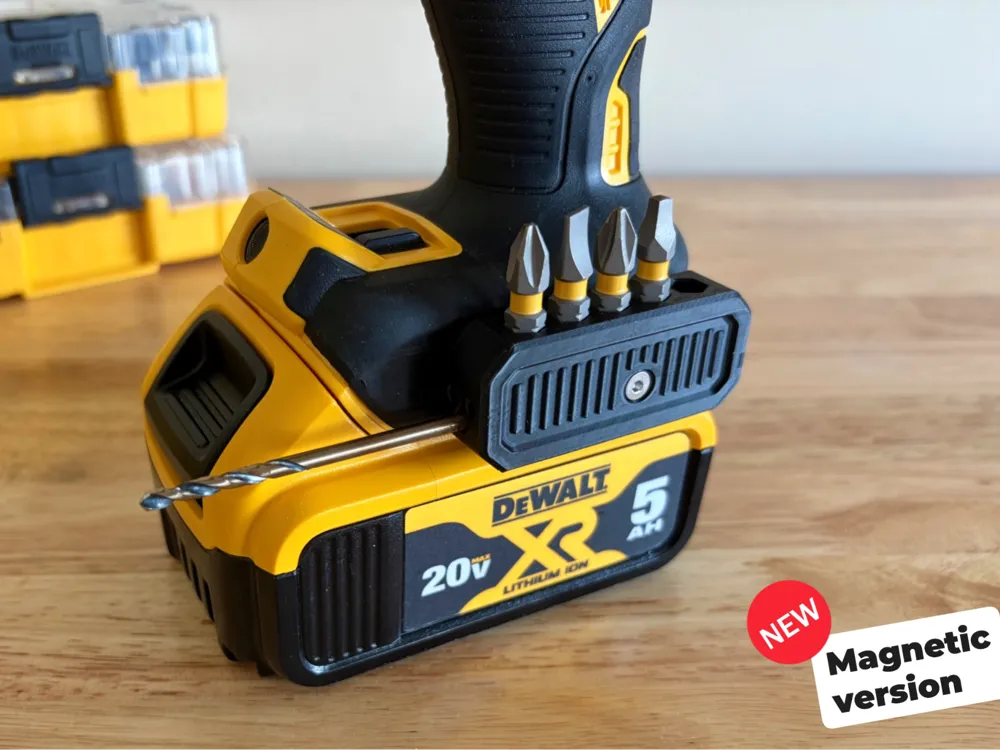

Keep your most-used hex bits (and small drill bits) right where you need them with this compact, side-mounted holder. It attaches directly to your DeWalt drill using the built-in M3 screw port, so you’re always ready without digging through drawers or pockets mid-job. Designed to match the DeWalt aesthetic, it looks and feels like it belongs.
✨ Highlights
- 🔩 Direct Mount Design – Attaches to the DeWalt Drill M3 (3mm) accessory screw port using a M3x20 screw.
- Note: Compatible with most 12v/20v DeWalt drills (ex: 700/800/XR). Confirm your drill has these mounting holes before printing.
- ⚡ Quick-Access Storage – Keep your most-used bits on the drill—no extra carrying needed.

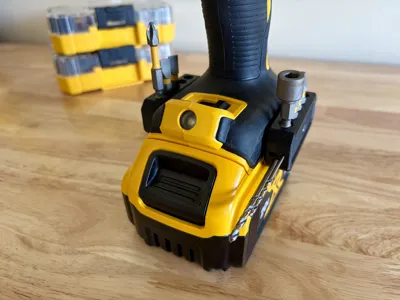

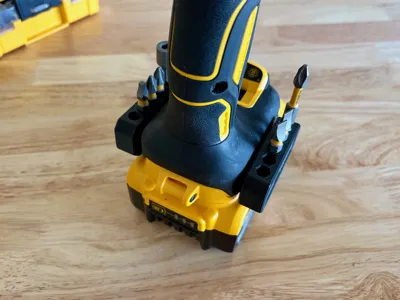

- Fits standard ¼" hex bits (6.4mm). Upgrade with front storage for drill bits up to 1/8" (3.2mm).

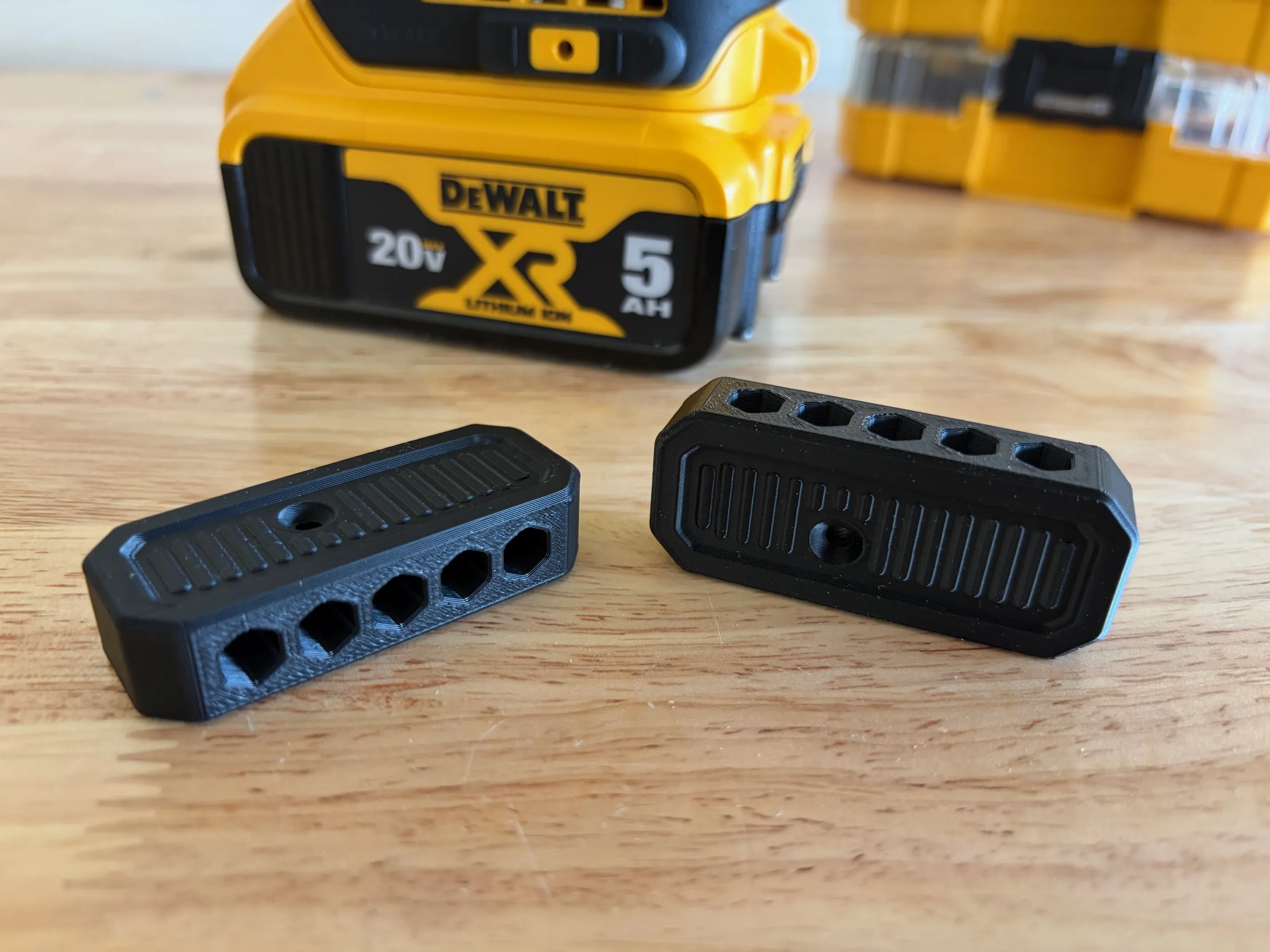

- 🆕Choose between the original friction fit design or a magnetic version.
- The magnetic version secures bits in-place with 5-8x2mm diameter magnets inserted at a layer pause.
- Low-Profile Fit – Positioned to stay out of the way during normal use
- 🟨 OEM-Inspired Look – Designed to match the DeWalt style for a seamless appearance
Boost Me (for free)
Enjoying this print?
👍 Liking helps others discover this model
🚀 Boosting is the best way to support my work
➕ Follow for more functional prints coming soon!
🖨️ Printing Notes
- Recommend PETG for a little more flex/durability, but PLA should work well too.
- Print profiles use 3 walls for added strength.
🧩Assembly Guide

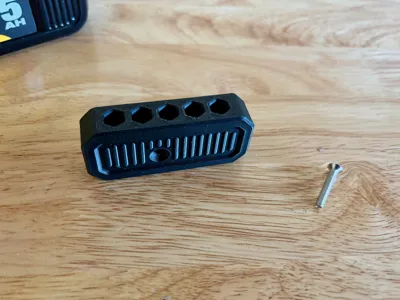

- Use an Allen key to start screwing the M3x20 into the bit holder. It's self-tapping design.
- Once the screw is coming out the other side, align to the drill's M3 screw port, and screw until tight.
- Ensure it's snug and secure.
- Grab your favorite hex bits, load 'em in, and get to work!
