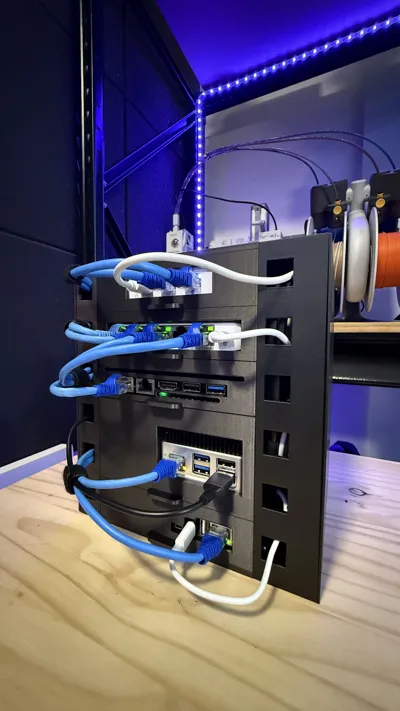

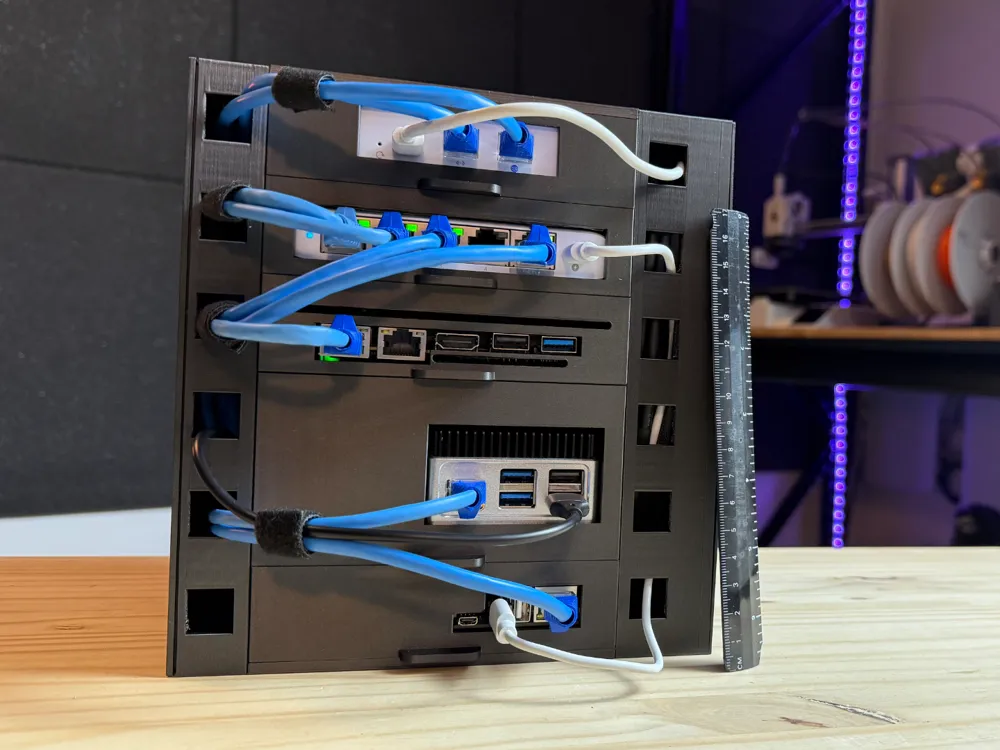

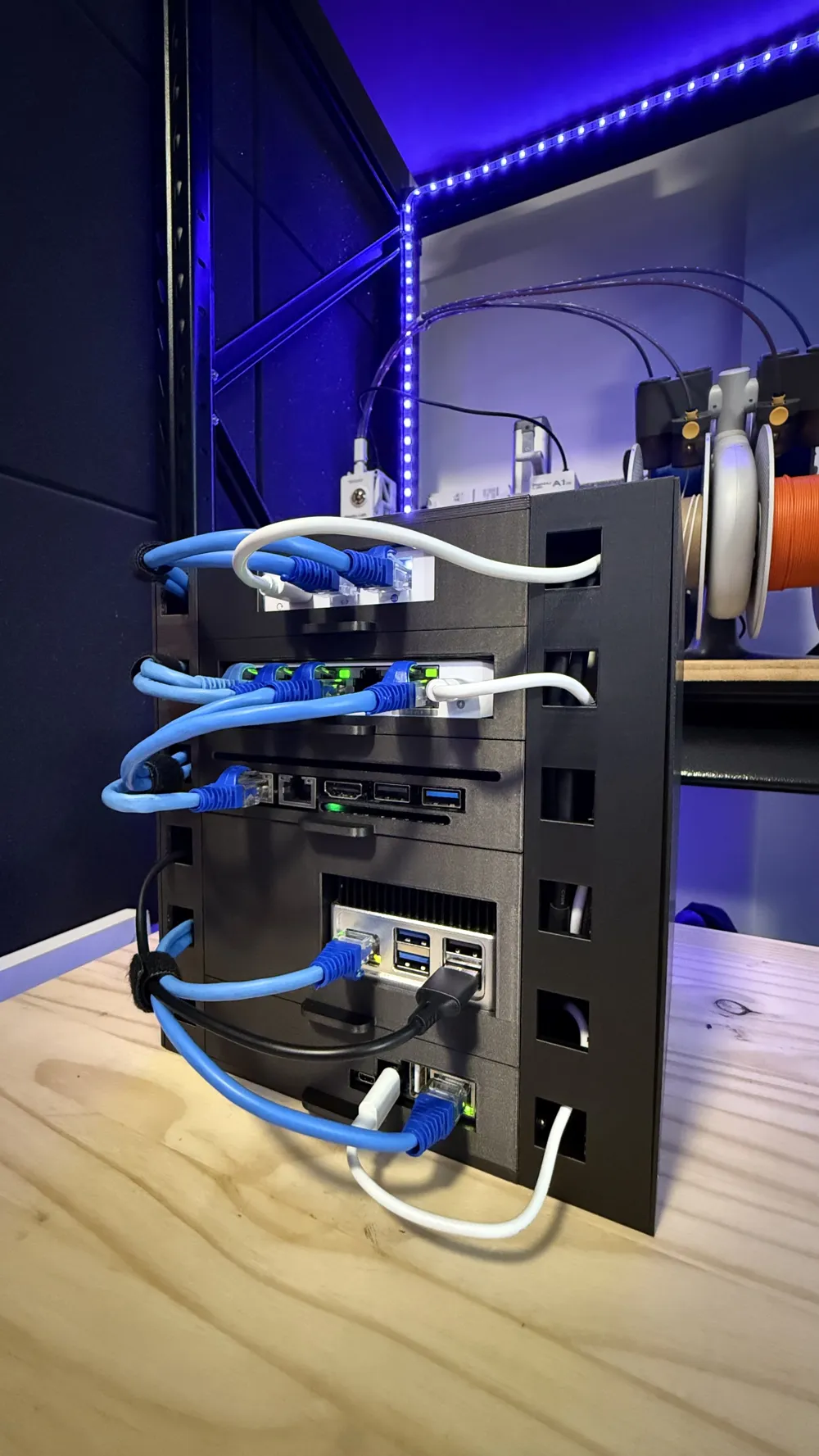

MicroRack LNPBR

Ultra-compact rack designed for SBCs and networking equipment.

Feel free to create and customize new side modules or device trays for different hardware. If you build something new, share it here with the community so others can benefit and expand the ecosystem together.

Assembly Video:

Bill of Materials

Hardware:

Threaded Inserts and Screws (Kit M3B)
https://s.click.aliexpress.com/e/_msTLU8p

Black External Screws (Choose M3x10 for this project)
https://s.click.aliexpress.com/e/_mOBT9P3

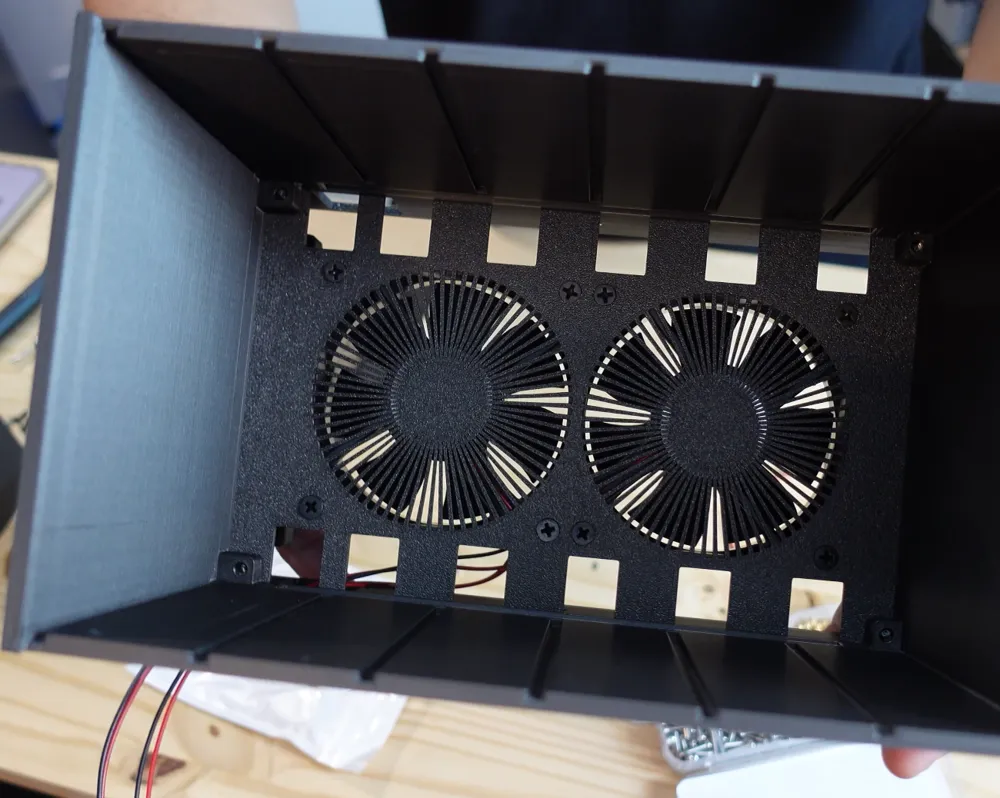

Cooling Components:

Cooling Fan (Choose 5V, Dual Ball Bearing)
https://s.click.aliexpress.com/e/_mt6wq3P

USB Cable for Fan Connector Conversion (Choose Right Angle, 20cm)
https://s.click.aliexpress.com/e/_m0H8lAt

Fan Connectors (Choose JST 2.54mm, 20cm)
https://s.click.aliexpress.com/e/_msfjLrF

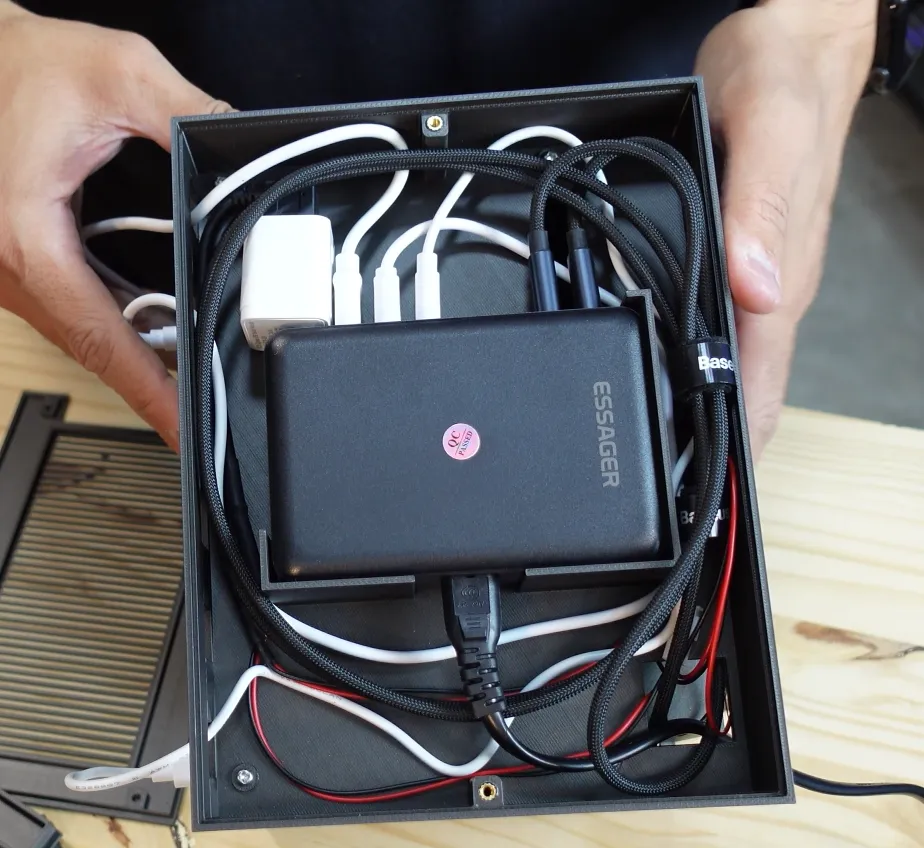

Power Components:

Essager 320W Charger
https://s.click.aliexpress.com/e/_mPga4cD

Baseus 100W USB-C Cable
https://s.click.aliexpress.com/e/_mL4MkjJ

Filament Compatibility

This project can be printed with virtually any common filament:
- PLA (not recommended for UXG-Lite and Switch Flex due to heat)
- PETG (recommended for trays)
- ABS / ASA (recommended for trays)
- Other equivalent materials

Choose the material that best fits your environment and preference.

Required Hardware Quantities

Threaded Inserts:
- M3x8x4.5 - 11 pcs
- M3x3x4.5 - 10 pcs

Standard Screws:
- M3x10 - 4 pcs
- M3x6 - 10 pcs

Black External Screws (Optional, depends on your print color preference):
- M3x10 - 7 pcs
