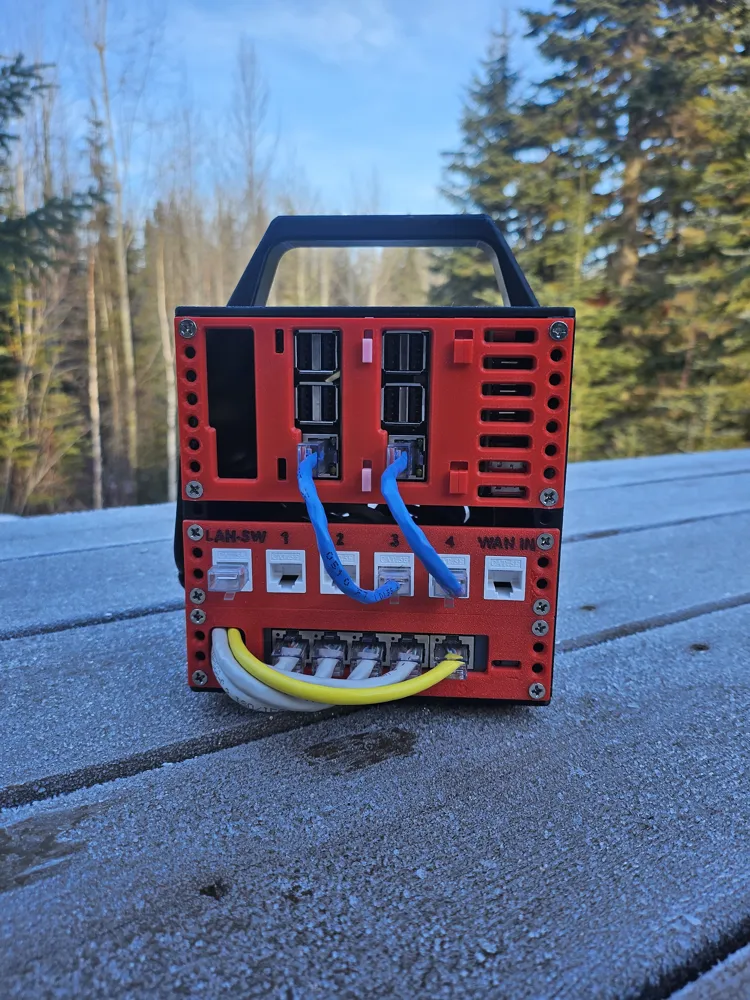

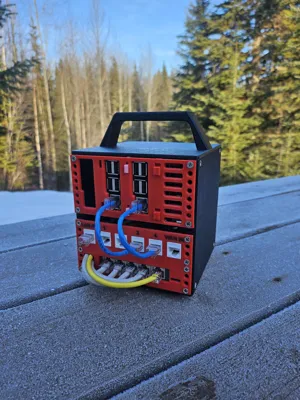

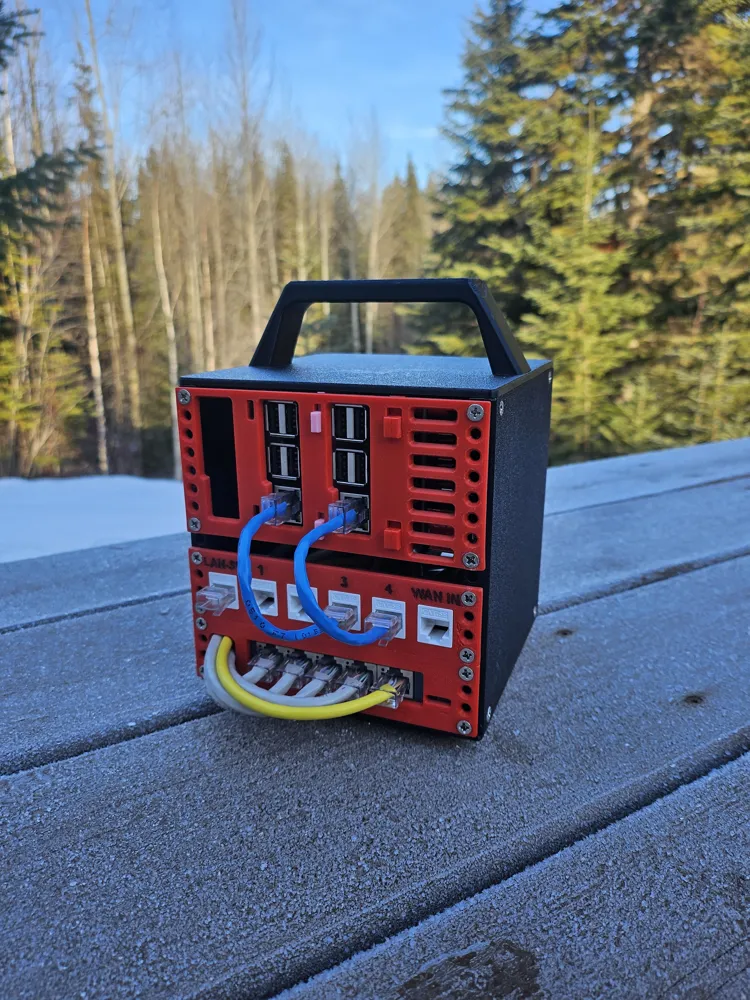

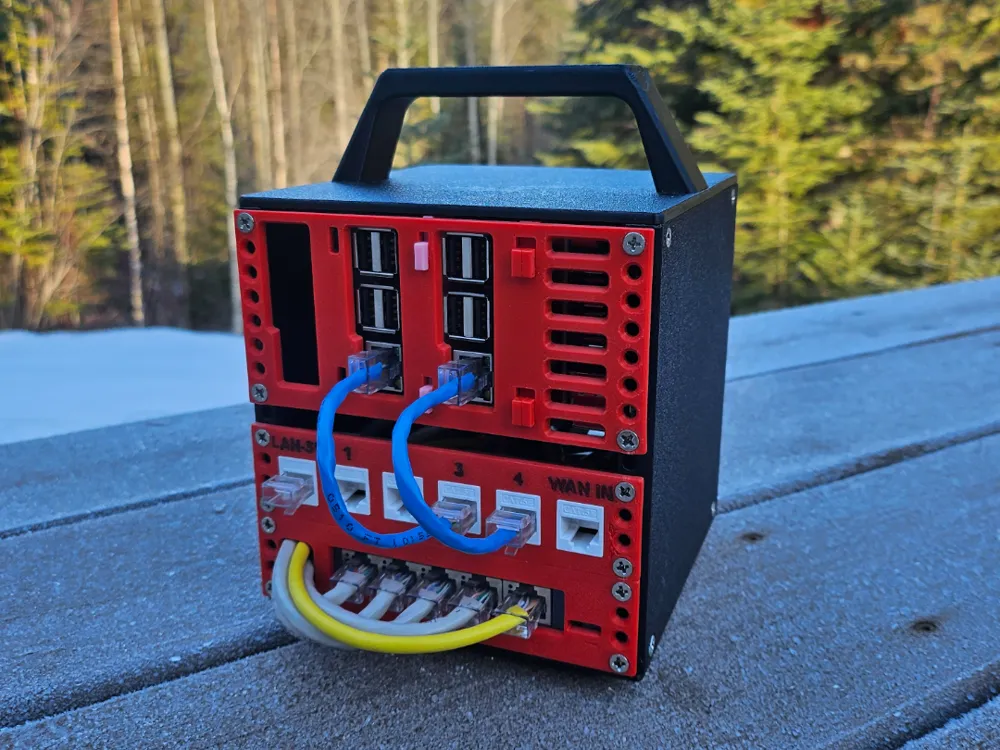

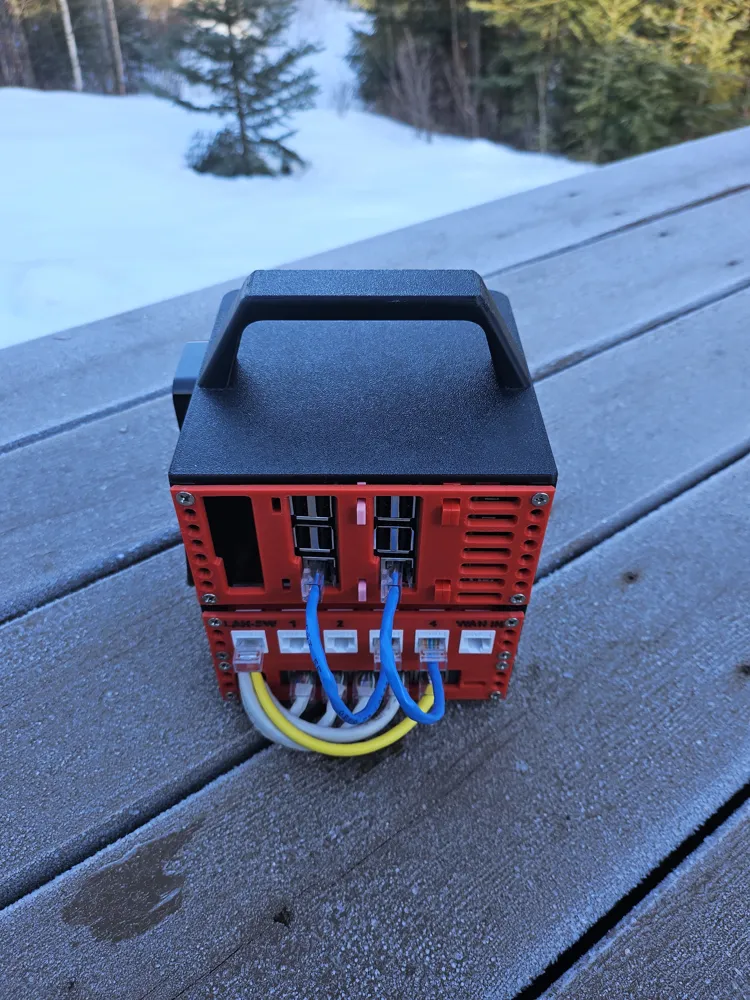

Micro Rack
Print Profile(4)
Description
MicroRack:
Designed By Bluejfish (ᓚᘏᗢ)
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Design:
Please refrain from removing logos from the design. I made sure they are well hidden and don't show up while printing.
Feel free to modify/re-distribute the "BlankPanelForDesigns.step" as I would love to see what other people make and put in the rack! this is located in the FrontPanels\DIY\ Folder.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Credit:
If you show the rack off in video/photos please credit and/or link my original files if applicable.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Form Factor:
This rack does not follow any known (At least by me) Rack form factor.
the holes vertically are spaced 8.125mm apart. The distance between the holes on the left and right side of the rack is 127mm apart. Each hole is 4.3mm in diameter
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Assembly:
The screws needed are corse thread fan screws. Easy to find easy to install you will need 22x total to assemble the rack body. More will be needed for the front panels.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Enjoy the MicroRack!
