Description
Here you can find more about rain barrels :-)

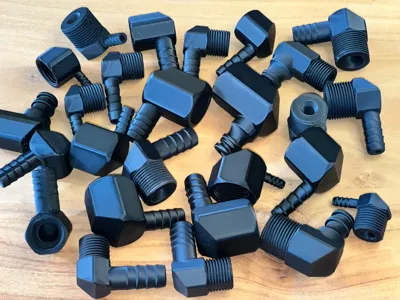

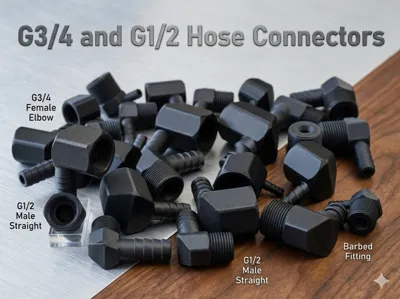

Modular Water System with G3/4" and G1/2" Threads
This modular connection system is the perfect solution for anyone who wants to connect water tanks precisely and flexibly – especially when space is tight. Thanks to the new G3/4 inch and G1/2 inch variants, the system can now be seamlessly connected to standard garden accessories without adopting their bulkiness.

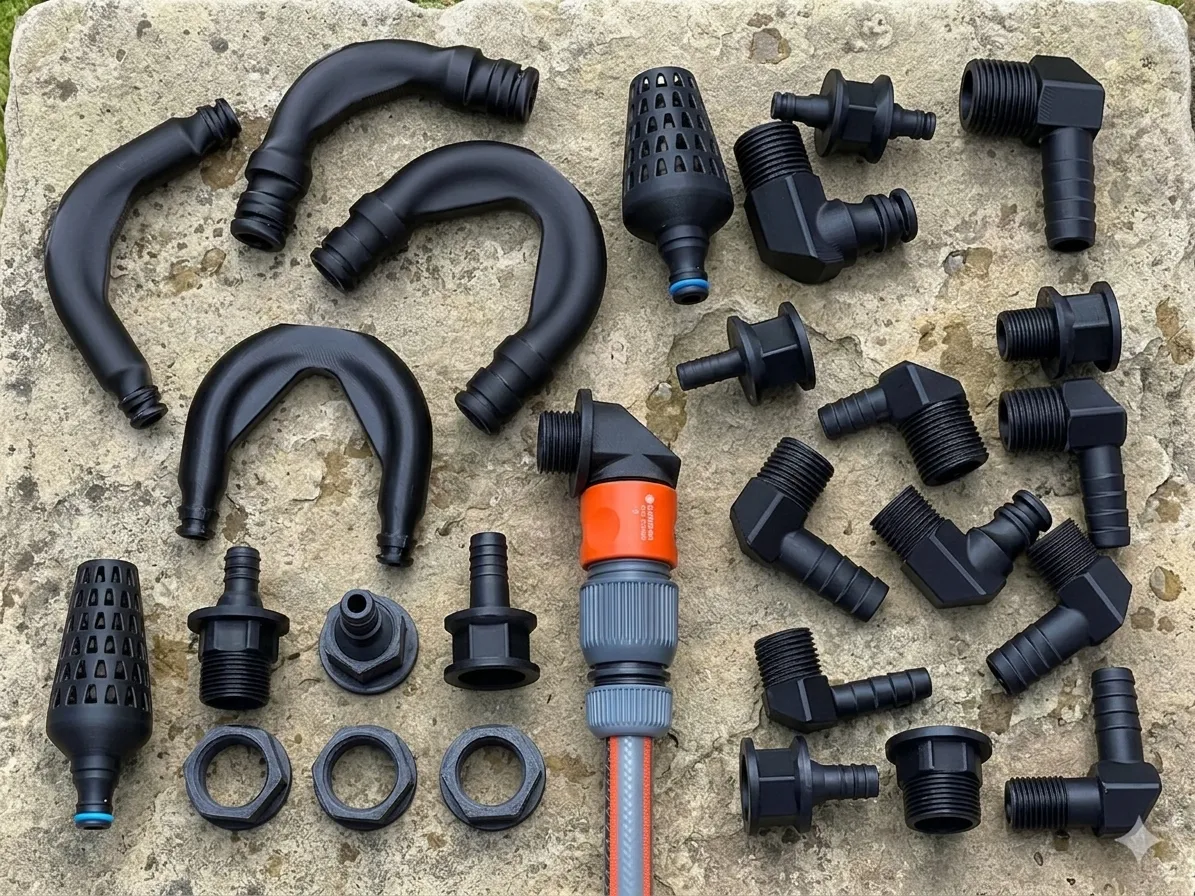

System Overview:

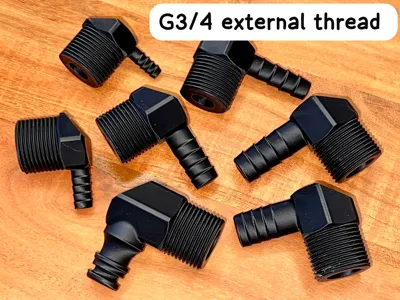

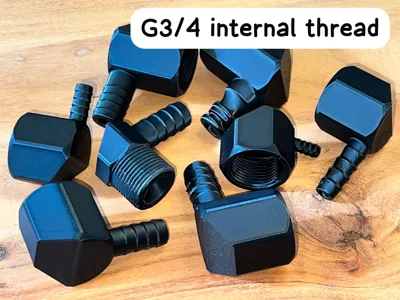

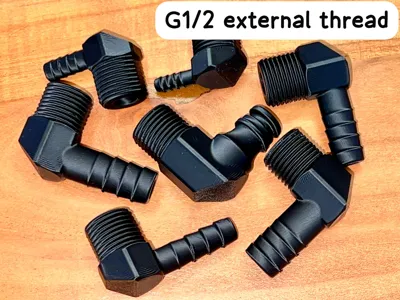

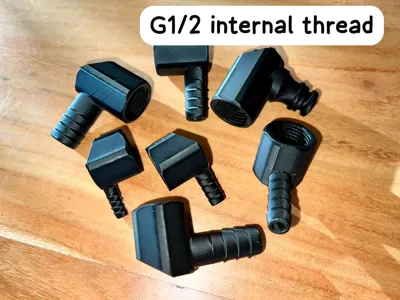

- Versatile Threads: G3/4 inch and G1/2 inch (internal & external threads selectable)
- Connections: Suitable for hose inner diameters D6, D8, D10, D12, D13, D15 and direct Gardena coupling.
- Space-Saving Solution: All adapters are available as 90° angles. This allows for hose routing directly parallel to the wall – ideal for tight setups or grow boxes.
- Gardena Compatible: Includes adapters for the common quick coupling system.
Assembly Note for Gardena Connection:
For a 100% seal, a standard Gardena sealing ring (rubber ring) is required.
Gardena Standard Dimensions: 16 x 11 mm (outer diameter x inner diameter) / Cord thickness: 2.50 mm
Boost Me (for free)
Have fun crafting and gardening in the smallest of spaces!
