Improved Auto Coin Sorter (TRY Turkish Lira)

This is the TYR (TYR Turkish Lira) version of the Improved Auto Coin Sorter. It is designed to sort your change into removable tubes, making it easy to create coin rolls quickly.

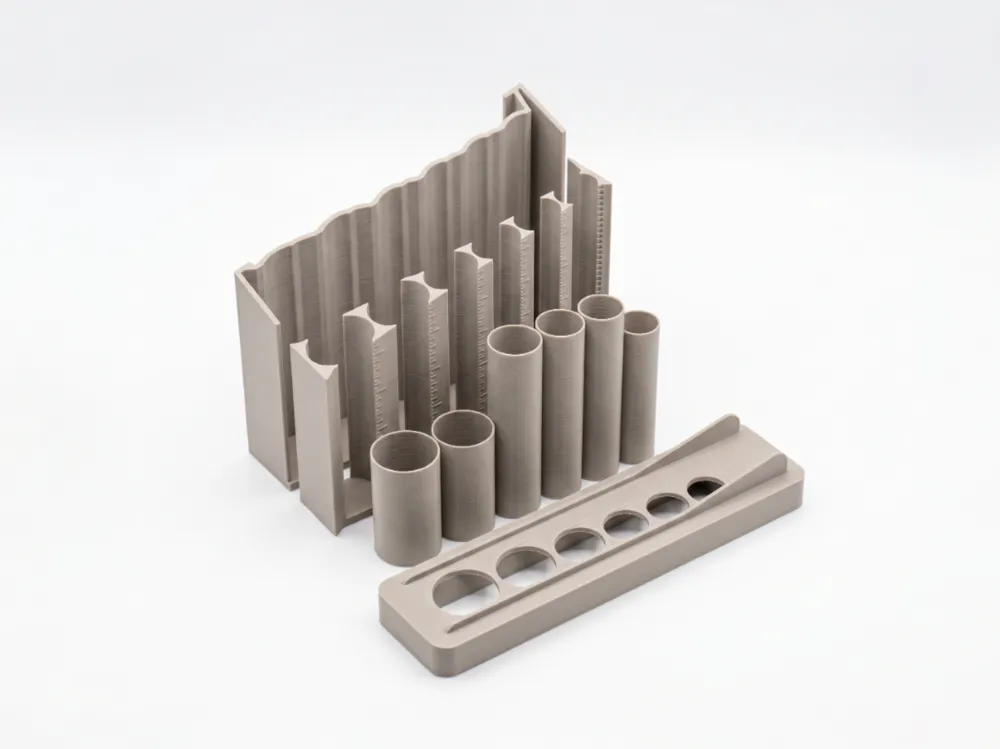

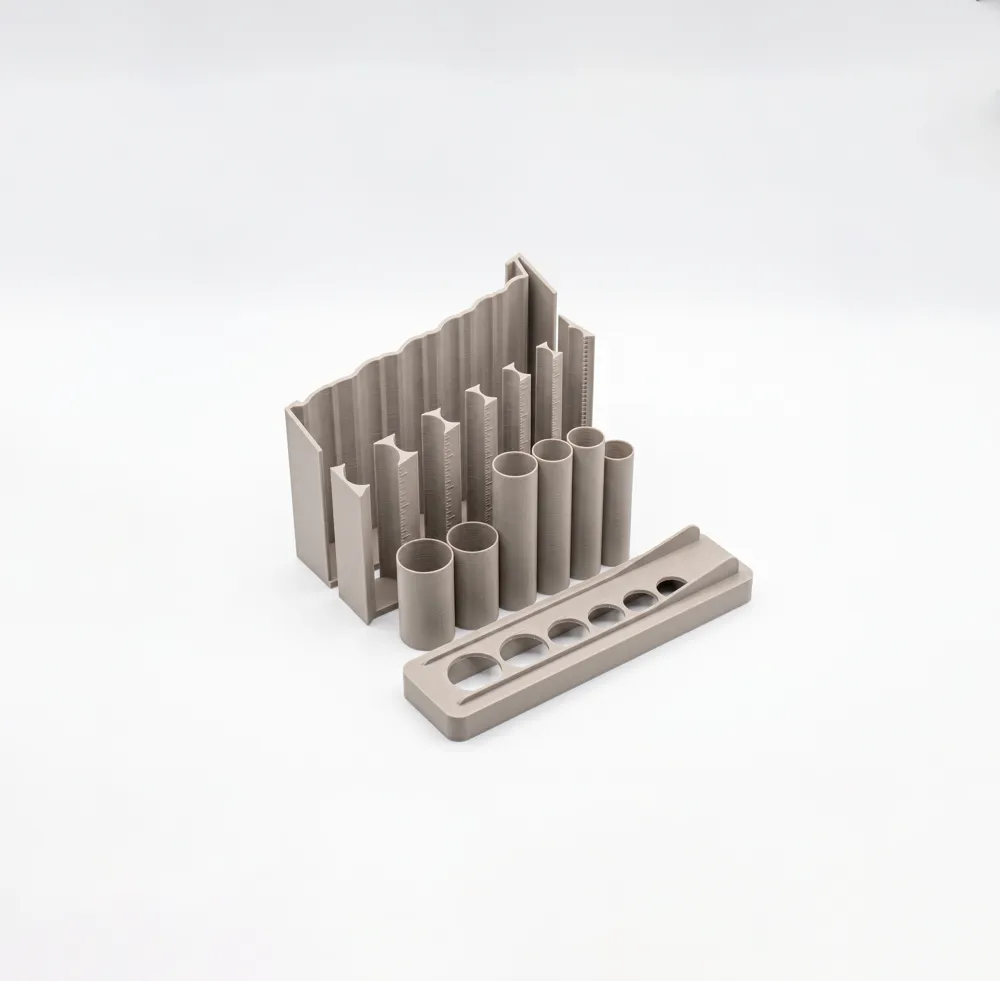

This model features a robust lid-type top board that stays perfectly aligned and keeps the coin holder reliably in place. It also includes an extra-long ramp to make feeding coins easier and smoother.


✨ Key Features

• TYR Specific: Calibrated specifically for TYR Turkish Lira coins.
• Coin Roll Ready: Sorts into removable tubes marked at the bottom. Once full, simply slide a paper wrapper over the coins for instant rolling.
• Classic Option: Includes the option for "classic" simple slots if preferred.
• Reliable Feeding: Options for raised guard rails and rear guard rails to ensure coins slide correctly.
• Optimized Design: The base box can be printed upright to save material and fit on smaller print beds.

⚙️ How to Use

1. Sort: Release a coin from the top right; it will slide down and fall into the appropriate TYR tube.
2. Wrap: Once a tube is full, remove the top board, take out the tube, and insert it into a paper wrapper.
3. Finish: Pull the printed tube out while leaving the coins in the wrapper, fold the ends, and you are done!

See the original logic in action here: http://youtu.be/7F2fIF9PNBk

🖨️ Print Settings

• Supports: Most parts print without supports.
  • Exception: The Top Board requires supports OR can be printed split vertically (2 parts) and glued together.
• Orientation: The top board might need to be oriented diagonally on smaller beds. The Basebox can be printed upright.
• Material: PLA or PETG recommended.

👤 Attribution & More Models

This model is a remix and update based on the excellent work by BikeCyclist. Full credit goes to the original creator for the mechanism and design logic. 👉 https://www.printables.com/@BikeCyclist

Looking for other currencies? I have uploaded versions for many other currencies. Please visit my profile to find the one you need: 👉 https://makerworld.com/@eltorga
