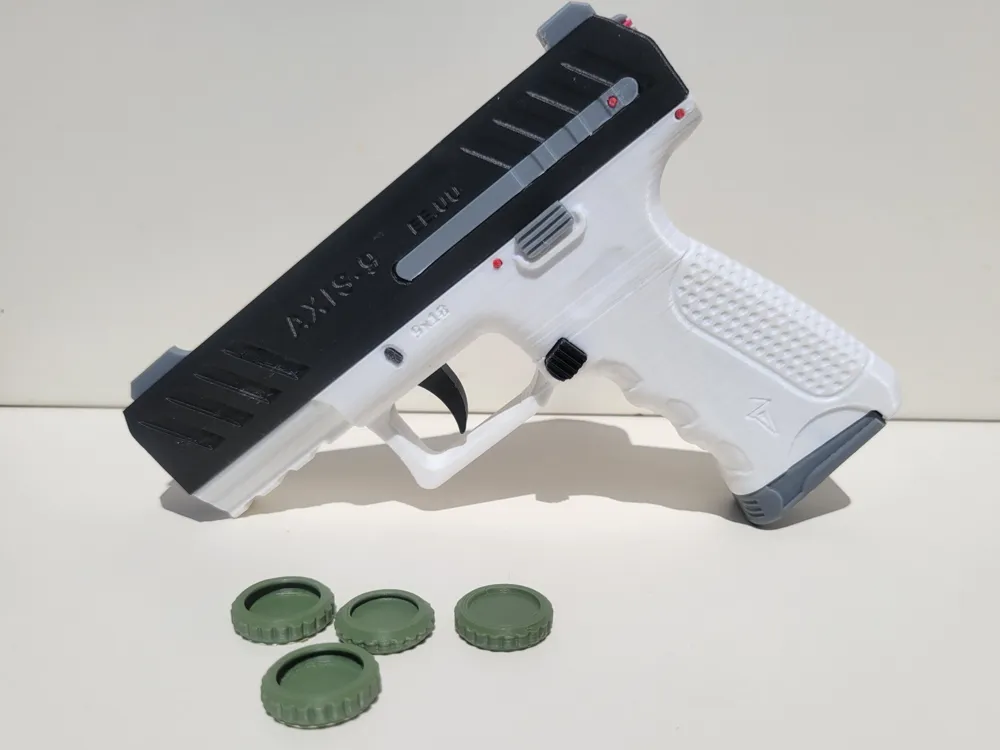

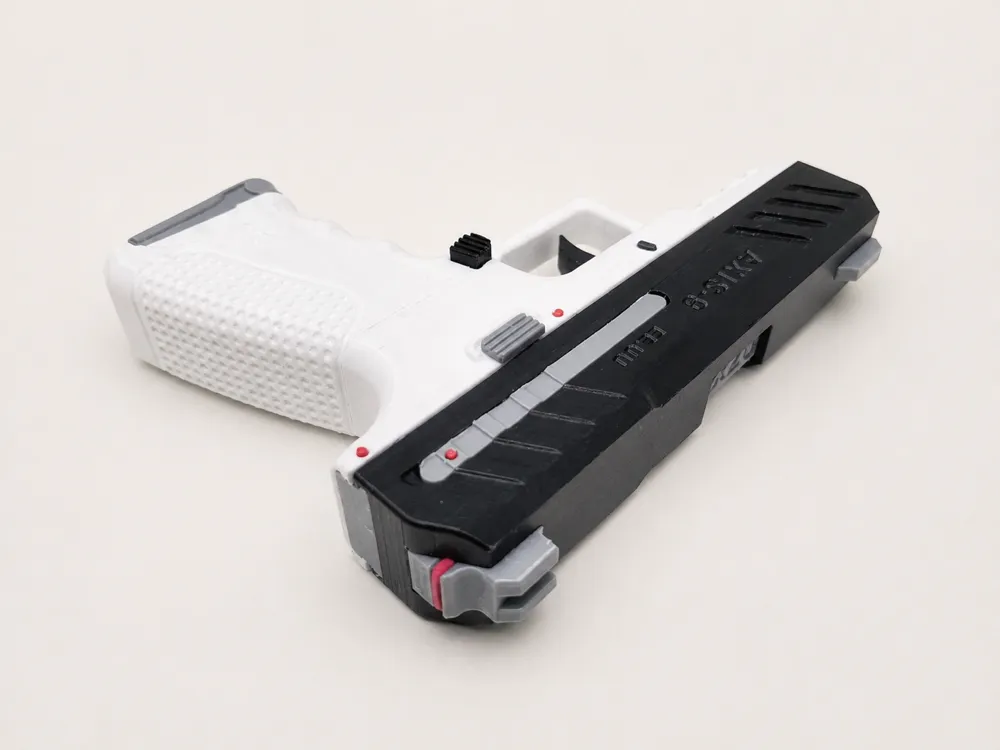

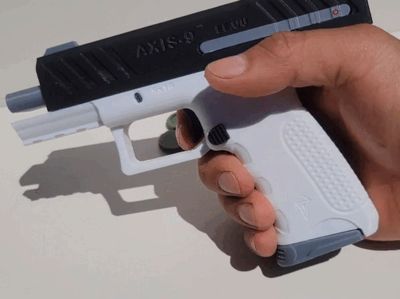

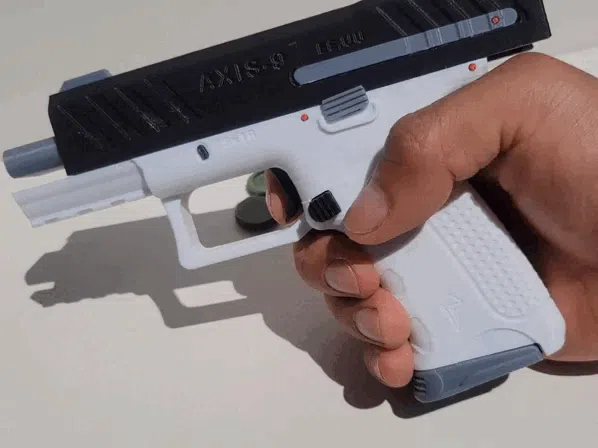

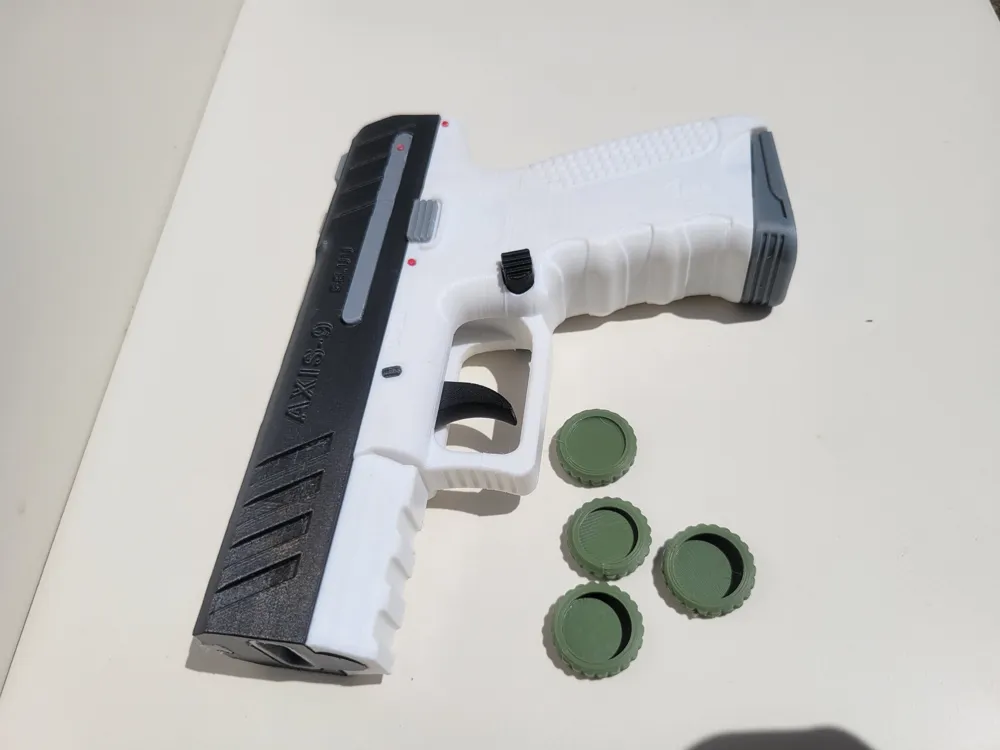

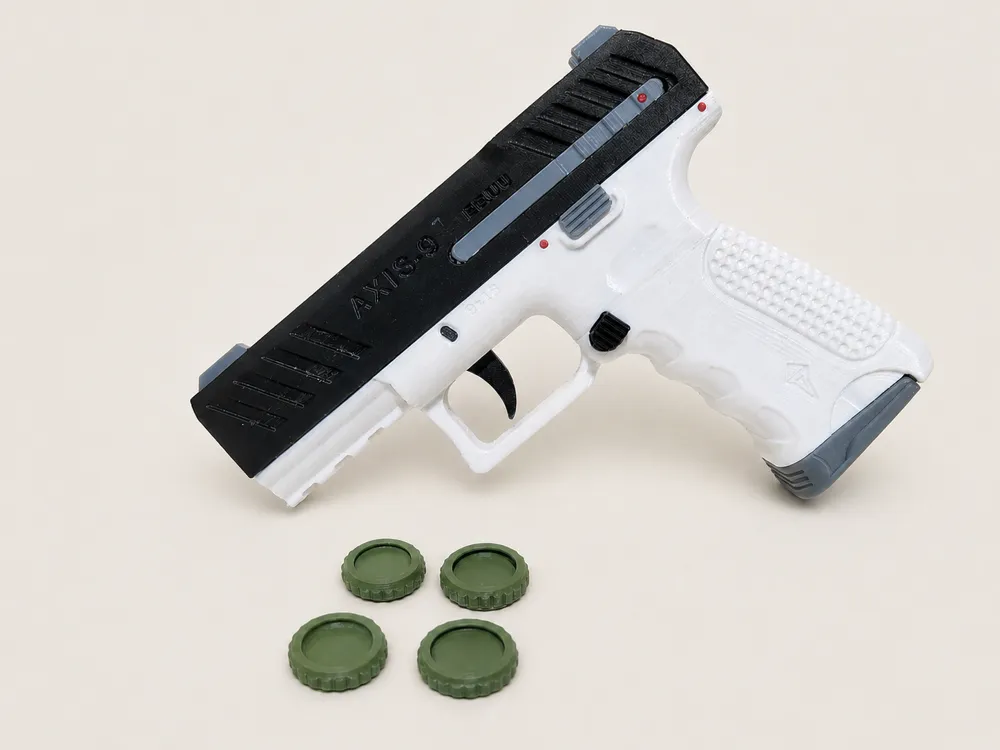

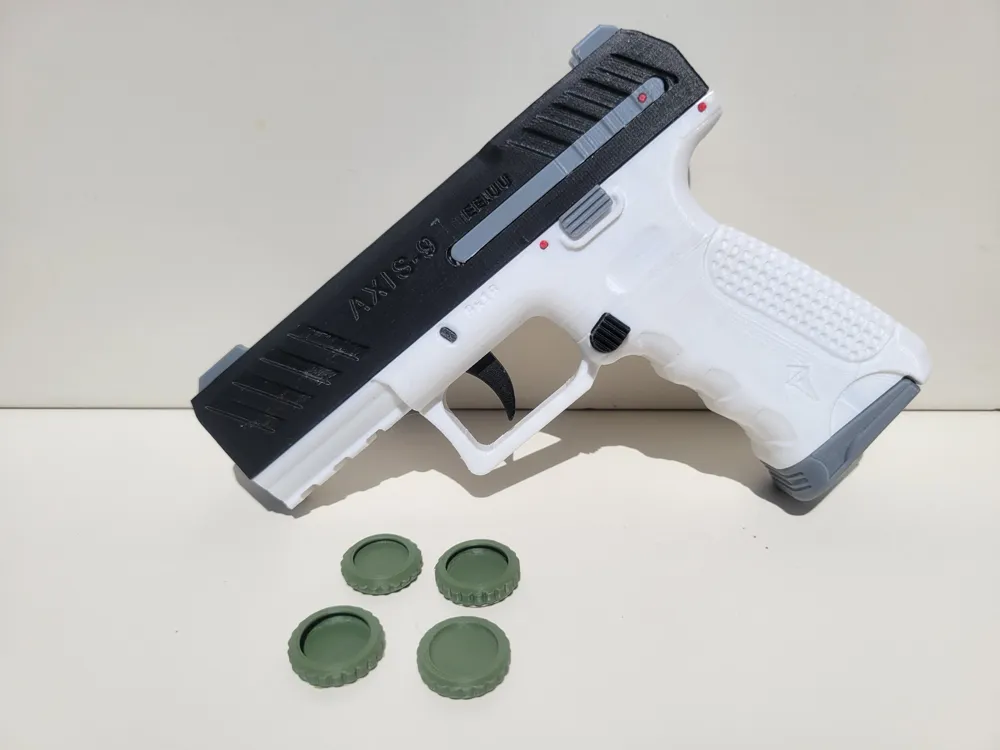

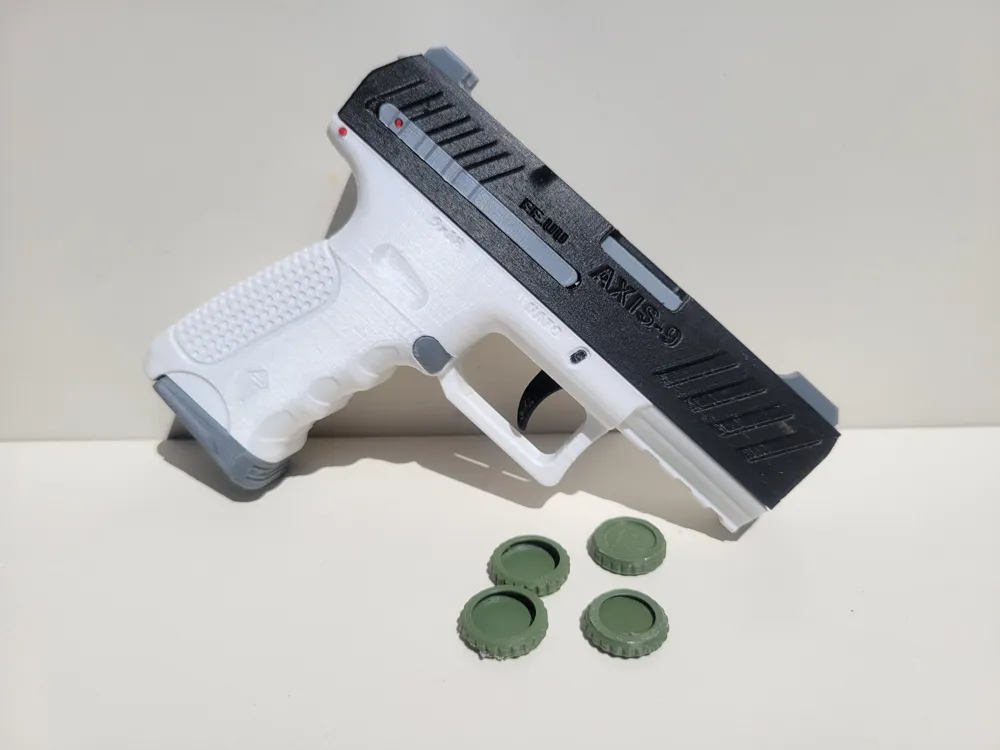

AXIS-9 V2 DISC LAUNCHER GUN. (Improved)

Axis 9 V2 is the update to the original Axis 9 design.
In this version, defects from the previous model were corrected, and new details were added

ASSEMBLY LINK

Improvements and New Features:

Screw: I have eliminated the problematic screw. It now includes a press-fit piece, making assembly much more practical

Reinforced Magazine: I redesigned the top part of the magazine (which was previously a weak point). It is now a separate, assembled piece, providing superior structural resistance to prevent breakage

Mechanical Realism: I added a functional Slide Stop and an ejection port on the slide to give it a much more realistic aesthetic

Aesthetic Adjustments: The slide has subtle design changes that improve the overall appearance without losing the essence of the original model

Compatibility Guide (ORIGINAL vs V2)

If you already have the previous version, here's a breakdown of what you can reuse and what you need to print again:

COMPATIBLE PARTS (You can use those from V1):

• Ammunition: Discs (100% compatible)
• Trigger: The TRIGGER remains the same
• Magazine Safety: The lock that retains the magazine is compatible
• Magazine Base: The bottom cover is the same
• Sights: Both front and rear fit perfectly
• Slide Guide: The safety/guide is compatible, BUT I recommend printing the new version included in this profile, as it has been scaled for greater precision and tighter tolerances (firmer fit)

NEW PARTS (You must print these):

Grip: Redesigned for the new interlocking piece that holds the spring and for the slide stop

Slide: New aesthetic, ejection port, and system for the slide stop

Disc Pusher: Completely new internal mechanism for greater reliability

Magazine Body: It is now a completely different piece except for the base

ASSEMBLY SPECIFICATIONS:

For operation and assembly, it requires

ELASTIC BANDS

One large and one small band for the recoil mechanism and for the magazine

SPRING:

A standard ballpoint pen spring for the magazine safety mechanism

CUSTOM CUT FILAMENT PIECES. to secure the movable parts and the structure

PRINT RECOMMENDATIONS

MATERIAL: PETG is recommended to ensure the firmness,

elasticity, and durability of components under tension. PLA can be used but does not guarantee durability

SUPPORTS: The design already includes manually integrated supports in the grip (handle) and on the slide to ensure a clean print

Expert Tip: If your printer is well calibrated, you can increase the layer height to 0.20 mm to save time without losing much quality (Thanks @Olegpa for the tip)

ASSEMBLY LINK

https://youtu.be/Enzp9hWZTlA?si=5-wReoW2ZQ6UxPGq
