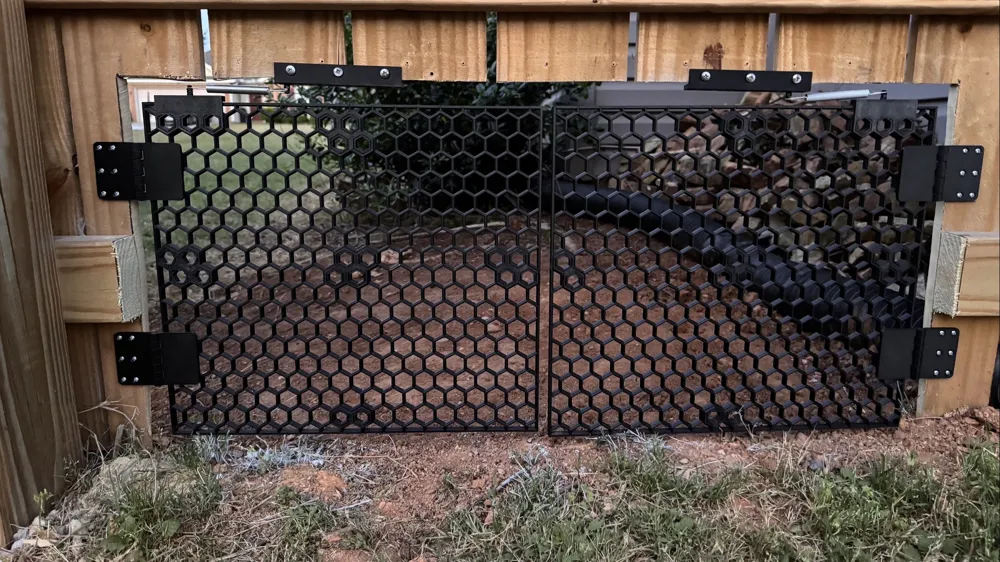

Self-Closing Robot Mower Gate (Not Self-Locking)
NOTE: Built using shared HSW Honeycomb standards and sizes

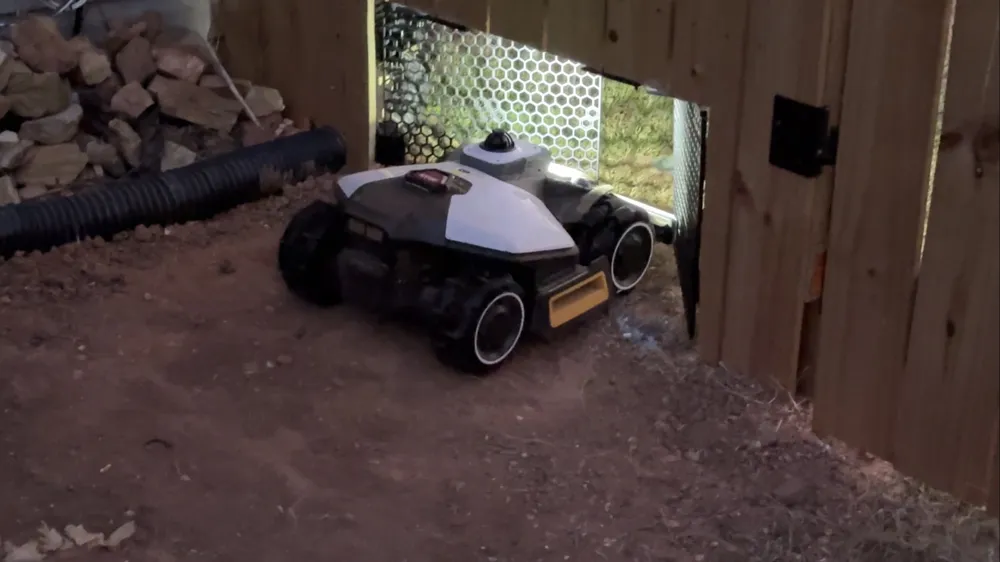

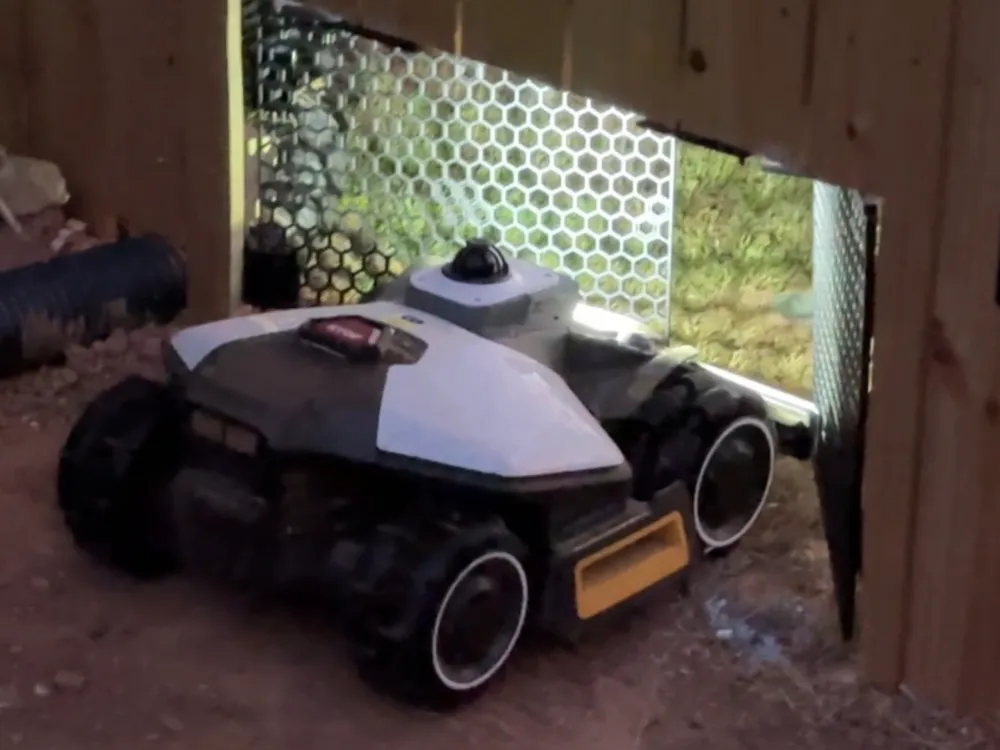

Designed for reliable pass-through and automatic return, this gate was built and tested with a 2026 Luba Mini 2 AWD 1500 (360° LiDAR). The width is intentional to account for navigation drift when using a dedicated channel.
Overall 2-panel size : 14.5 in (H) × 34 in (W)
Recommended Fence Opening
- Self-Closing Robot Mower Gate (Not Self-Locking)Cutout: 15.5 in (H) × 34.635 in (W)
Assembly Notes

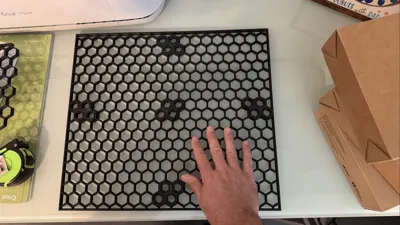

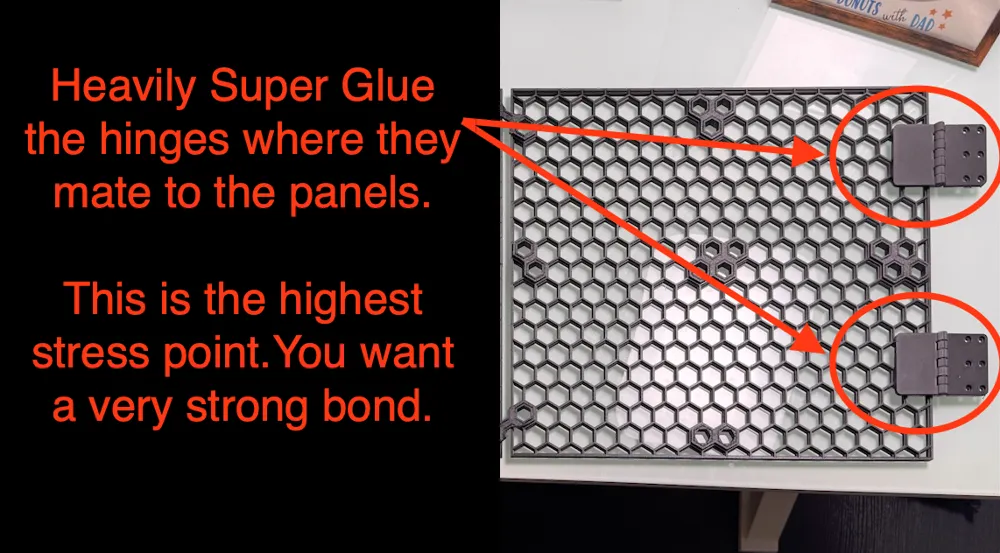

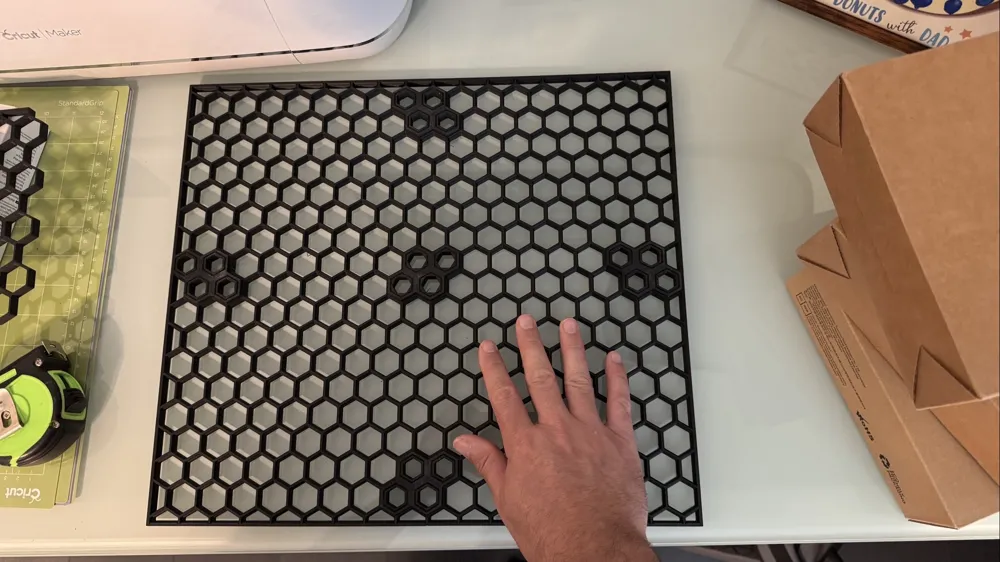

Bond all door panel edges together with CA (super glue).

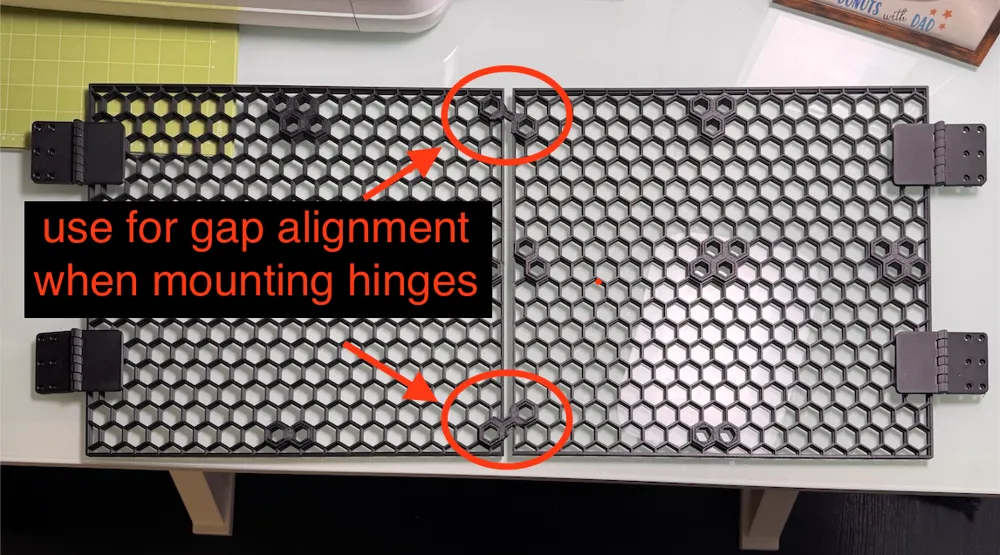

Use the 2 alignment connectors to hold the correct gap during mounting.
- — Do not glue these in place, remove after installation.

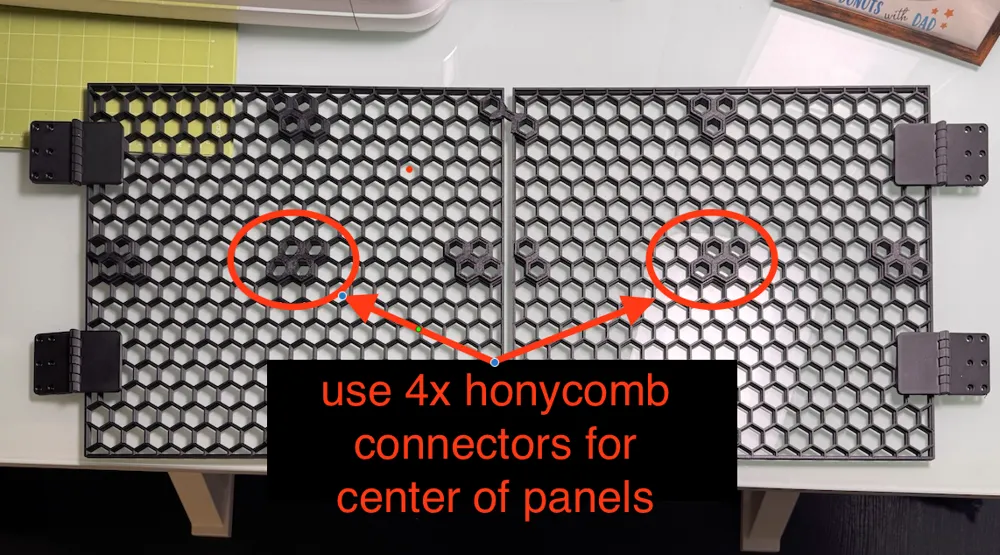

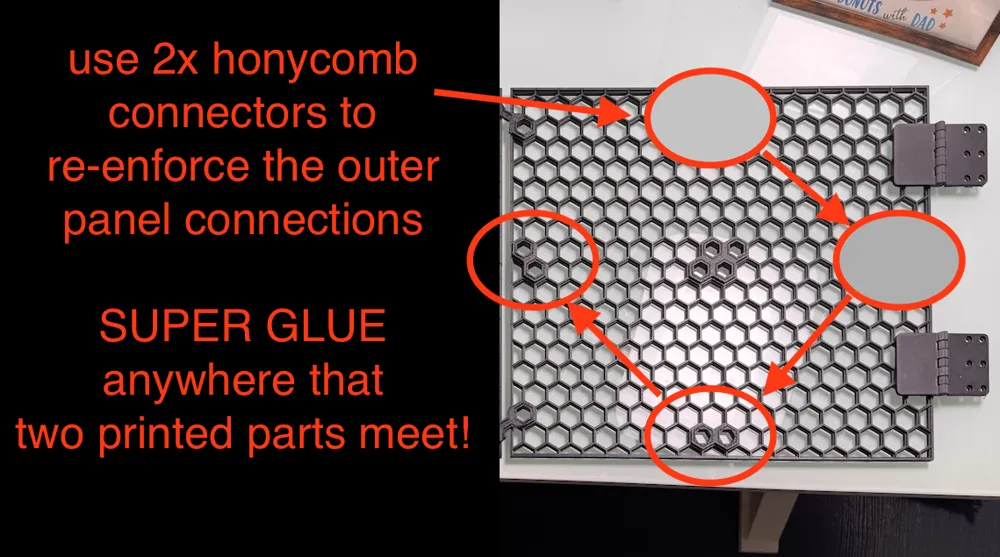

Glue all permanent honeycomb connectors into the panels.
- Numerous threaded insert holes are included to allow post-assembly adjustment and tuning.

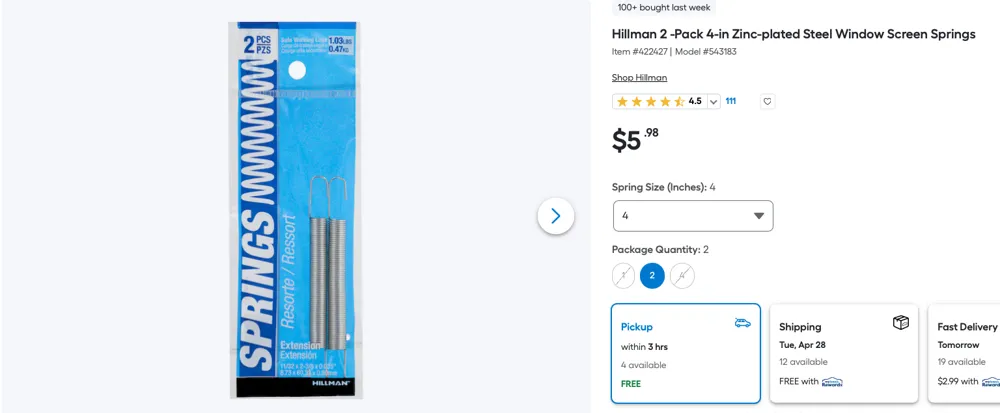

Hardware
Installation Tips

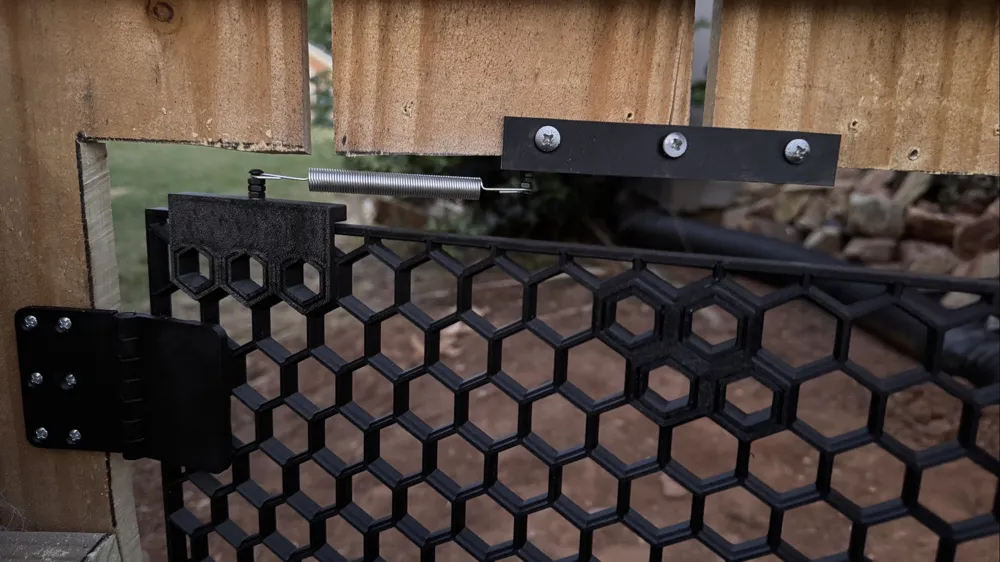

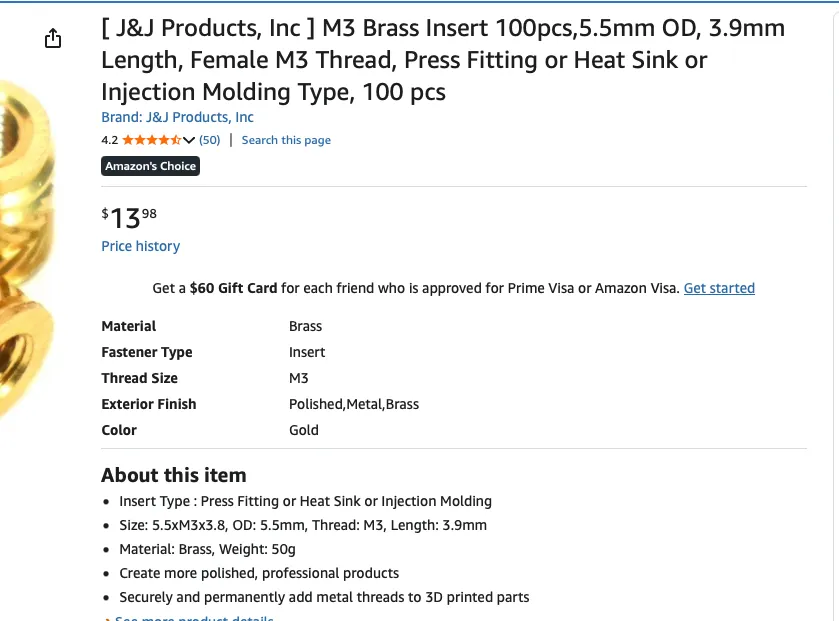

Install threaded inserts in all spring mounting locations before assembly.
This gives flexibility to reposition springs later without disassembling the gate.
Notes
- Gate is self-closing, not self-locking.
- Designed to balance easy push-through with consistent return to center.
