Description

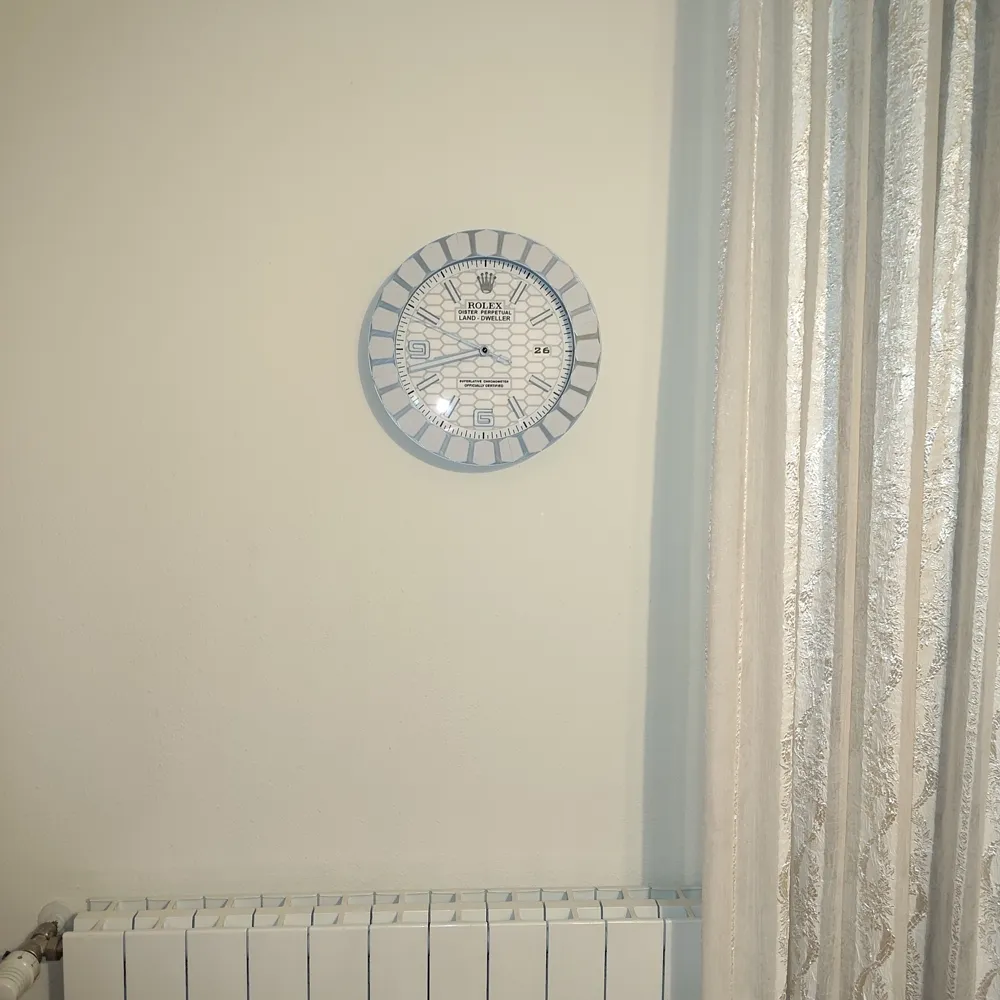

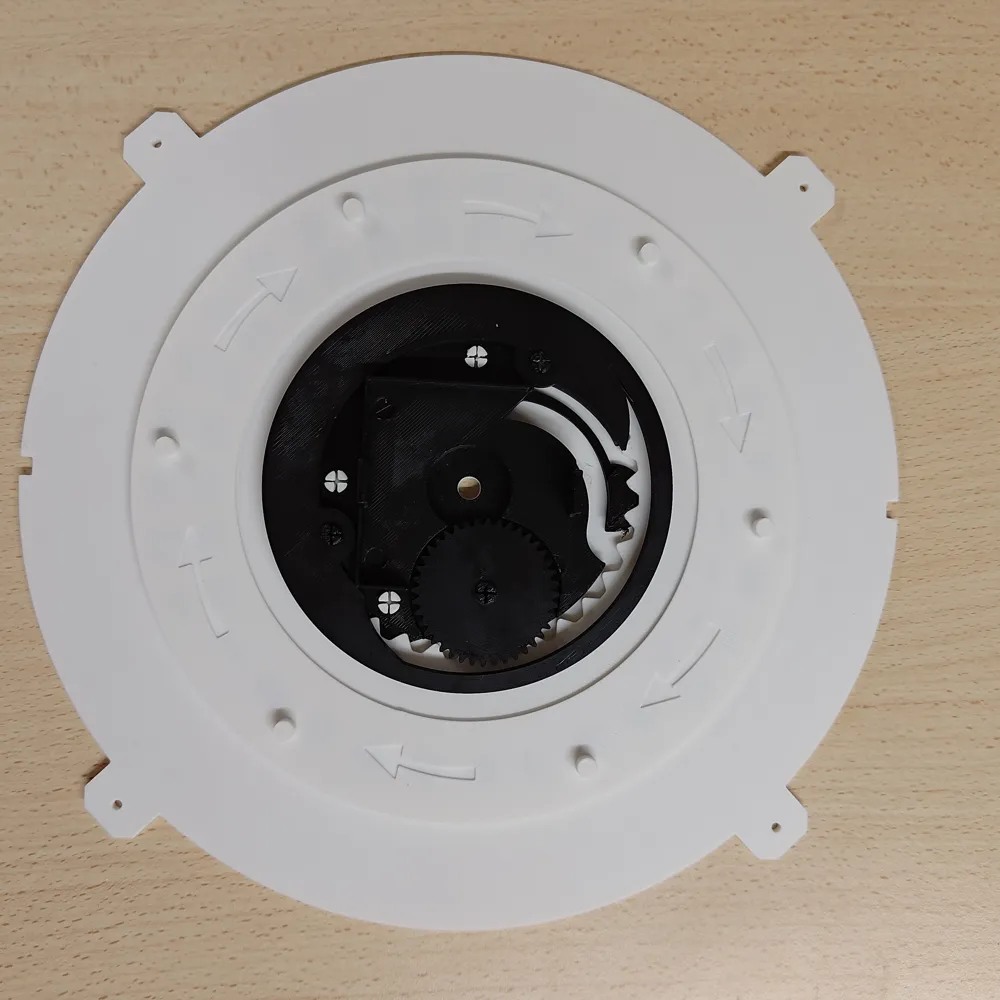

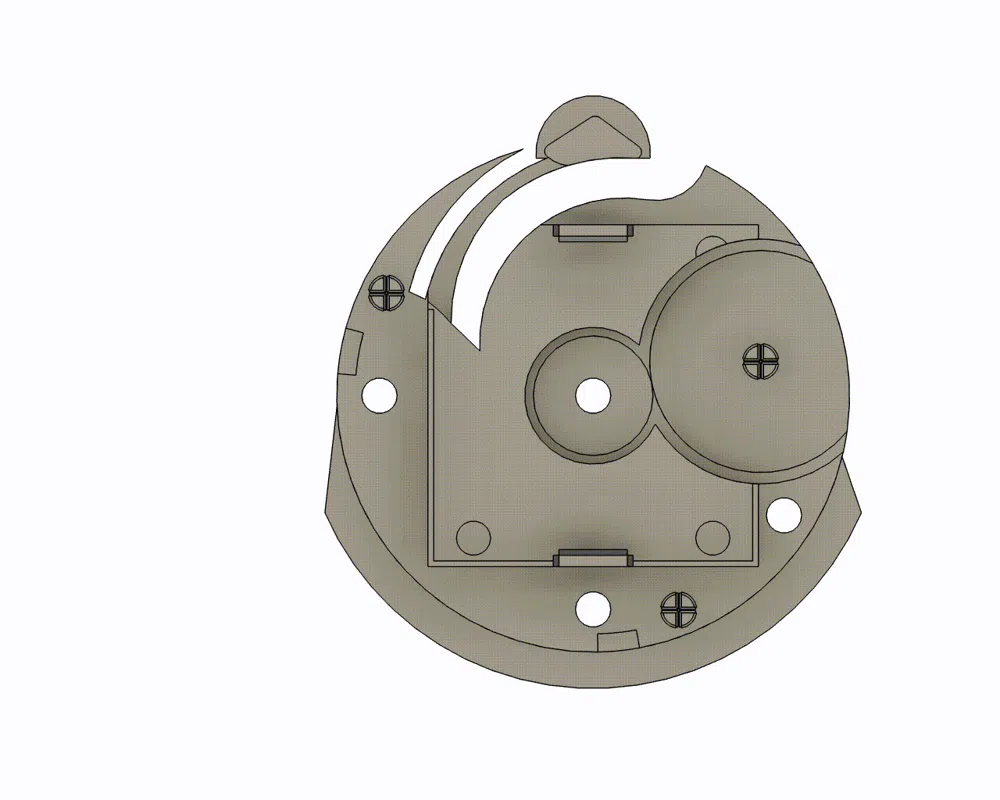

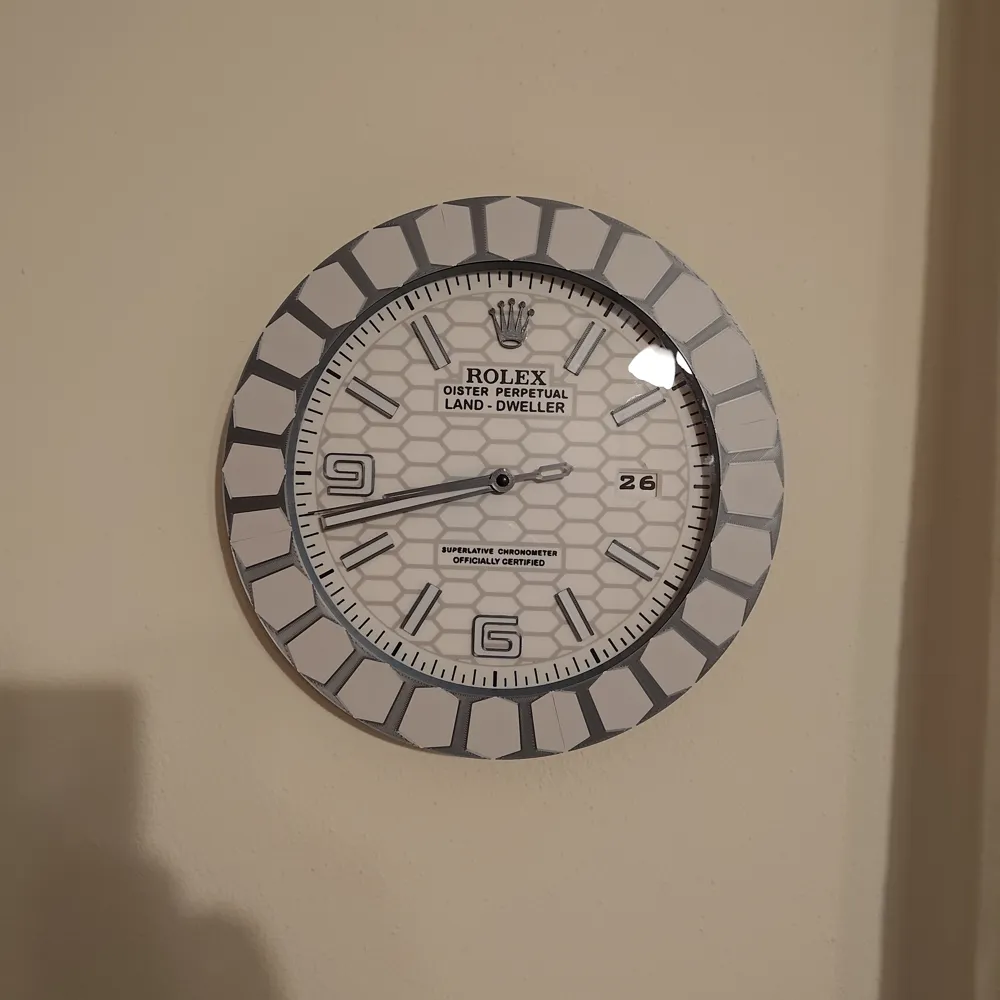

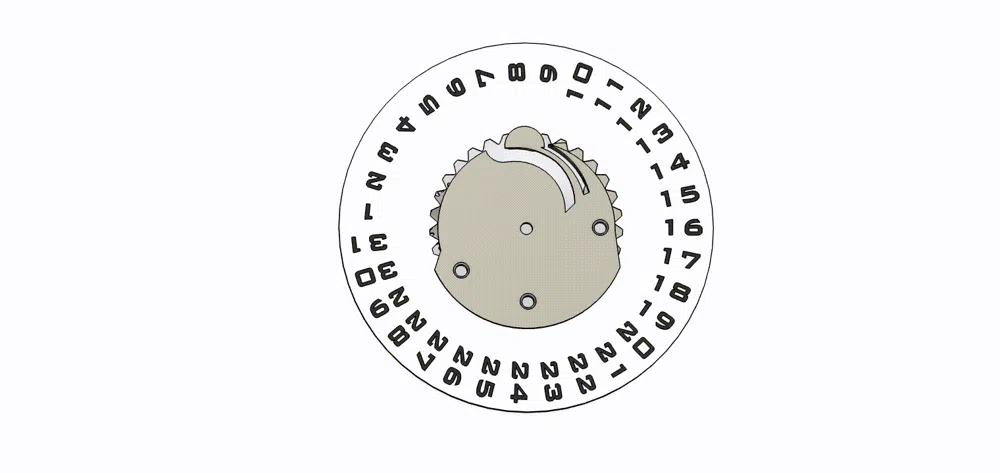

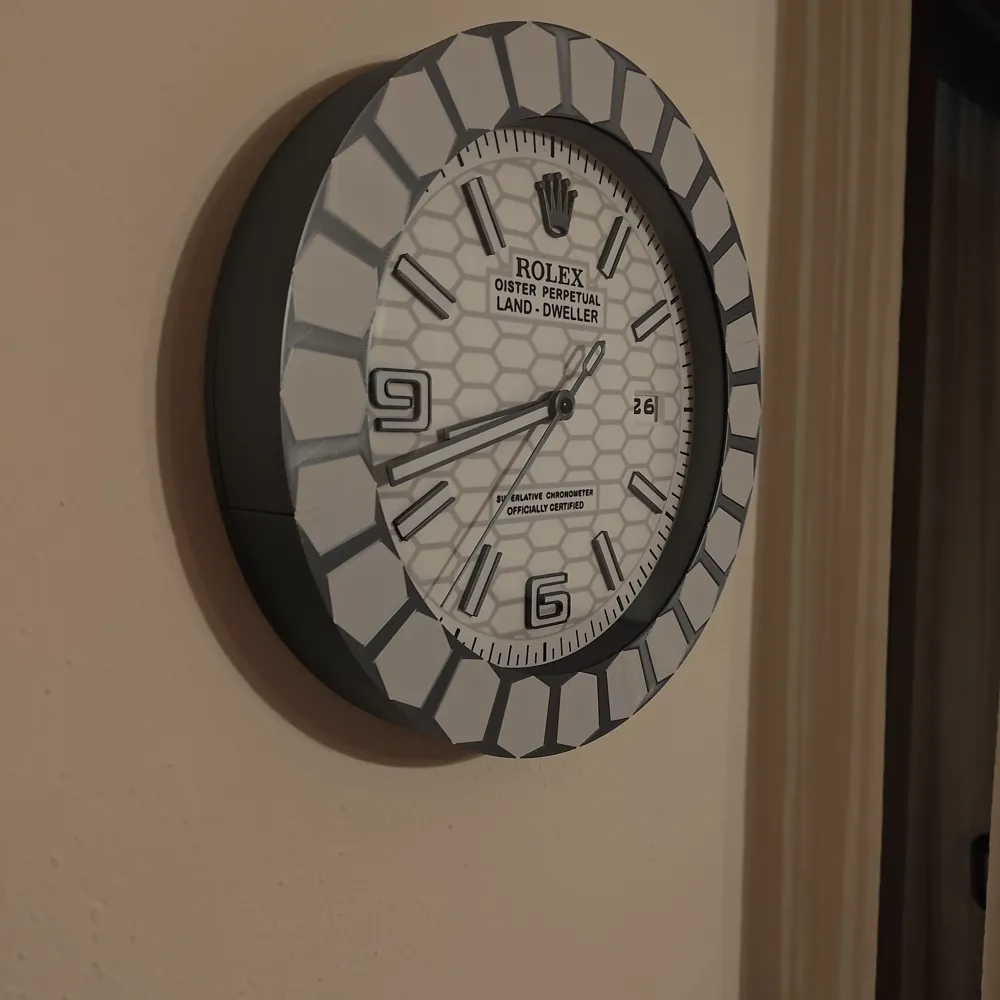

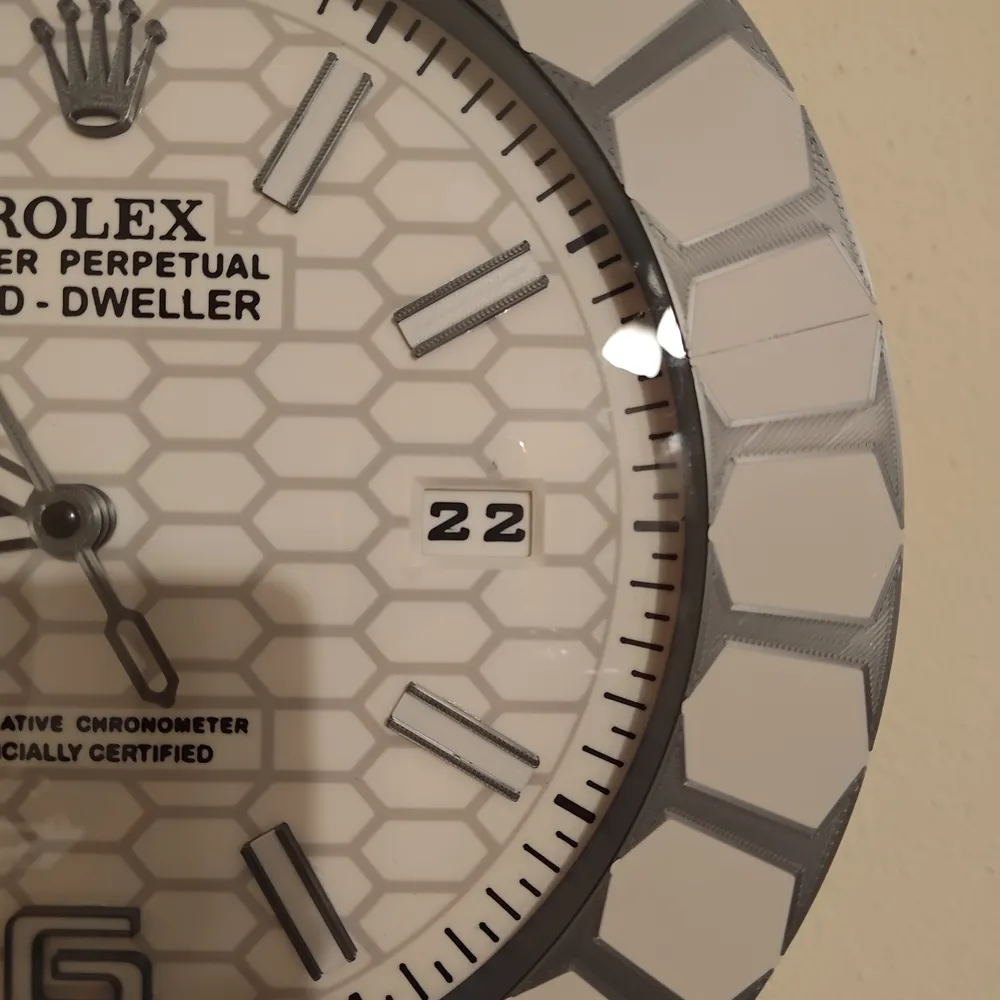

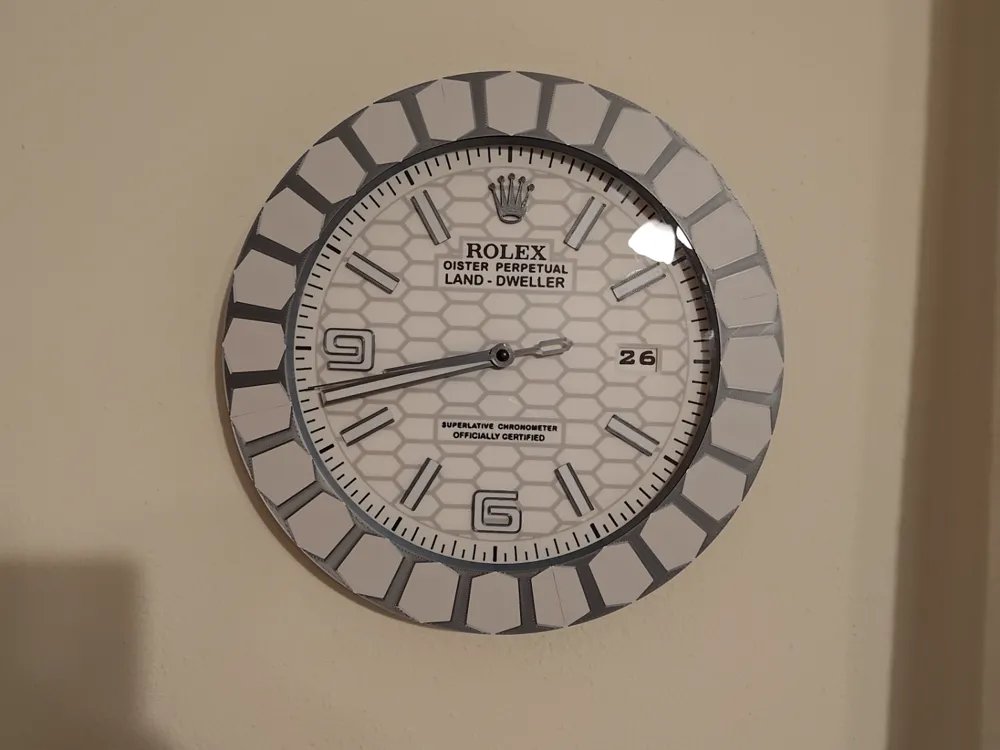

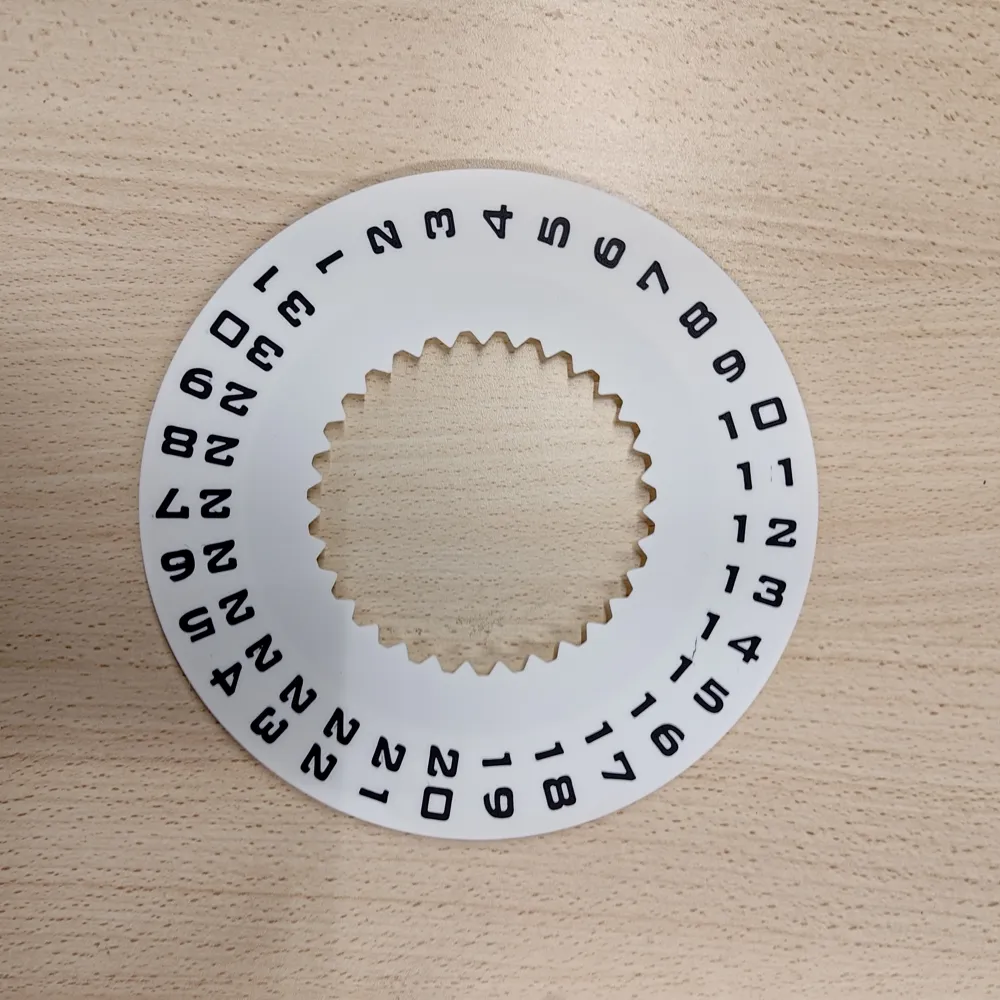

Description: Stunning wall clock inspired by the iconic Rolex Land Dweller with glass and date display mechanism. Designed as a single piece for the dial, with a modular multi-part printed bezel that fits together perfectly (can be glued for extra stability)
Dimensions 250mm/331mm
Key features:
- Dial diameter: 250 mm
- Modular design: Bezel (331mm) printable in multiple parts, ideal for printers with a standard build plate (256x256)
- Glass: Designed to accommodate a circular glass piece 252mm in diameter and 2mm thick
- Assembly: The dial screws directly to the bezel edge
Required materials (BOM):
Standard clock mechanism https://www.amazon.it/dp/B0FCMP1DTQ?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
All mechanisms fit the print and snap into place … (IMPORTANT threadless shaft length 22mm or longer, max +5mm)
- Glass (Optional): Diameter 252mm, thickness 2mm (can be purchased from any glazier for about €5)

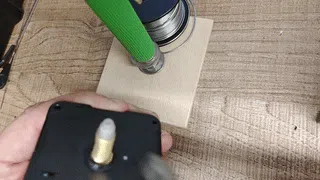

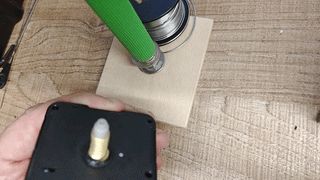

- Brass insert: M3x6mm insert if you decide to screw it in https://www.amazon.it/dp/B0DYNQM6HG?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- Screws: 4 M3x12 screws
