Small Diameter Bomb Replica with Folding Wings
Print Profile(2)
Description
Want more like this model? Check out these collections: Grenades | Artillery & Ammo | Life-size Weapons | Missiles & Bombs | and more (3)… |
Summary

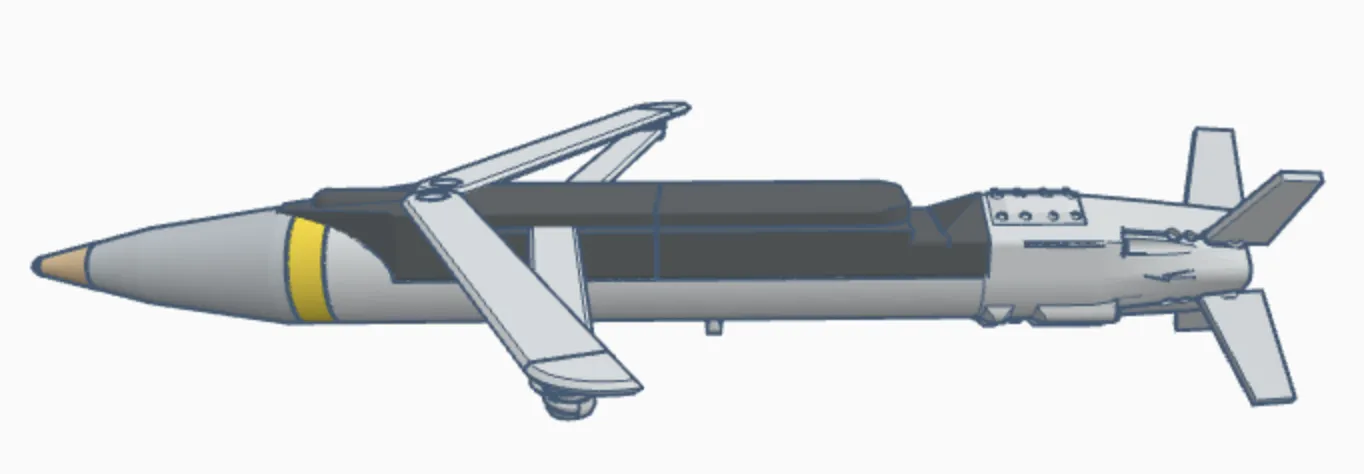

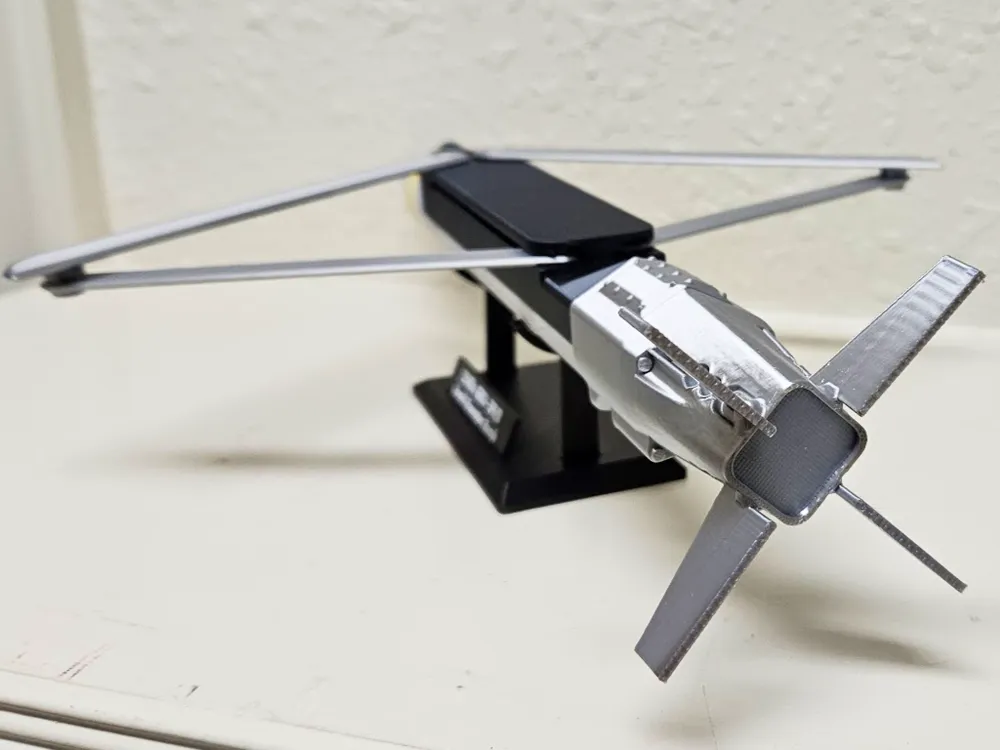

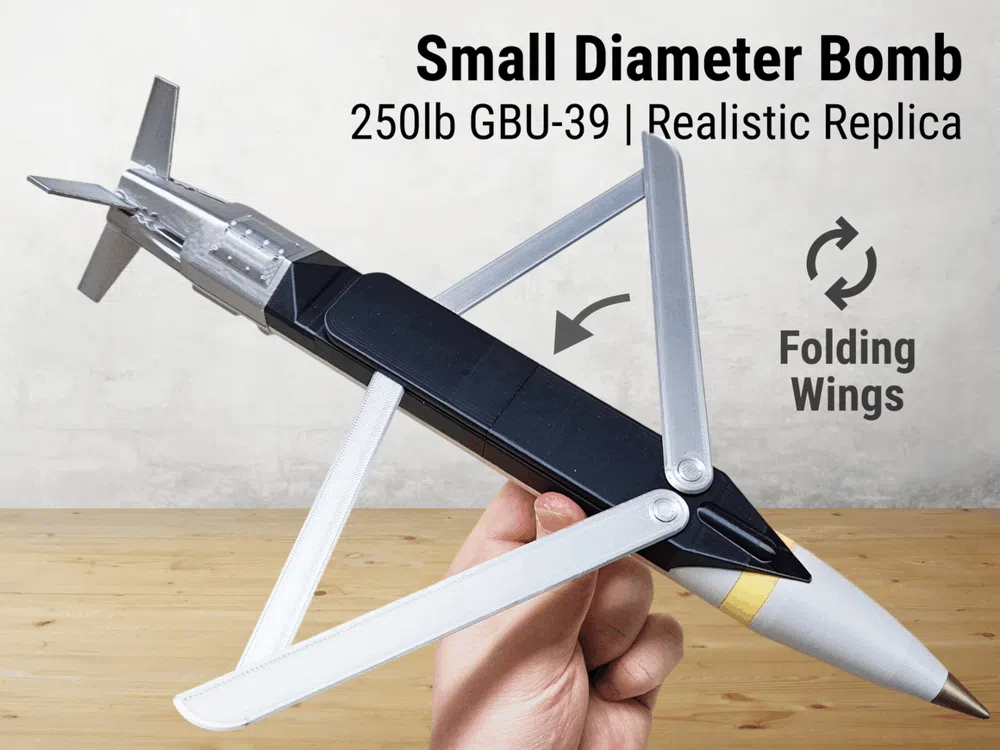

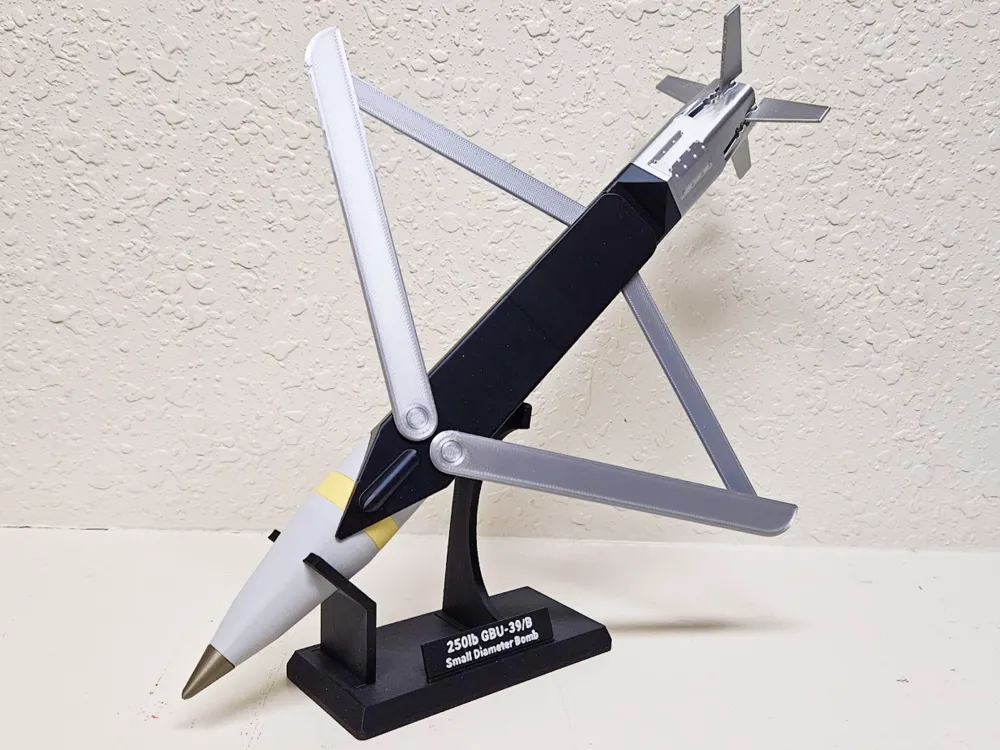

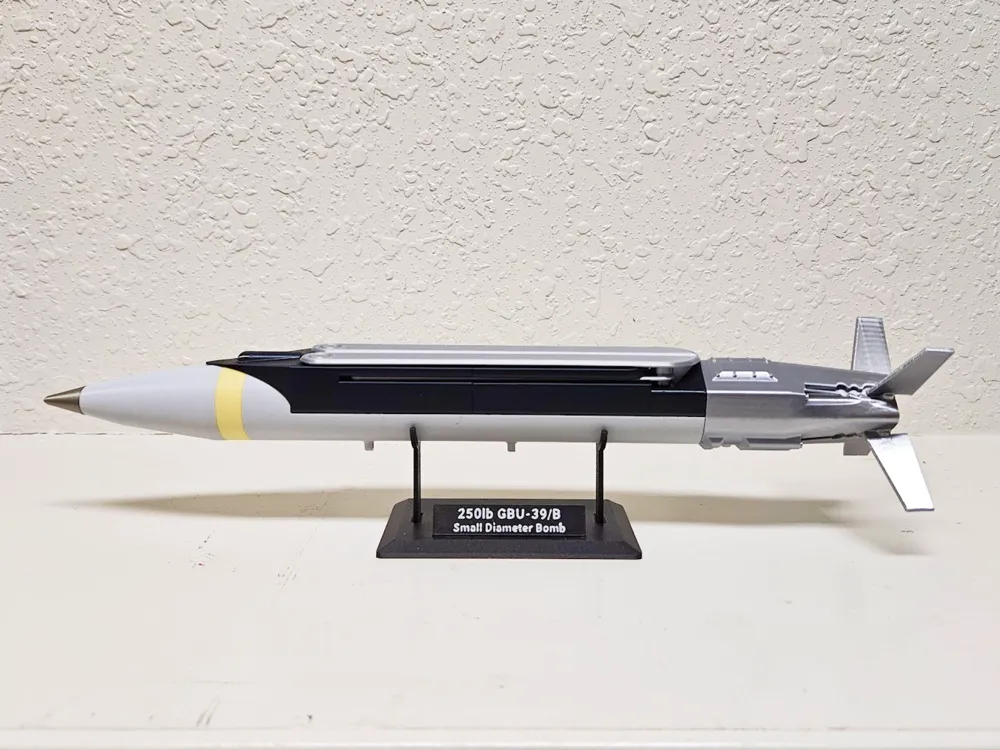

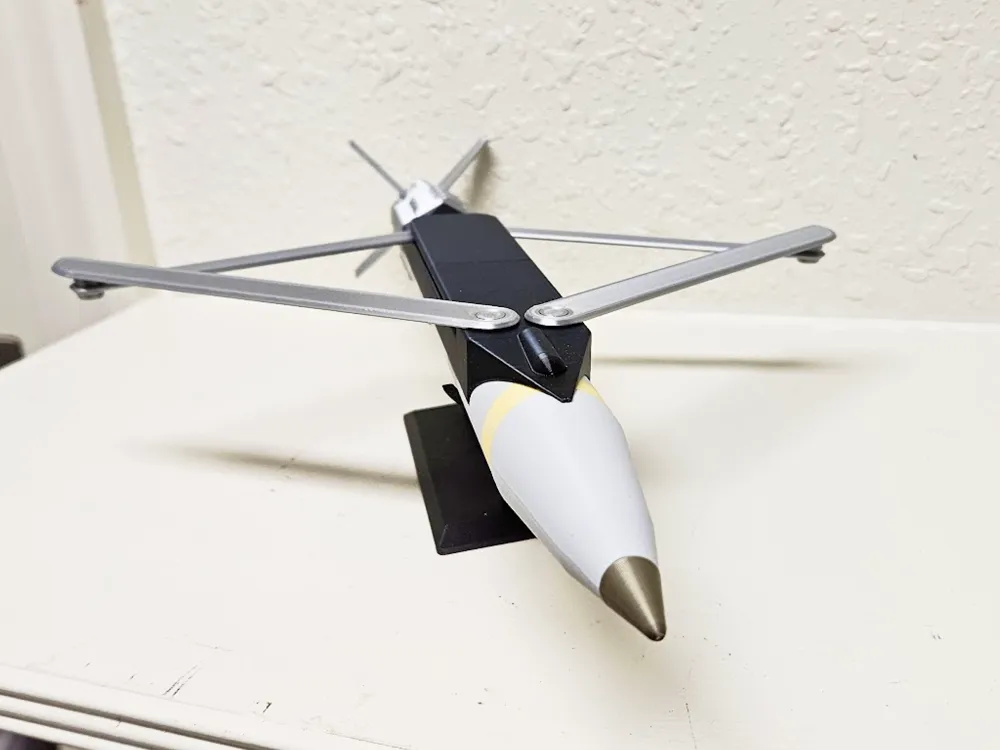

The model you've requested is finally here! This is a detailed 1:6 scale replica of the Small Diameter Bomb that has realistic folding wings that you can open and close. This model comes with your choice of a vertical display stand or a horizontal display stand. The Small Diameter Bomb is the smallest of the standard US and NATO bombs dropped from aircraft at 250lbs. Once its dropped it deploys its wings and then flies to its target, giving it greater range than a normal bomb.
Bambu filaments used
- Basic Light Gray
- Metal Iron Gray Black
- Matte Yellow
- Metal Iridium Gold
- Silk+ Silver
Assembly is easy
1. First snap the yellow and two gray pieces together with the longest peg, like you see below.
2. Next, screw the top and bottom fins together. It helps to grip them like you see in the GIF below so that its easier to get the screw started. Make sure the “bump” on the bottom wing is facing up towards the bigger wing above it.
Do the same for both sets of wings.

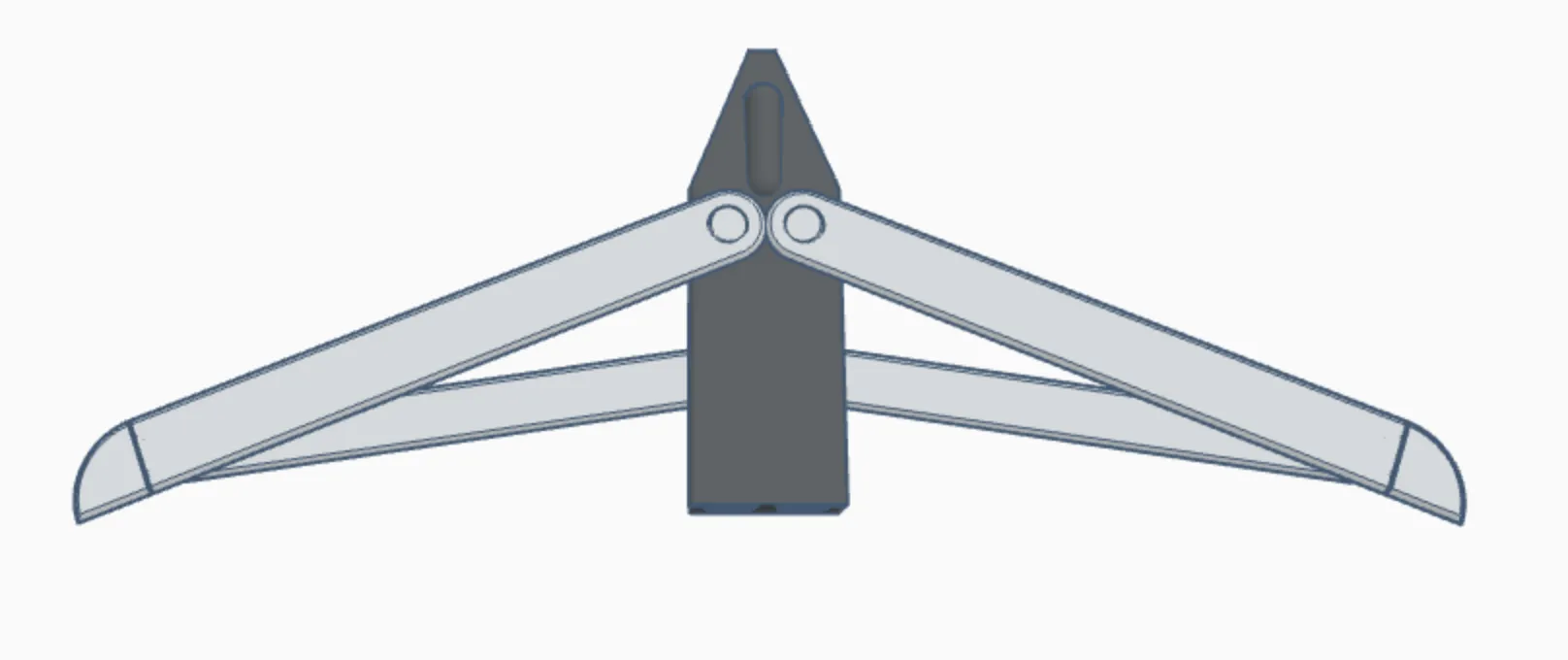

3. Then, use the silver pegs to connect the big wing to the black piece as you see below.

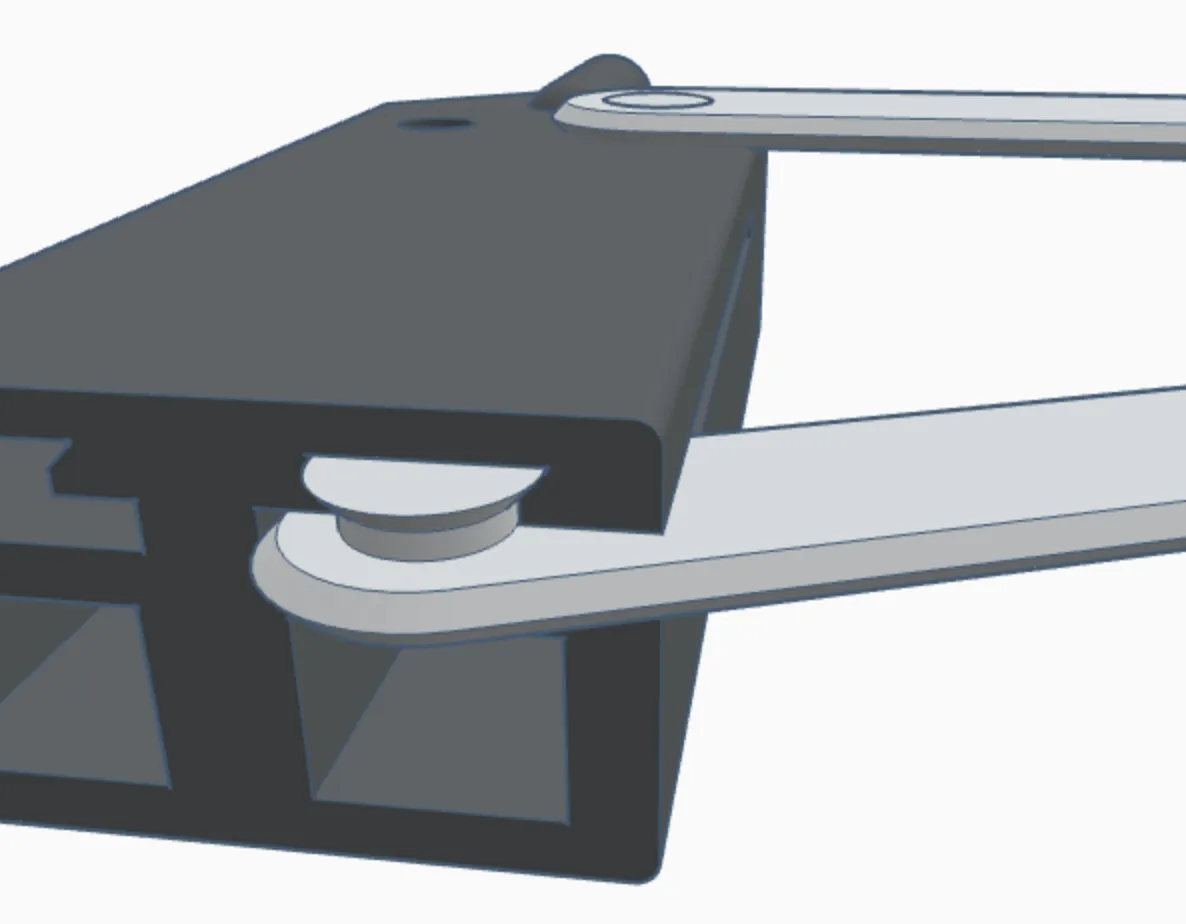

4. Next, insert the peg at the end of the smaller wing into the corresponding groove on the black piece as you see below. Do the same for both sets of wings.

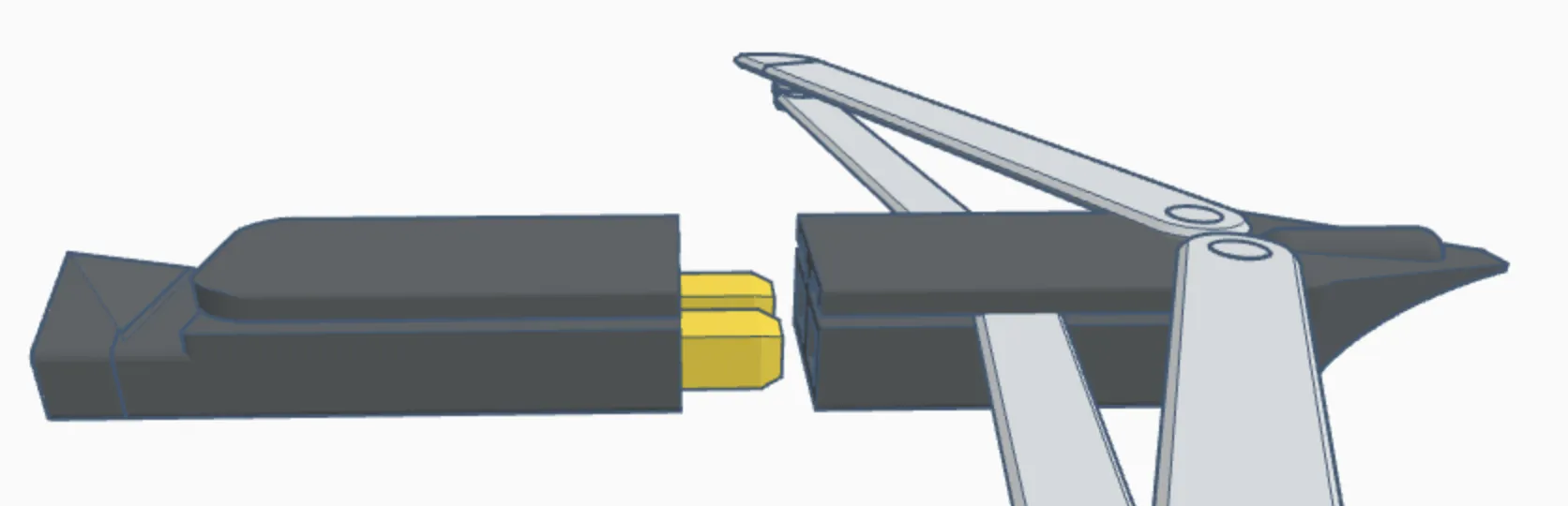

5. After that, use two of the smaller pegs to connect both black pieces together like you see below.
6. Next, connect the combined black piece into the gray piece with the yellow stripe like you see below.

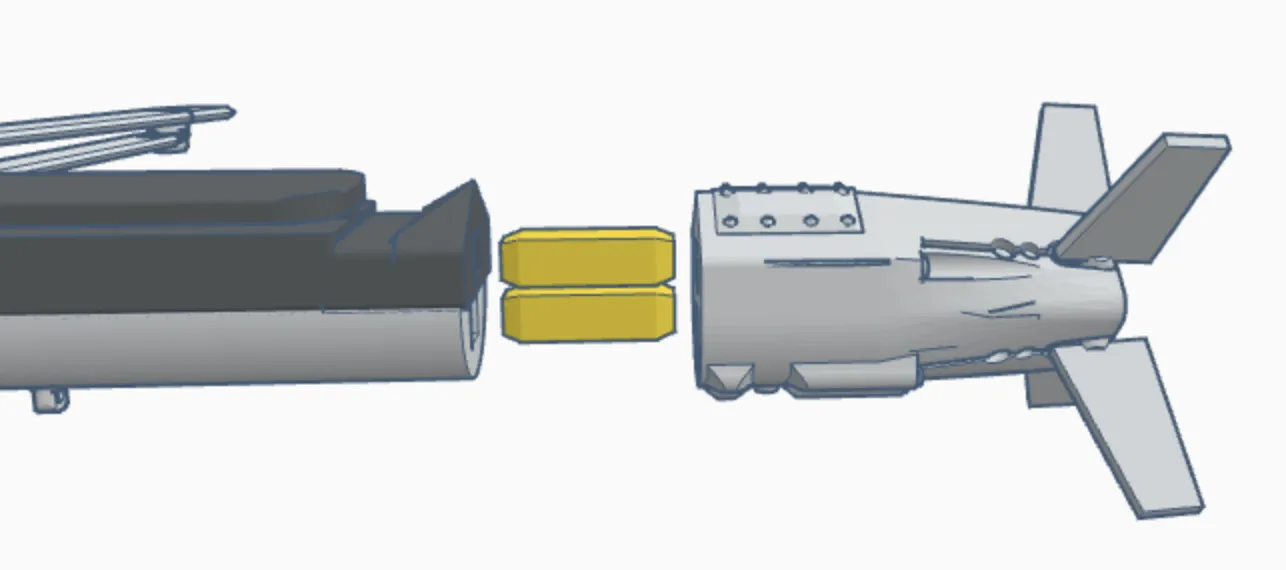

7. Lastly, connect the silver tail section with the remaining two (shorter) pegs as you see below.
