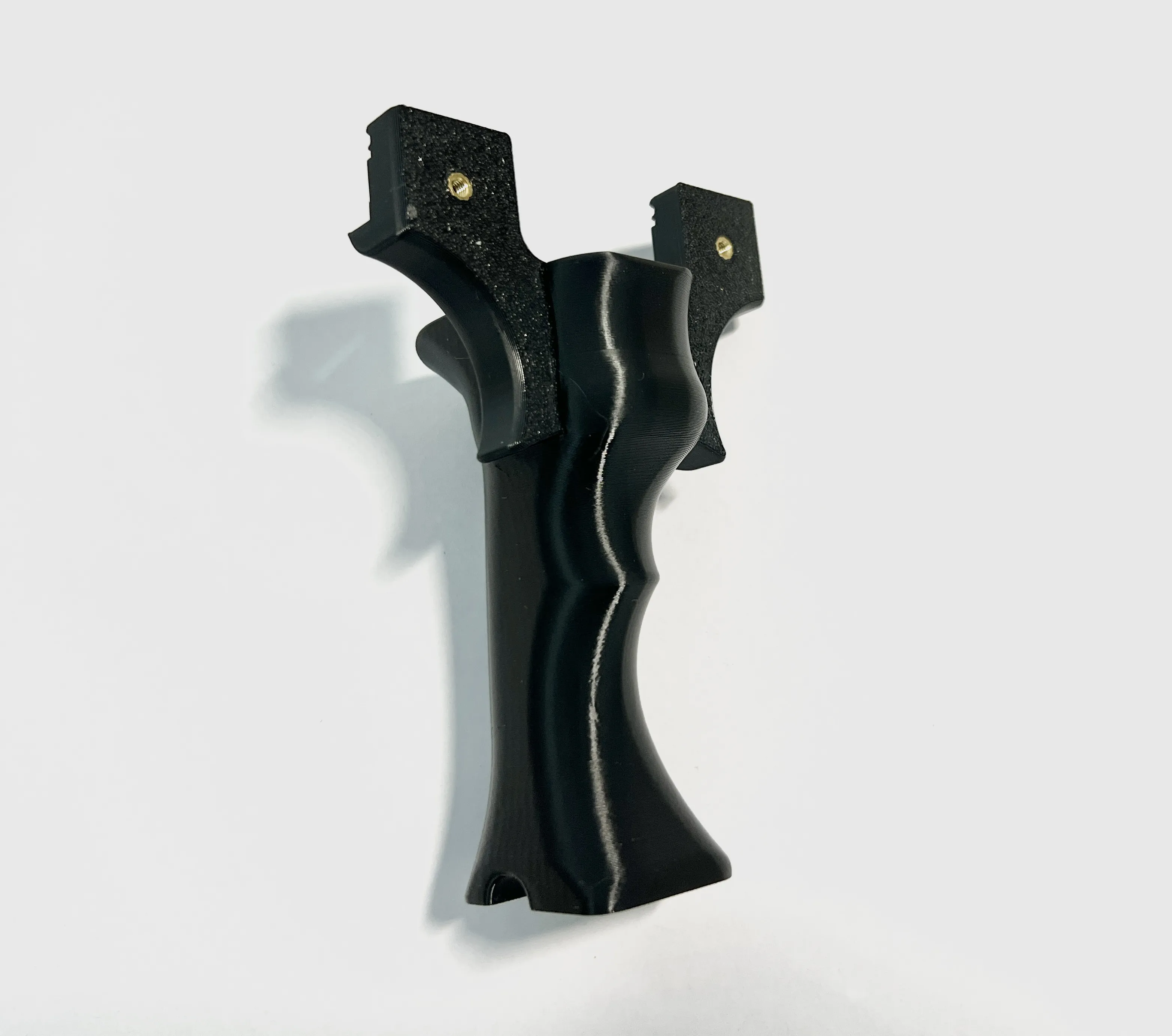

Slingshot with 16-round magazine
Print Profile(1)
Description

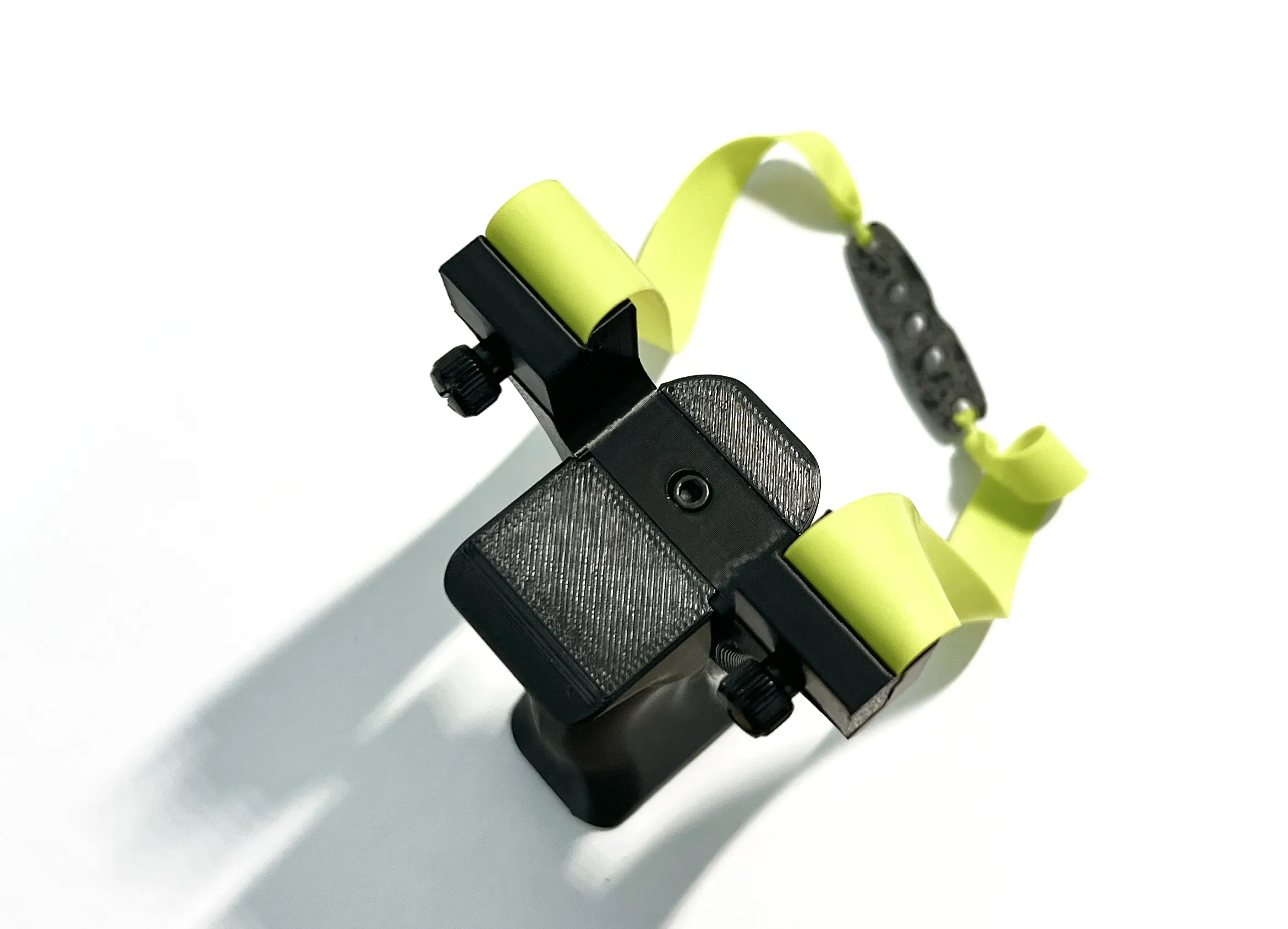

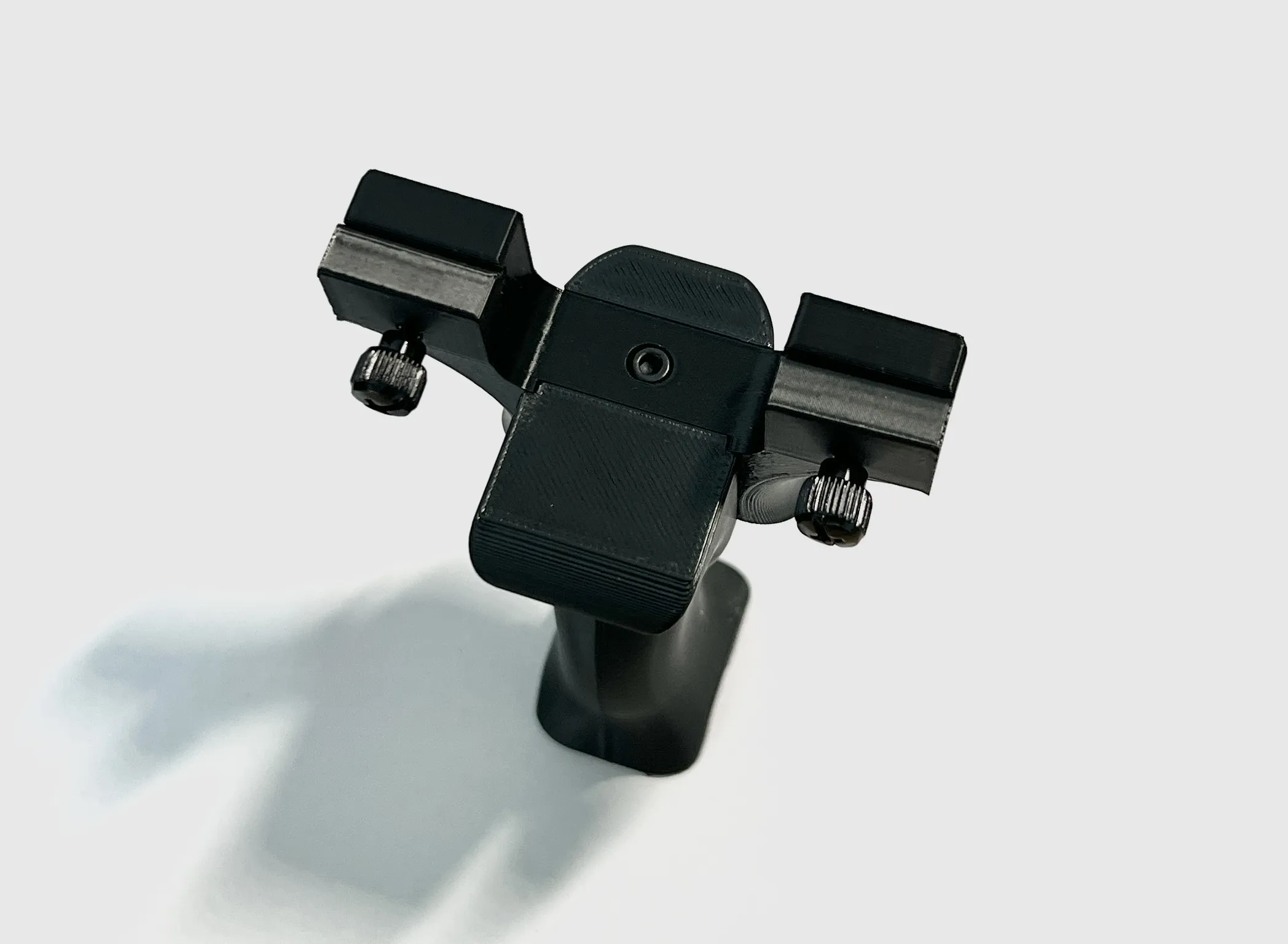

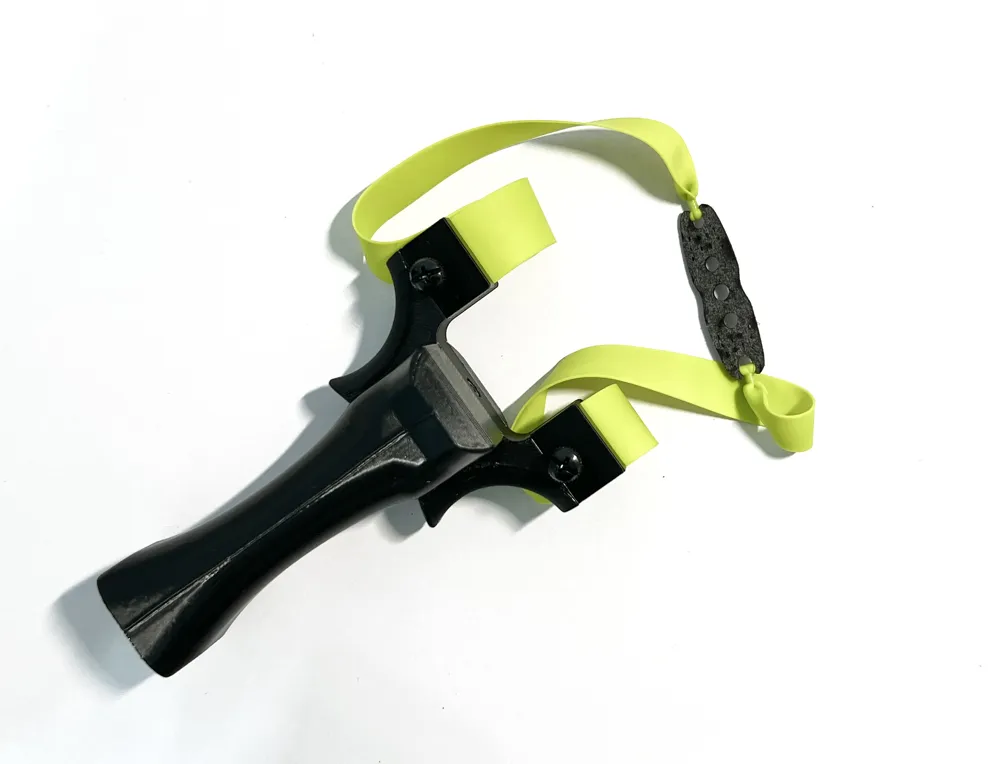

This is an improved version: 1. The rubber band clamp has been optimized, using a single screw for fastening, replaced with thumbscrews, making it more convenient and quicker to change rubber bands without tools.

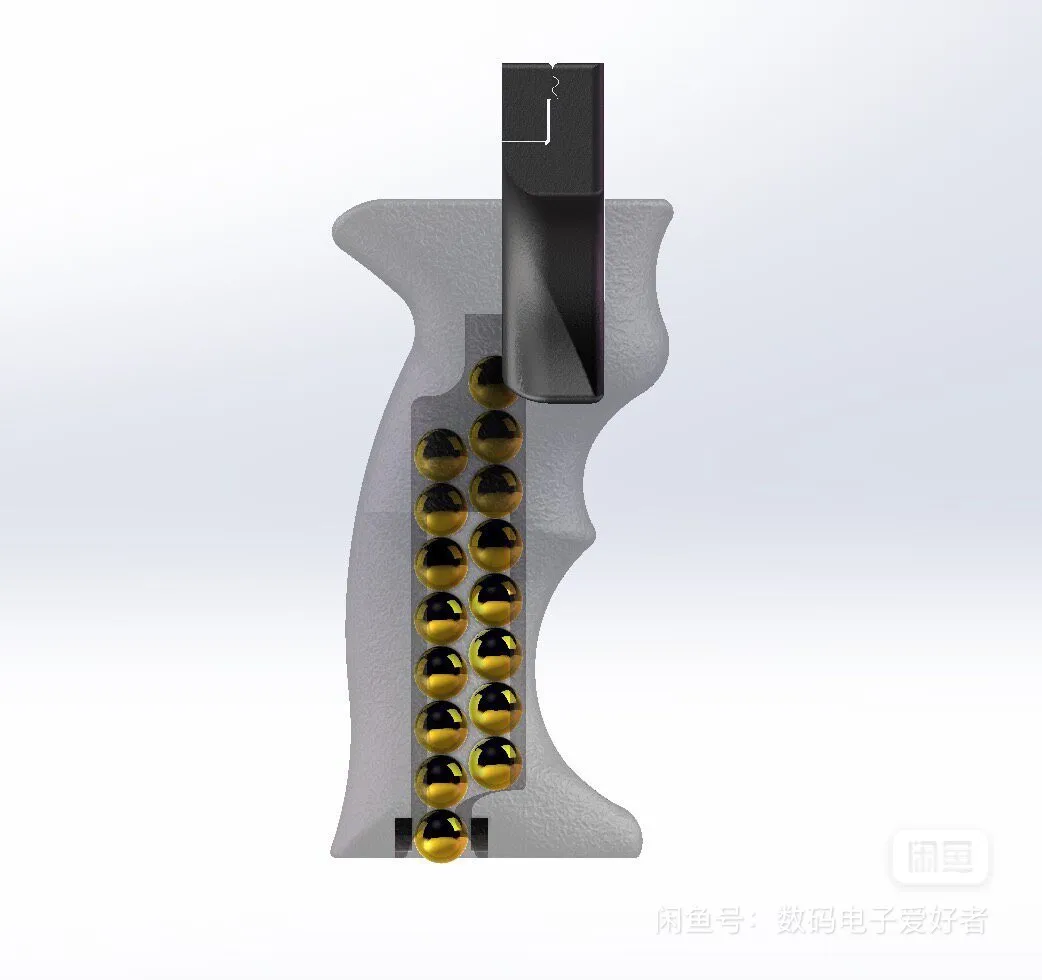

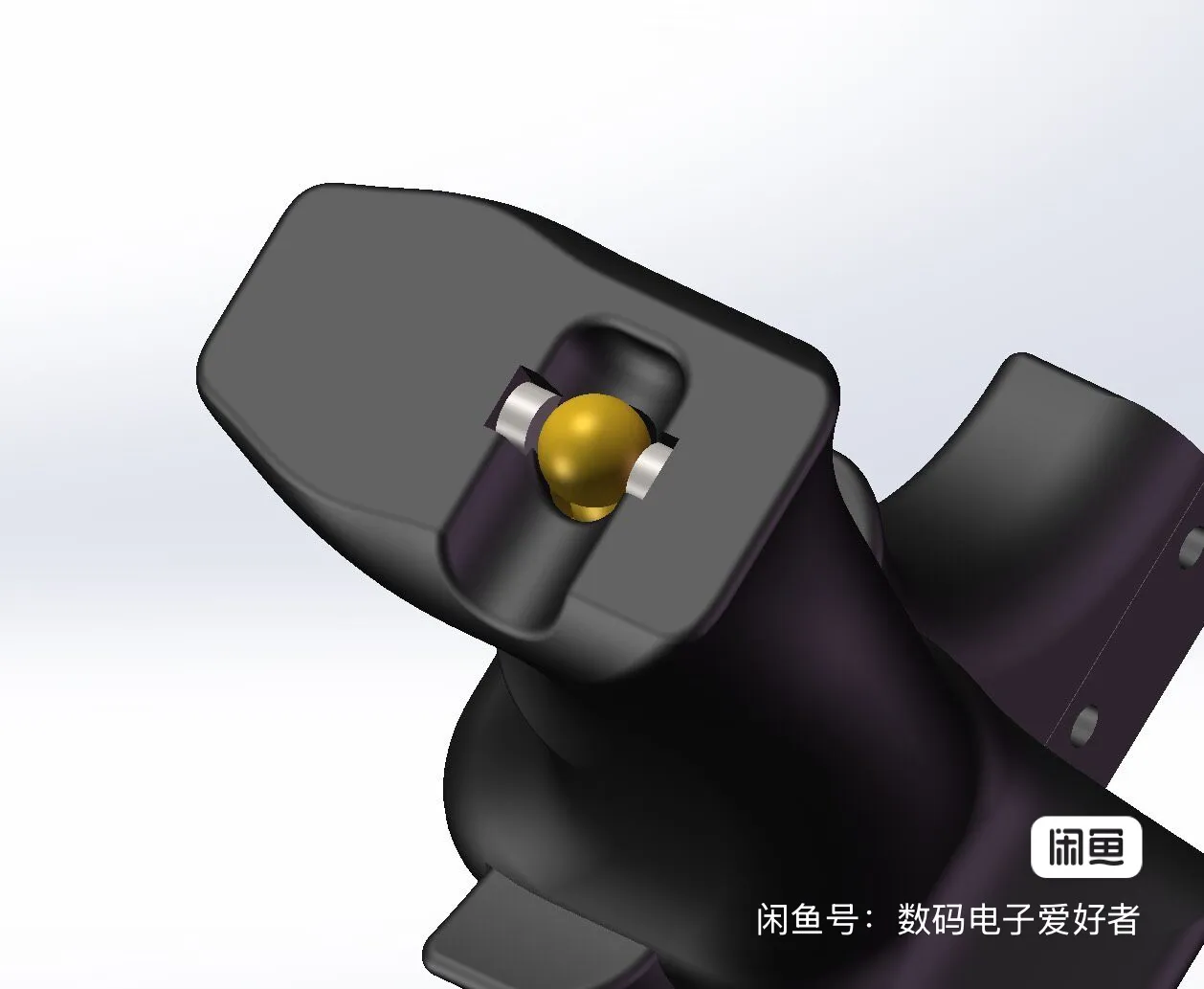

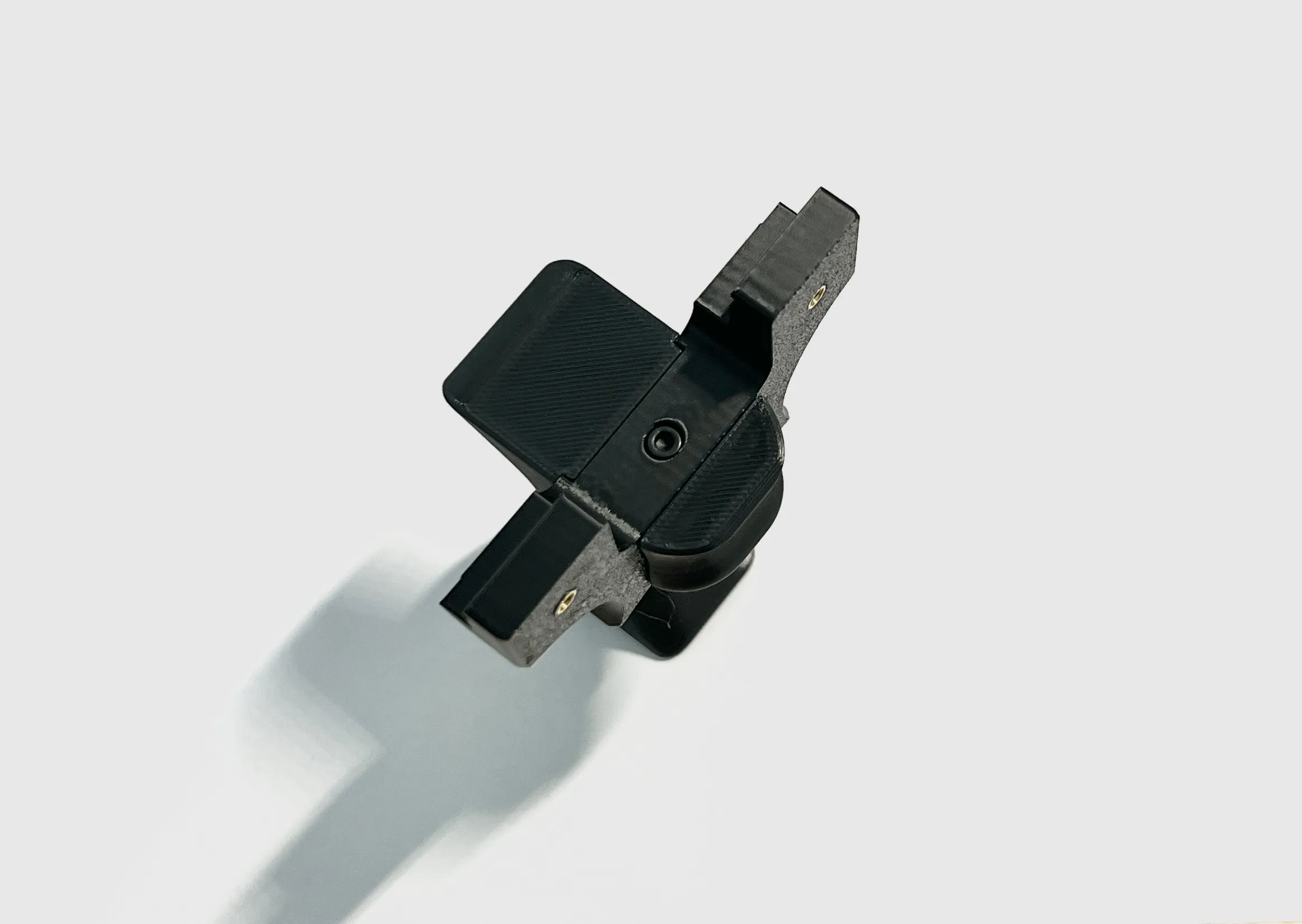

2. A significant update this time is the addition of a built-in magazine, which can hold 16 8mm steel balls. It features magnetic retention and a gravity-fed automatic discharge design. I won't elaborate on the specific usage; please print the finished product and experience it for yourself. See below for the accessories list and assembly instructions:

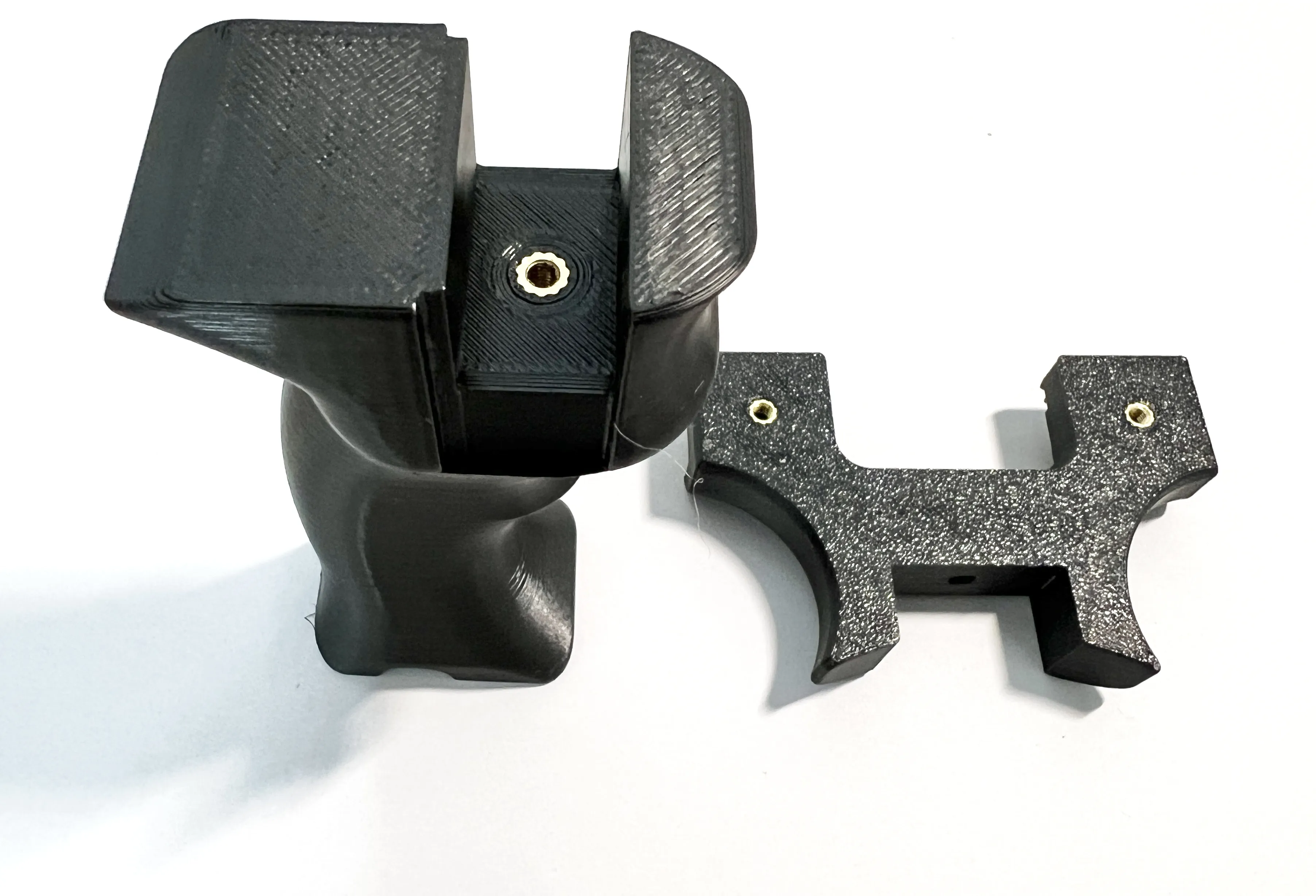

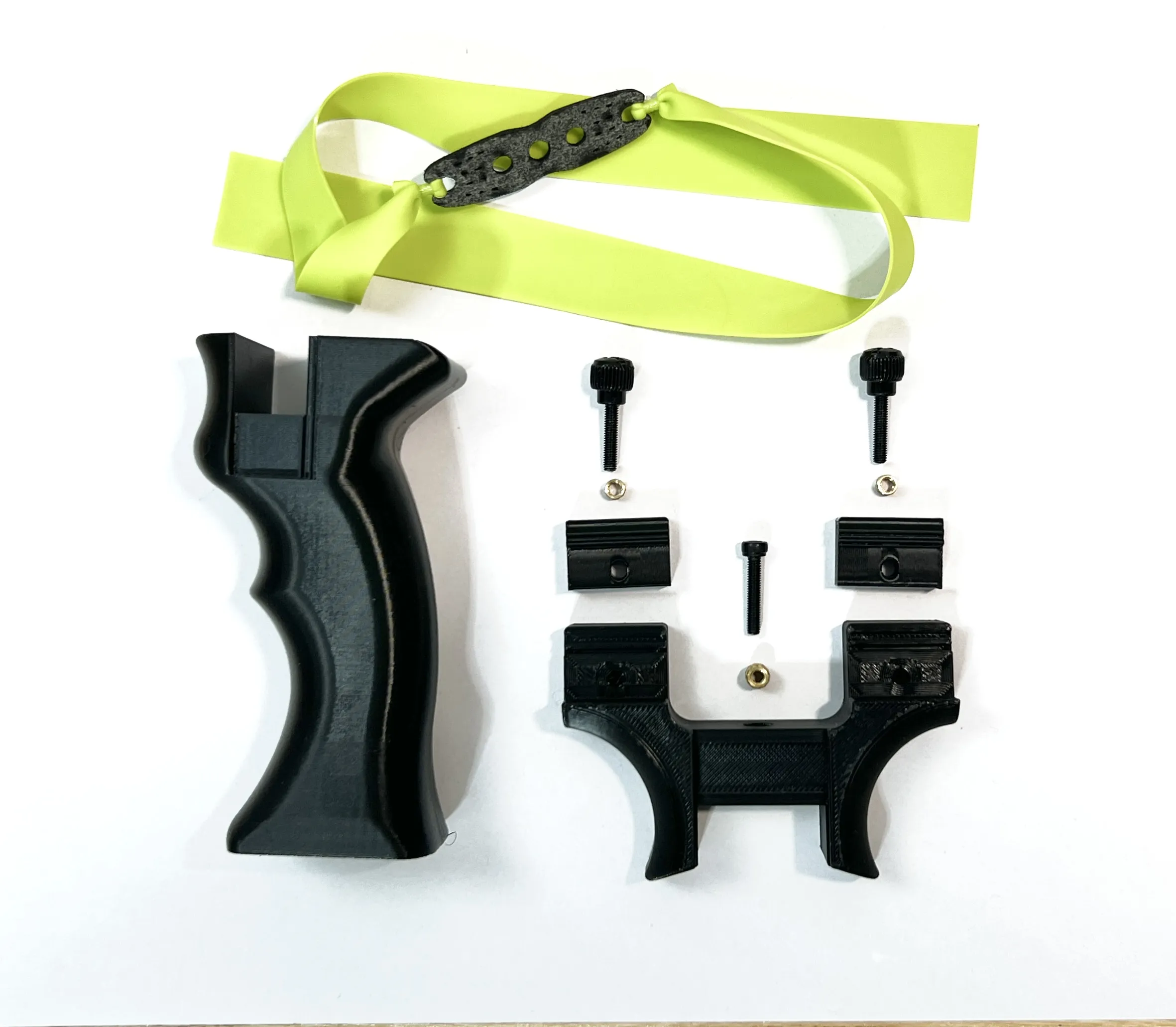

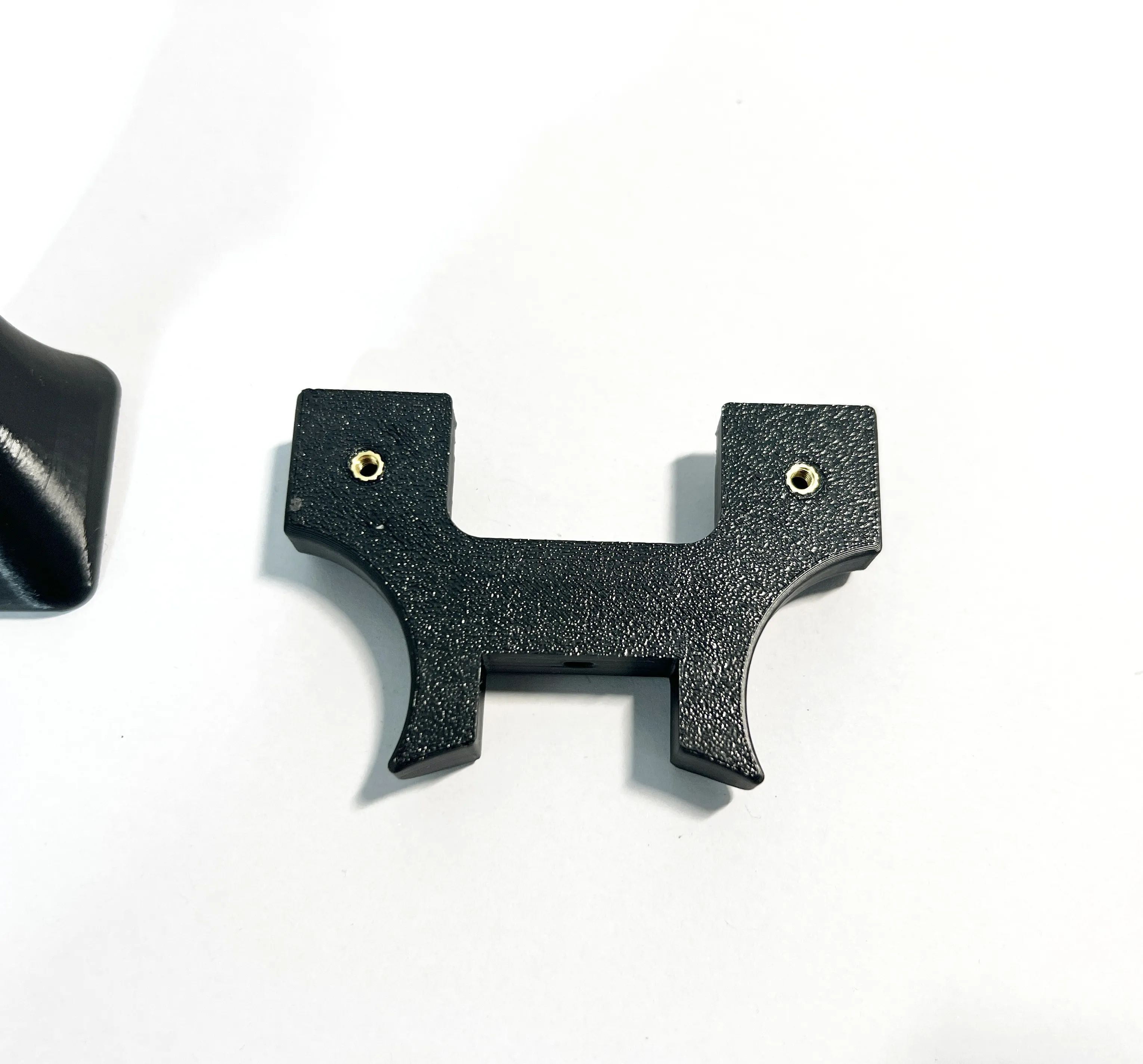

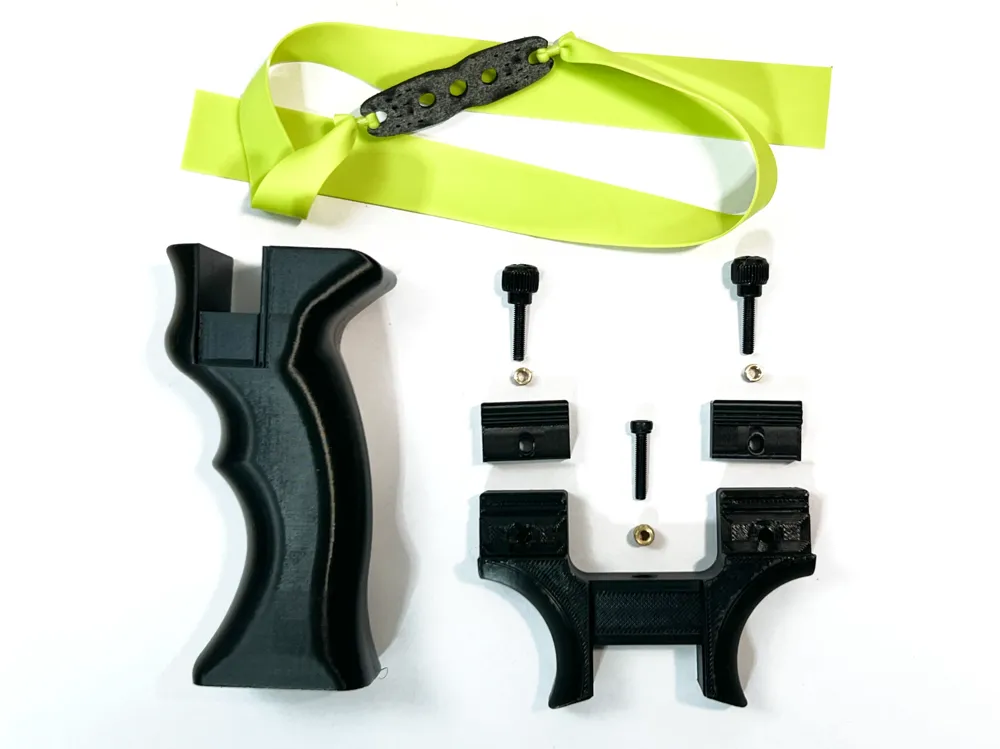

Accessories list: 1 M3 5x5 heat-set nut, 2 M3 4x4 heat-set nuts, 1 M3*16 hex socket screw, 2 M3*14 thumbscrews, 2 5x3mm strong magnets.

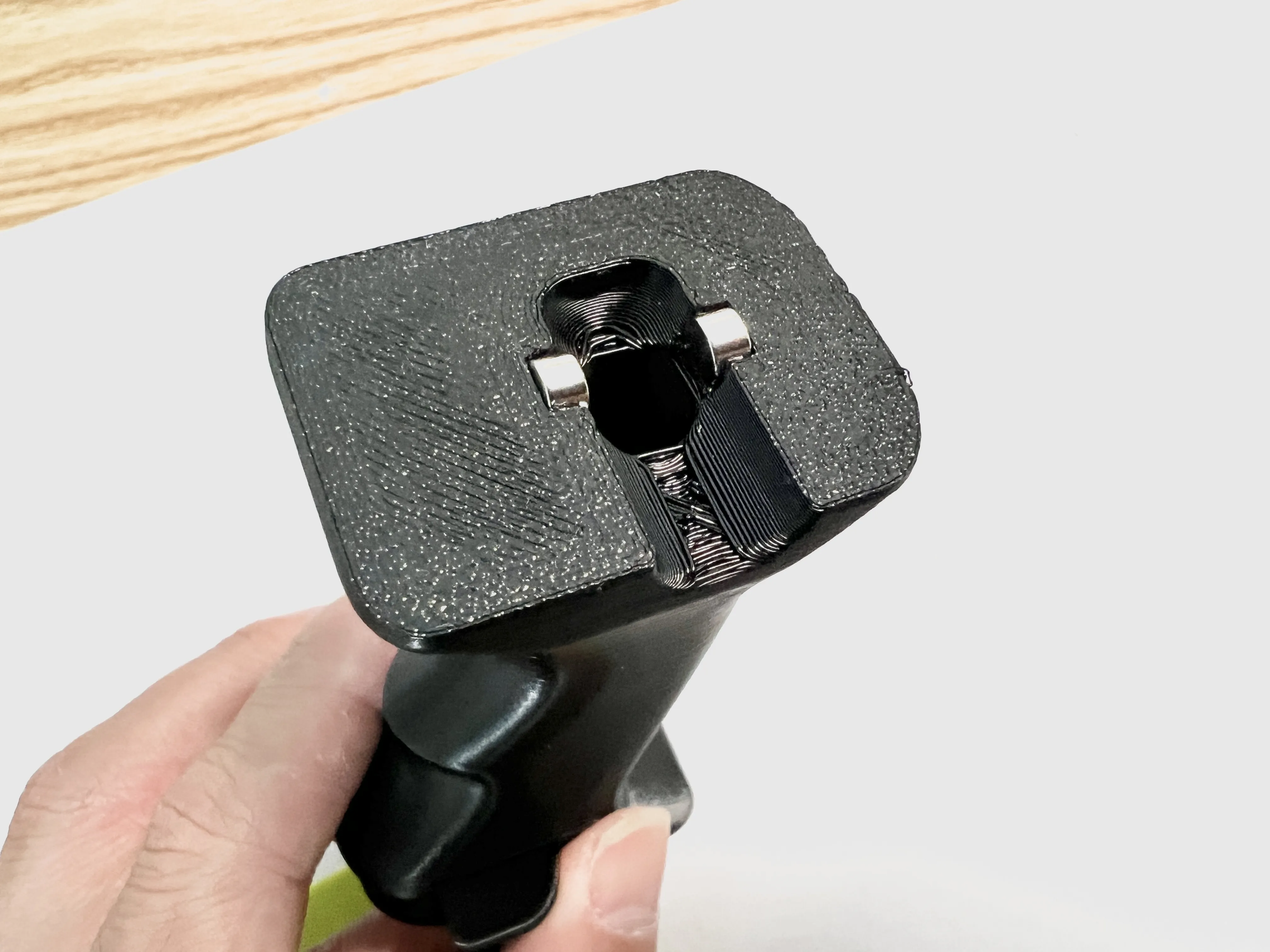

Magnets are embedded in the grooves and then fixed with glue.
