Lian Li 140mm and 120mm Uni Fan TL LDC Angle Mount
Print Profile(2)
Description
UPDATE!!
Now available for 120mm fans in my 120mm print profile :)

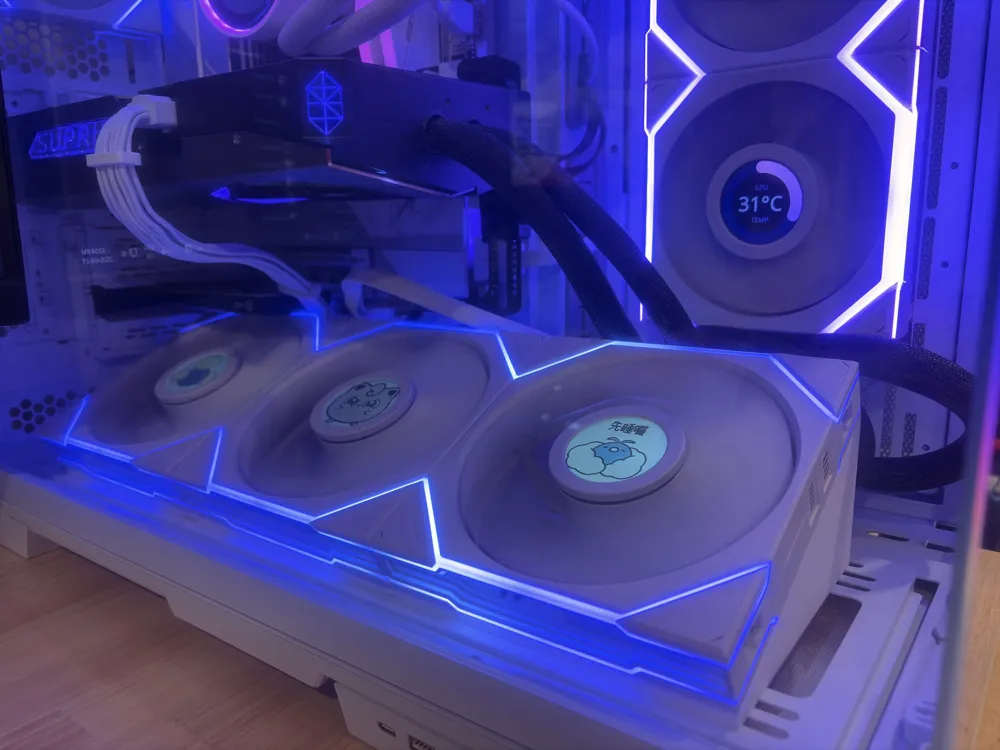

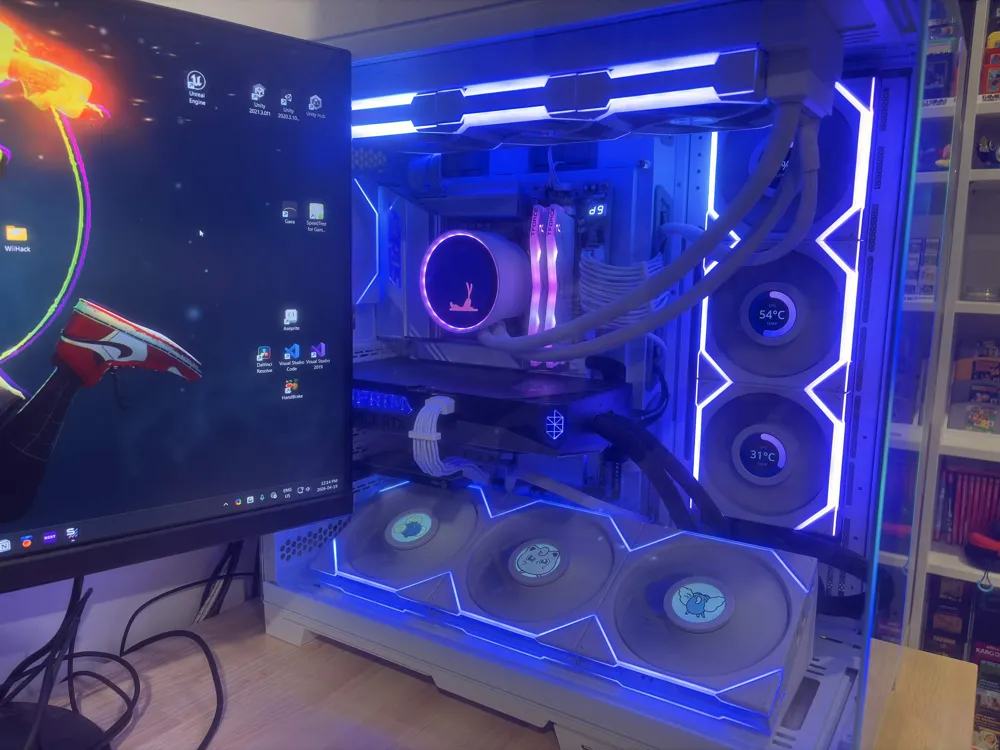

I made this 25° angled mount for the Lian Li 140mm LCD TL Uni Fans so they sit perfectly along the bottom bracket of the Lian Li O11 Dynamic EVO XL. Having them angled has been a game changer for me, it's so much nicer to see the LCD displays!
UPDATE!!!

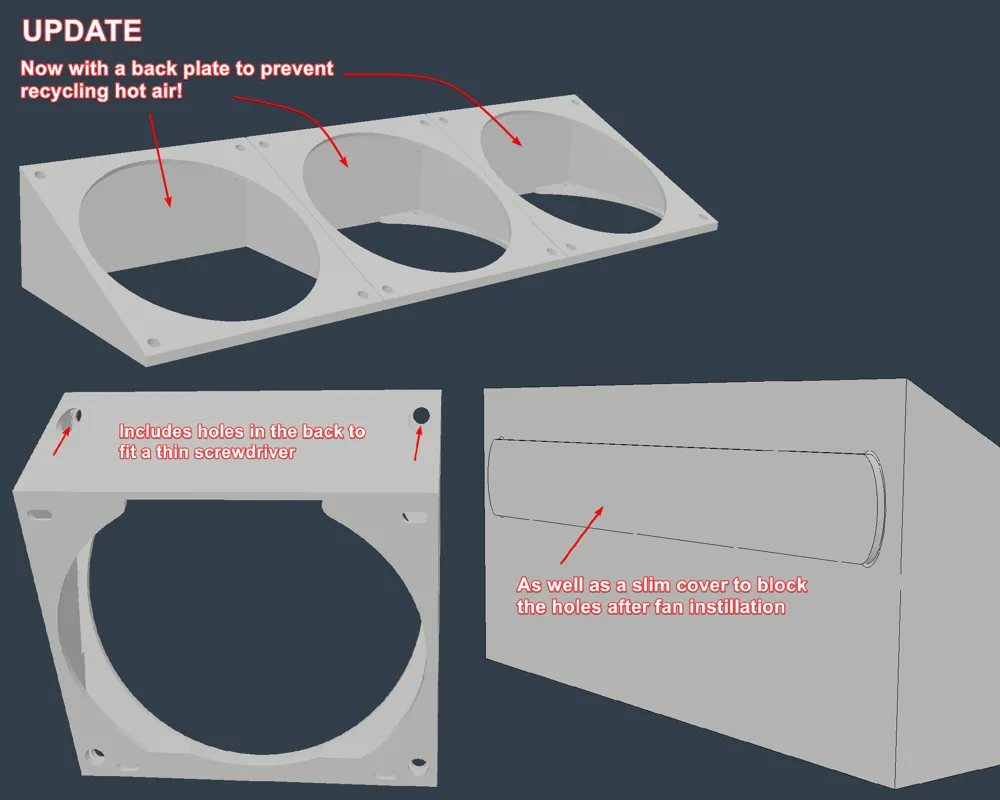

Now with a back to prevent recycling hot air!
NO EXTRA SCREWS REQUIRED!!! :)

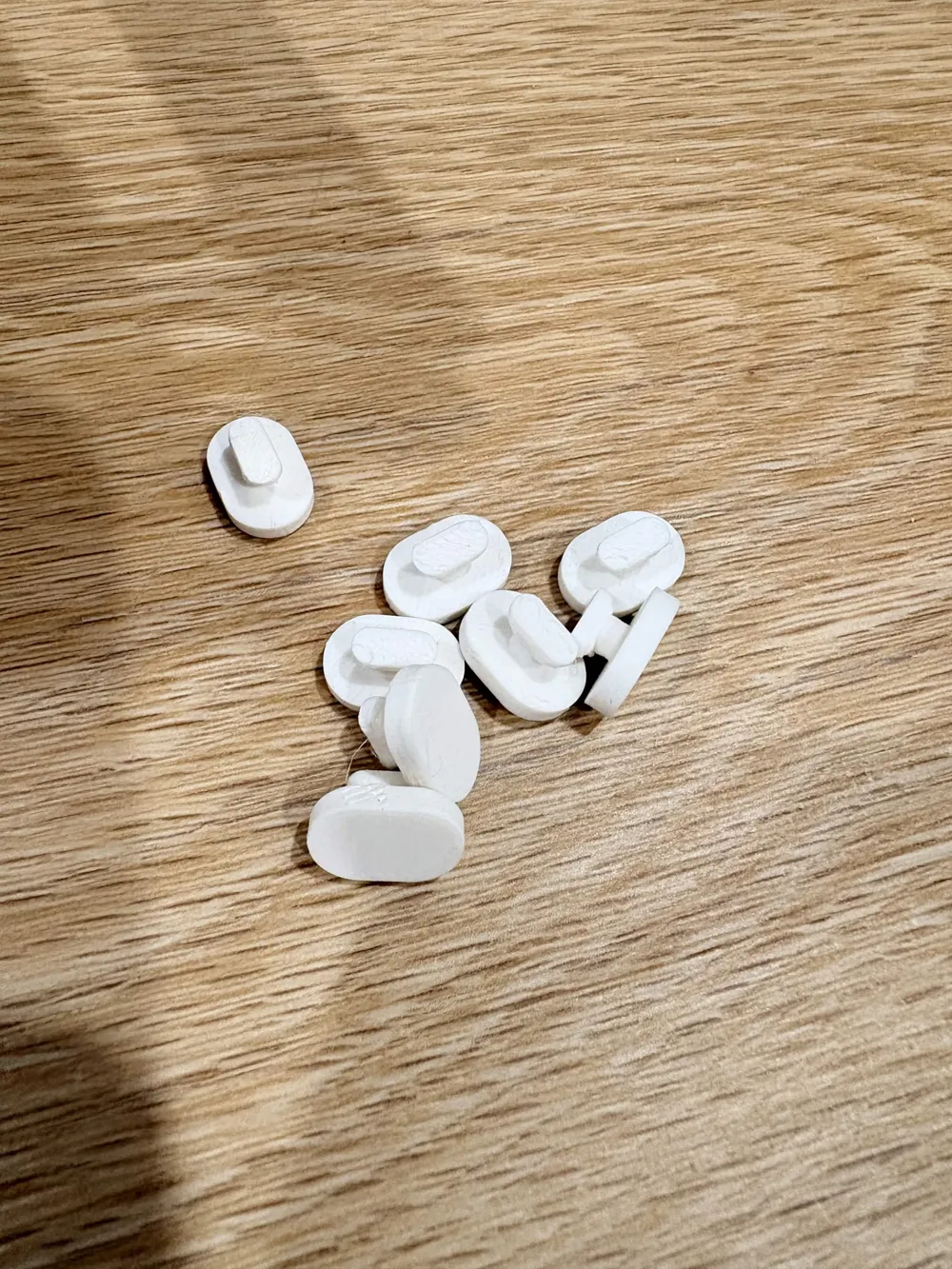

The fans are screwed (using the screws from the fan packages) directly onto the mounts, and the mounts are secured to the removable case bracket using the little locks on print plate 4. Simply pop them in and twist 90°
*ASSEMBILY

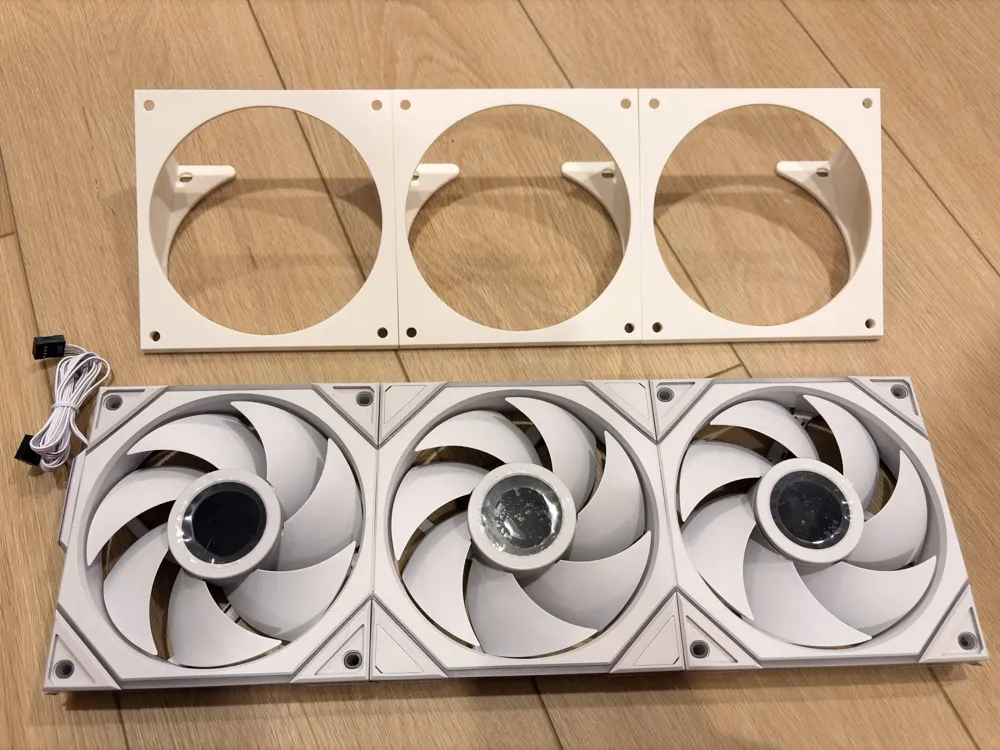

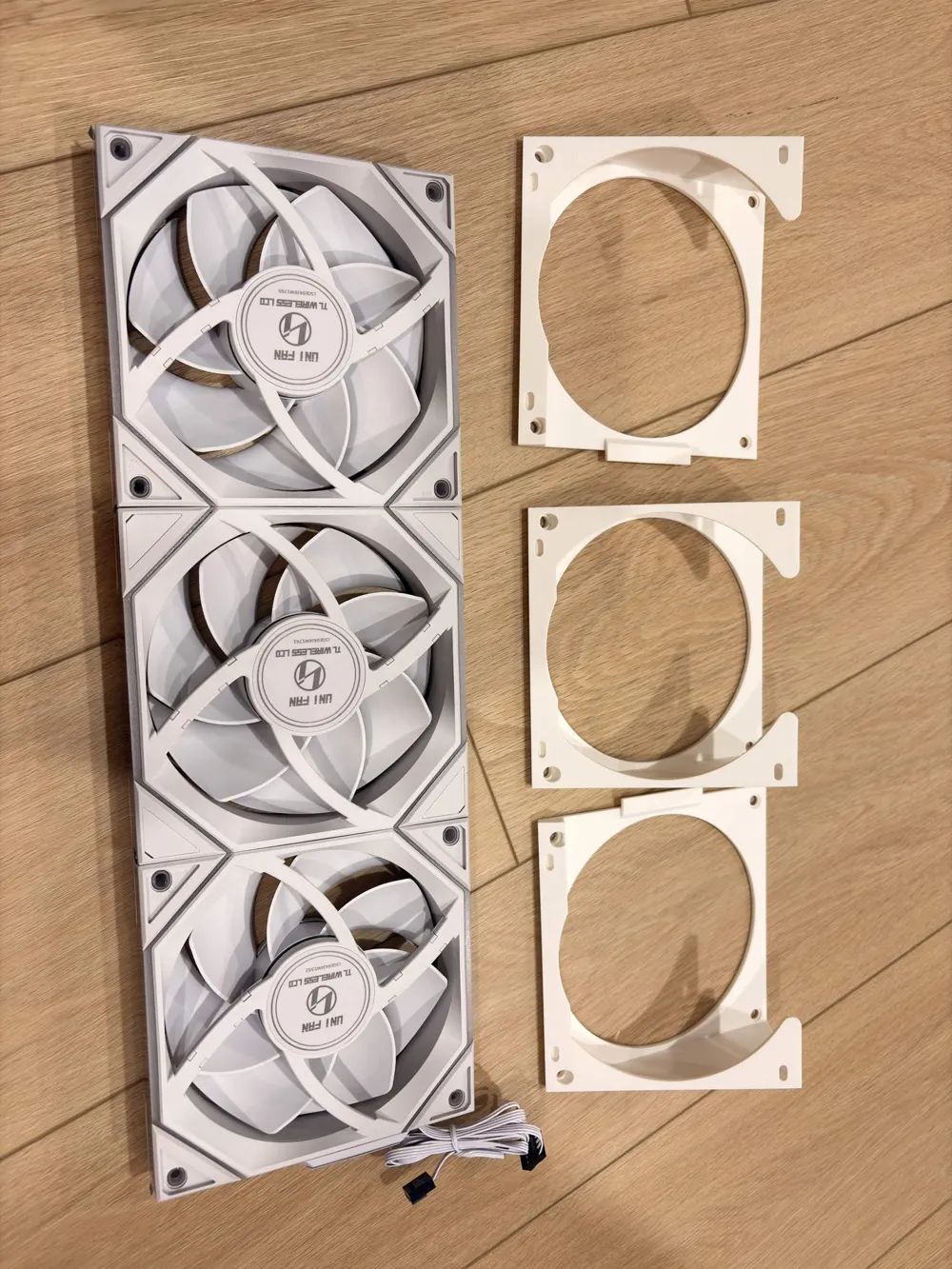

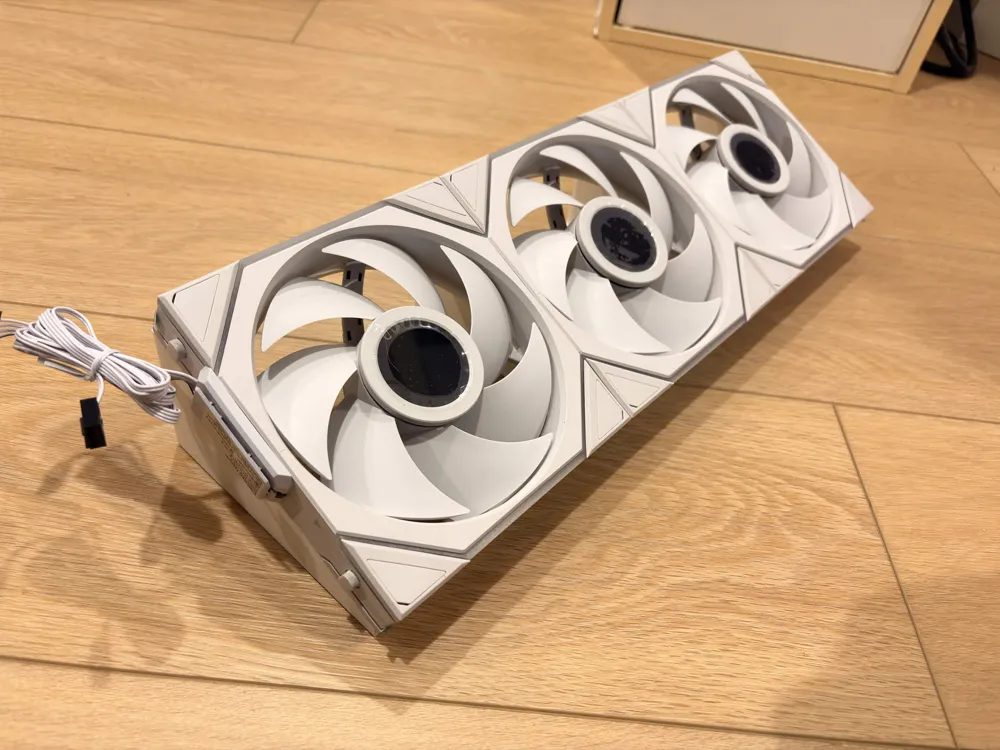

- Clip all three fans together

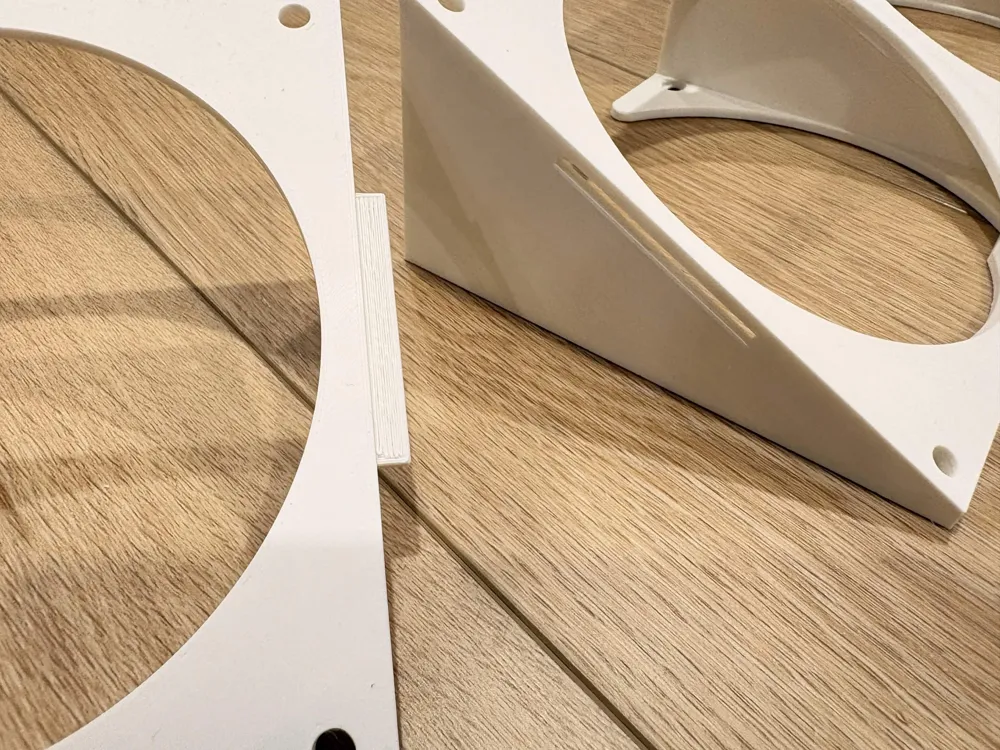

- Slide the three angle mounts together (slots and posts on the inner walls to fit together)

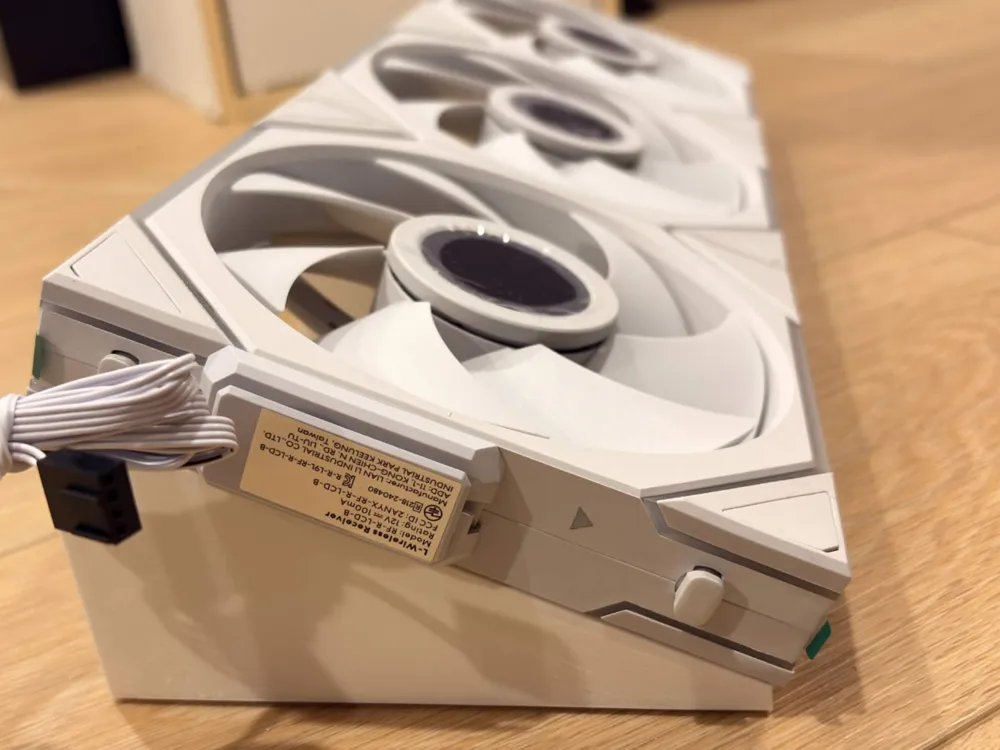

- Screw fans to the mounts
- Pop on cover (secure with double sided tape/glue if needed)

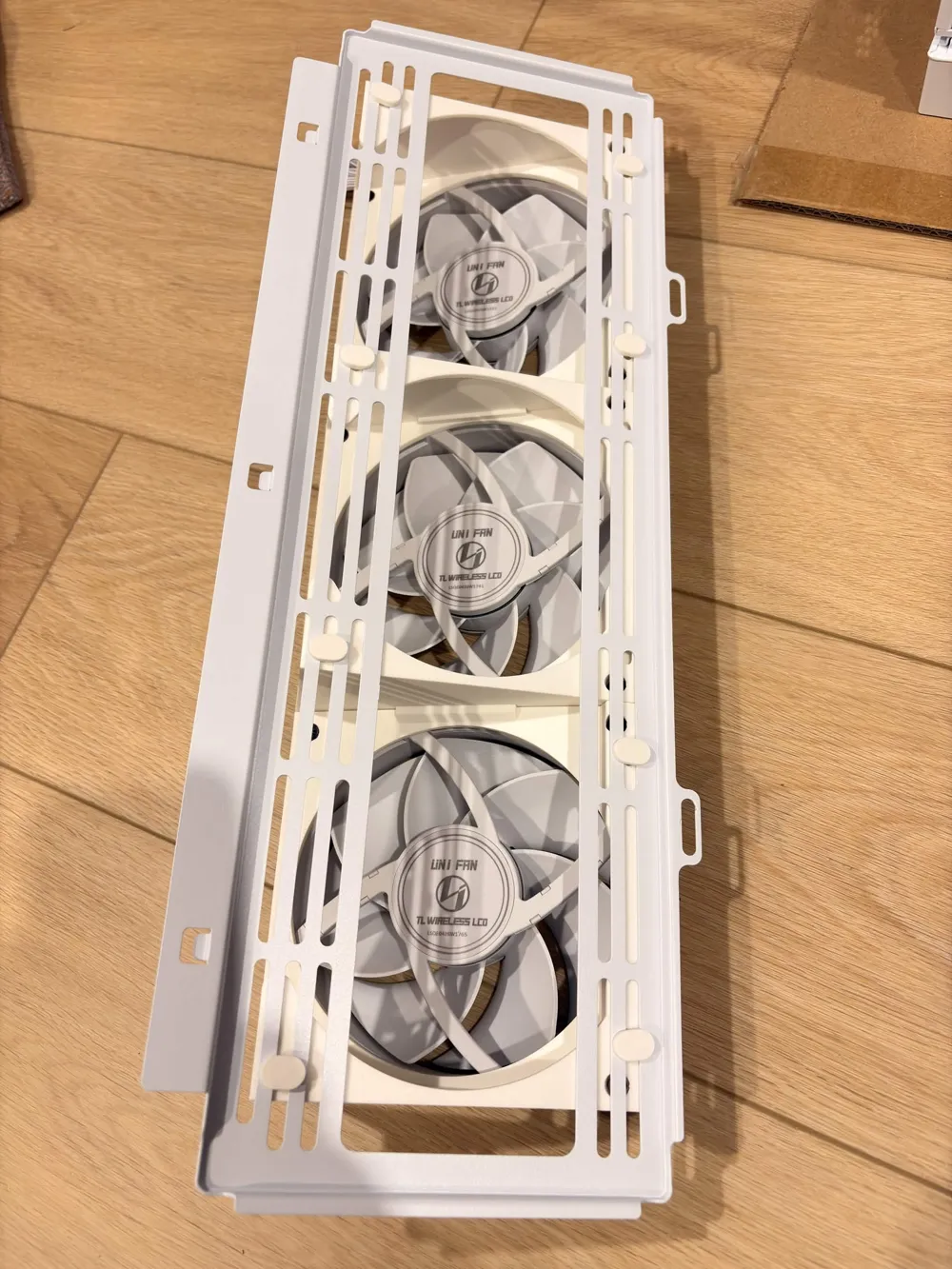

- Mount unit to the PC's removable fan bracket, securing with the twist locks
Once important note, I'd recommend installing this as the last part of your PC build, as it is harder (at least with my configuration) to access the very bottom of the mother board (fan headers, usb ports…). It fits perfectly (at least in my build) even with a capture card in the lower PCIE slot and fully populated lower headers, its just a bit fiddly to get in
