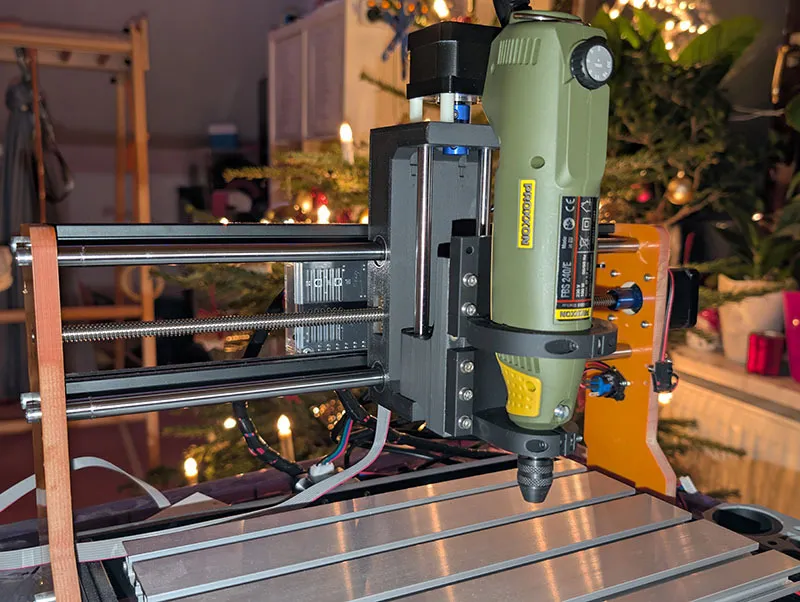

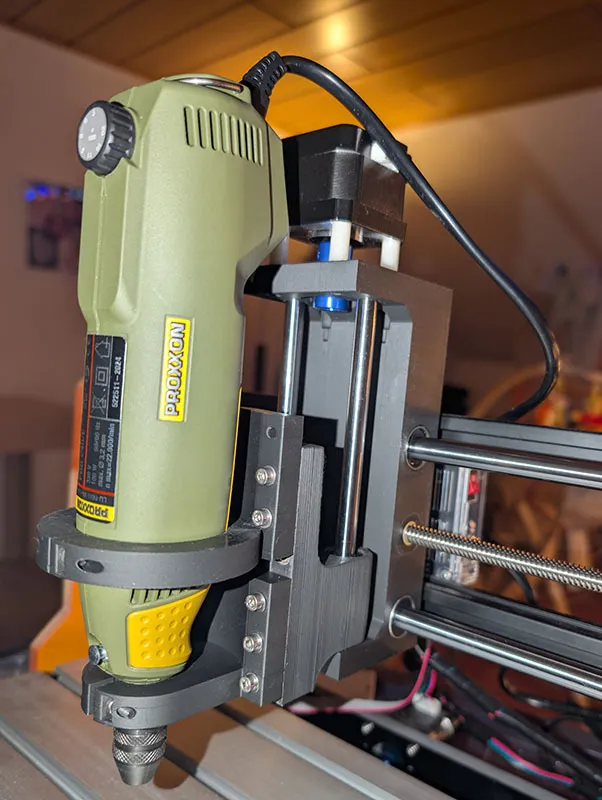

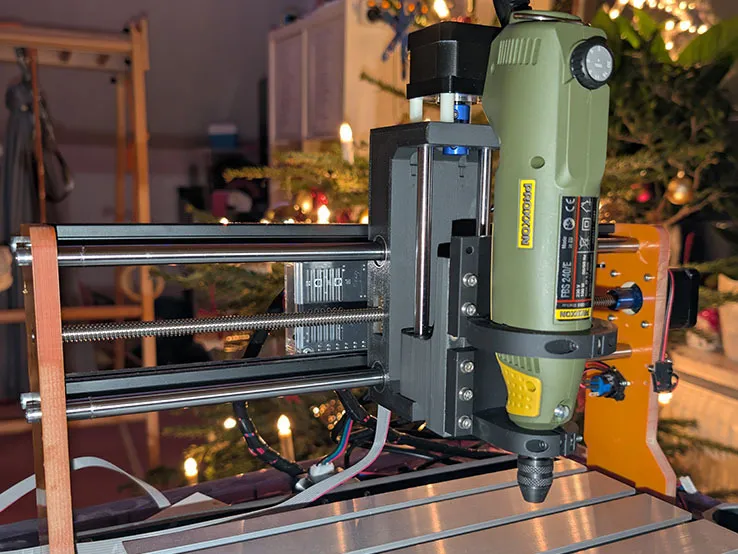

CNC 3018 Pro Z-Axis Updated

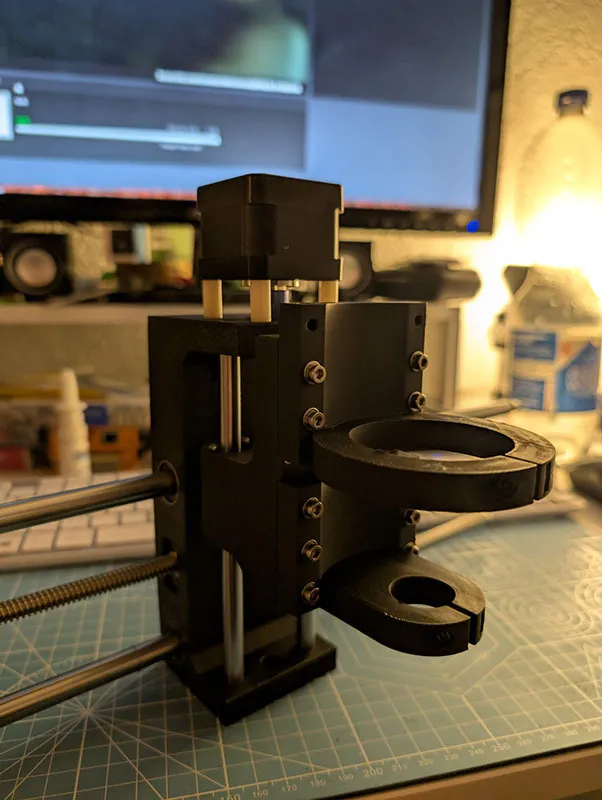

Extended from 45mm hub to 100mm hub - as well as integrating a "universal base plate" for, for example, the Proxxon FBS 240/E.
A holder for lasers, cutters, pen holders, etc. can then also be attached to the "universal base plate".
For the extension, you need:
1x Trapezoidal lead screw T8 with pitch 2mm and lead 4mm L=150mm
2x Linear shaft Ø8mm x 150mm
Optional (if you don't want to use it from the old one):
4x Linear ball bearing LM8UU I-Ø=8mm, A-Ø=15mm, L=17mm
4x Linear ball bearing LM10UU I-Ø=10mm, A-Ø=19mm, L=29mm
