<h2>Print Profile – 0.4 mm Nozzle (Best Allround / Functional Use)</h2>Doel: Sterk, strak en praktisch voor gebruik aan de waterkantGeneral<ul><li>Layer height: 0.2 mm</li><li>Initial layer: 0.24 mm</li><li>Line width: 0.42 mm</li></ul>Walls<ul><li>Wall count: 4 ✅ (extra sterk tegen impact)</li><li>Wall thickness: ~1.6 mm</li></ul>Top/Bottom<ul><li>Top layers: 5</li><li>Bottom layers: 5</li></ul>Infill<ul><li>20–30%</li><li>Pattern: Gyroid (beste demping + sterkte)</li></ul>Temperatuur (PLA / PETG)<ul><li>PLA: 205°C / 60°C</li><li>PETG (aanrader voor buitengebruik): 230°C / 75°C</li></ul>Speed<ul><li>Print speed: 50 mm/s</li><li>Outer wall: 30 mm/s</li></ul>Cooling<ul><li>PLA: 100%</li><li>PETG: 40–60%</li></ul>Extra<ul><li>Supports: ❌ Niet nodig</li><li>Seam position: achterkant (weg van logo)</li><li>Z-hop: 0.2 mm (voorkomt krassen op logo)</li></ul><h2>Print Profile – 0.2 mm Nozzle (High Detail / Premium Finish)</h2>Doel: Maximale detail op het karperlogo 🔥General<ul><li>Layer height: 0.12 mm</li><li>Initial layer: 0.16 mm</li><li>Line width: 0.22 mm</li></ul>Walls<ul><li>Wall count: 3–4</li><li>Wall thickness: ~0.8–1.0 mm</li></ul>Top/Bottom<ul><li>Top layers: 6–7</li></ul>Infill<ul><li>15–20%</li><li>Pattern: Gyroid</li></ul>Temperatuur<ul><li>PLA: 200°C</li><li>PETG: 225°C</li></ul>Speed<ul><li>Print speed: 35 mm/s</li><li>Outer wall: 20 mm/s</li></ul>Cooling<ul><li>PLA: 100%</li><li>PETG: 50%</li></ul>Extra<ul><li>“Detect thin walls”: ✅ (belangrijk voor logo detail)</li><li>“Outer wall speed”: laag houden voor strak resultaat</li><li>Seam: achterzijde of random (voor minder zichtbaarheid)</li></ul>

<h2>Print Profile – 0.4 mm Nozzle (Best Allround / Functional Use)</h2>Goal: Strong, sleek, and practical for use at the watersideGeneral<ul><li>Layer height: 0.2 mm</li><li>Initial layer: 0.24 mm</li><li>Line width: 0.42 mm</li></ul>Walls<ul><li>Wall count: 4 ✅ (extra strong against impact)</li><li>Wall thickness: ~1.6 mm</li></ul>Top/Bottom<ul><li>Top layers: 5</li><li>Bottom layers: 5</li></ul>Infill<ul><li>20–30%</li><li>Pattern: Gyroid (best dampening + strength)</li></ul>Temperature (PLA / PETG)<ul><li>PLA: 205°C / 60°C</li><li>PETG (recommended for outdoor use): 230°C / 75°C</li></ul>Speed<ul><li>Print speed: 50 mm/s</li><li>Outer wall: 30 mm/s</li></ul>Cooling<ul><li>PLA: 100%</li><li>PETG: 40–60%</li></ul>Extra<ul><li>Supports: ❌ Not needed</li><li>Seam position: back (away from logo)</li><li>Z-hop: 0.2 mm (prevents scratches on logo)</li></ul><h2>Print Profile – 0.2 mm Nozzle (High Detail / Premium Finish)</h2>Goal: Maximum detail on the carp logo 🔥General<ul><li>Layer height: 0.12 mm</li><li>Initial layer: 0.16 mm</li><li>Line width: 0.22 mm</li></ul>Walls<ul><li>Wall count: 3–4</li><li>Wall thickness: ~0.8–1.0 mm</li></ul>Top/Bottom<ul><li>Top layers: 6–7</li></ul>Infill<ul><li>15–20%</li><li>Pattern: Gyroid</li></ul>Temperature<ul><li>PLA: 200°C</li><li>PETG: 225°C</li></ul>Speed<ul><li>Print speed: 35 mm/s</li><li>Outer wall: 20 mm/s</li></ul>Cooling<ul><li>PLA: 100%</li><li>PETG: 50%</li></ul>Extra<ul><li>“Detect thin walls”: ✅ (important for logo detail)</li><li>“Outer wall speed”: keep low for a clean result</li><li>Seam: back or random (for less visibility)</li></ul>

0.16mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

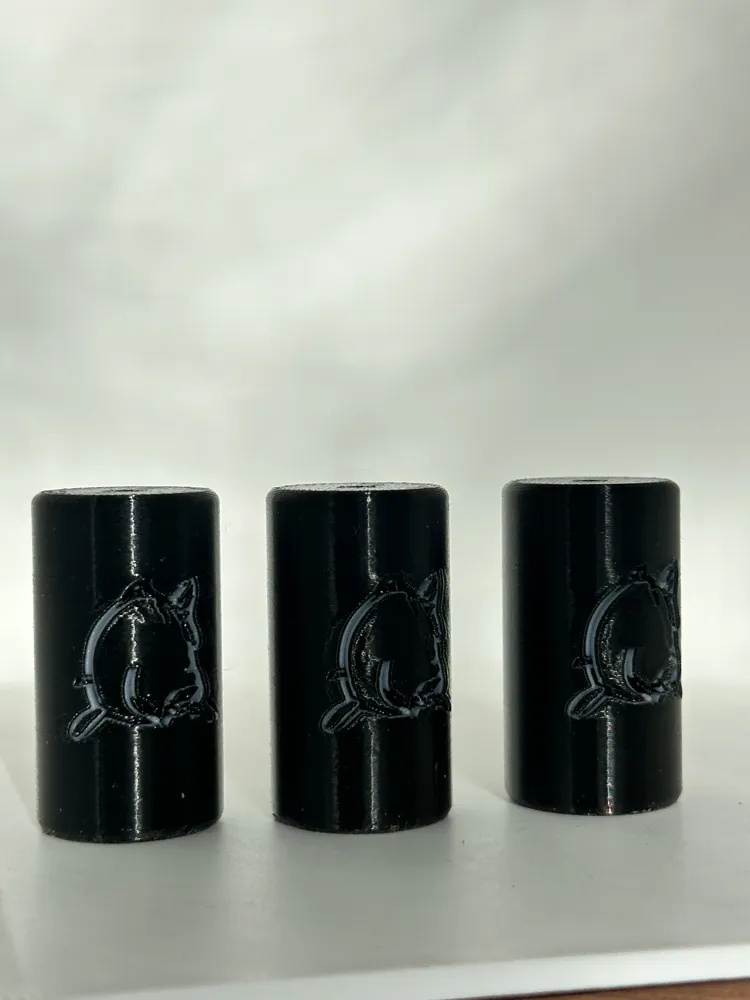

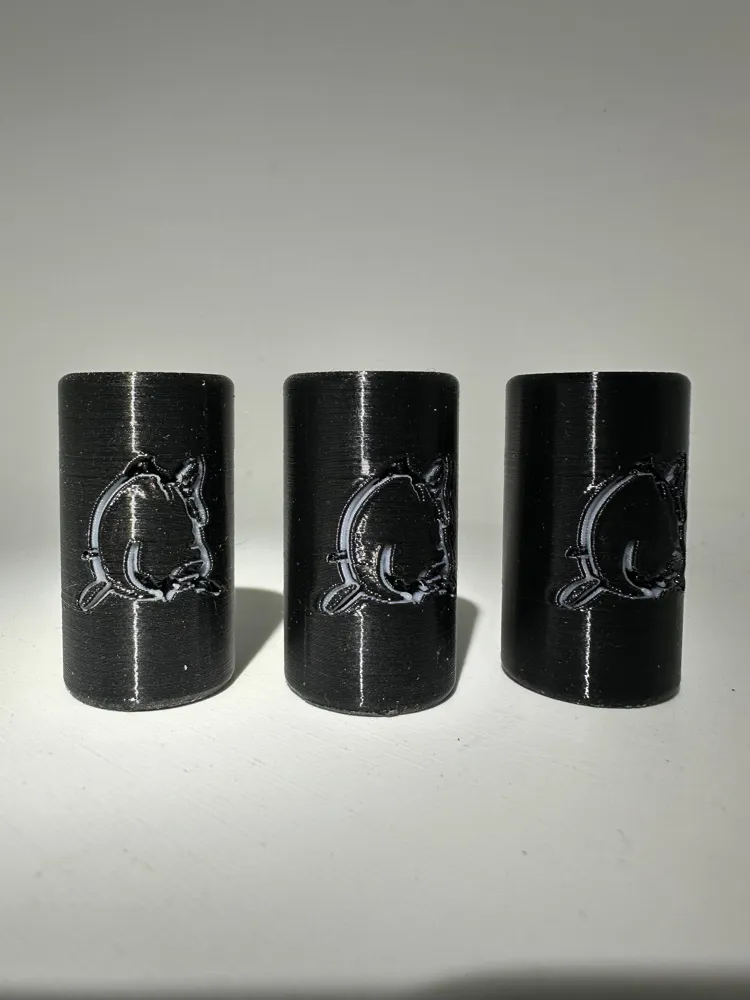

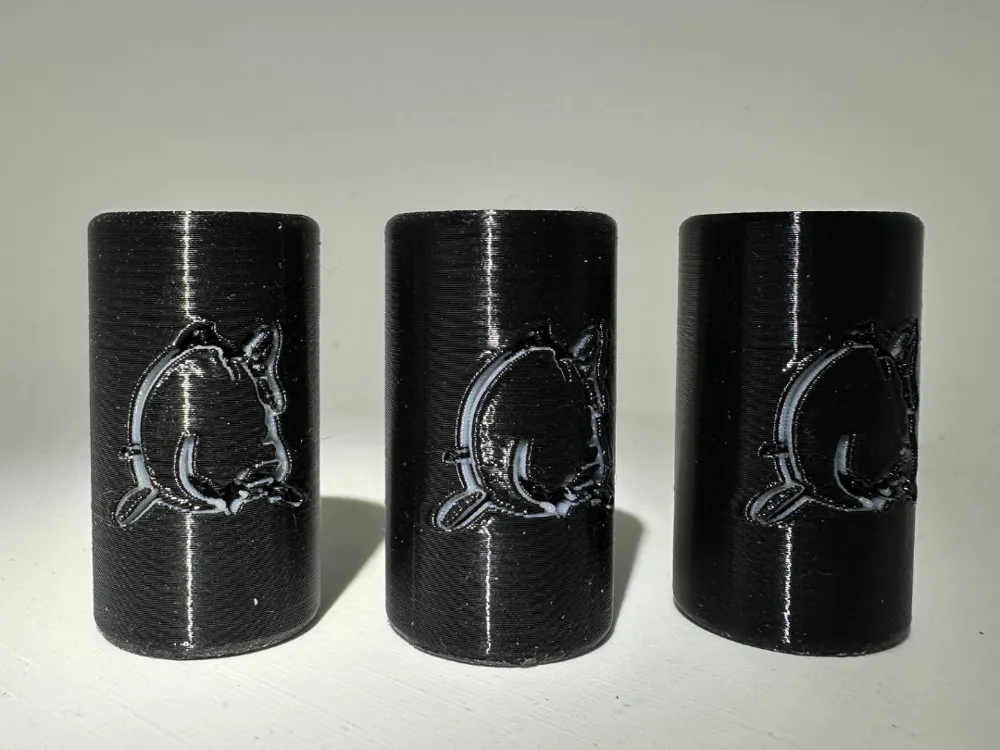

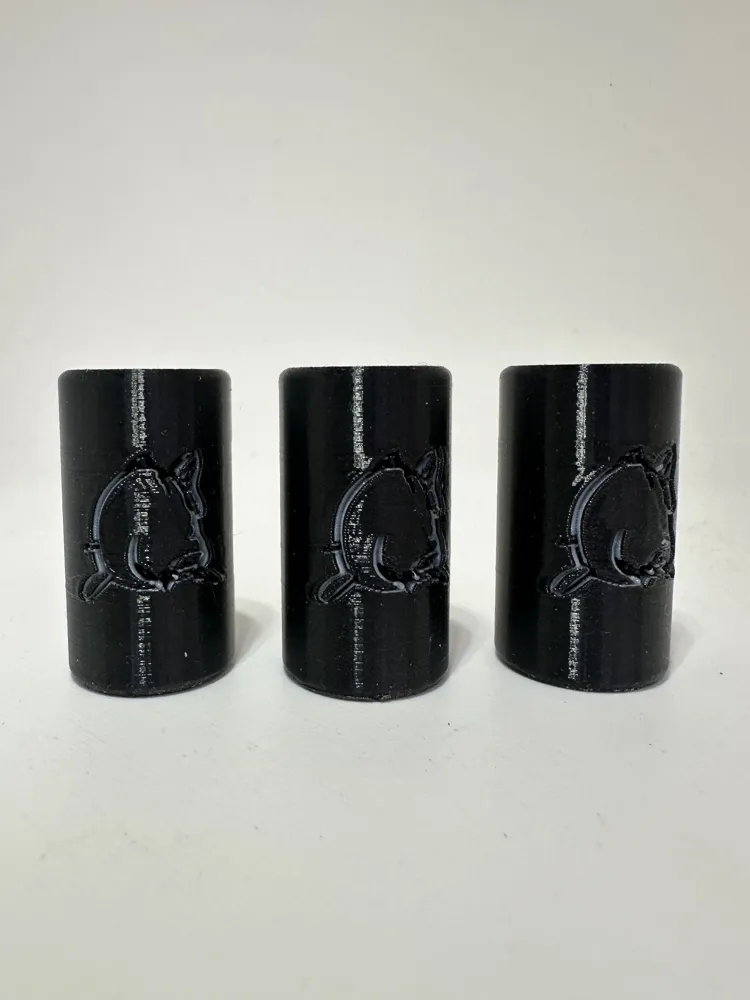

<h2>Carp Fishing Bobbins</h2>These 3D-printed carp fishing bobbins are designed for reliable bite indication with a clean and modern look. Featuring a cylindrical body with an embossed carp logo, they combine functionality with a subtle angling aesthetic.The compact and well-balanced design ensures smooth line movement and consistent tension, Perfect for pairing with chains or cords, these bobbins are suitable for use in a wide range of fishing conditions.&nbsp;
