Description

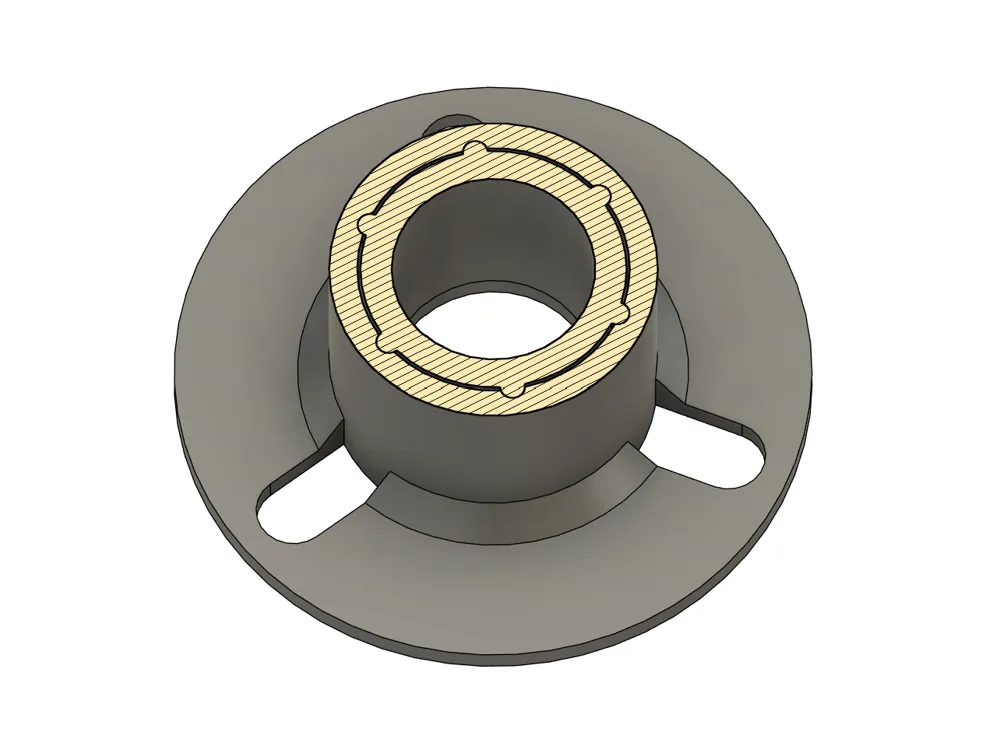

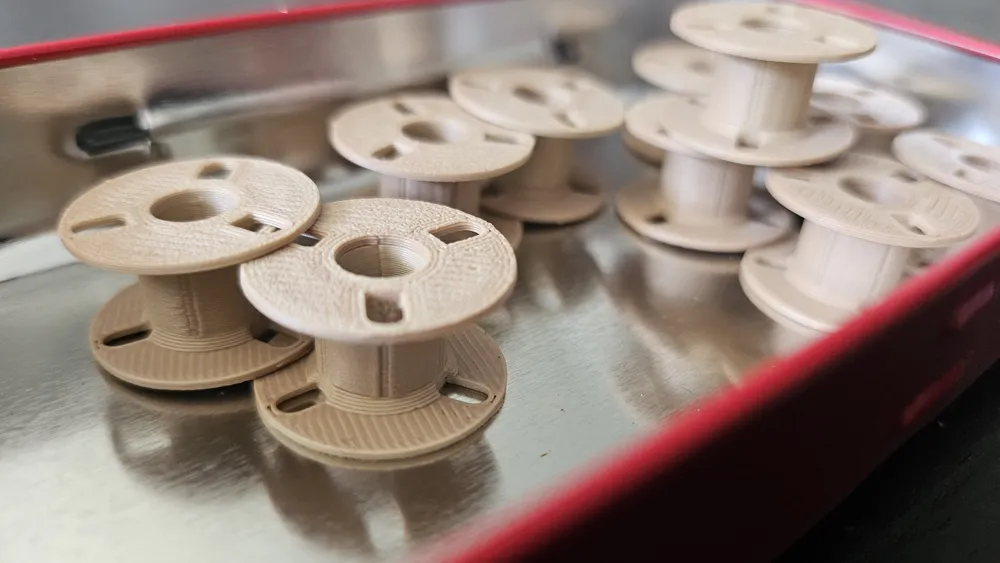

It's a bobbin. Not much else to say. The parts are press fit together.

Width: 20.4mm

Height: 11mm

Inside Diameter: 6.5mm

Fits perfectly for my Singer HD, should be usable with most sewing machines.

Update 11/09/25: Added 8mm height model

Comment & Rating (182)

@elRonaldo

Print Profile

0.2mm layer, 2 walls, 15% infill

Print worked without any issues. Unfortunately they don't work for my old Pfaff Tipmatic. But that is of course not the designers fault.

@Shaka01

I can probably easily adjust the dimensions for you if you tell me what was too big/ small

(Edited)

@missmeow2024

Replying to @Shaka01 :

Hey ya! I'm trying to print this for one of ours. Is there anyway that you could modify this design to be 8mm tall? I think it should work otherwise and I would greatly appreciate it!

@Shaka01

Replying to @missmeow2024 :

Hey there. Added one with 8mm height - let me know how it works!

@susancollins

Boosted

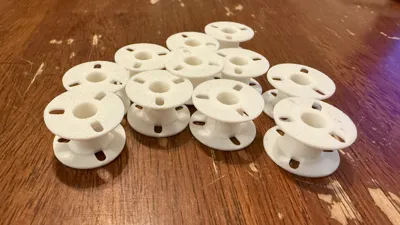

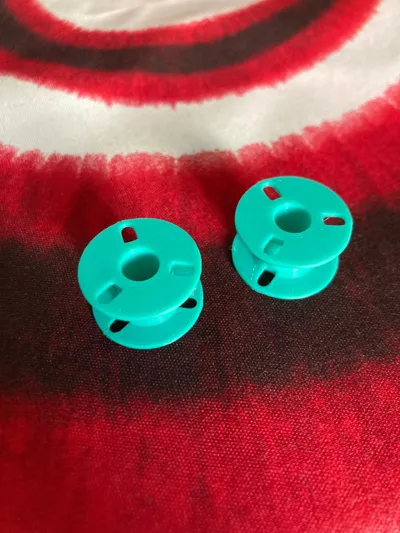

I took a chance and went ahead and printed about 12 of these! They printed perfectly and very quickly. The two parts pop together easily and fit my Brother no problem :D Thank you for your time and effort in designing these :D

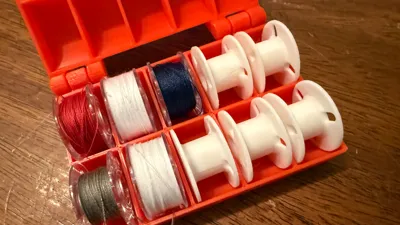

@Spiaku

Could you please share the link to the box

Show original

@mmdhx

Replying to @Spiaku :

I think it's this one: https://makerworld.com/en/models/837151-sewing-bobbin-box?from=search#profileId-782656

@user_1008903368

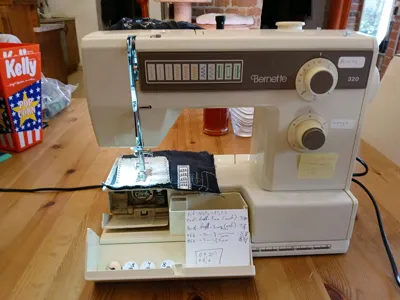

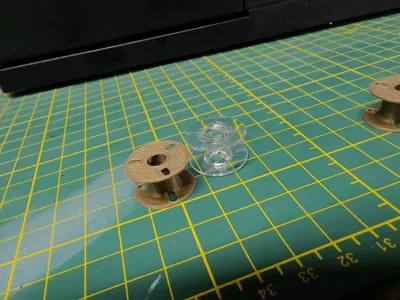

Thank you so much for this model! I inherited my grandmothers sewing machine and the bobbins have a really weird dimension. Of course they are no longer being produced so after some trials I could modify your model to fit my machine. (2nd pic: left is original size, right is the perfect size for me.) Again thank you so much!

@Antony_V

Printed perfectly right away Thank you

Show original

@TommyGun21

Print Profile

0.2mm layer, 2 walls, 15% infill

work amazing

@Wrench1496

Print Profile

0.2mm layer, 2 walls, 15% infill

Great!

@jPepper3

Print Profile

0.2mm layer, 2 walls, 15% infill

printed great and fits perfectly in the Singer 4432

@dibby

Print Profile

0.2mm layer, 2 walls, 15% infill

Nice crisp print. Push-fit of the two halves is spot-on

@user_35845029

Print Profile

0.2mm layer, 2 walls, 15% infill

Works well and fits great

@circus_maximus

Print Profile

0.2mm layer, 2 walls, 15% infill

Nice model – thank you! Print went well, press-fit was a bit tight in some places. Dimensions are accurate. I think they will work with my sewing machine.
