Description

Boost Me (for free)

Please Boost for more cool projects!

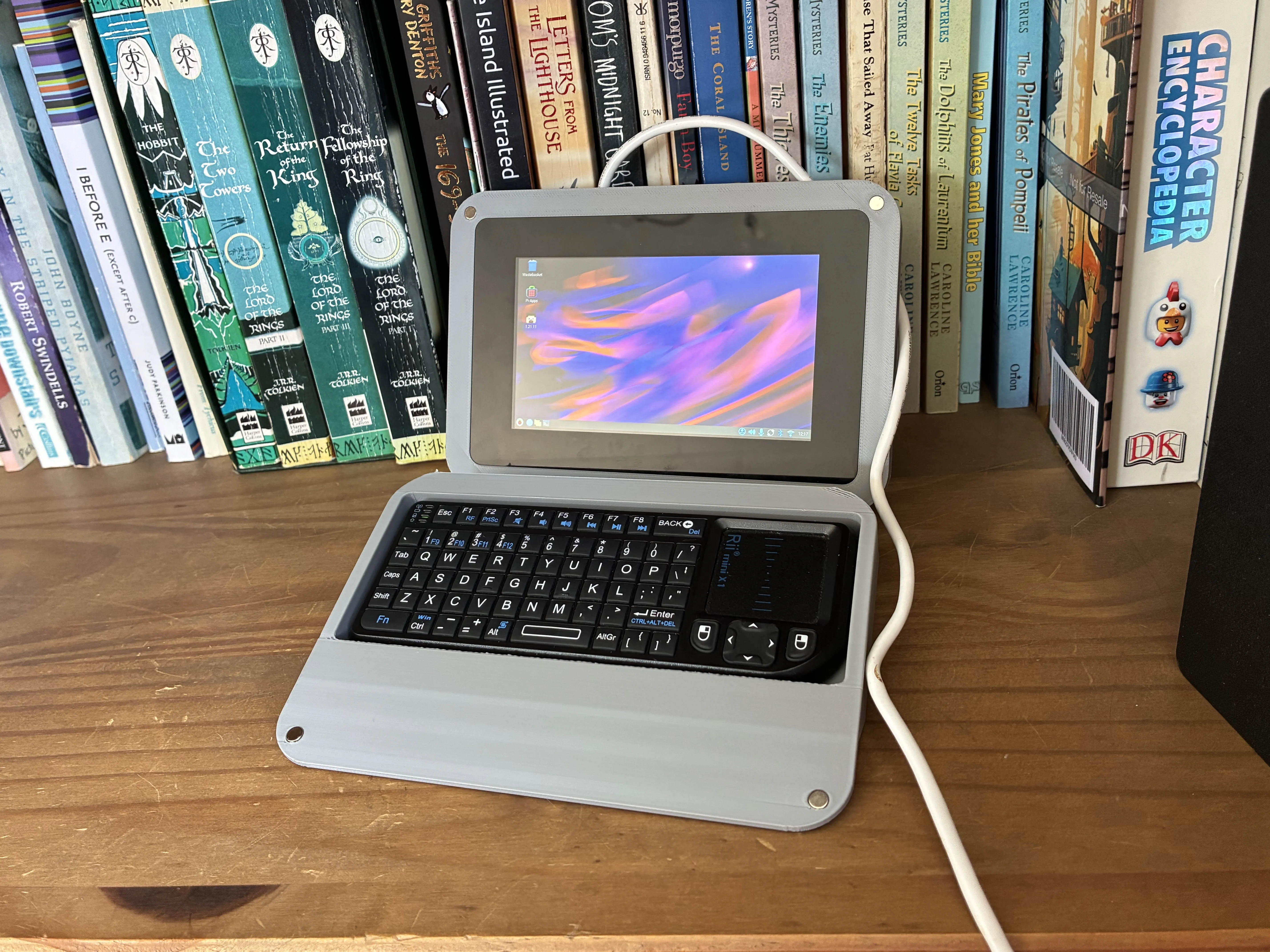

Here is a brand new Raspberry Pi 5 foldable cyberdeck for a 3.5 inch touch display, camera module (optional) and a Rii Miniture keyboard.

The hinges were generated here.

Parts

Touchscreen: amazon

Keyboard: pi hut

2x5mm magnets: aliexpress

Also check out this case for the 5" Touch Display 2!

Comment & Rating (55)

@user_2511866470

Hey im new to things intaling the pi im looking to make one of these soon I dont know how to set up the screen and install the drives any help would be amazing i dont have the screen yet but im not too sure on how to set the screen up also is there a internall battery for on the go use if not is there anyway for me to put one in from my research the only thing I can find us tbe pi sugar so I was wondering if that would work but any help is amazing than

The designer has replied

@user_2511866470

Thank you* sorry about the typos

@ndejongh

Hi, you can find how to install the screen drivers by looking up raspberry pi 3.5" display. You will also need to install raspberrry pi os first, just google that. I do not currently have any support for batteries due to the large amout of current required, and many solutions require the gpio pins which are used up by the screen in this case.

@user_2511866470

Replying to @ndejongh :

The pi suger goes to the back of the raspberry pi so it dosnt use the gpio maybe take a look at that fir your next design i also have a question does it work with kali cause I have my pi on kali atm but I do have a pi os sd card somewhere laying around ill take a look at the pi sugar for my own design thank you so much for ur help I'll let you know how it goes

@michael3ddjdjjd

I can’t wait to build it!

The designer has replied

@ndejongh

Please let me know how it goes! (a photo would be appreciated)

@michael3ddjdjjd

Replying to @ndejongh :

can you find a screen you can buy in the us?

@ndejongh

Replying to @michael3ddjdjjd :

of cause. Here is an amazon link for one that should be available in the US, tested with a random US zip code: https://www.amazon.com/Hosyond-480x320-Screen-Display-Raspberry/dp/B0BJDTL9J3?

@user_1159101771

Boosted

i love the project and is very usefull,easy to carry and with kali os is the best pideck portable .

The designer has replied

@ndejongh

Wow thank you! How did you get kali OS to work with the screen?

@user_1159101771

Boosted

Need drivers for the screen and works great kalii os wit the screen.

@ndejongh

Replying to @user_1159101771 :

Oh right. I am trying to work on some updated drivers for raspberry pi OS, so I will let you know if/when those are finished.

@Guinearad35

about how much money would this cost without the magnets, just the keyboard and screen? thanks!

The designer has replied

@ndejongh

probably about £25

@Guinearad35

thanks!

@user_2015911780

remix with 7" screen?

The designer has replied

@ndejongh

I'm afraid that I don't currently have access to a 7" screen, but I will make one if I do. I may in the future make a version for the 5" official pi display tho.

@Gentleman22

good project

The designer has replied

@ndejongh

Thank you!

@neon.X1C_3D

cooool 🔥

The designer has replied

@ndejongh

thank you

@user_1612686665

portable laptop yay now I can play Minecraft pi edition 😁😎😁😎😁😎😁😁😎😎😁😁😁😎😁😁

The designer has replied

@ndejongh

great thanks for your review

@user_1302857317

How big does the screen have to be and what model of raspberry pi is needed

The designer has replied

@ndejongh

3.5" display and a raspberry pi 5

@julinvictus

Does that work for Raspberry Pi 3?

The designer has replied

@ndejongh

i don't think that the port cutouts are compatible, but feel free to try
