Description

Boost Me (for free)

Hi, I'm designing these 3D models in my free time (it's just my hobby), always providing all of my designs for free here on Makerworld. Often prototyping requires a lot of material, so if you like my work, consider supporting me for free by dropping a boost. =) But whatever you decide, enjoy the models and happy printing! :) - Oli

find the version for Airpods Pro 1 / 2 here and version for Airpods 4 here.

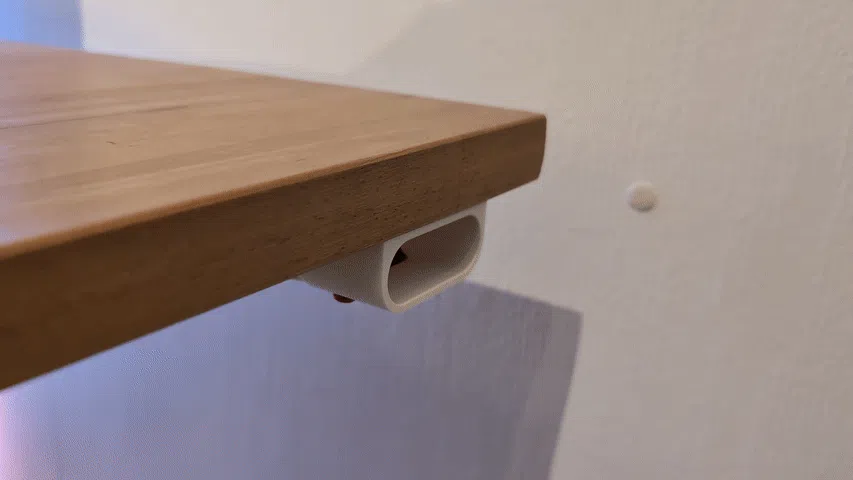

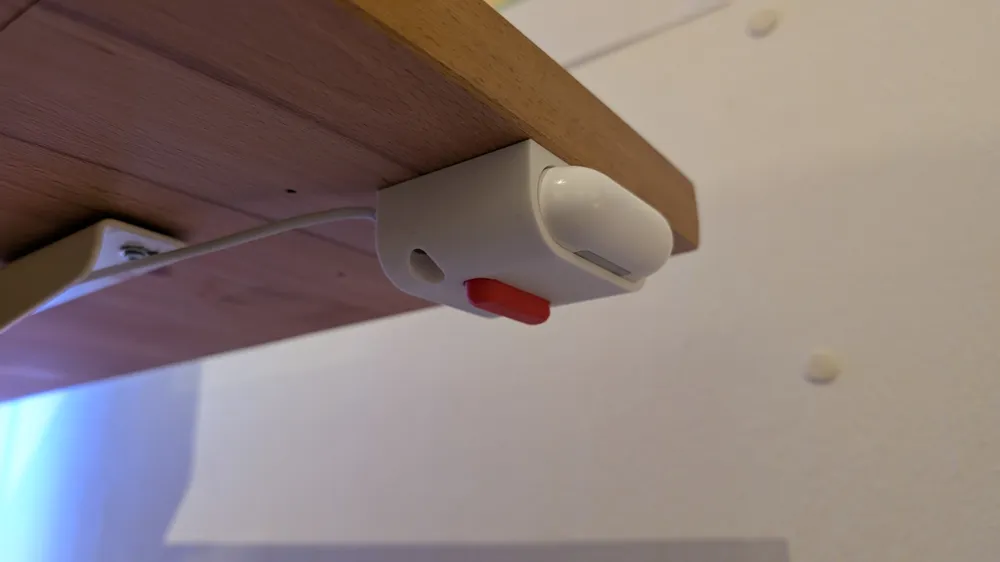

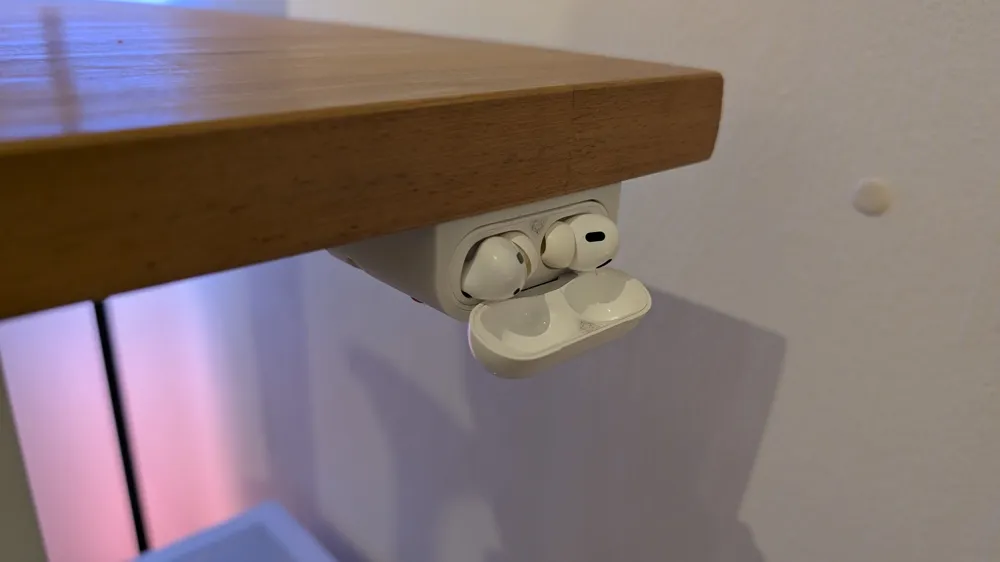

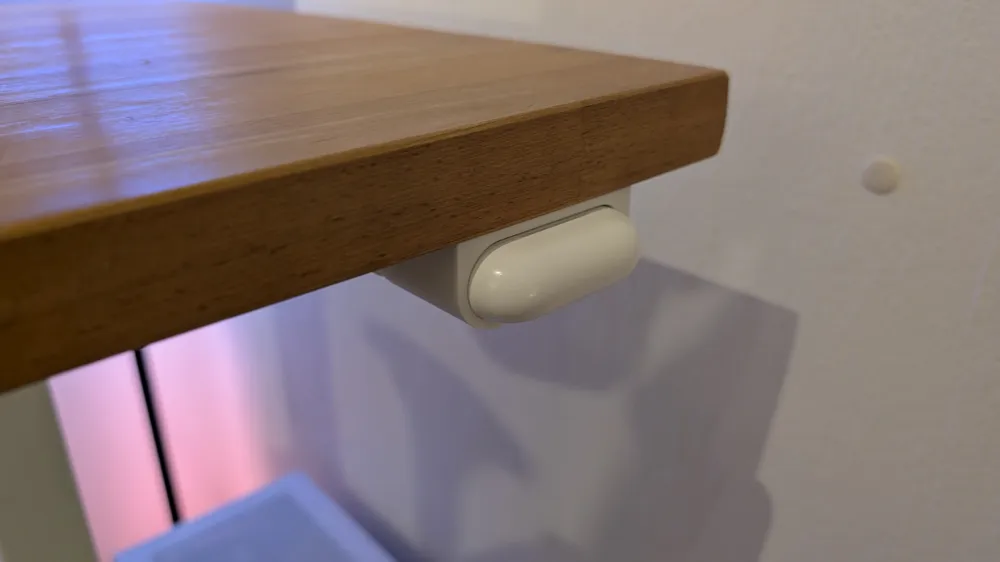

Under-Desk Charging Dock for AirPods Pro 3 (USB-C) | With Ejection Button

Keep your desk clean and your AirPods fully charged with this mechanical under-desk dock. Designed specifically for the USB-C version of the AirPods Pro 3, this mount features a satisfying push-button ejection mechanism that slides the case right into your hand.

✨ Key Features

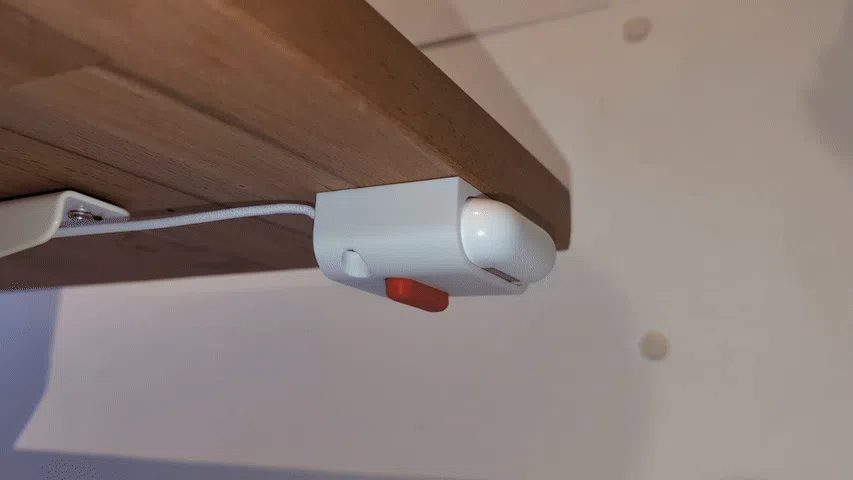

Satisfying Ejection Mechanism: A 3D printed button on the bottom mechanically pushes the AirPods case upwards, disconnecting it from the cable and sliding it into your hand. Convenient and fun to use!

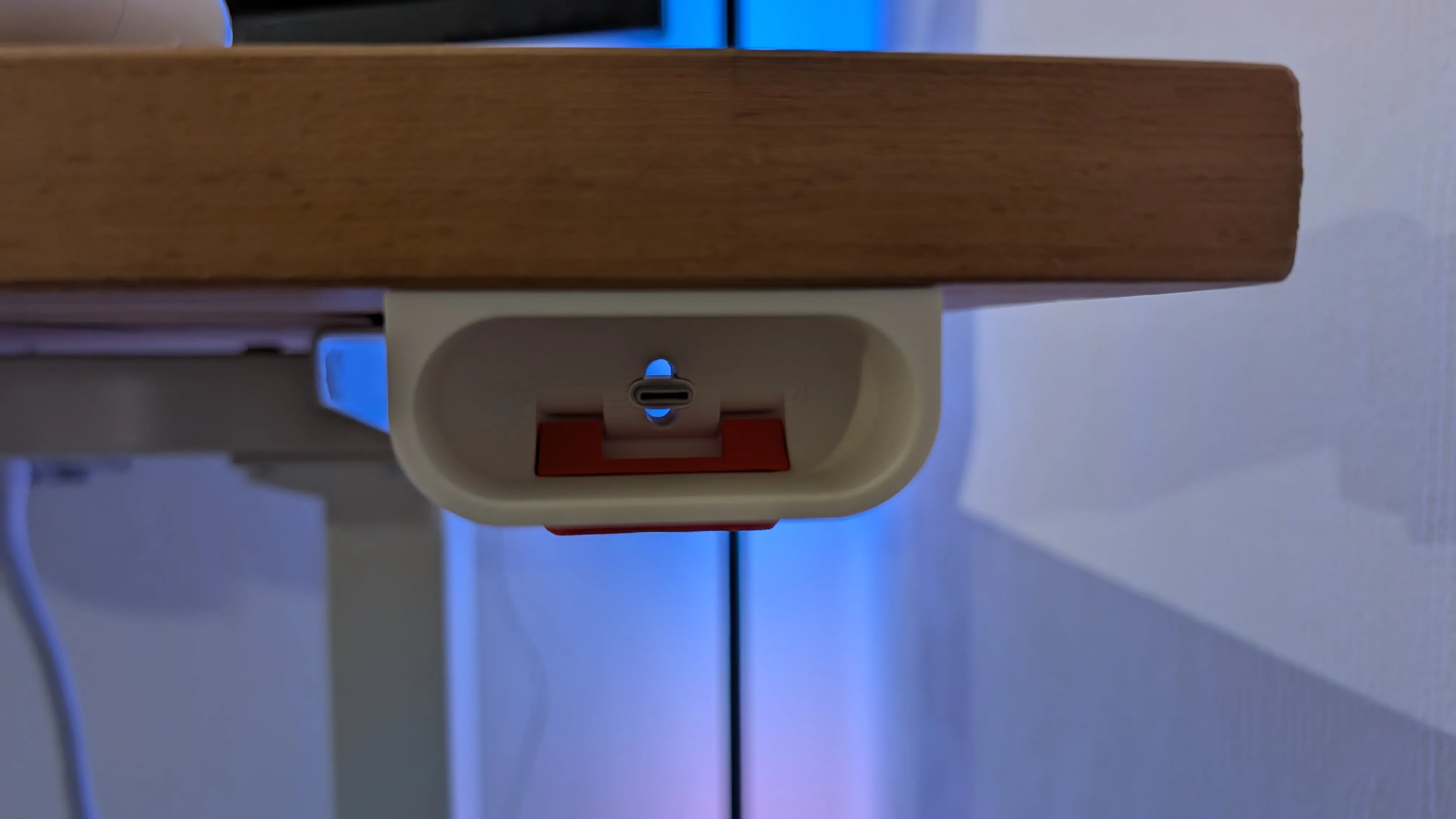

Precision Fit: Holds the original Apple USB-C cable securely. The AirPods case slides in smoothly and is held in place by the connector.

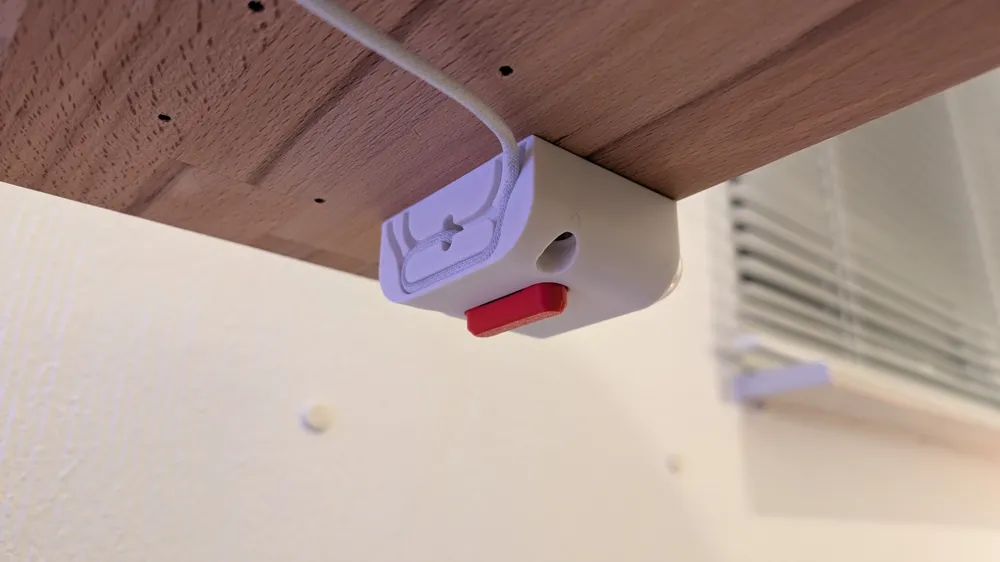

Versatile Mounting: Can be mounted under your desk using two screws (recommended for stability) or double-sided tape.
Stealth Design: Keeps your workspace clutter-free while ensuring your headphones are always charged and within reach.

⚠️ COMPATIBILITY WARNING ⚠️

This model is designed EXCLUSIVELY for the AirPods Pro 3 with USB-C Charging Case. Please DO NOT print this if you have the Lightning version or another AirPods version, it will only fit for that specific version. Even for the lightning version, the connector dimensions are different, and it will not fit correctly.

🖨️ Printing Instructions

Print Profile: Please use my uploaded print profile! It is tested and proven to work perfectly.
Supports: If you slice it yourself, ensure supports are placed correctly.
Material: PLA, PETG, or ABS work great.

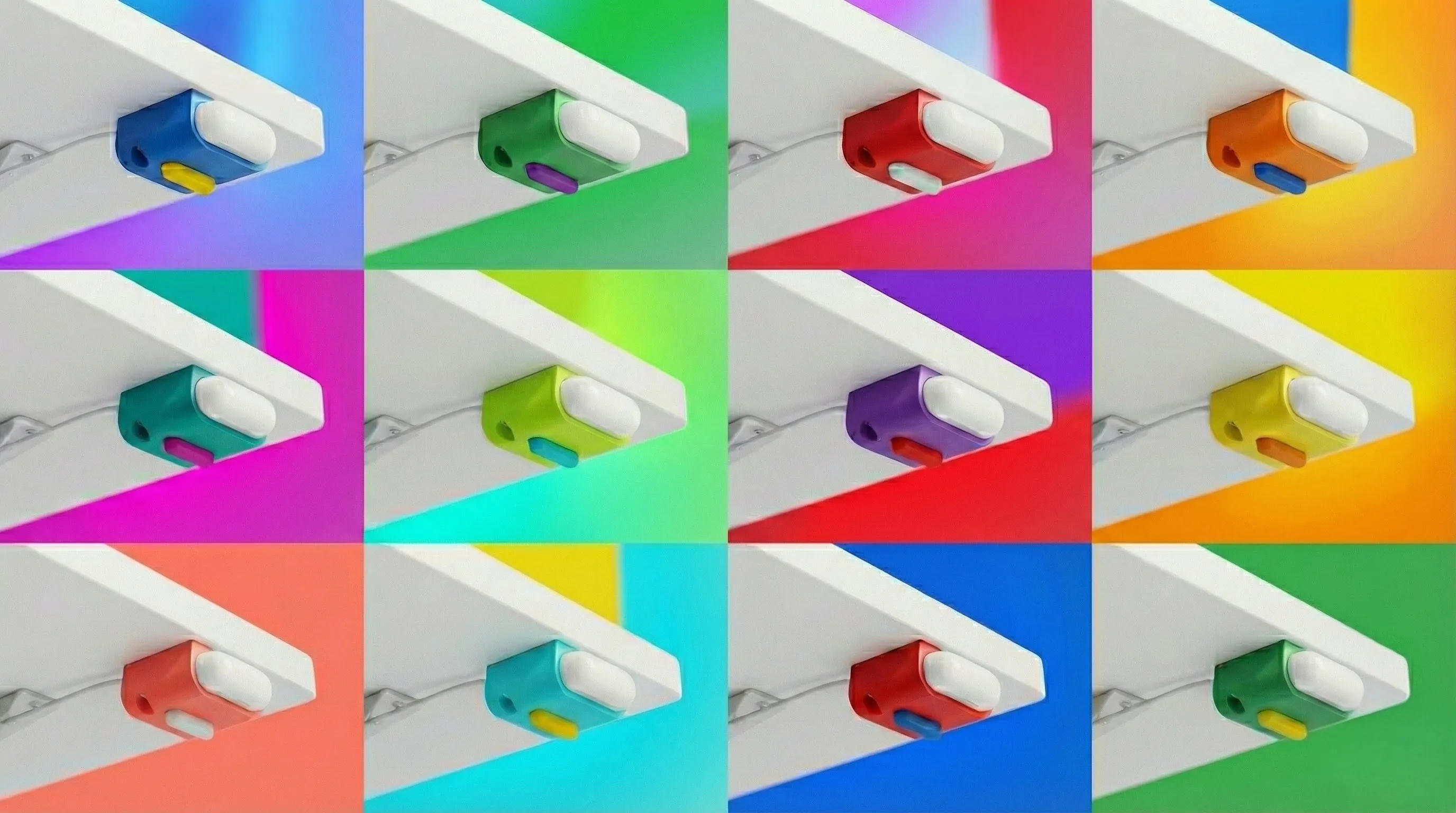

Customization: Use a different filament color for the eject button to create a nice accent (as seen in the photos).

🛠️ Assembly & Installation

Insert your original Apple USB-C charging cable into the designated slot inside the printed housing. It is a tight fit to ensure the cable doesn't move.
Insert the button with the “sharp” edge looking towards you.
Mount the dock under your desk using screws or strong double-sided tape.
Slide your AirPods Pro case in to charge.
To remove: simply press the button underneath and make sure to catch it with your hand!

If you like this design, please leave a like and share a picture of your make! Happy Printing!
