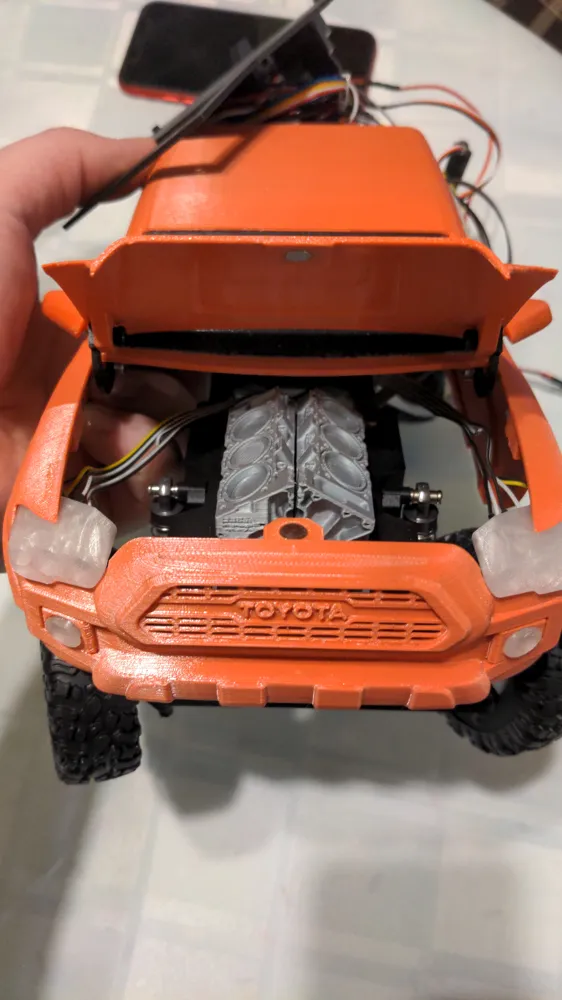

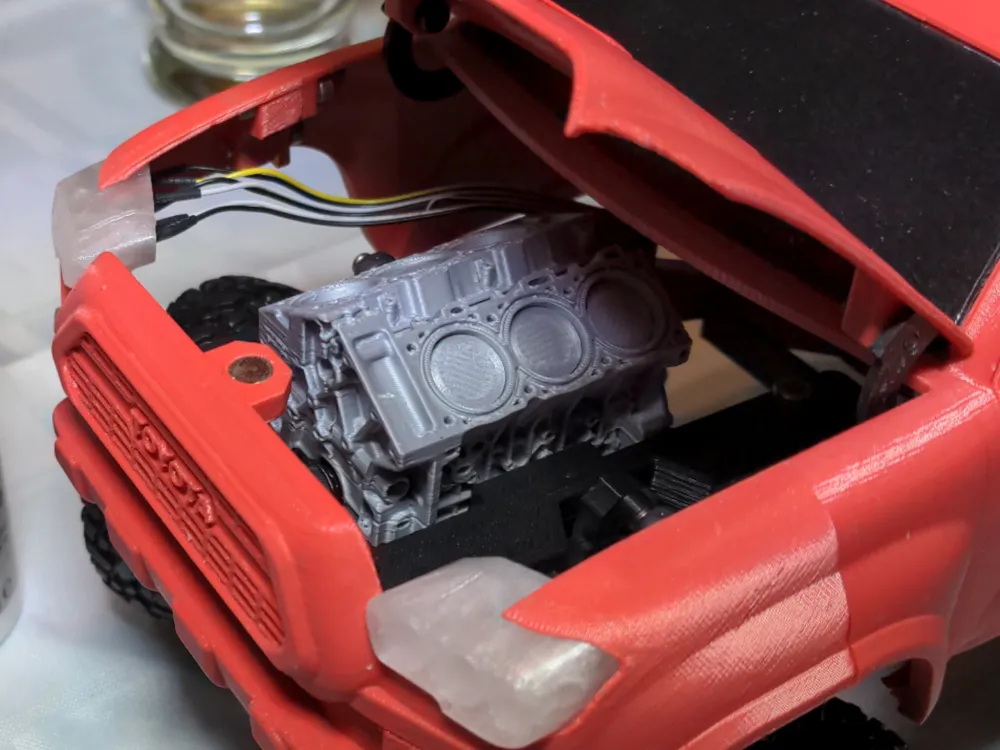

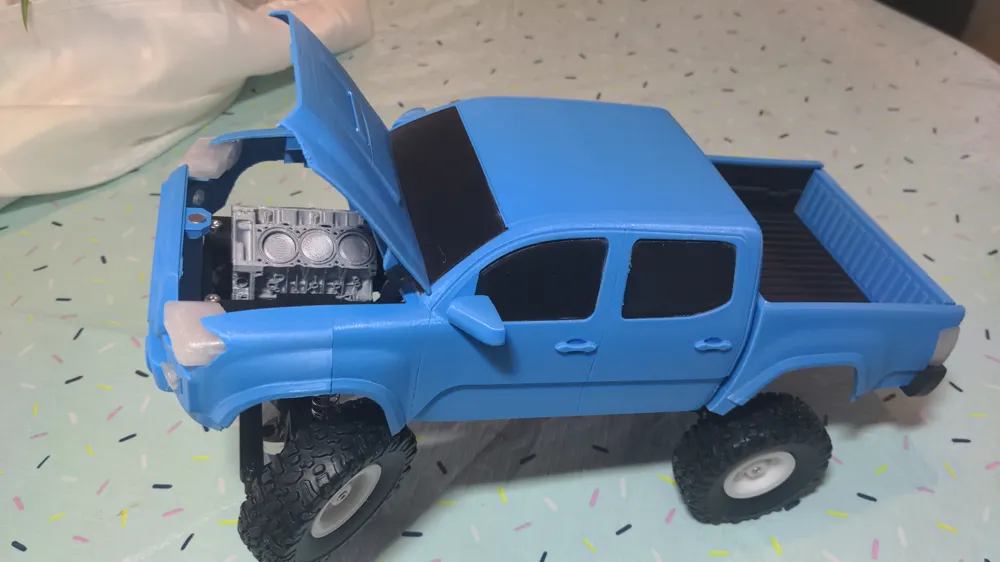

1:16 Toyota Tacoma Working V6 Add-On

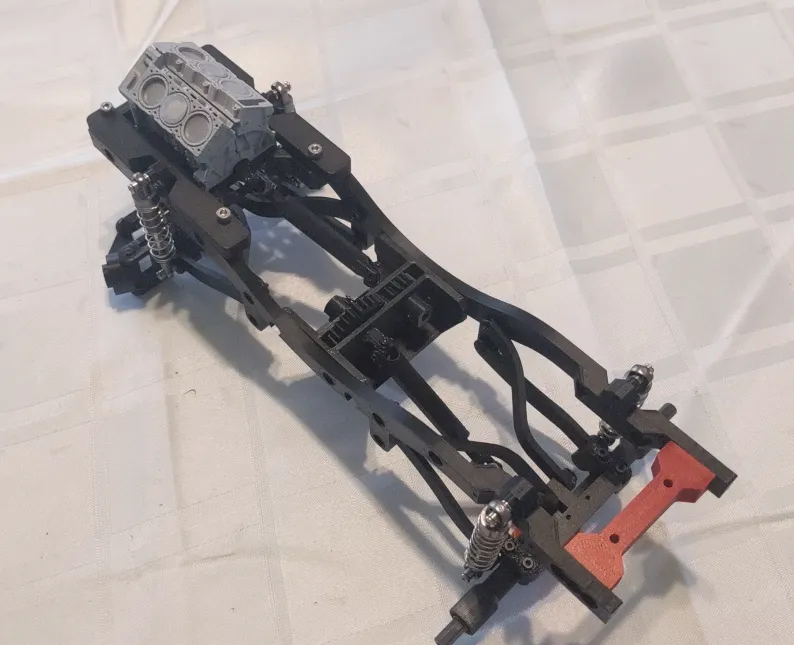

This is a V6 add-on kit for the 1:16 Toyota Tacoma RC and 1:16 Truck/Crawler Flexible Rolling Chassis models. When the chassis moves, the pistons pump up and down automatically.

Required Hardware & RC Products

• 4x M2x6mm screws
• 4x M2x16mm screws
• 4x M3x14mm screws
• 20x M2x4mm flat-head screws
• WPL Metal Axle: only WPL rear kit.

You will also need all the files and parts from 45% Scale Working V6 Engine

Print Settings

General Print Settings for all the .stl files

• 0.12mm layer height or better
• 4 perimeters, 15% infill
• All files should be printed in the orientation they come with

Note:
Make sure you have excellent bed adhesion and that your printer is tuned correctly.

Assembly
