Clamp On Handle for 1 inch PVC Livescope Pole
Print Profile(1)
0.2mm layer, 6 walls, 10% gyroid infill
Designer
3.9 h
1 plate
Open in Bambu Studio
Boost
14
43
0
0
31
11
Released
Description

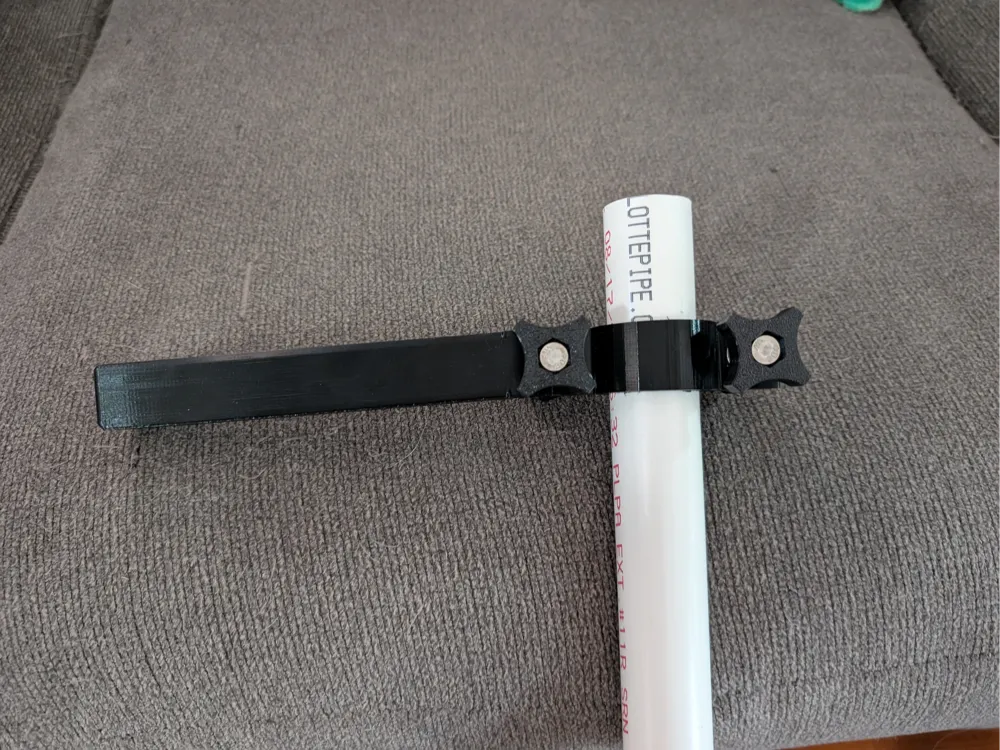

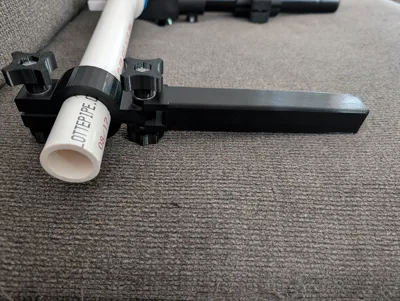

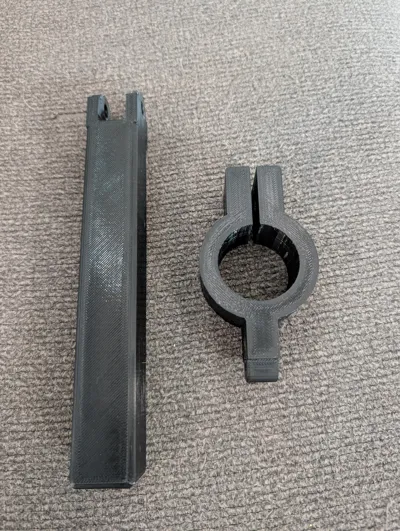

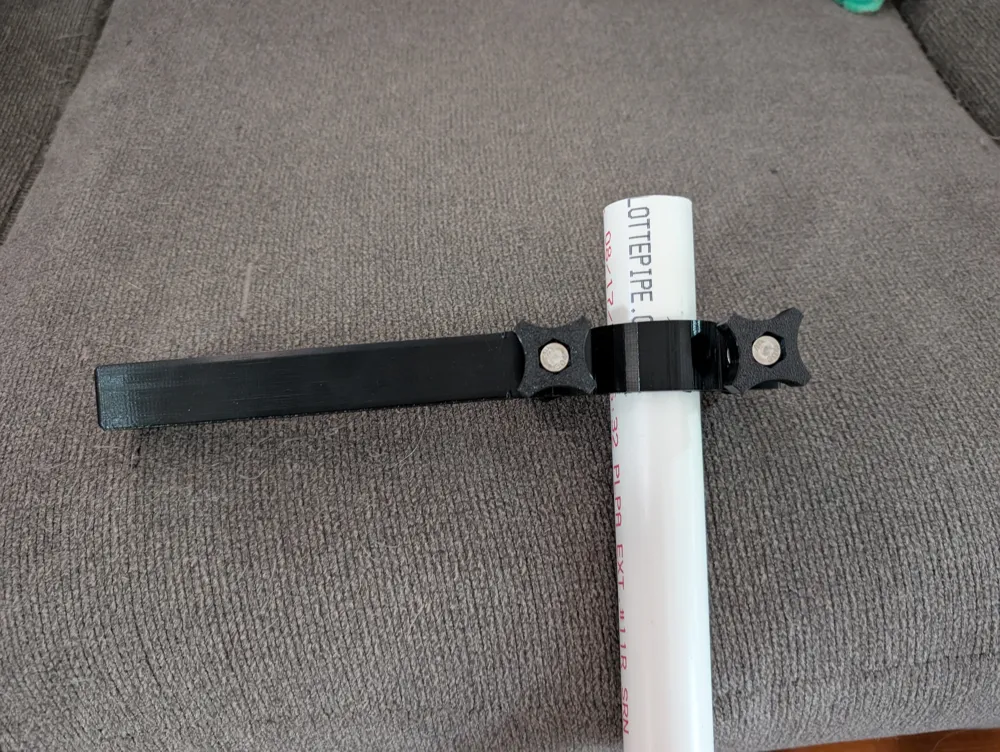

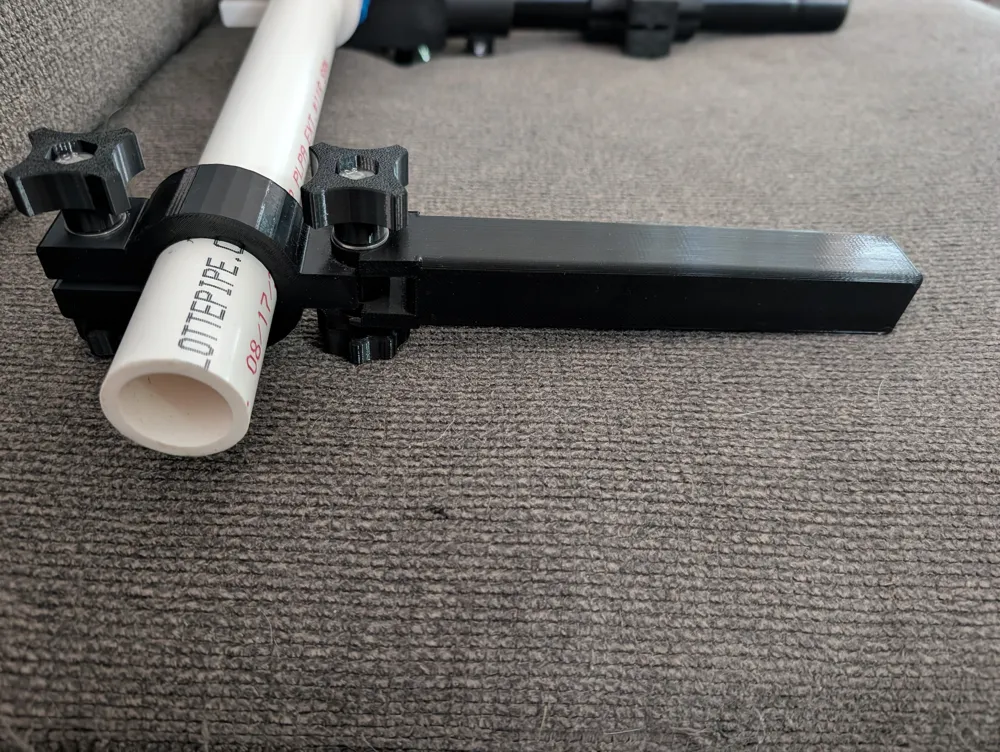

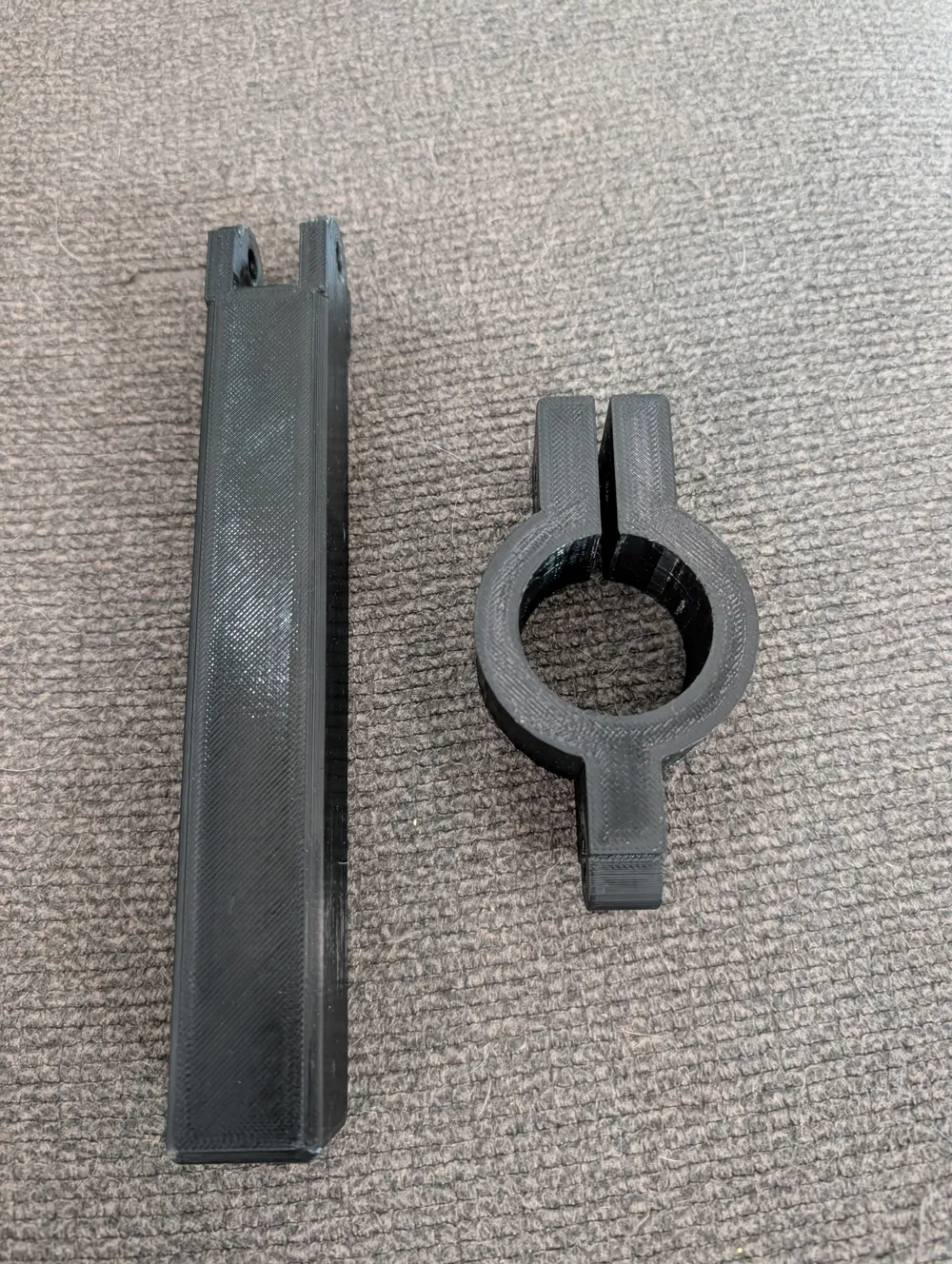

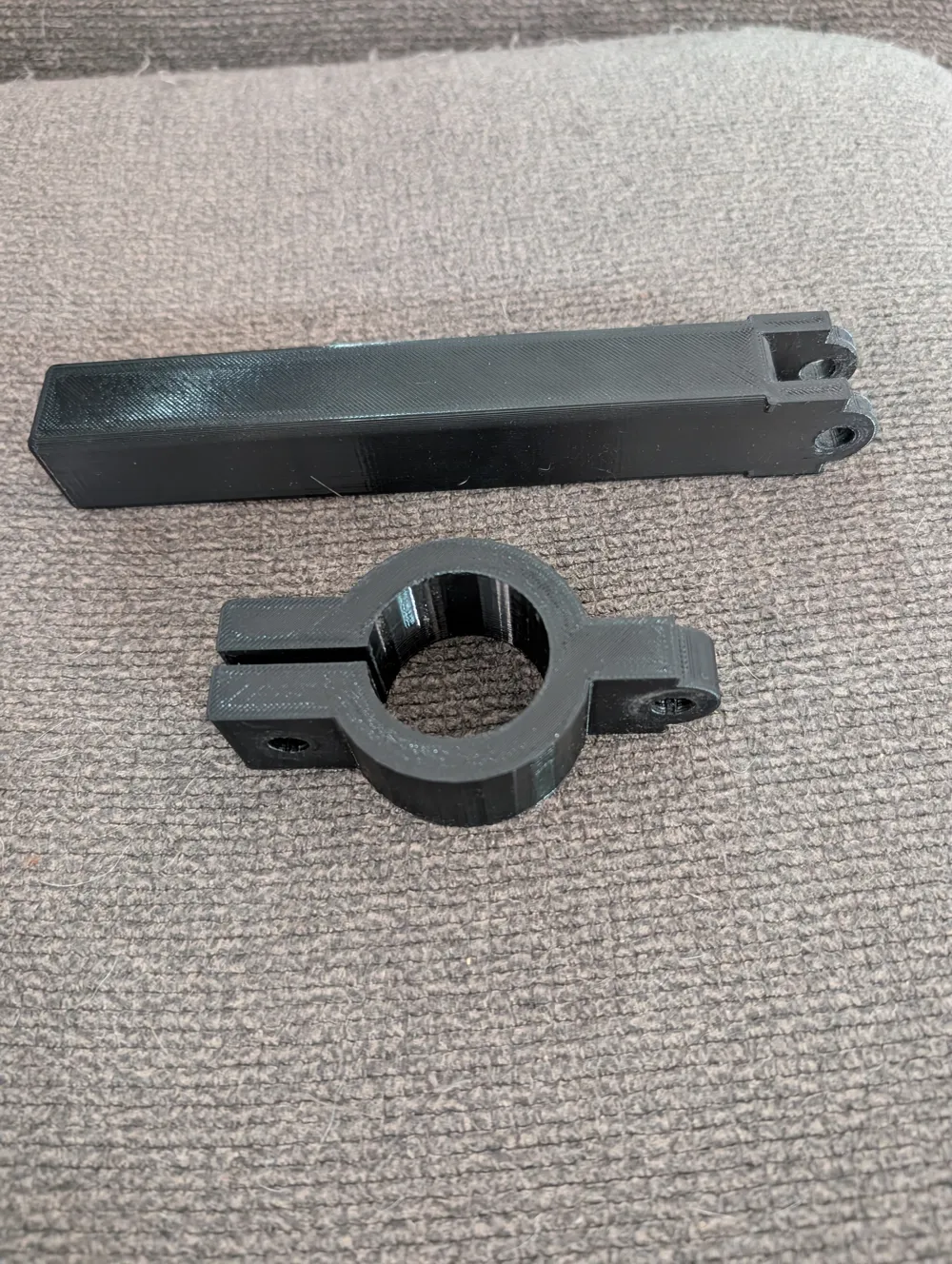

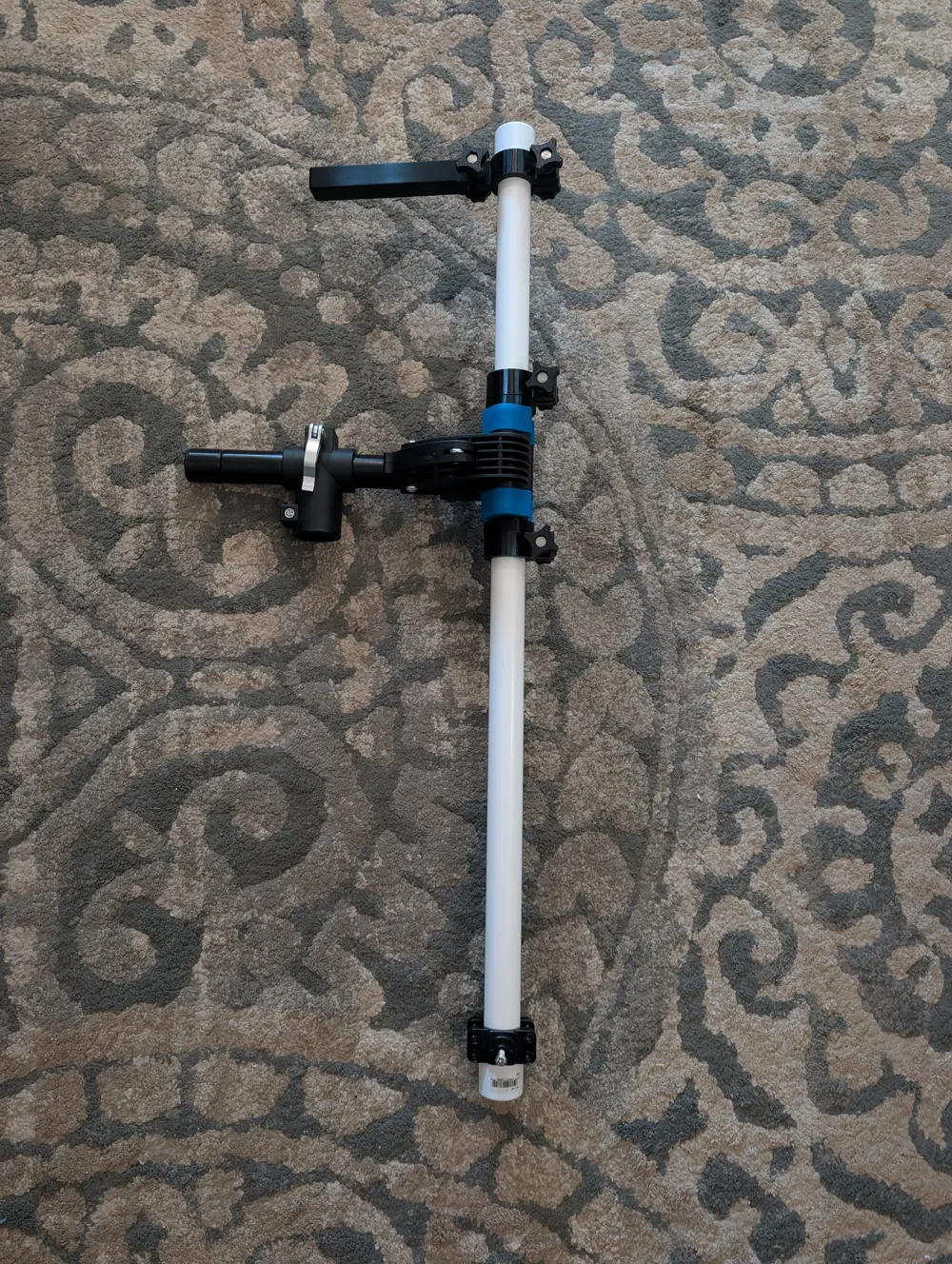

This is a clamp-on handle that fits 1-inch Schedule 40 PVC. I designed this so I could use 1-inch PVC as a transducer pole for my livescope setup on my boat.

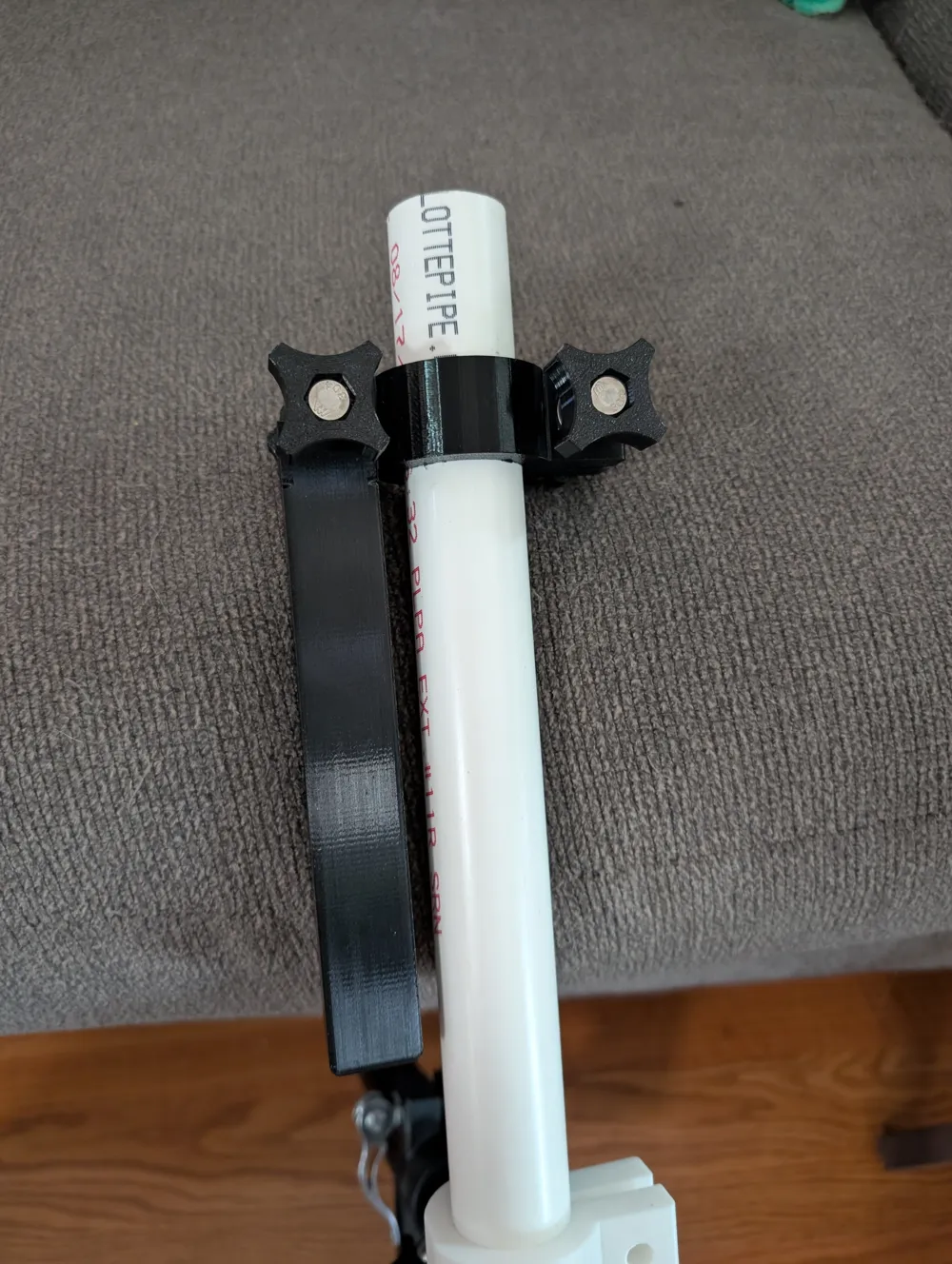

- The handle folds so it can be stored out of the way.
- I used ¼-20 2-inch stainless hex bolts, washers, and nuts to to connect the handle to the clamp and for the clamp itself.
- I printed knobs (not included in this print file) for the bolts to make it easier to tighten by hand.
- I printed with PETG. ASA or ABS may also hold up better outdoors. Not recommended to print in PLA.
