Bonsai Tree Tensegrity Garden

Bonsai Tree Tensegrity Garden

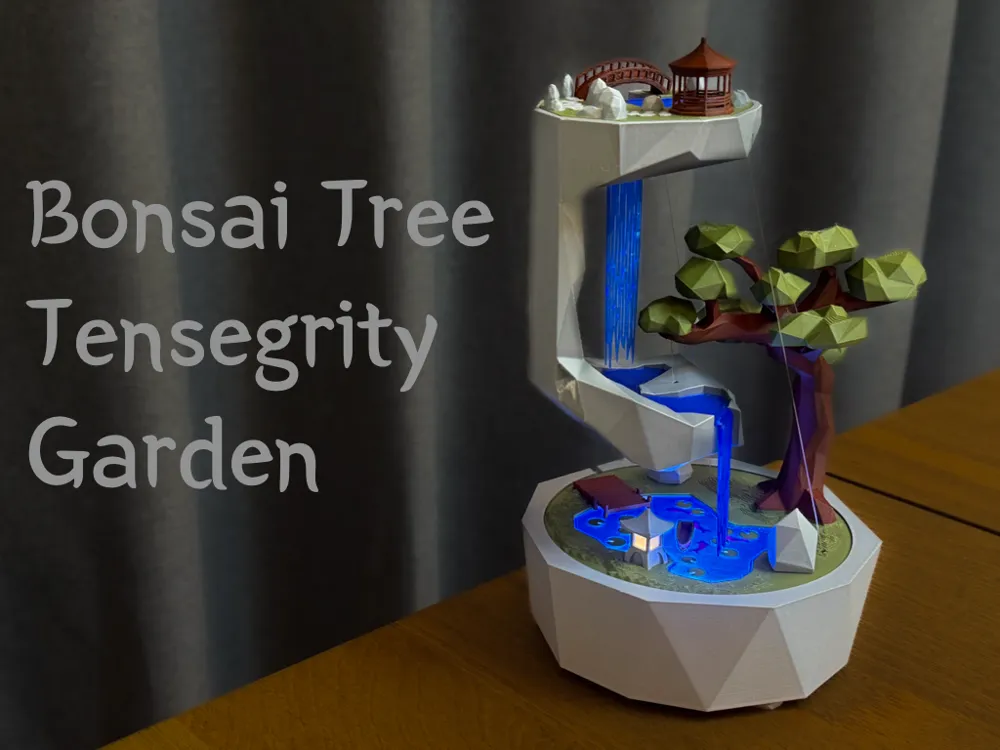

Transform your desk into an oasis of physics and tranquility with this fully 3D-printable, low-poly tensegrity diorama. By harnessing the power of structural tension, this model creates a flawless illusion of a massive, floating mountain hovering in mid-air above a peaceful pond, held perfectly in place by almost invisible tension lines.

The Inspiration

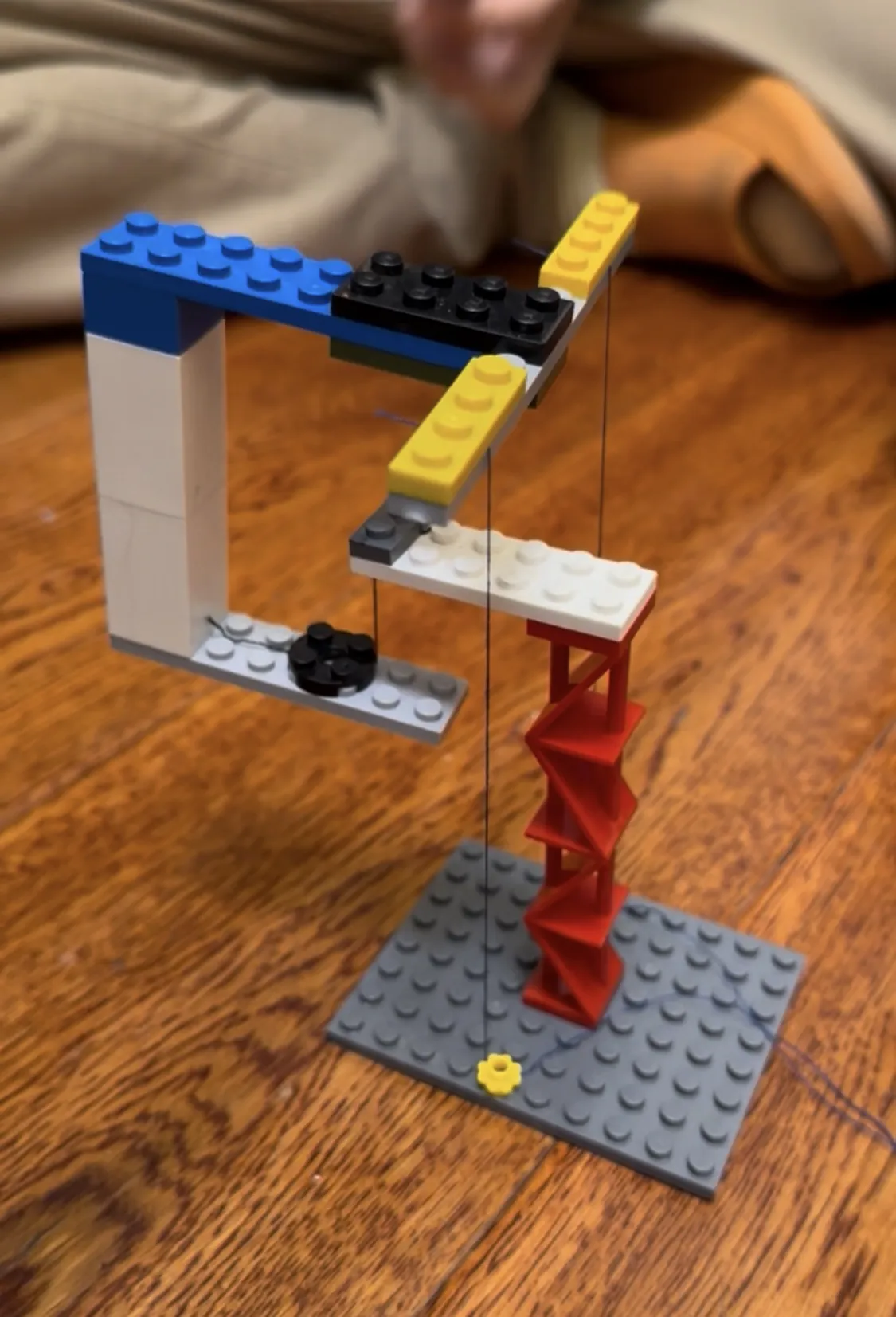

The idea for this Garden actually started back in 2022 when I was 10 years old. I built my very first tensegrity structure out of toy building bricks, completely fascinated by how a few simple strings could make solid plastic blocks look like they were defying gravity. Over the last few years, as I transitioned into technical 3D modeling with software like Rhino, I always knew I wanted to revisit that magical floating illusion. This Bonsai Garden is the ultimate evolution of that childhood project—taking the basic physics I learned back then and upgrading it with hidden worm gears, precise tolerances, and a fully sculpted landscape.

The Magic of Tensegrity: Defying Gravity

While it looks impossible, this model relies on the physics of Continuous Tension. The secret is that the floating island is not actually pushed up from below; it is hanging from above.

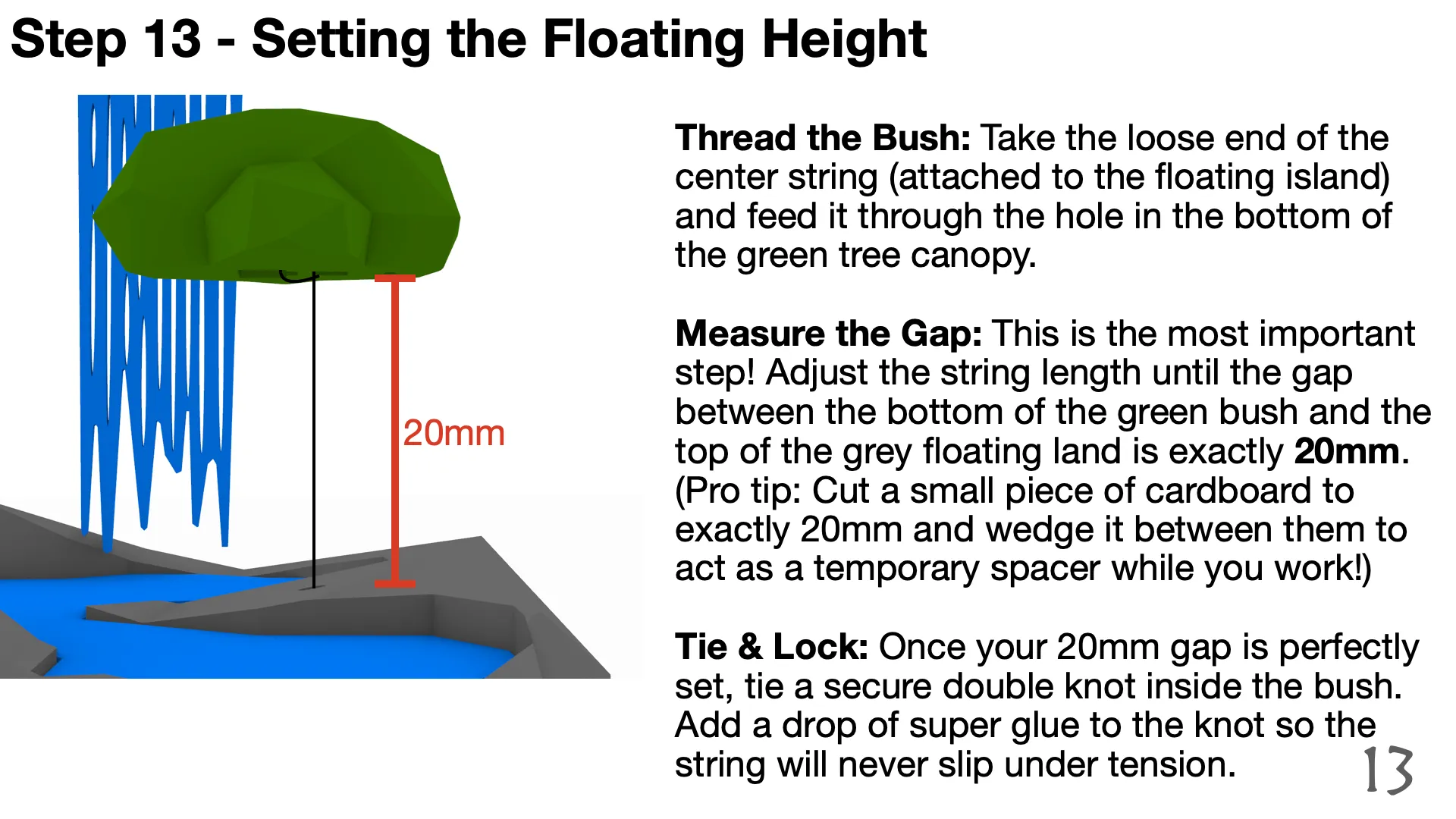

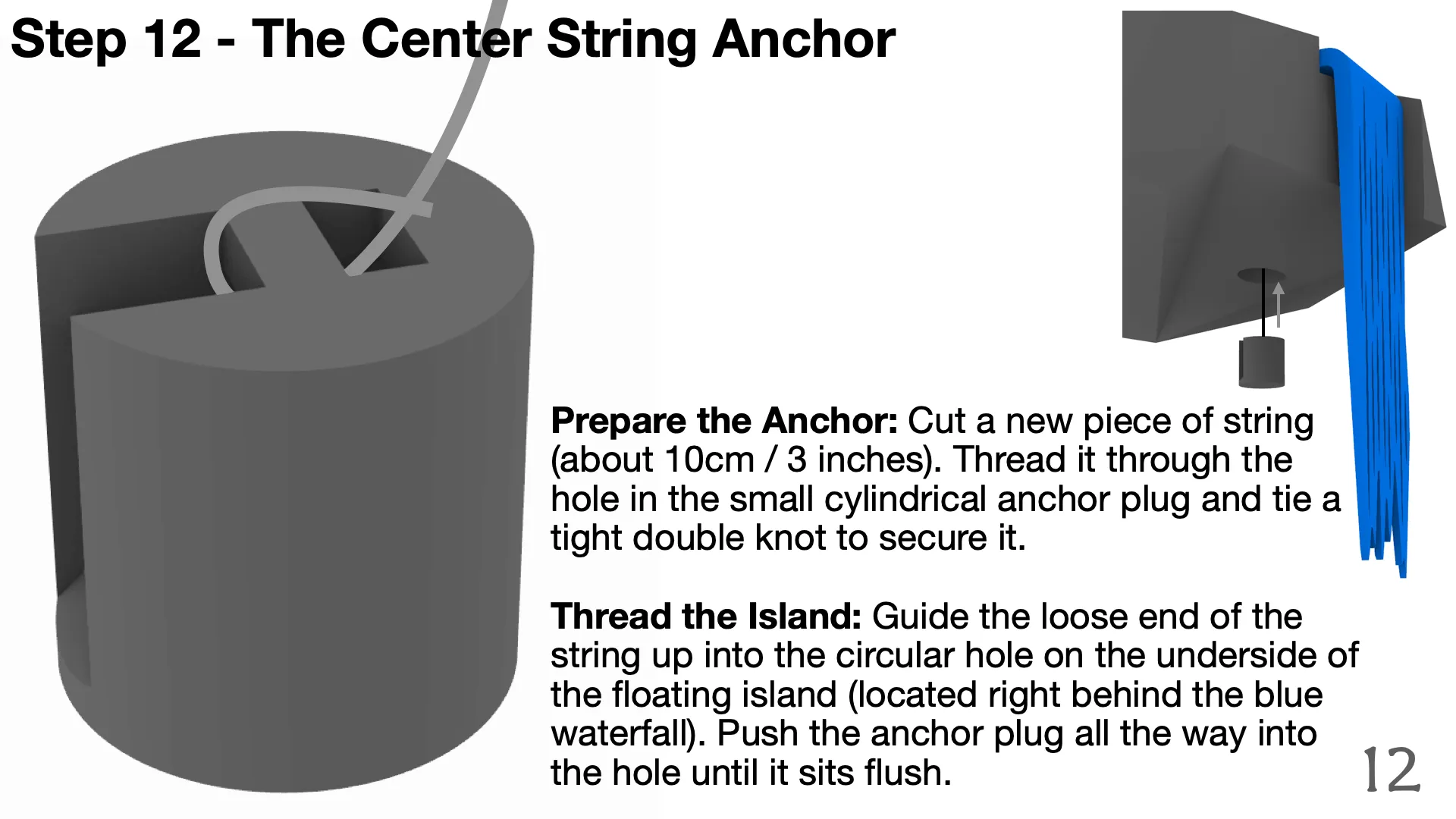

A central, load-bearing tension line runs straight down from the highest branch of the bonsai tree to the center of the floating rock. This line holds the entire weight of the island. The additional outer lines are "balance lines" that are constantly pulled taut, preventing the top section from tilting or spinning. The resulting opposition creates a rigid, gravity-defying sculpture.

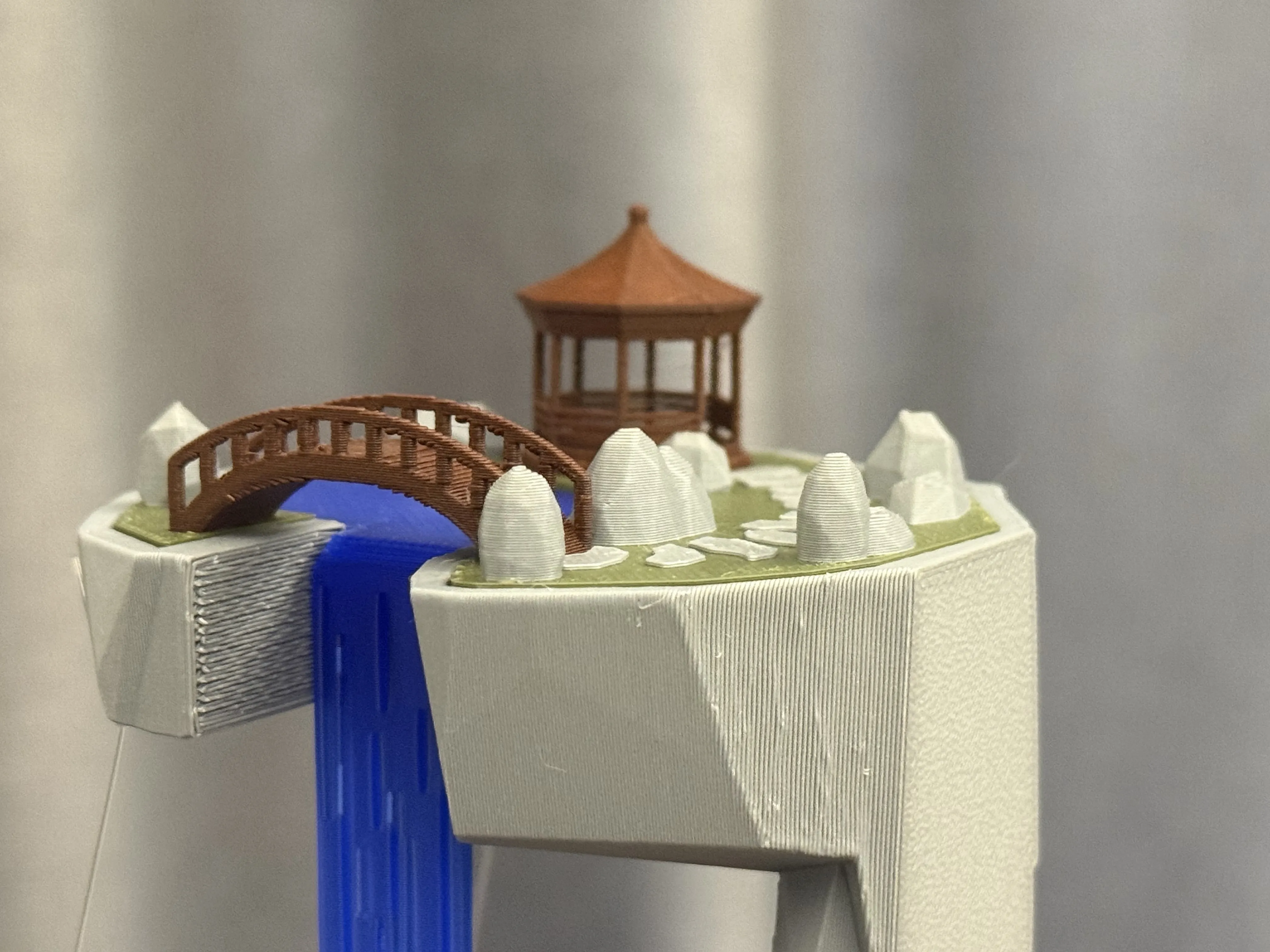

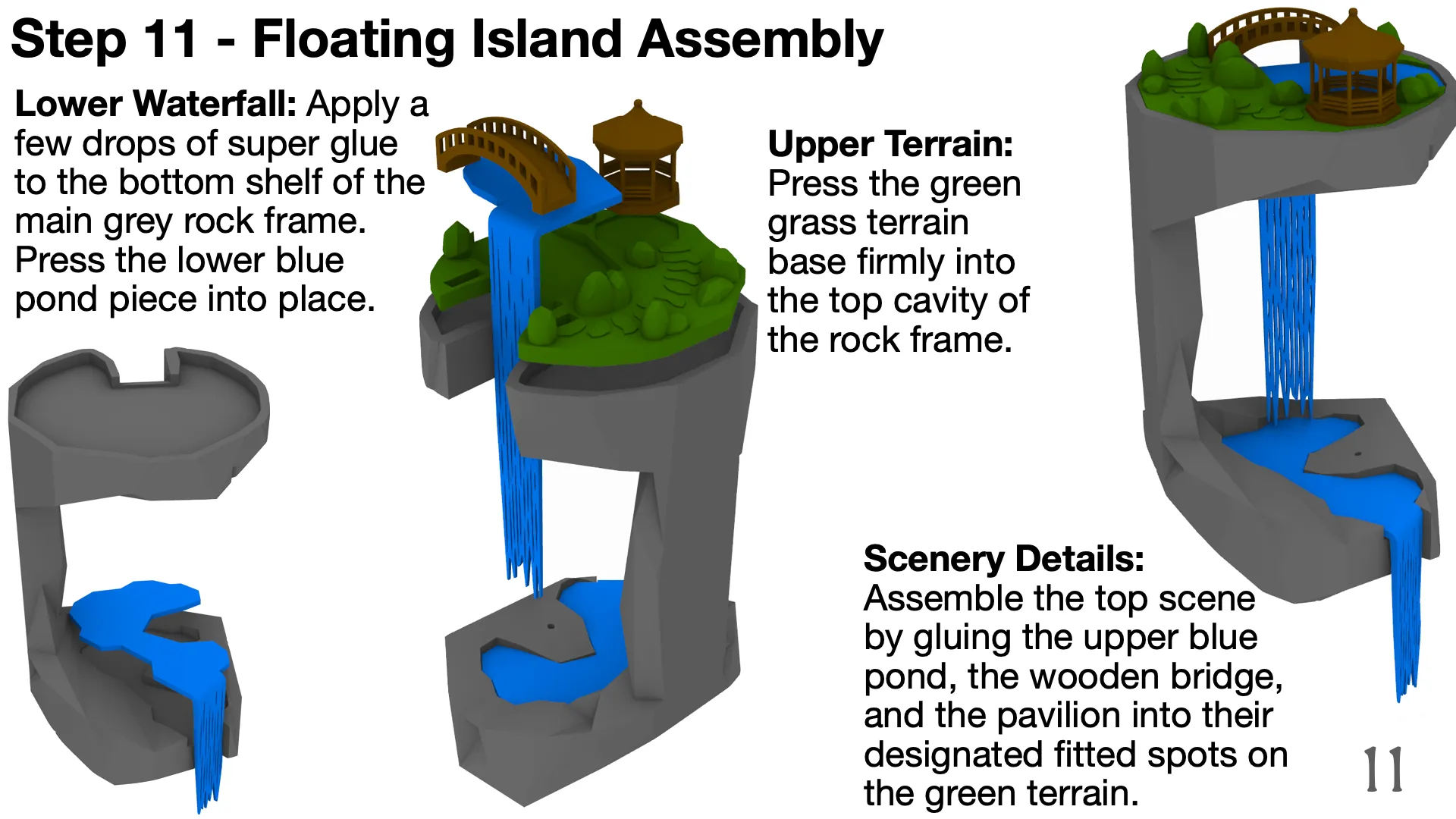

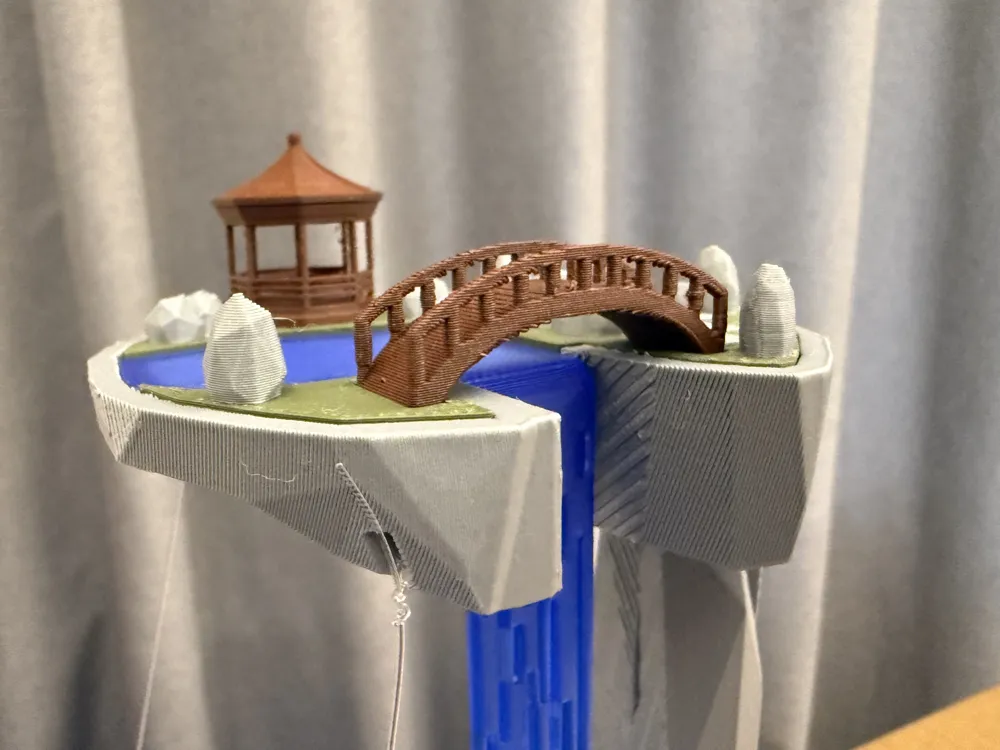

The Floating Sky Island

At the peak of this tensegrity illusion sits a serene, levitating landmass. Connected by a sweeping wooden bridge, a classic brown Ting pavilion rests atop a manicured patch of grass, framed by geometric boulders and winding stepping stones. From the edge of this floating rock, a jagged, stylized waterfall cascades downward, adding dynamic, frozen movement to the scene.

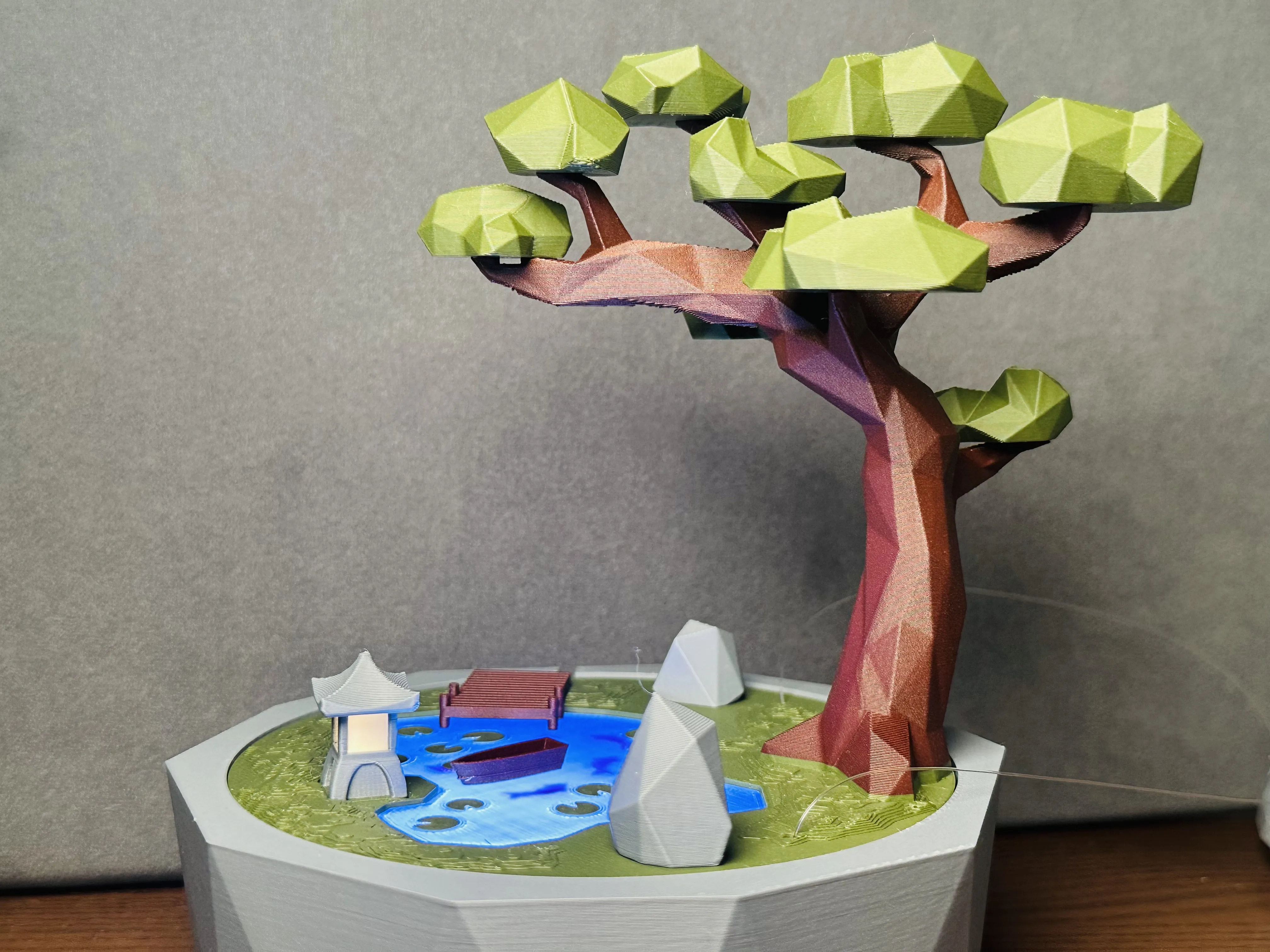

The Giant Bonsai & Tranquil Pond

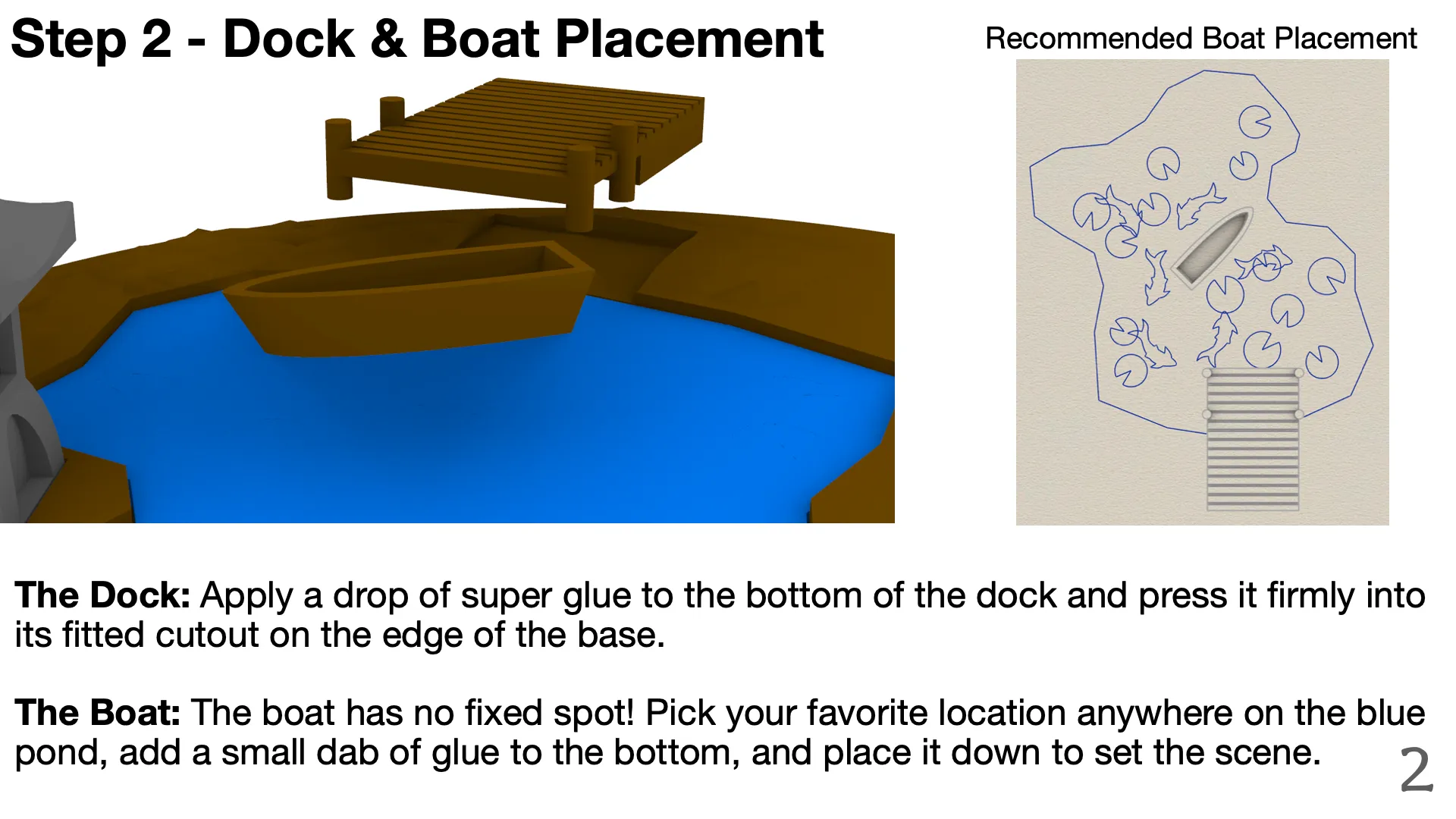

Anchoring the diorama is a massive, faceted bonsai tree whose thick roots stretch out beside a crystal-clear pond. Down at the water's edge, every detail tells a story of peaceful isolation: a tiny wooden dock, a minimalist flat-bottomed boat resting among the lily pads, and the sharp silhouettes of koi fish swimming beneath the surface that only reveal themselves when the base is illuminated. Nestled seamlessly near the tree sits a classic grey stone lantern.

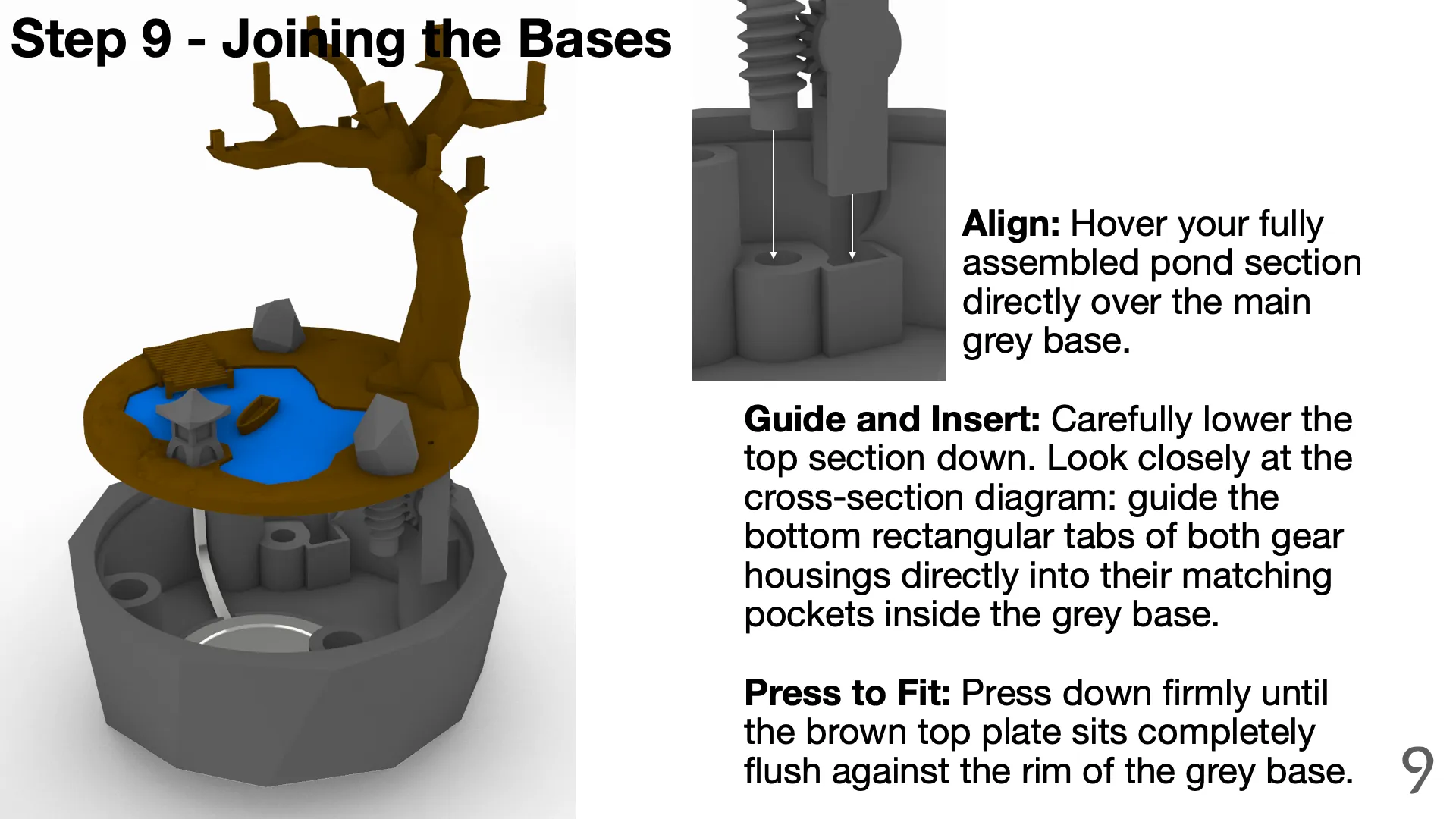

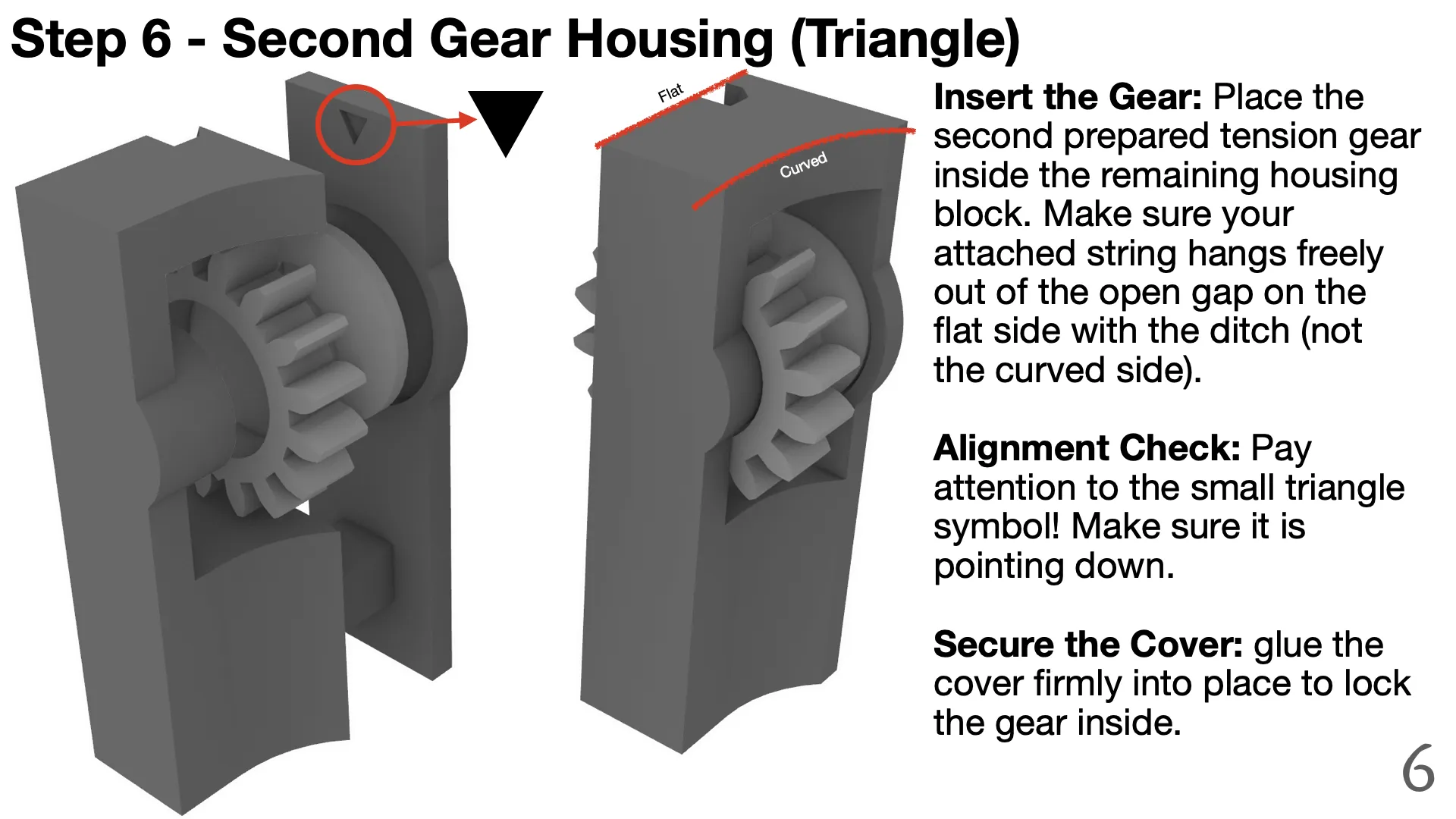

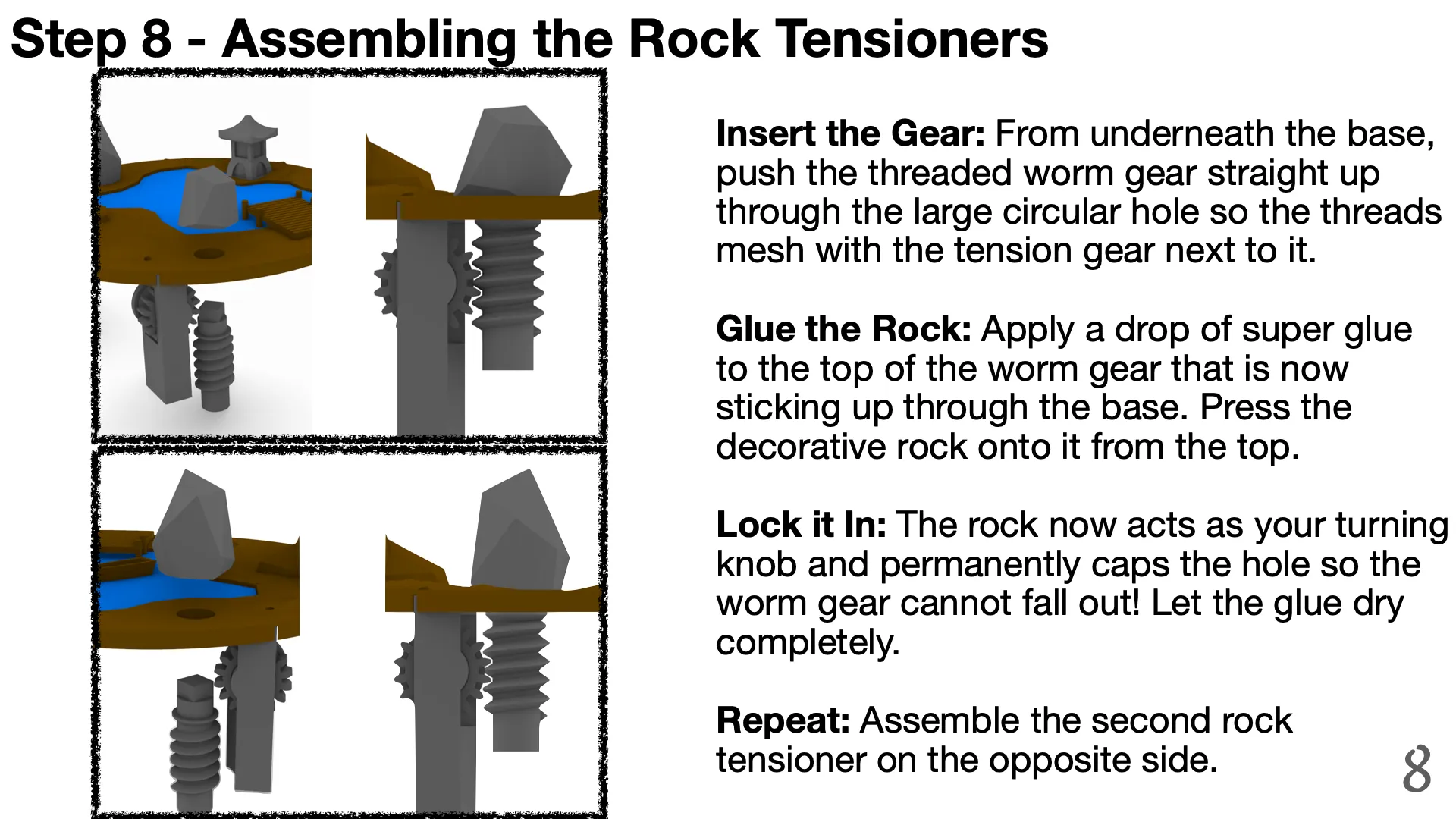

Mechanical Worm Gear Tensioning

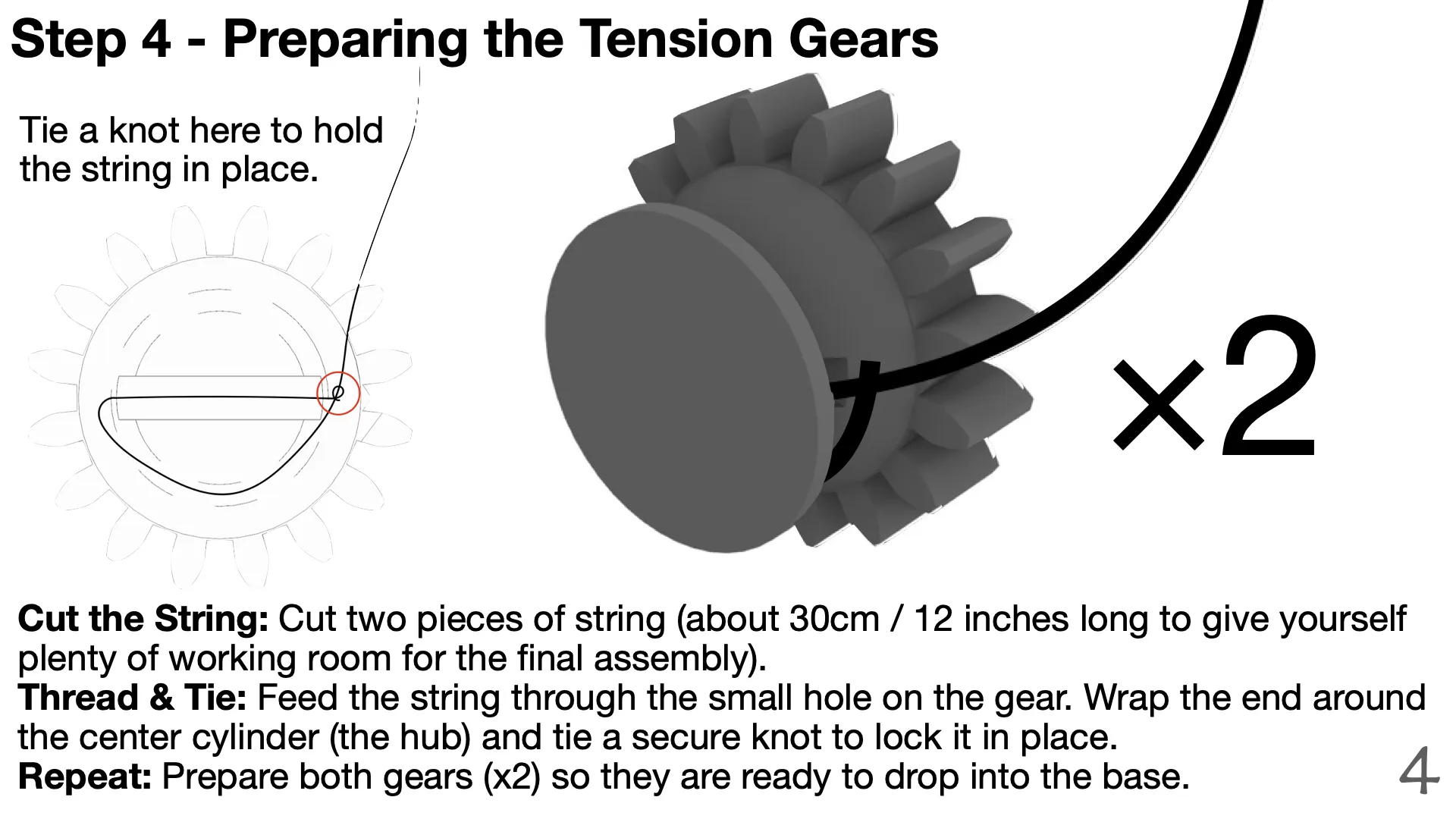

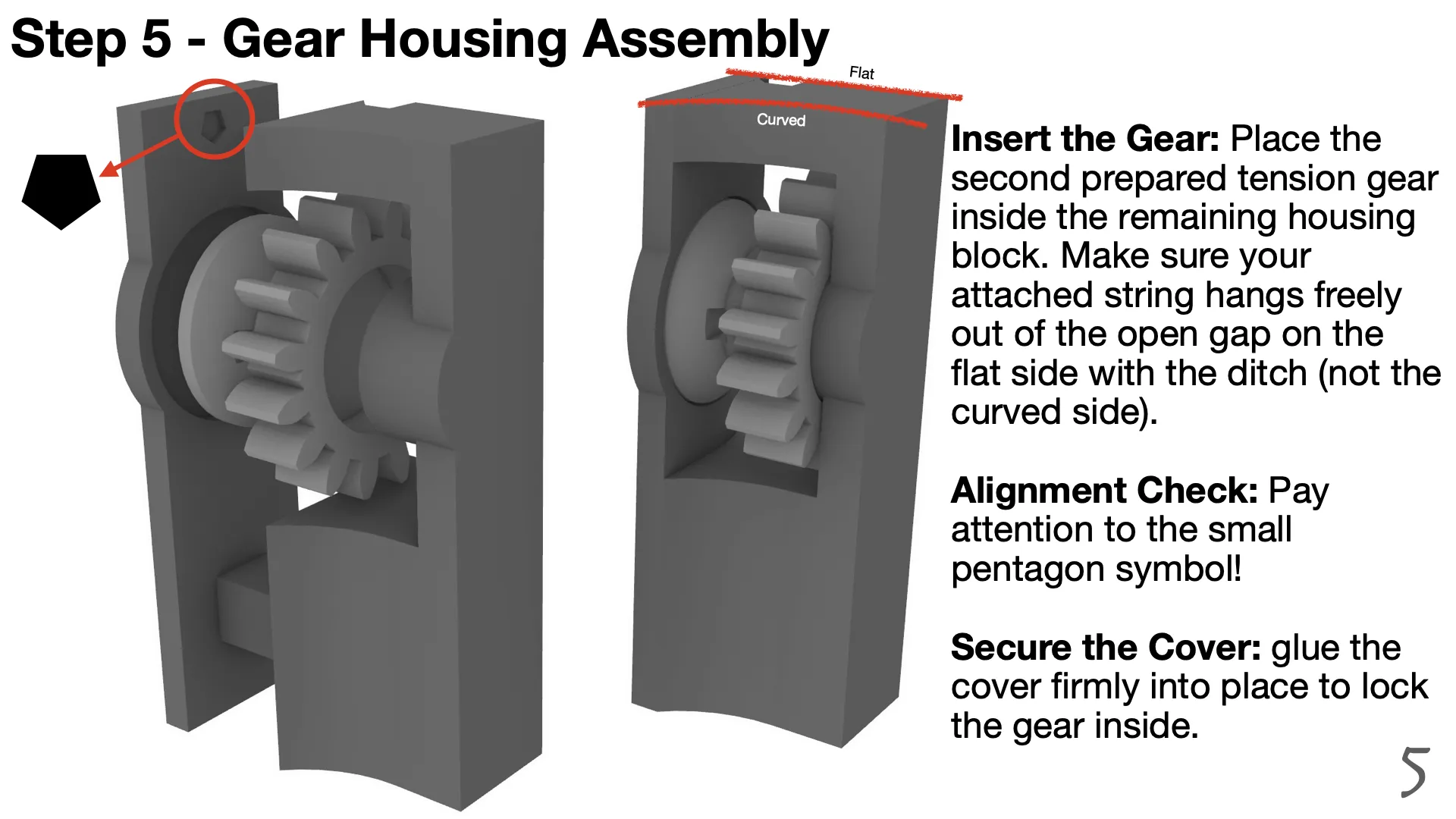

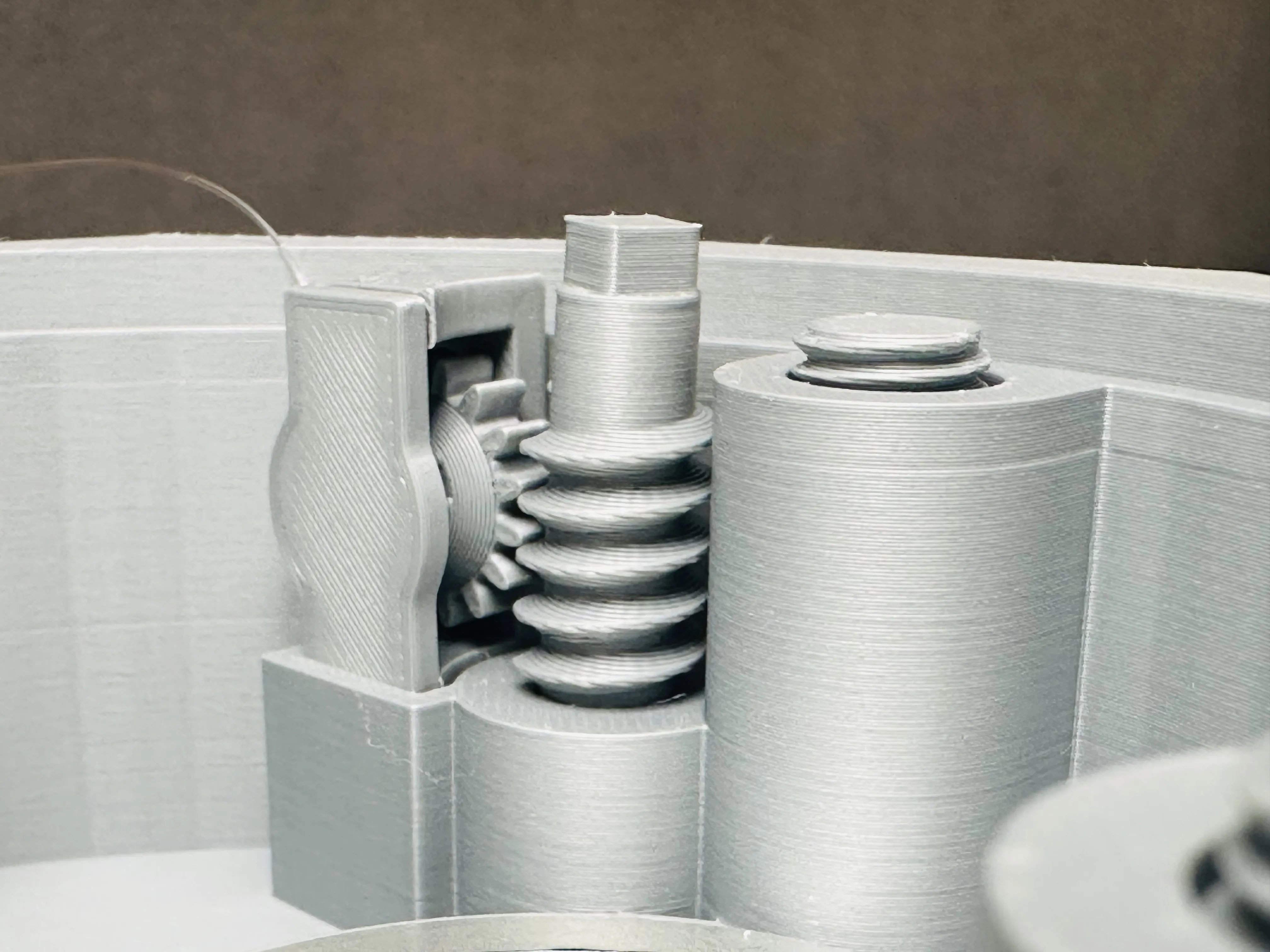

Tying and tightening tensegrity lines can usually be frustrating, so I engineered a built-in mechanical solution! Instead of struggling to hold the strings tight while tying knots, the two outer balance strings are actually routed to an internal gear system. By simply turning a connecting worm gear, the main gear rotates to spool the lines, slowly and precisely dialing in the perfect tension. Because of how a worm gear functions, it cannot be driven backward by the pull of the strings—meaning once you dial in the perfect balance, the gears automatically lock themselves in place. No slipping, no re-tying, and zero superglue required!

A Study in Low-Poly Contrast

The entire diorama is modeled in a striking low-poly art style that plays beautifully with light and shadow. The sharp, geometric facets of the bonsai leaves and mountain rocks create a stunning contrast against the intricate, delicate woodwork of the pavilion and the smooth, glass-like surface of the lower pond. It is a perfect blend of modern digital art and ancient architecture.

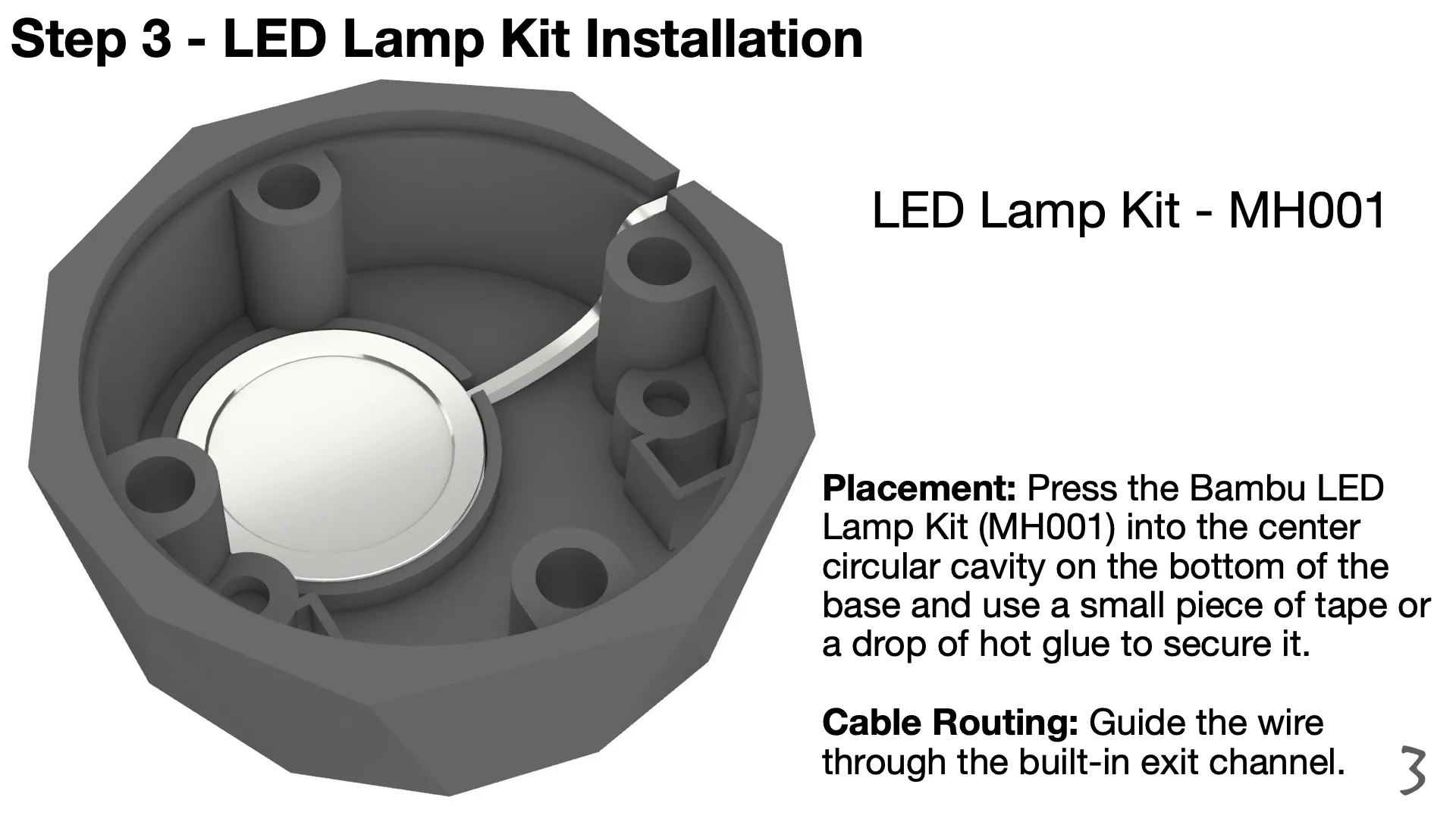

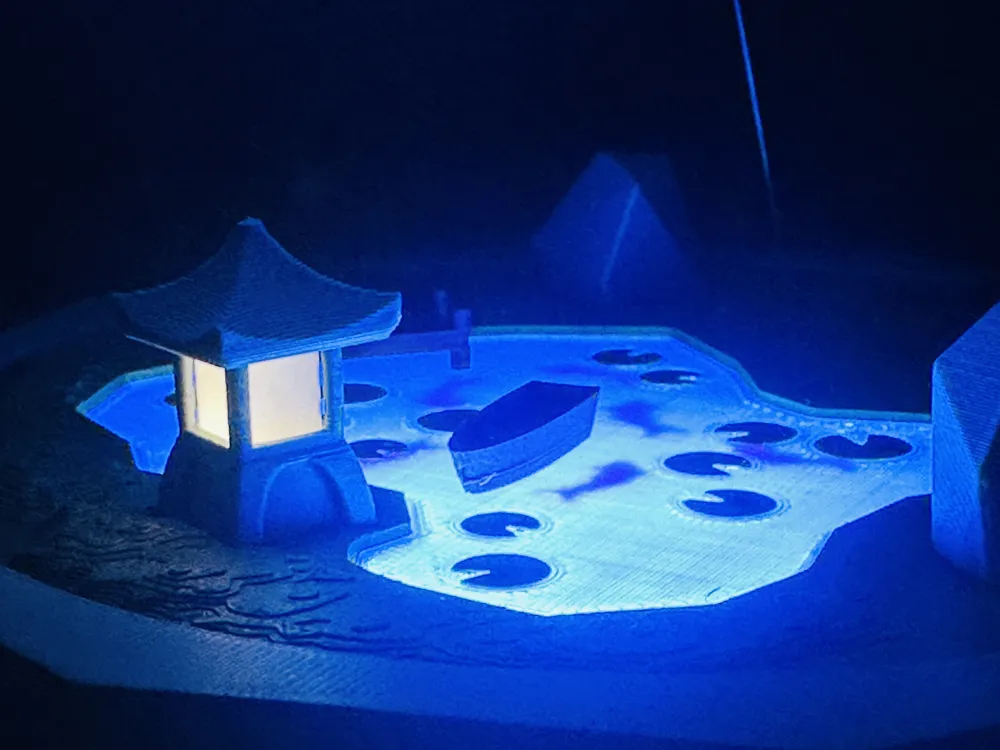

Custom LED Illumination

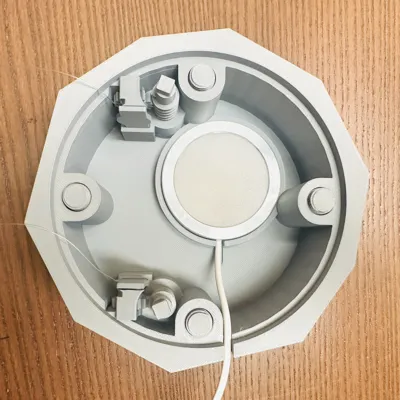

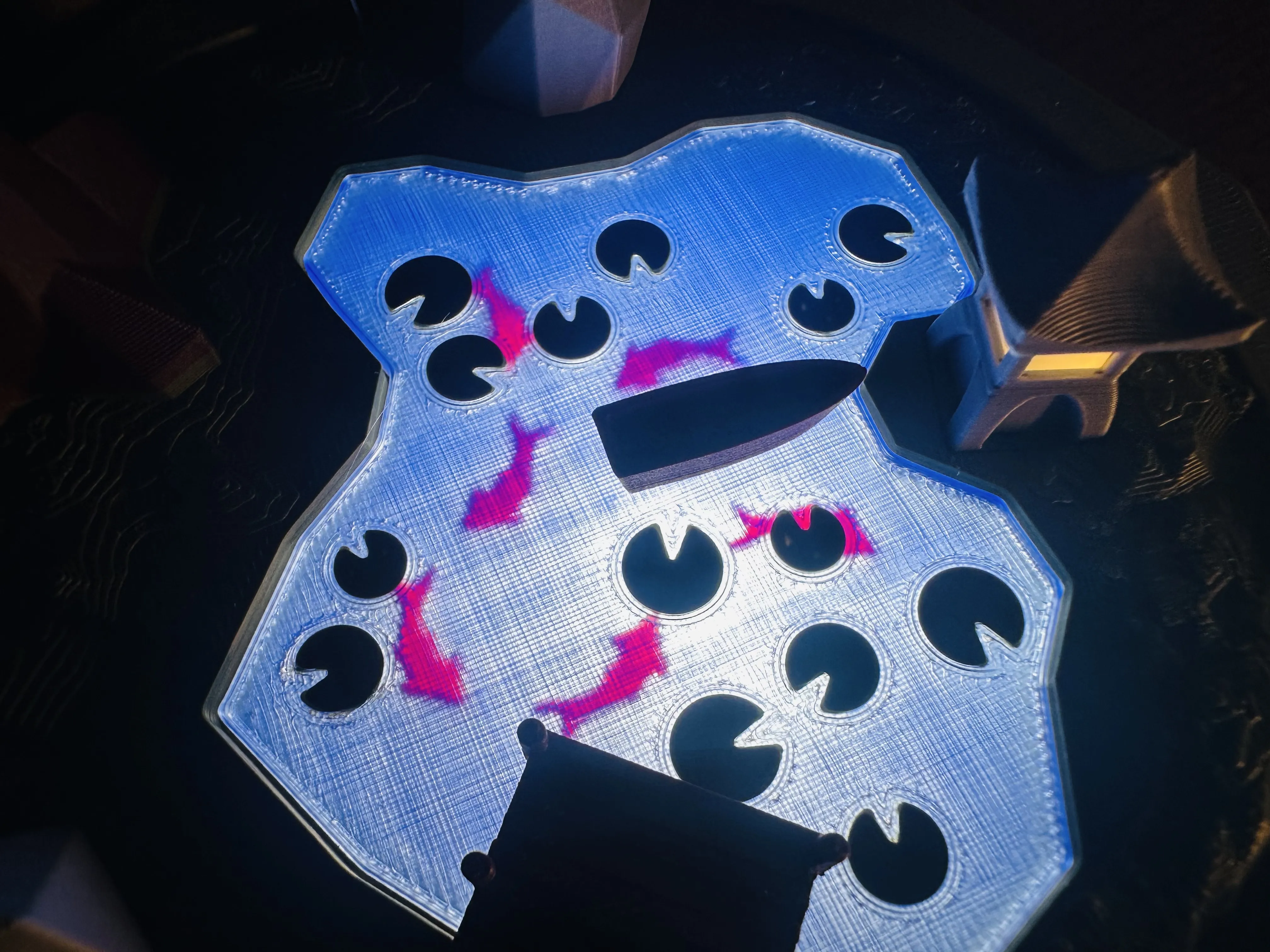

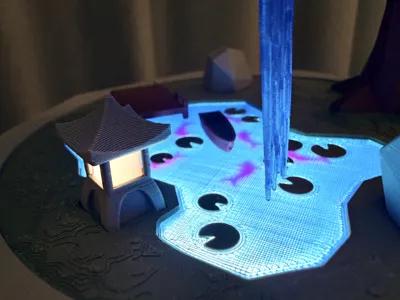

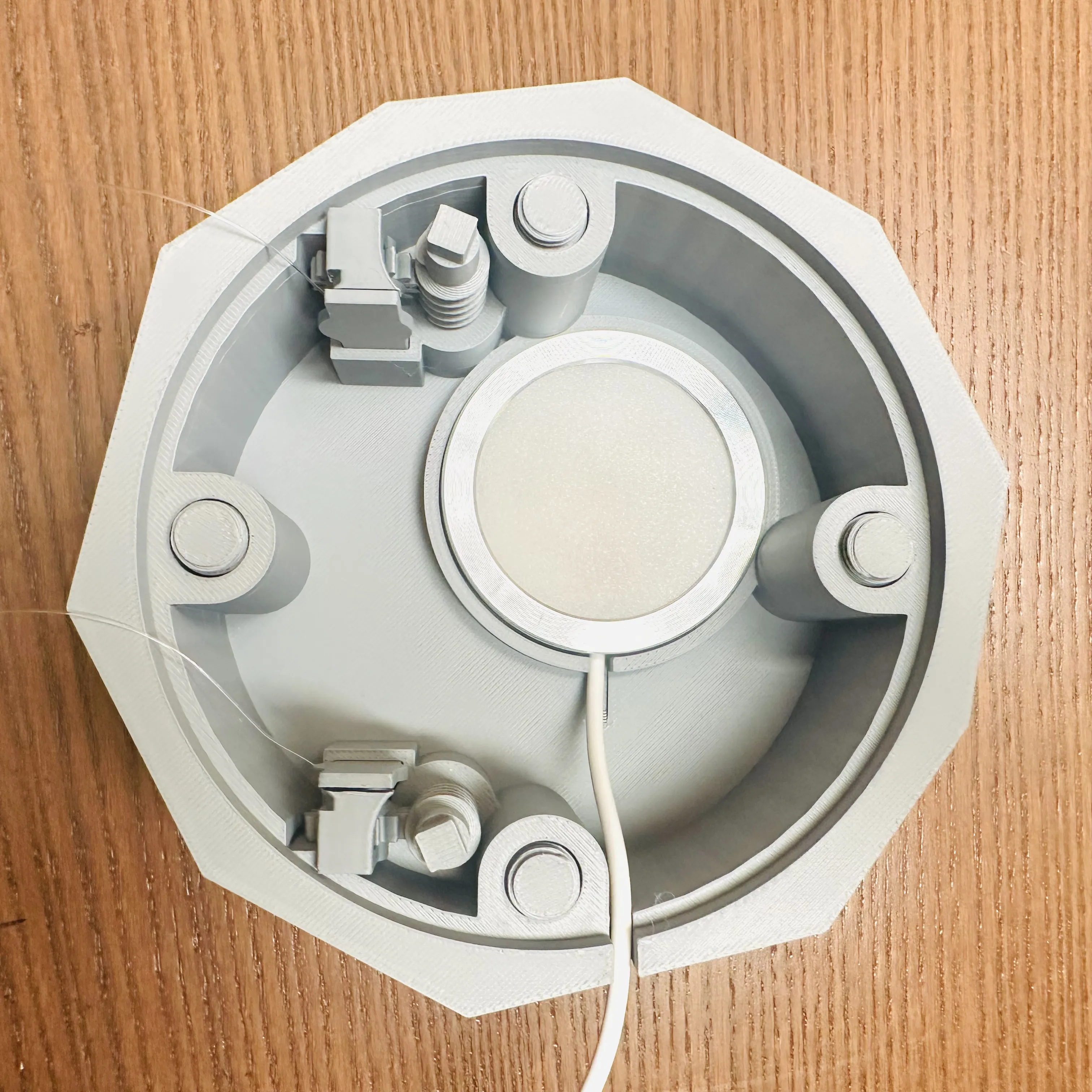

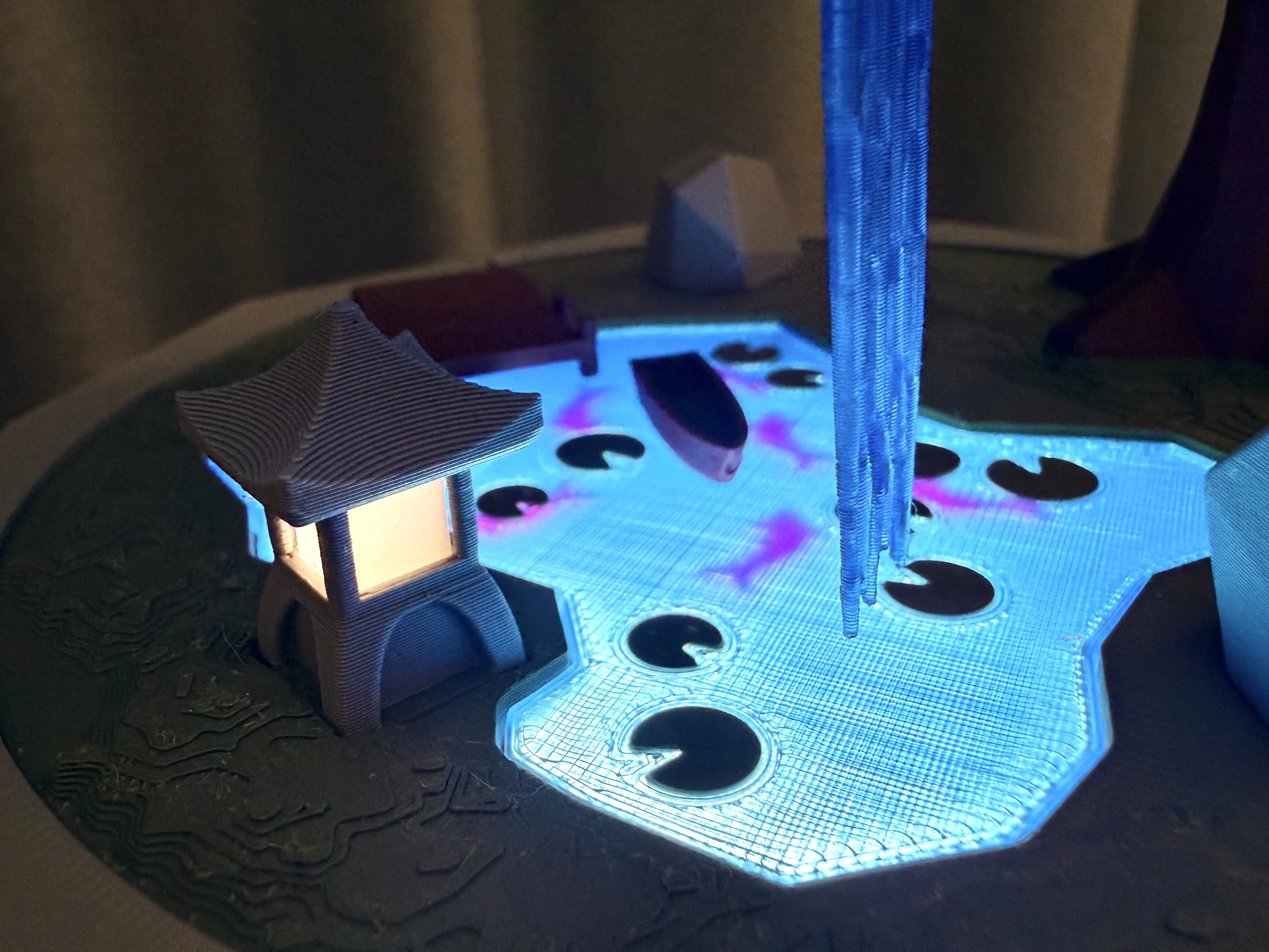

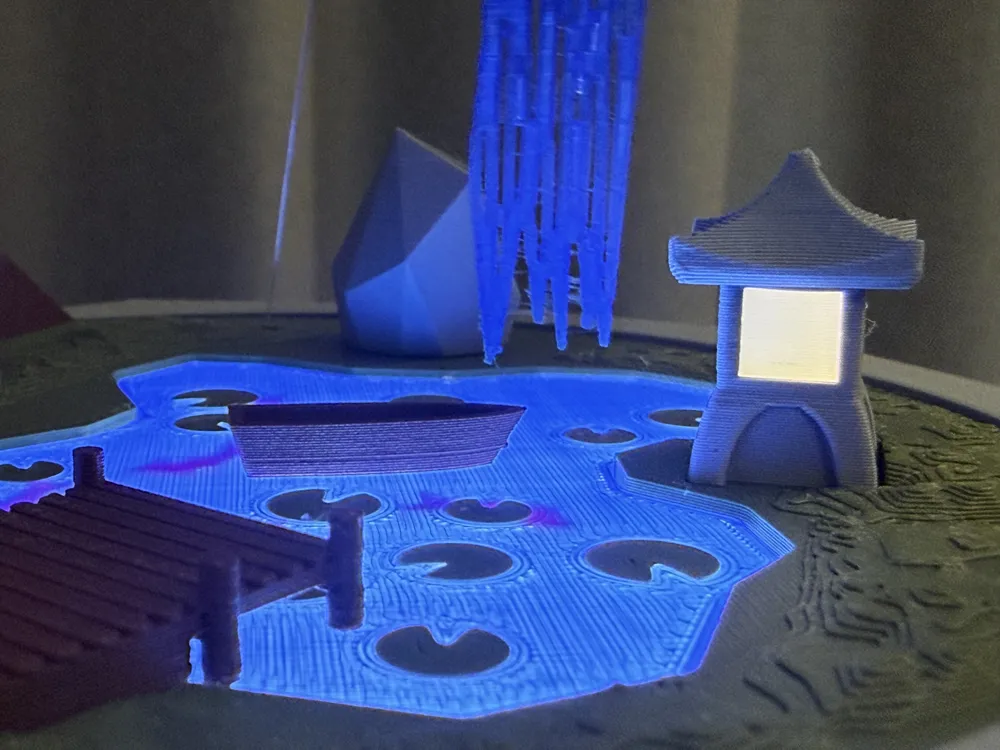

This model is specifically designed to house the Bambu Lab LED Kit 001. The base pot features a precision-engineered 61mm hidden cavity and a wire-routing trench. The LED puck fits perfectly inside (though a small piece of double-sided tape or a dab of hot glue is recommended to lock it permanently in place). When turned on, the light shoots directly up through the translucent pond, casting shadows of the koi fish and making the stone lantern glow from within.

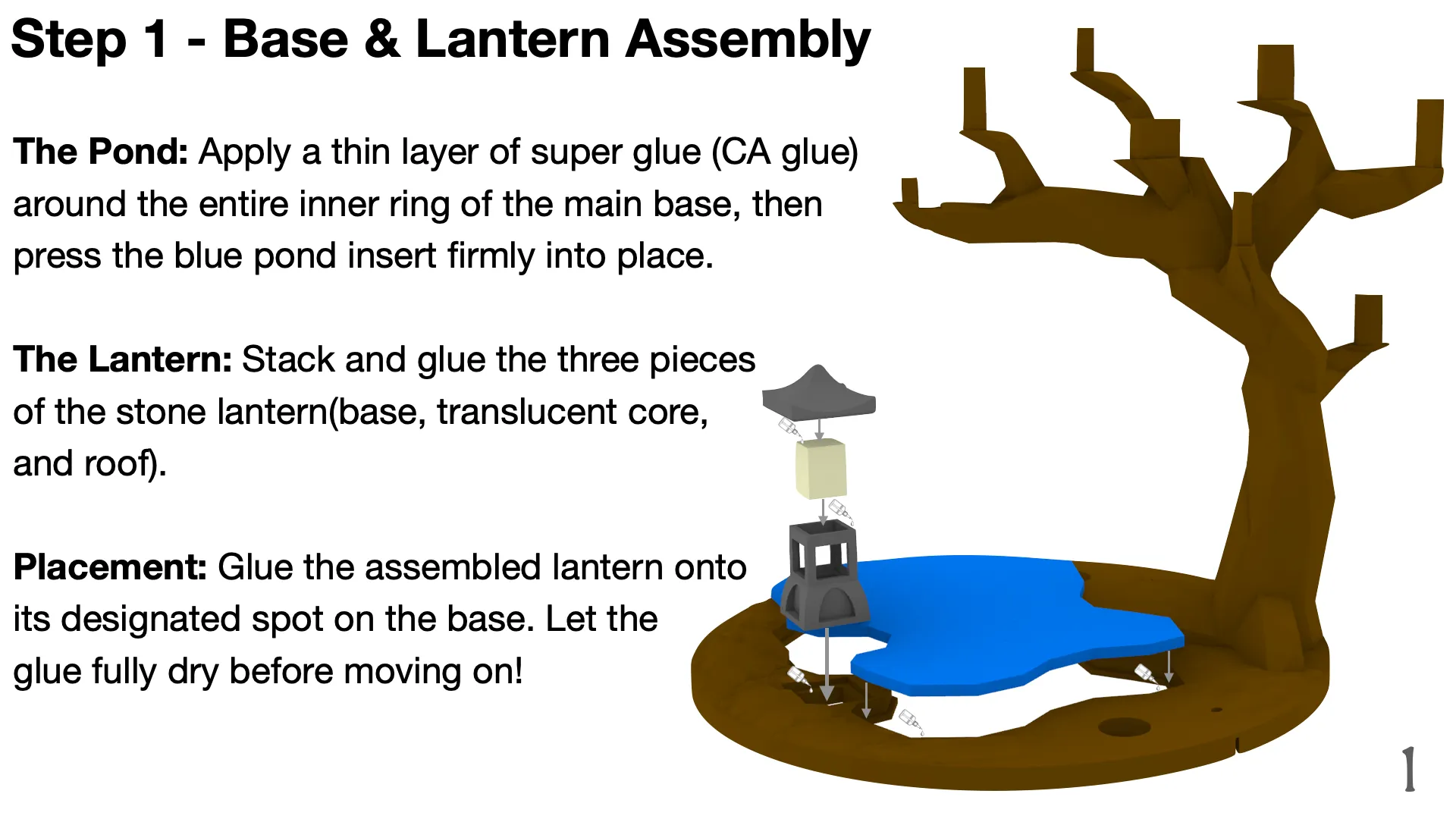

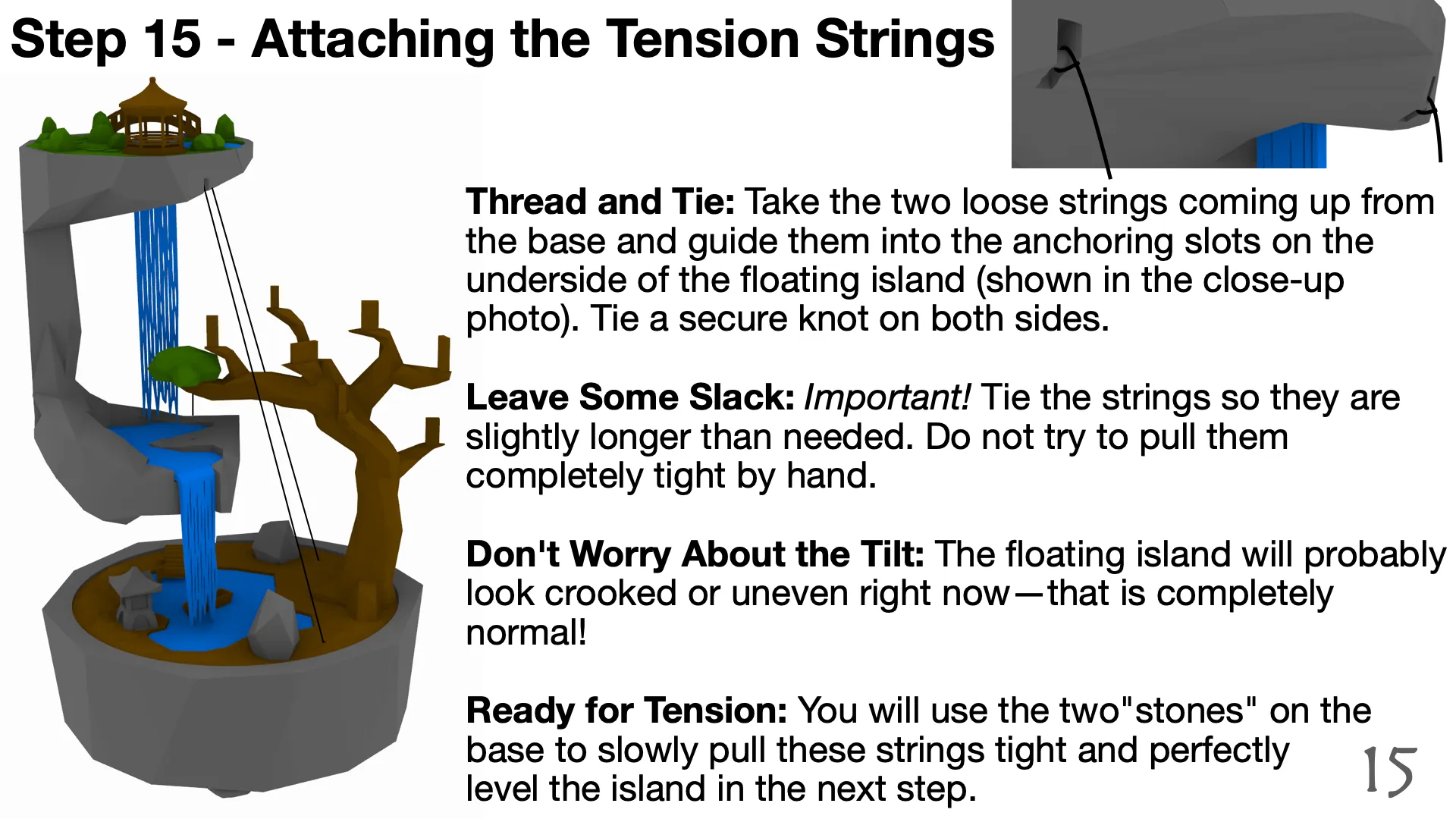

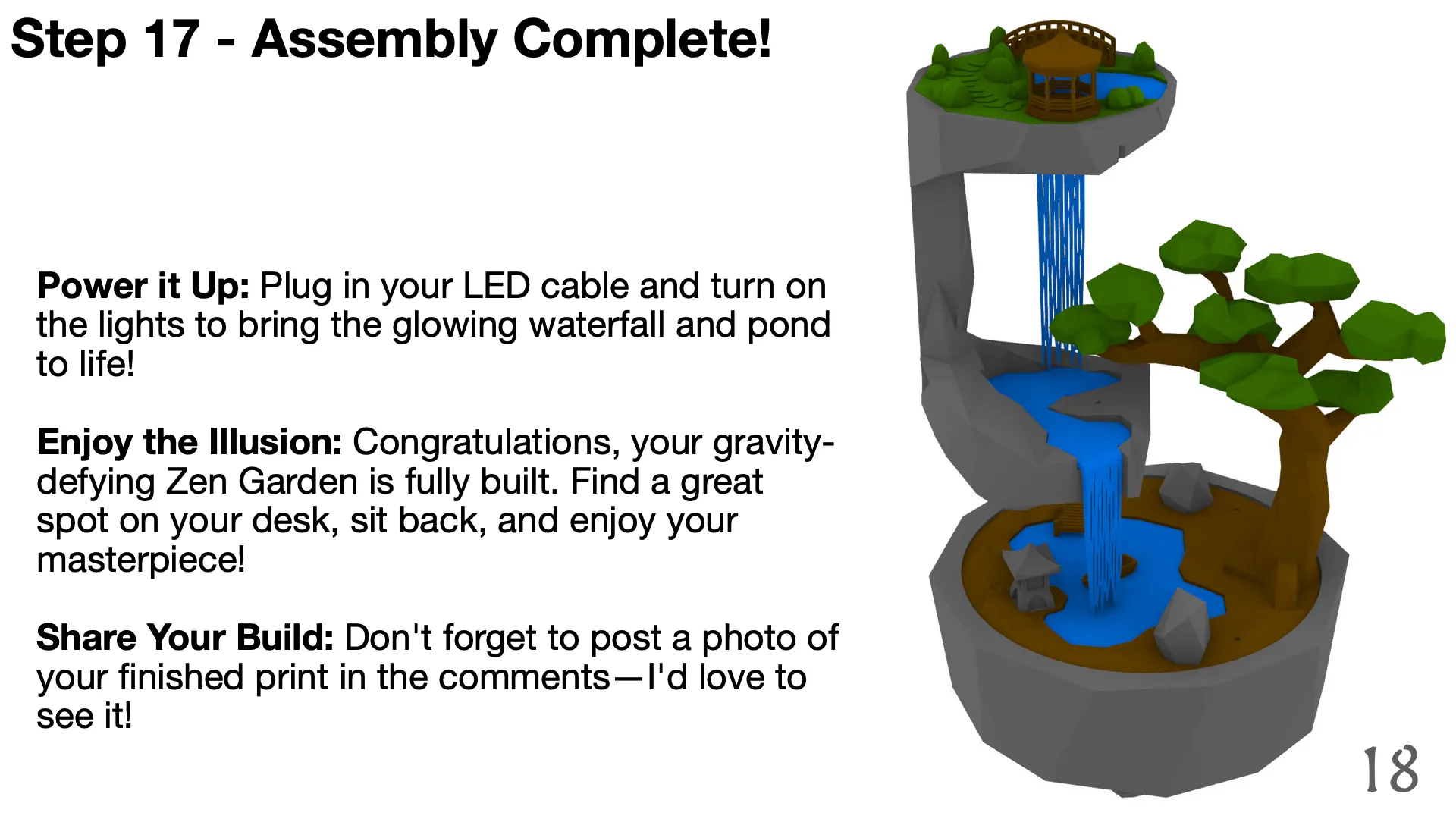

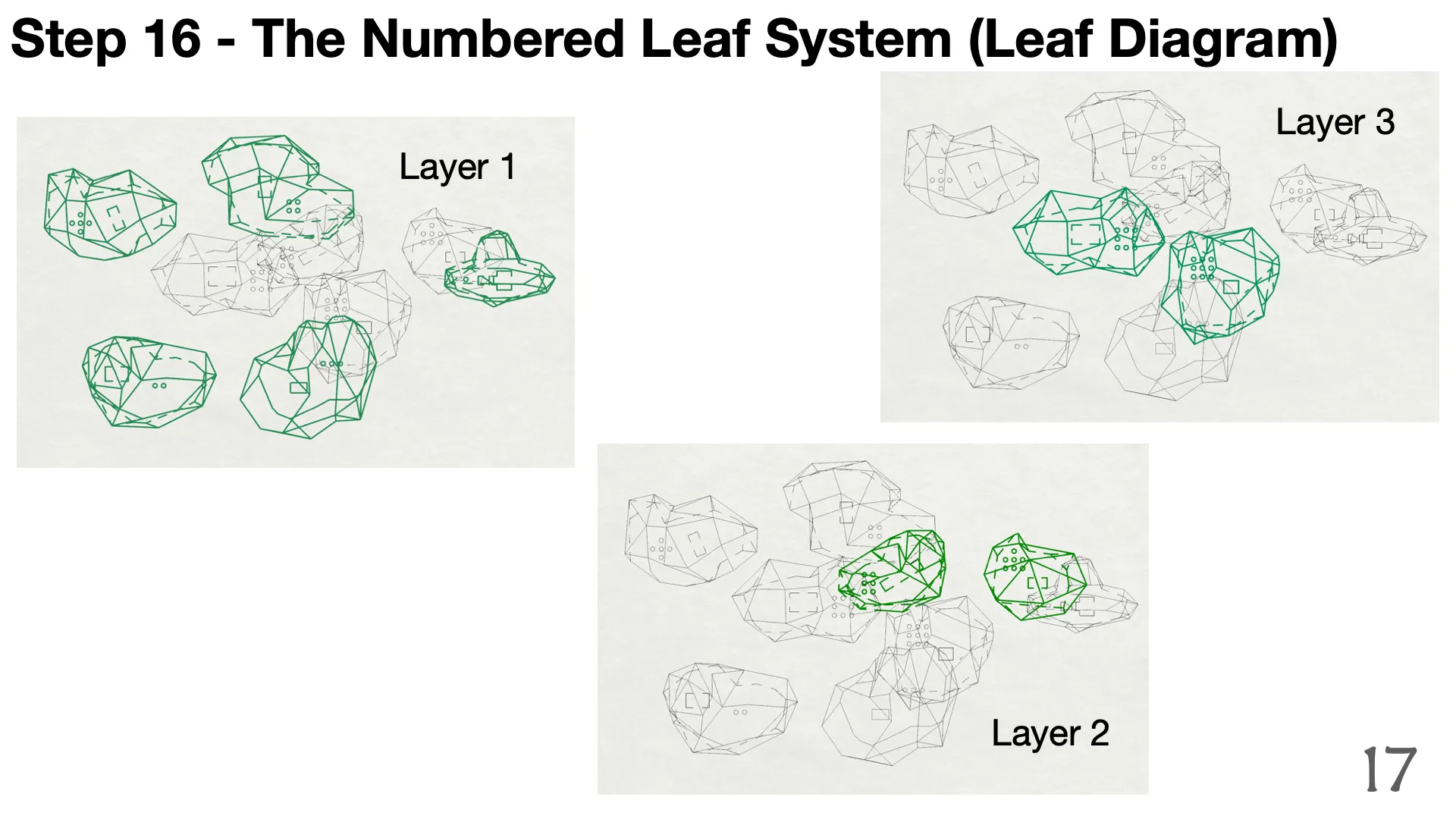

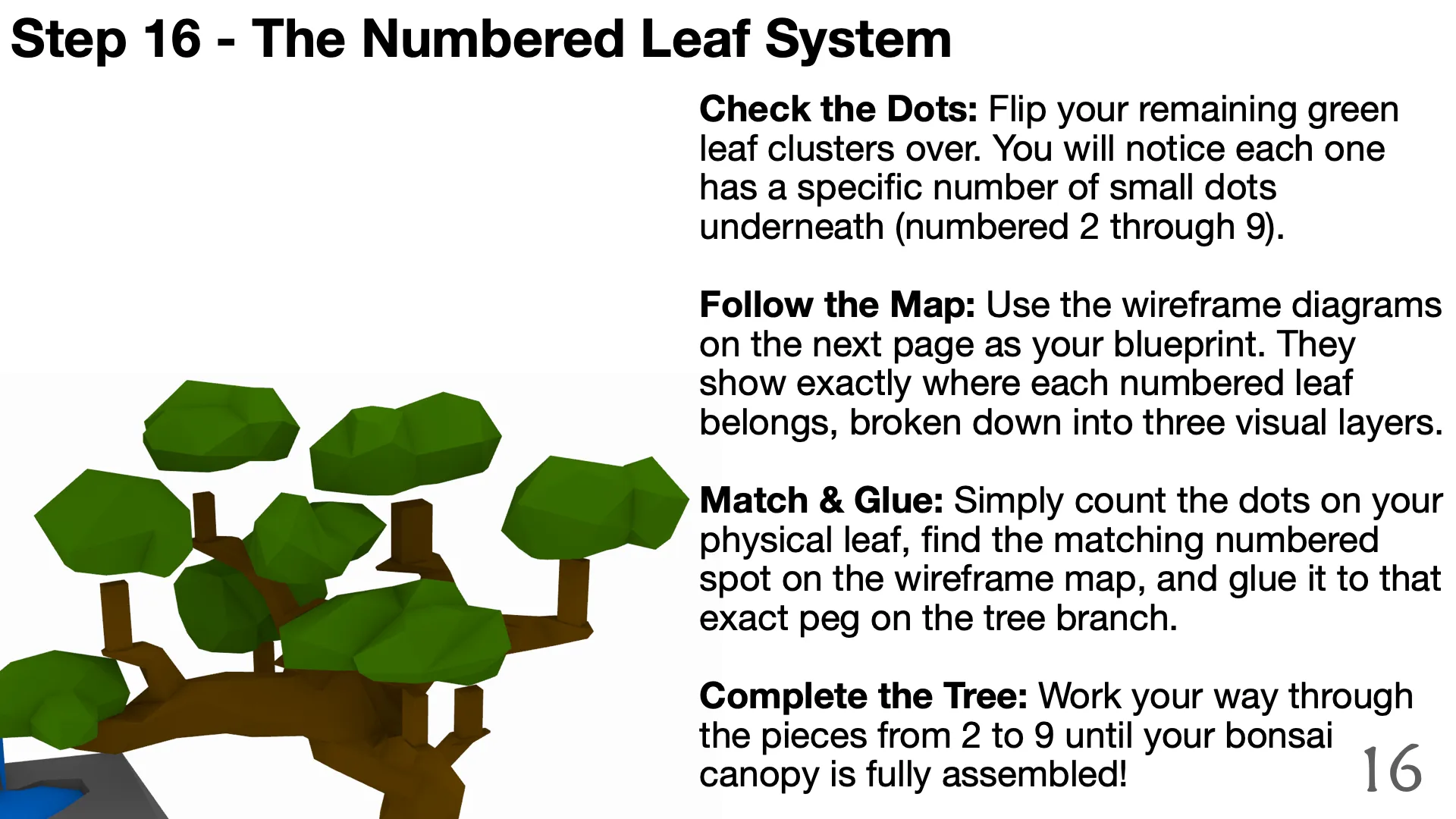

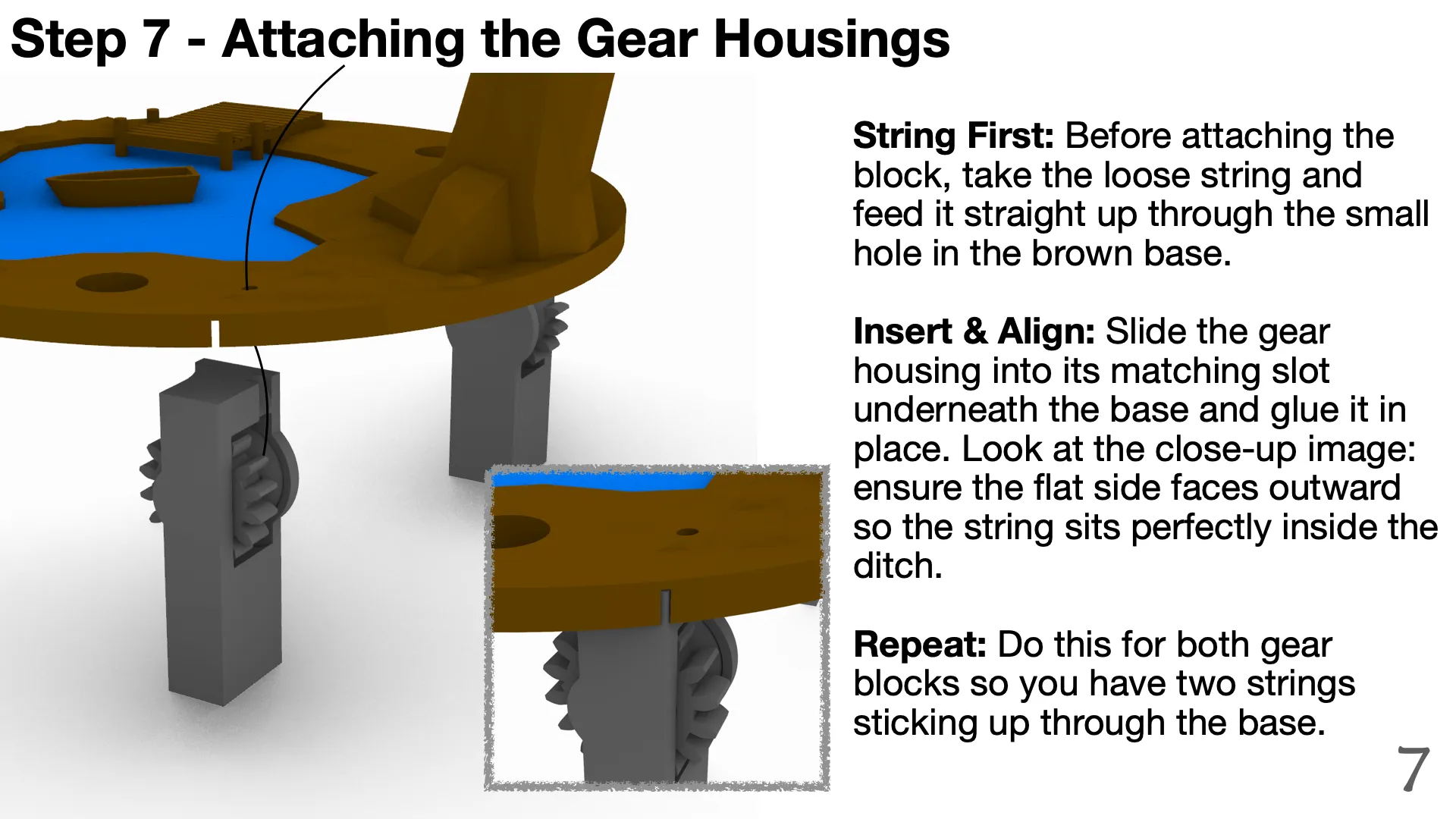

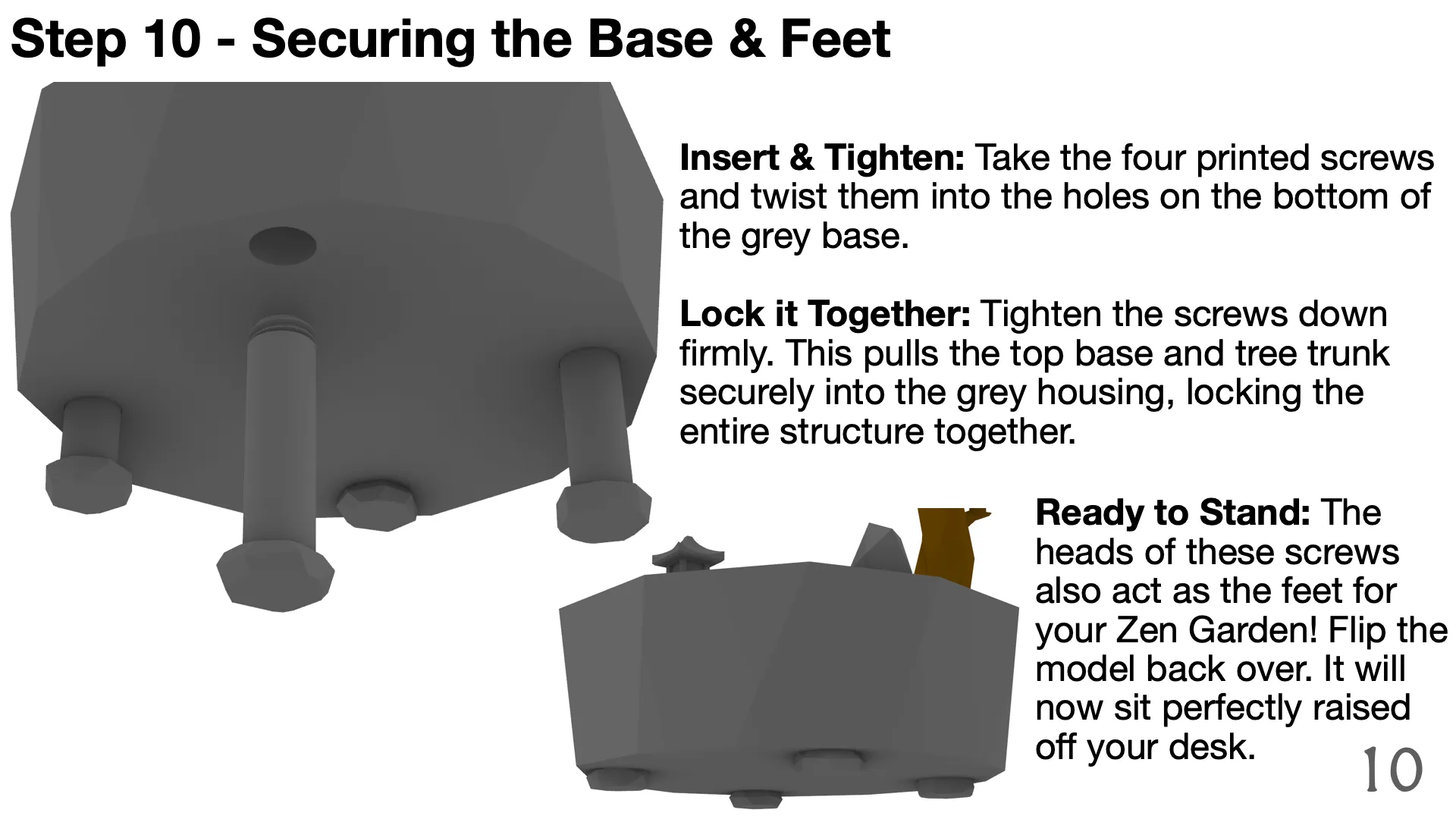

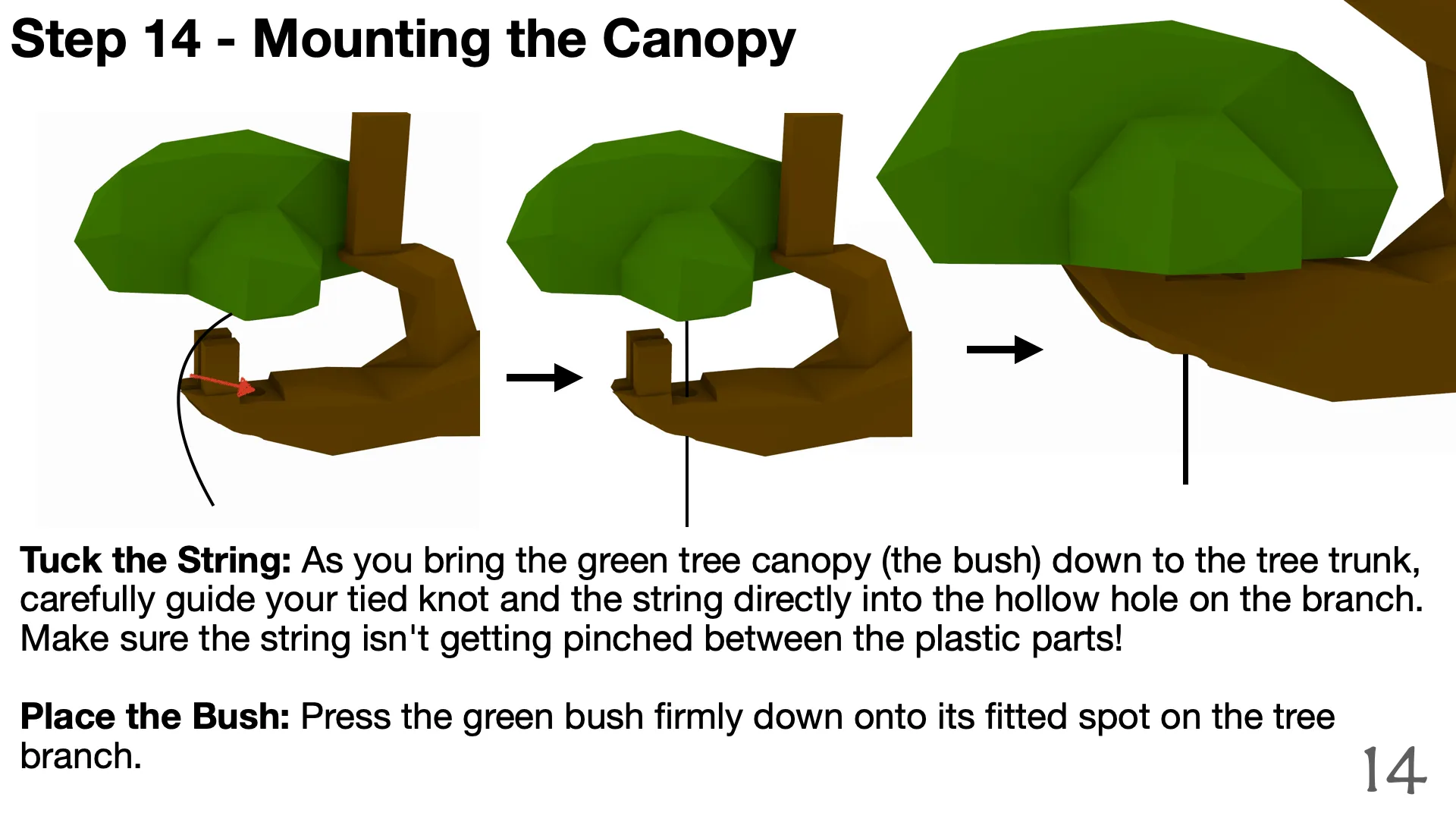

Assembly Guide:

A Quick Note on Stability

Because of how tensegrity physics work, this diorama is surprisingly strong against downward force, but it can be sensitive to being bumped from the side or tilted. If you need to move the model to a different spot on your desk, always pick it up by the main bottom base and try to keep it level. If you tilt it too far, the tension lines will temporarily go slack and the floating island might tip over.
