Blazo Evo V4 ( DJI O3 antenna & BN220 GPS mount )
Print Profile(0)
Bill of Materials
Description

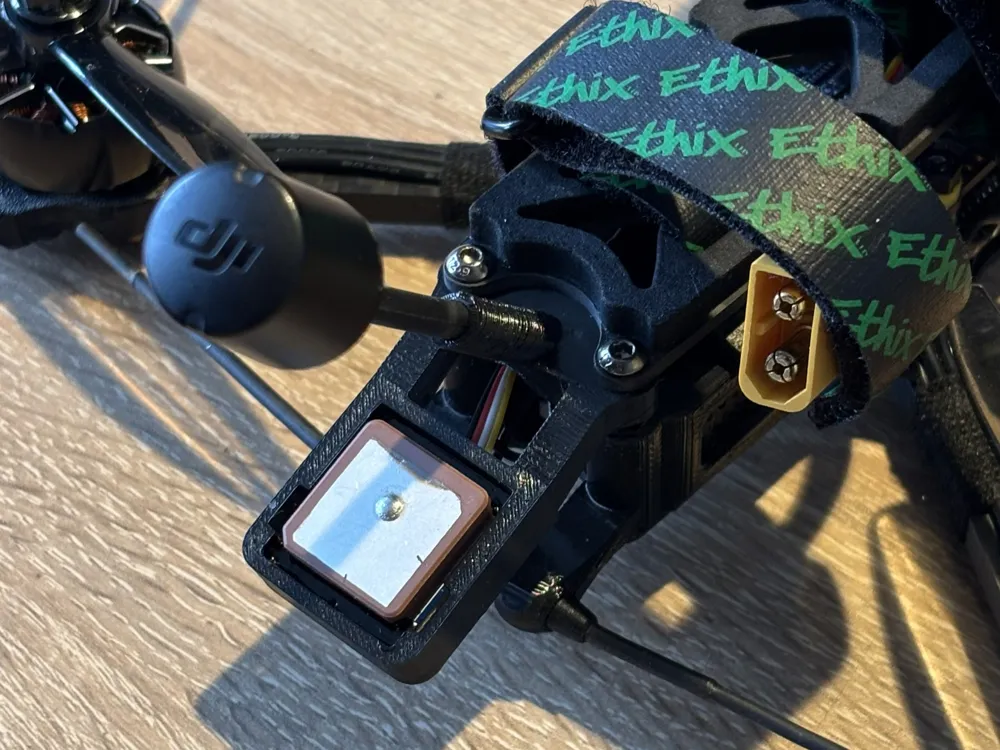

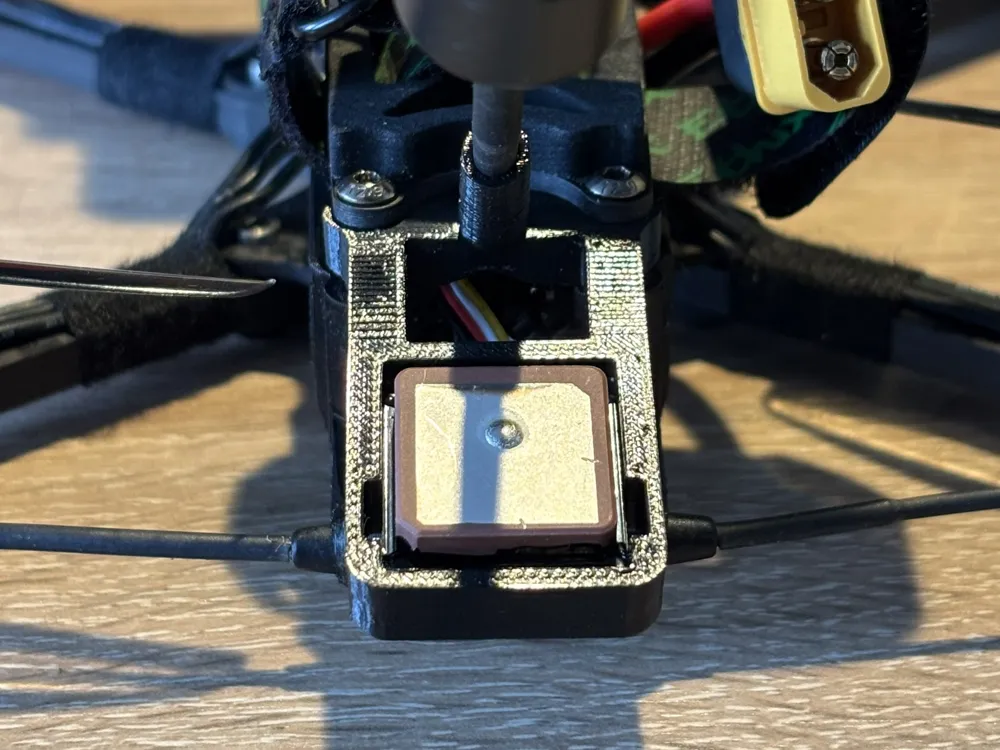

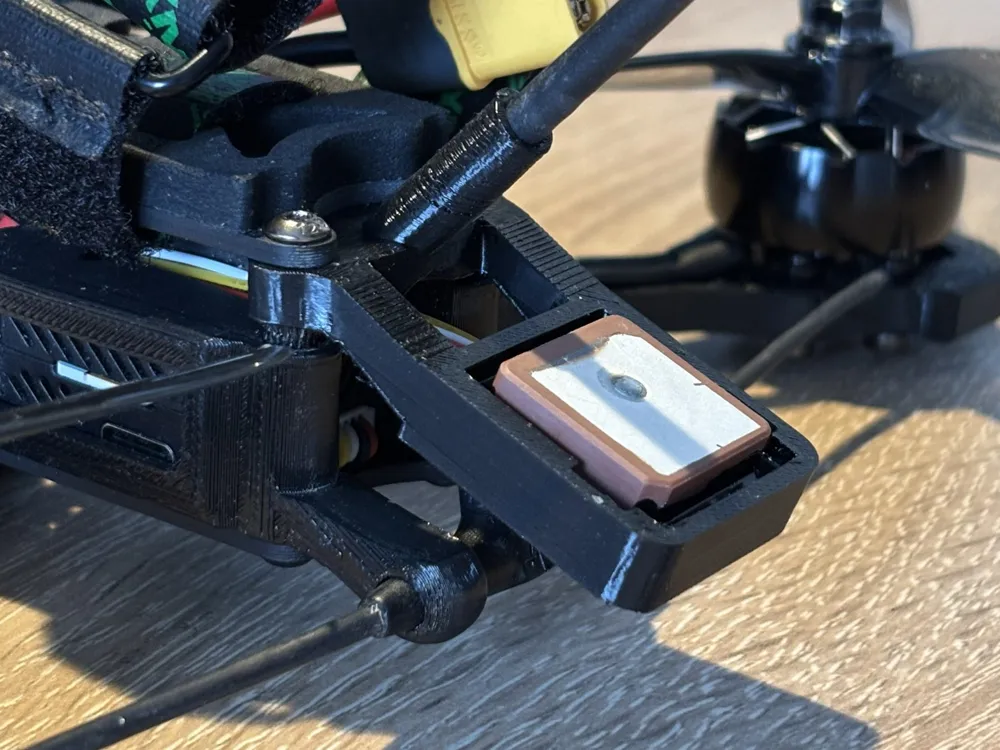

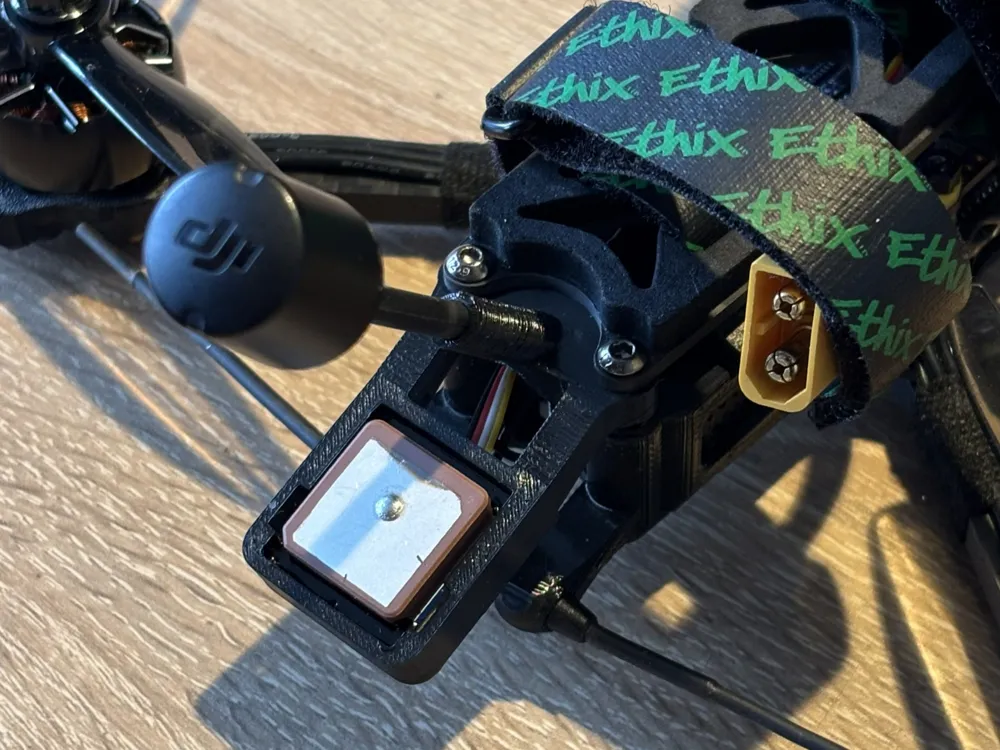

Introducing my latest project – a dedicated mount for the DJI O3 antenna and BN220 GPS module, designed specifically for the Blazo Evo V4 frame.
The design prioritizes maximum functionality and a clean setup, allowing for stable, organized placement of components without tangled wires and without compromising signal quality. The structure ensures optimal positioning of the O3 antenna and proper GPS separation, which translates into better transmission quality and a faster satellite fix.
Currently, the mount is in the testing phase. I am checking its durability in flight, vibration resistance, and practicality of assembly and use in various conditions.
If everything goes according to plan, a final version will soon be available with the option to download the files or purchase the finished part.
I welcome your feedback and suggestions – this is just the beginning of this project.
