Locking Clip for Philips Pasta Maker 7000 Series
Print Profile(1)
Description
Replacement lid locking clip for the Philips Pasta Maker 7000 Series. This clip replaces the original plastic latch that secures the lid during operation — a part that is prone to breaking over time.
Tested on the HR2665/96 model. Should be compatible with other 7000 Series models (HR2660/03 and similar) but this has not been verified.

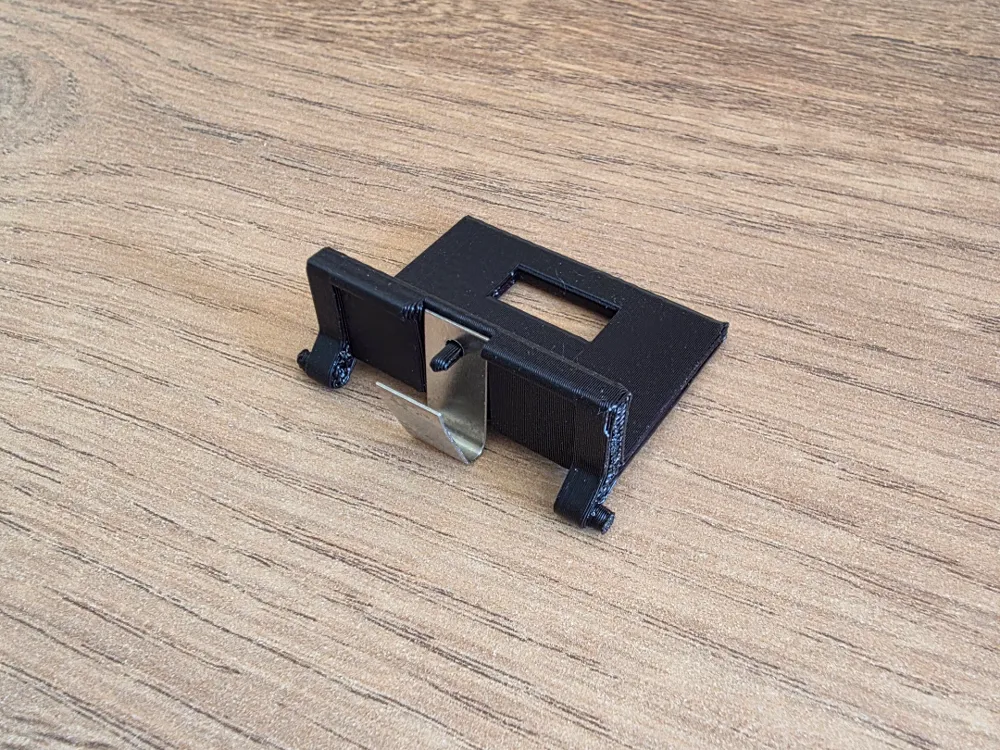

The original metal spring must be reused — simply transfer it from your broken clip to this printed replacement. The spring slots into the opening on the front face of the clip.
Printing recommendations:
- Material: ABS or PETG recommended — both are dishwasher safe, which is important since this part goes through regular cleaning cycles along with the other removable components of the machine.
- Supports: Required.
- Orientation: Print in the default orientation — do not rotate the model.
Installation:
- Remove the metal spring from your original broken clip.
- Insert the spring into the rectangular slot on the new printed clip.

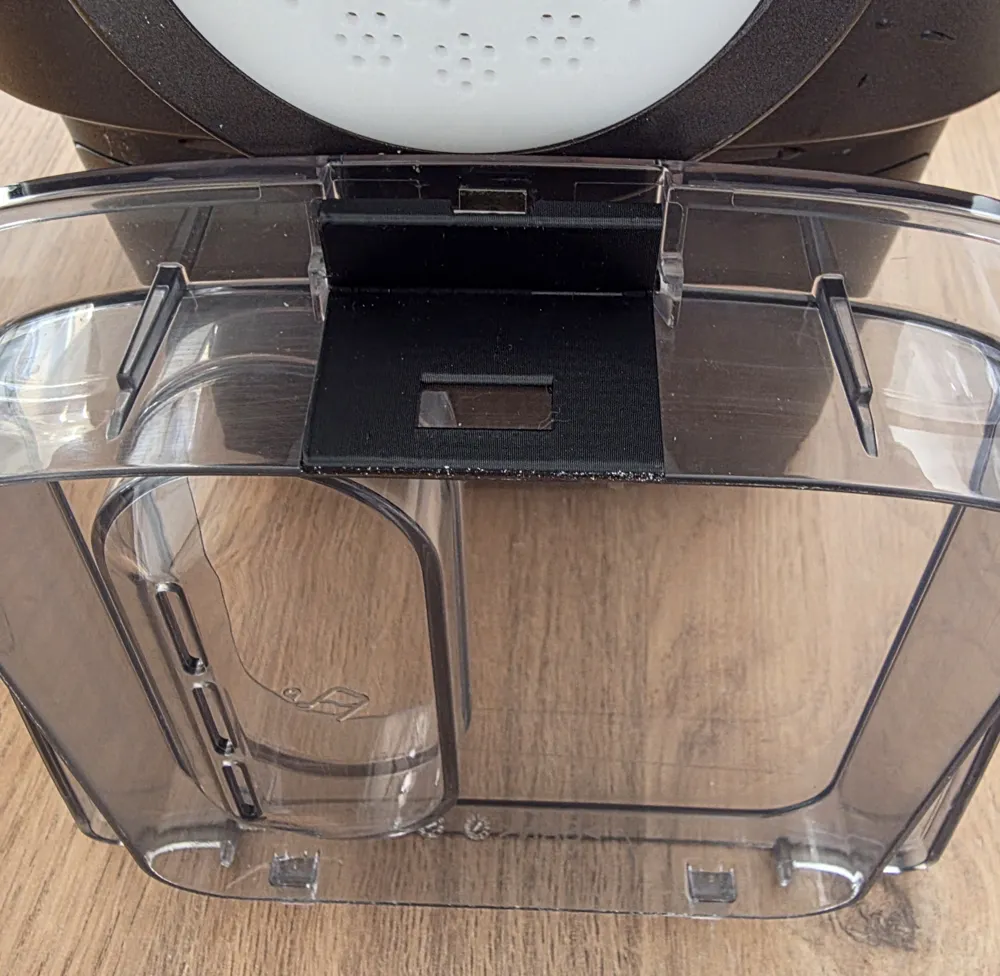

- Snap the clip back into its housing on the lid/water tank assembly.
Also available on Thingiverse: https://www.thingiverse.com/thing:6885670
