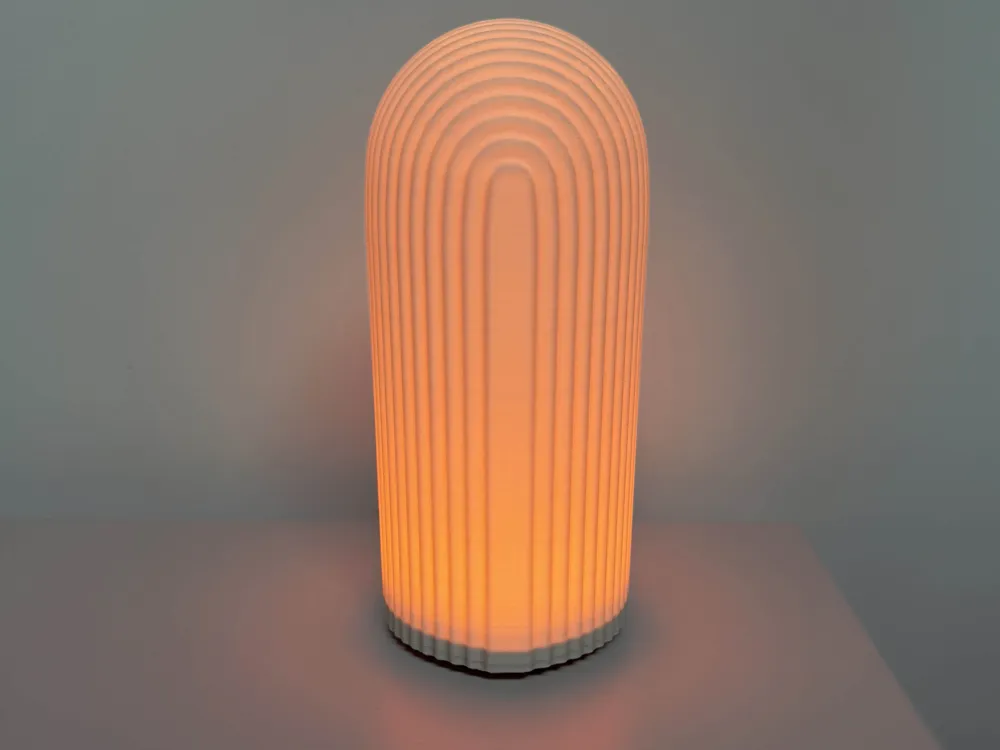

Minimalist Monolith Light – LED MH001 Kit

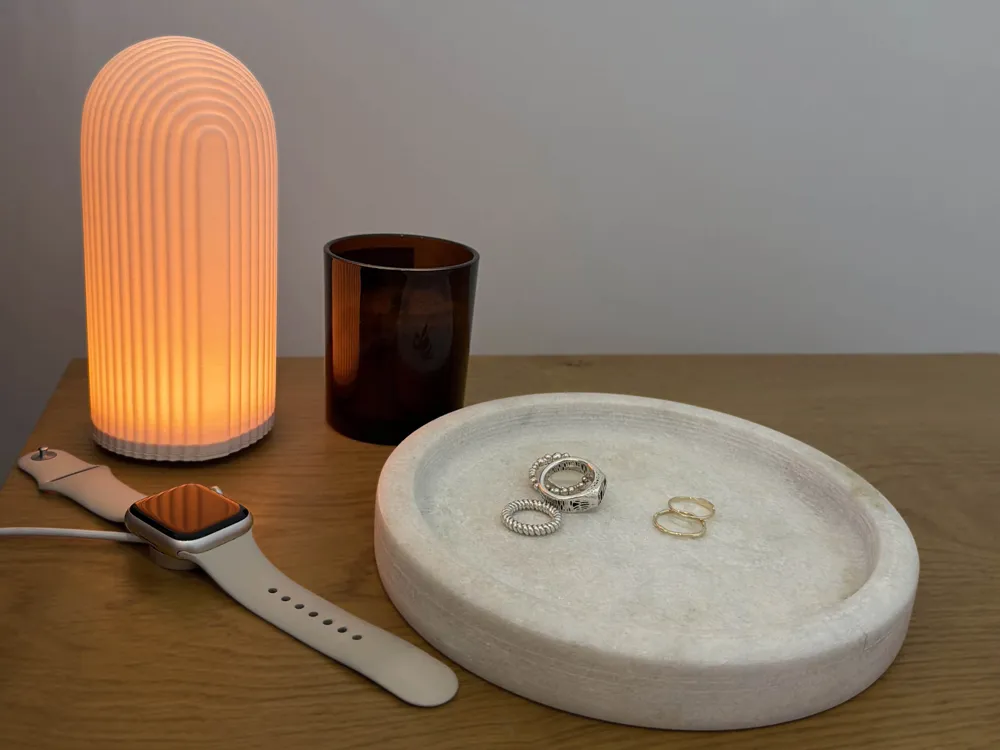

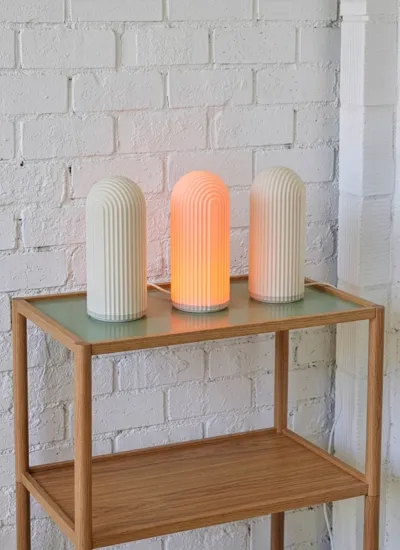

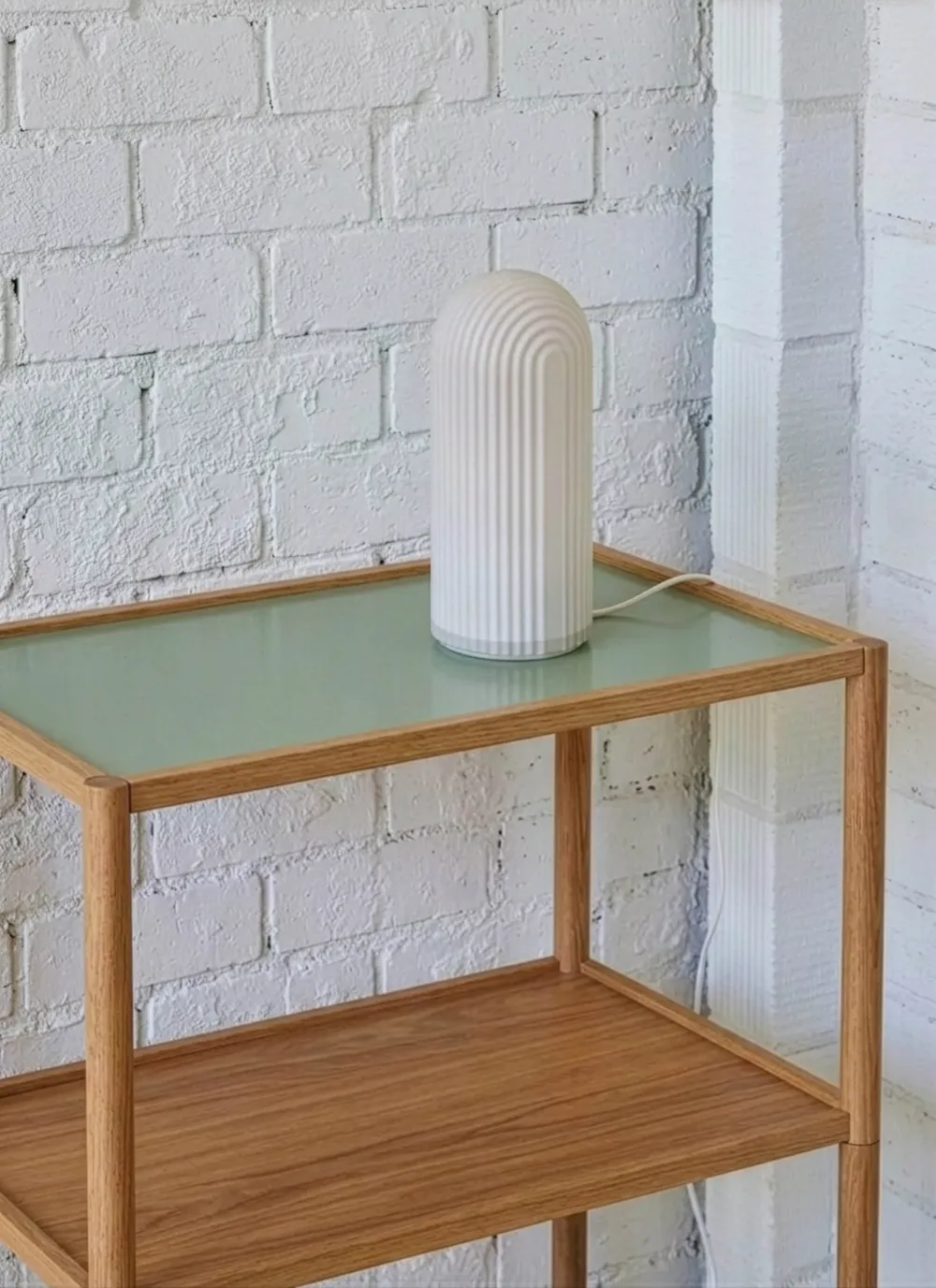

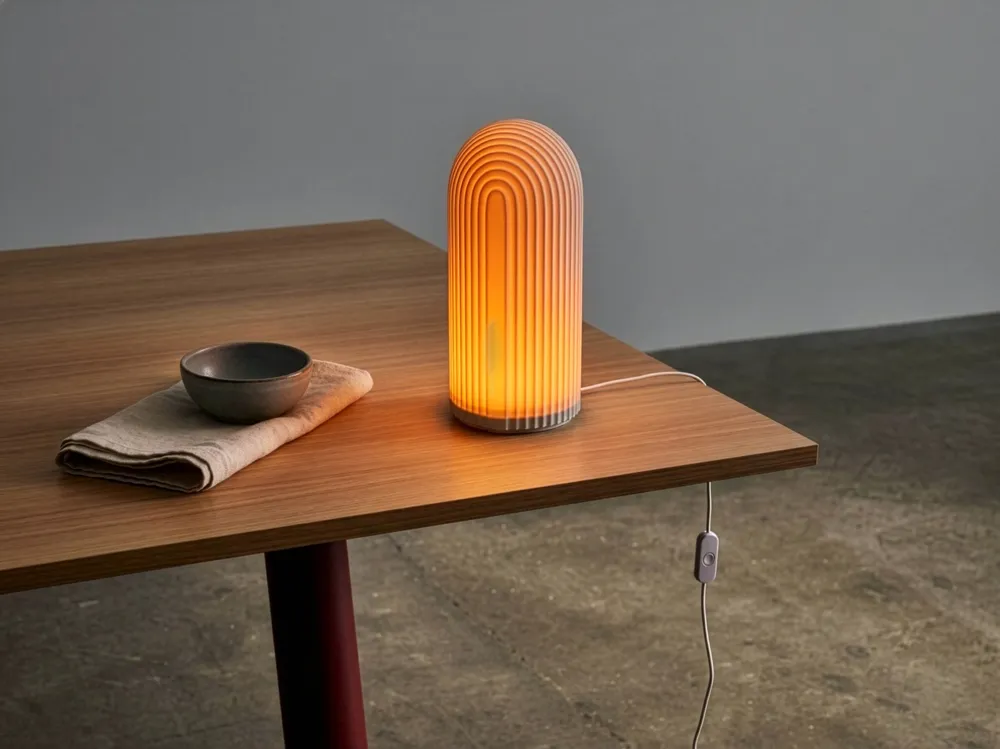

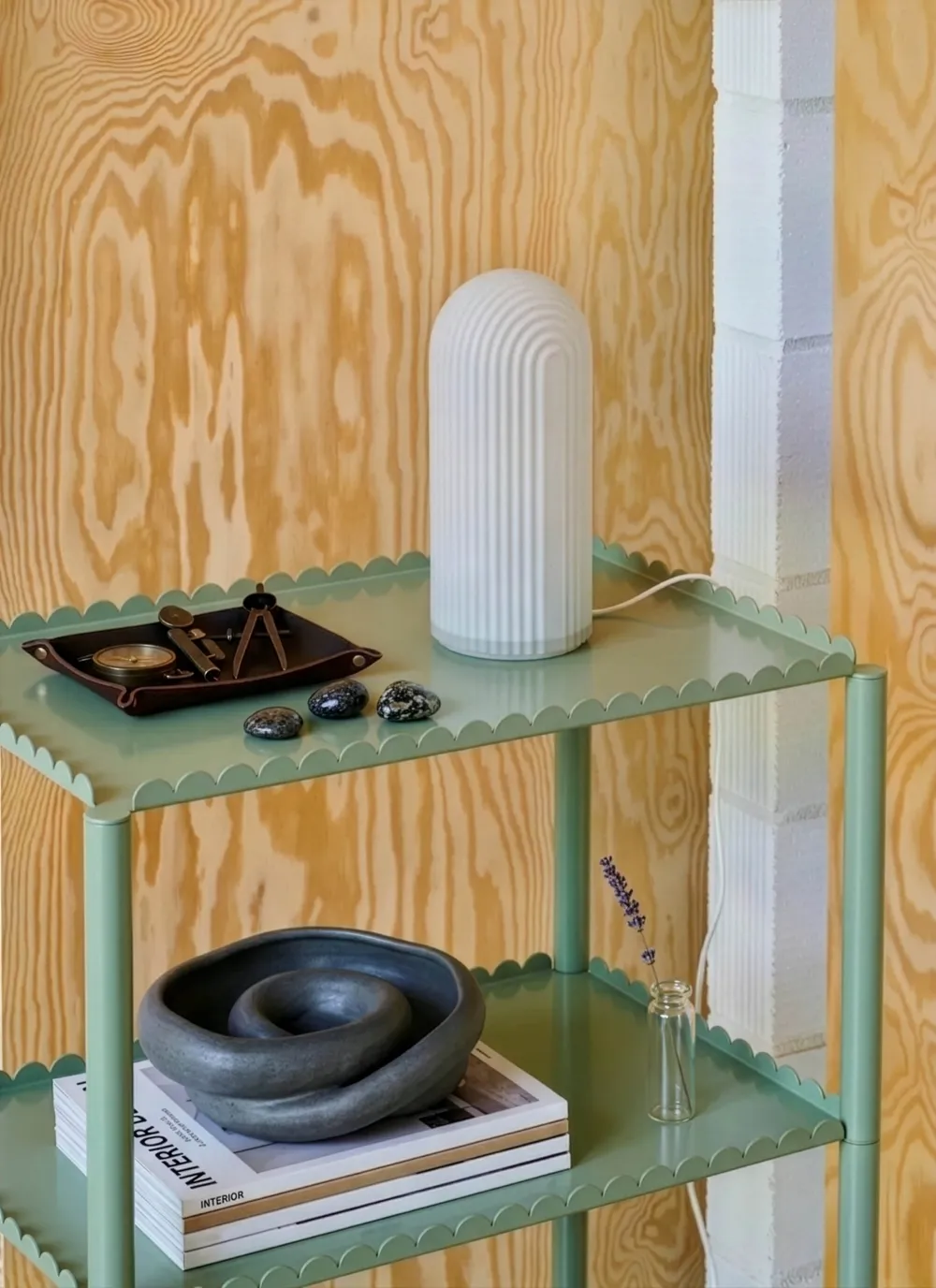

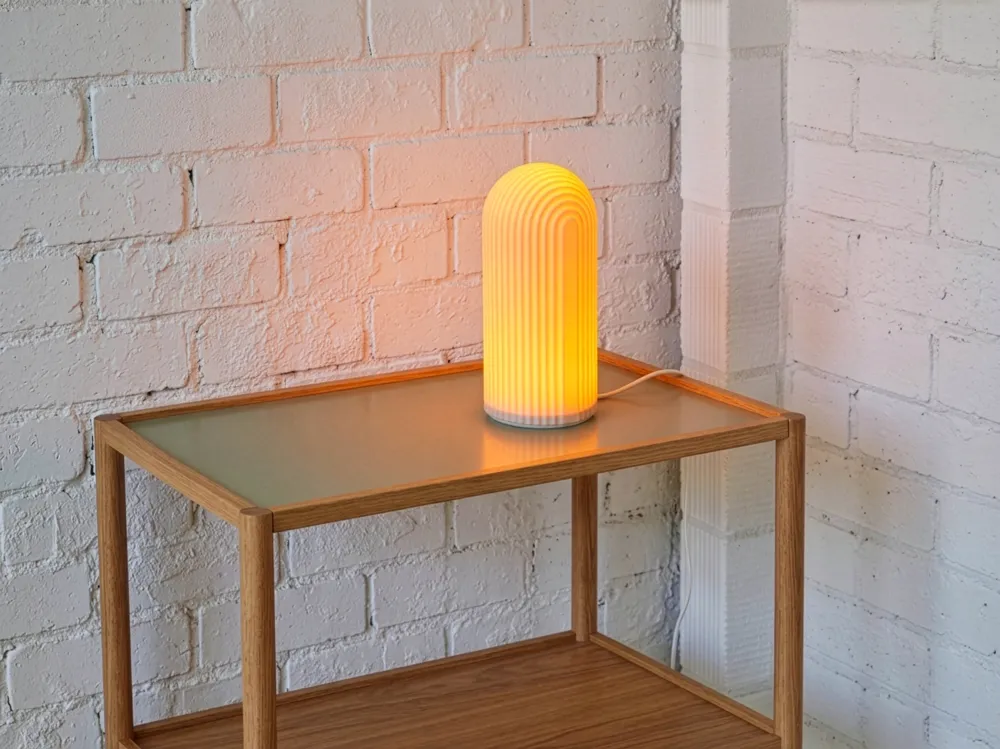

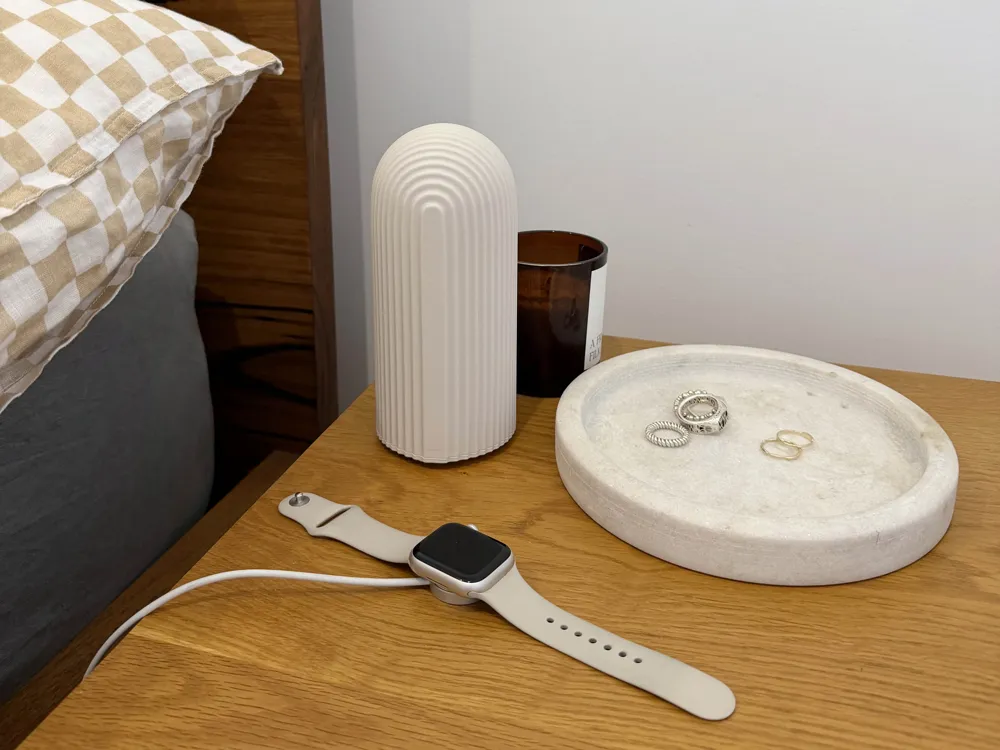

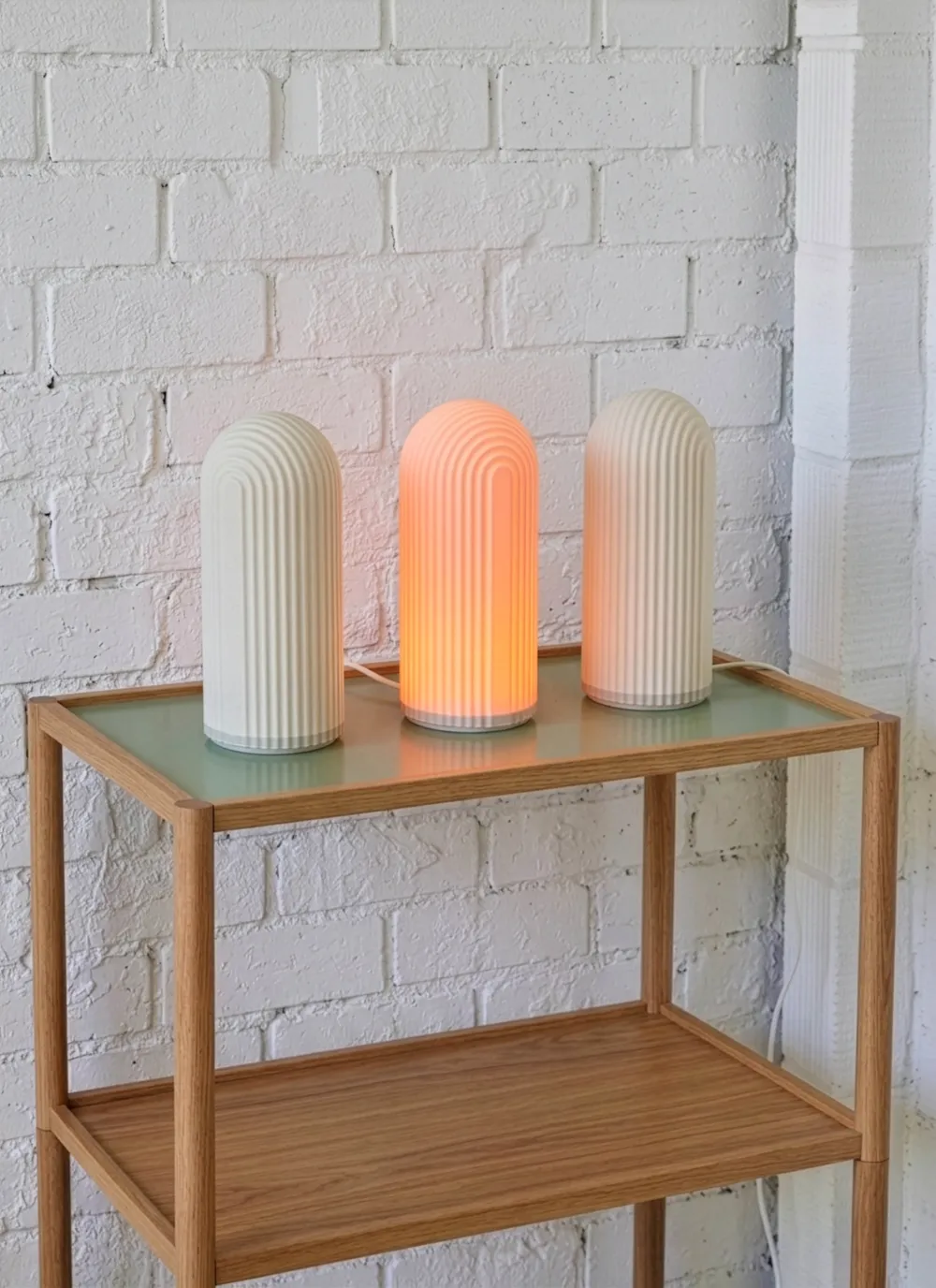

Introducing my latest design the Minimalistic, Monolithic, Pillar Lamp. Designed around the Bambu MH001 LED Lamp Kit, this moody desk lamp is perfect for any shelf, or as ambient lighting in your living room or bedroom.

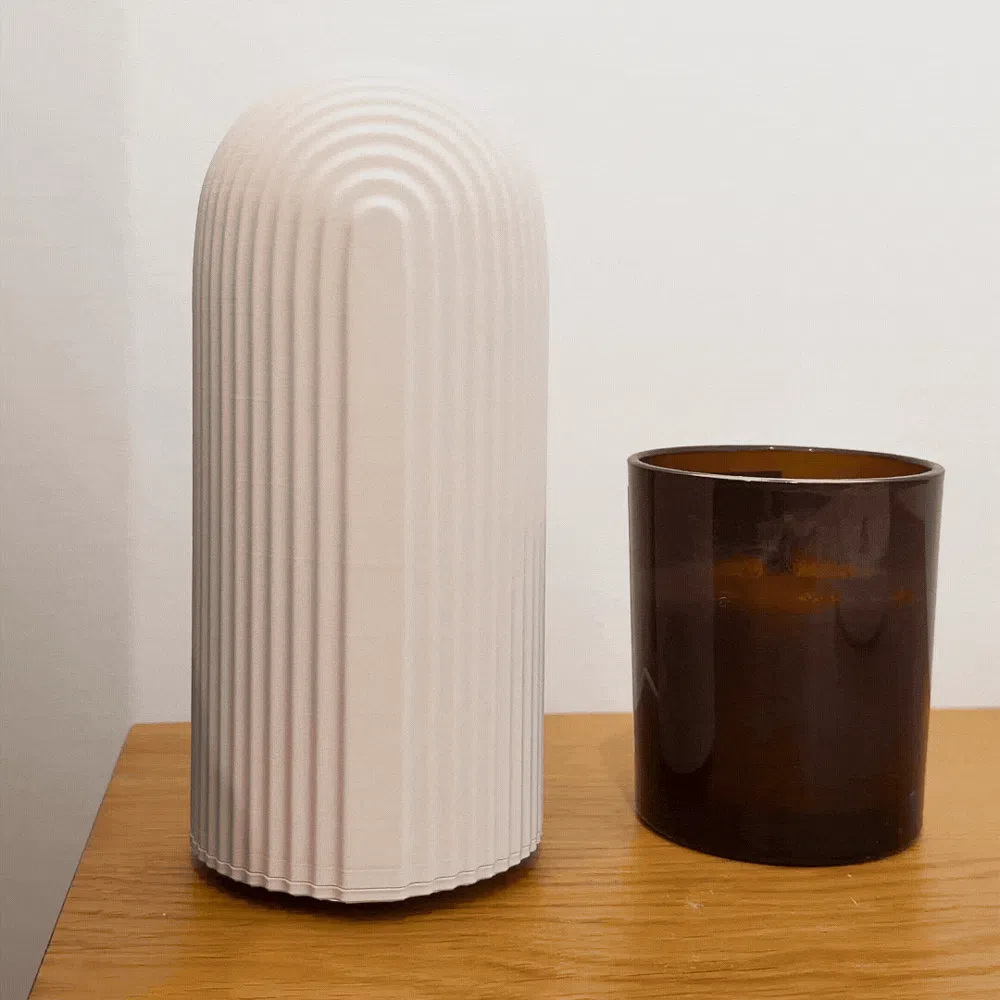

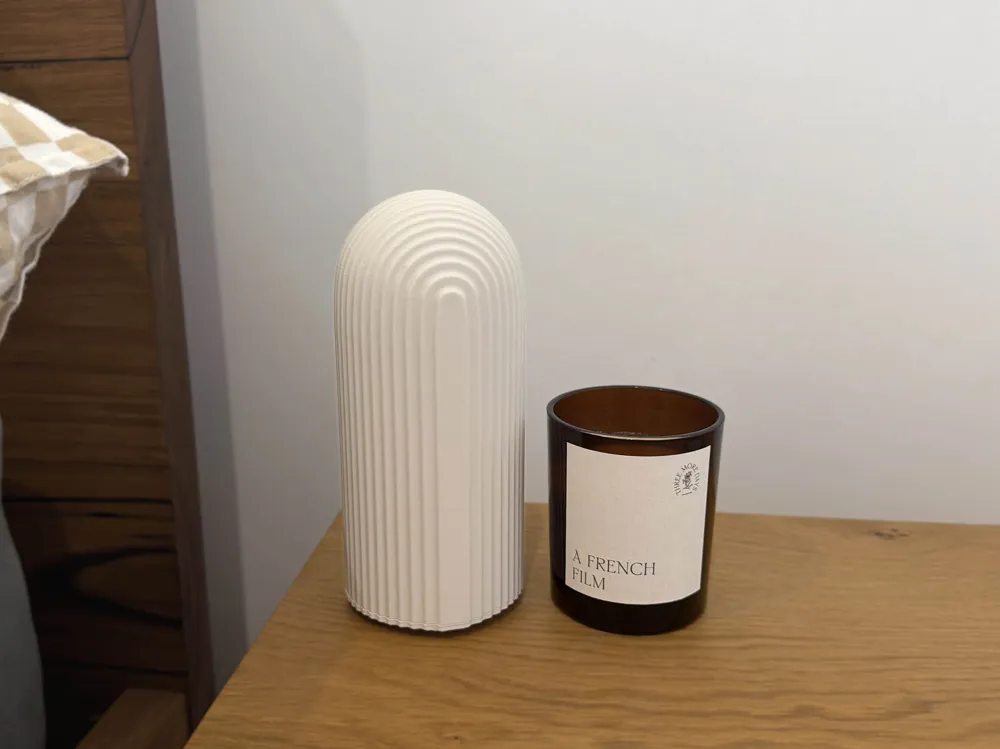

Mine is printed in the PLA Matte Bone White, which gives it a beautiful warmth when the light is on and off.

I'd love to see your version. Please make sure to post pictures of your prints so I can see my newest design light up your home!

Why Print This:

• Unique brutalist aesthetic you won’t find in stores
• Beautiful, warm ambient room lighting
• Fast, low-filament print (unlike most lamps)

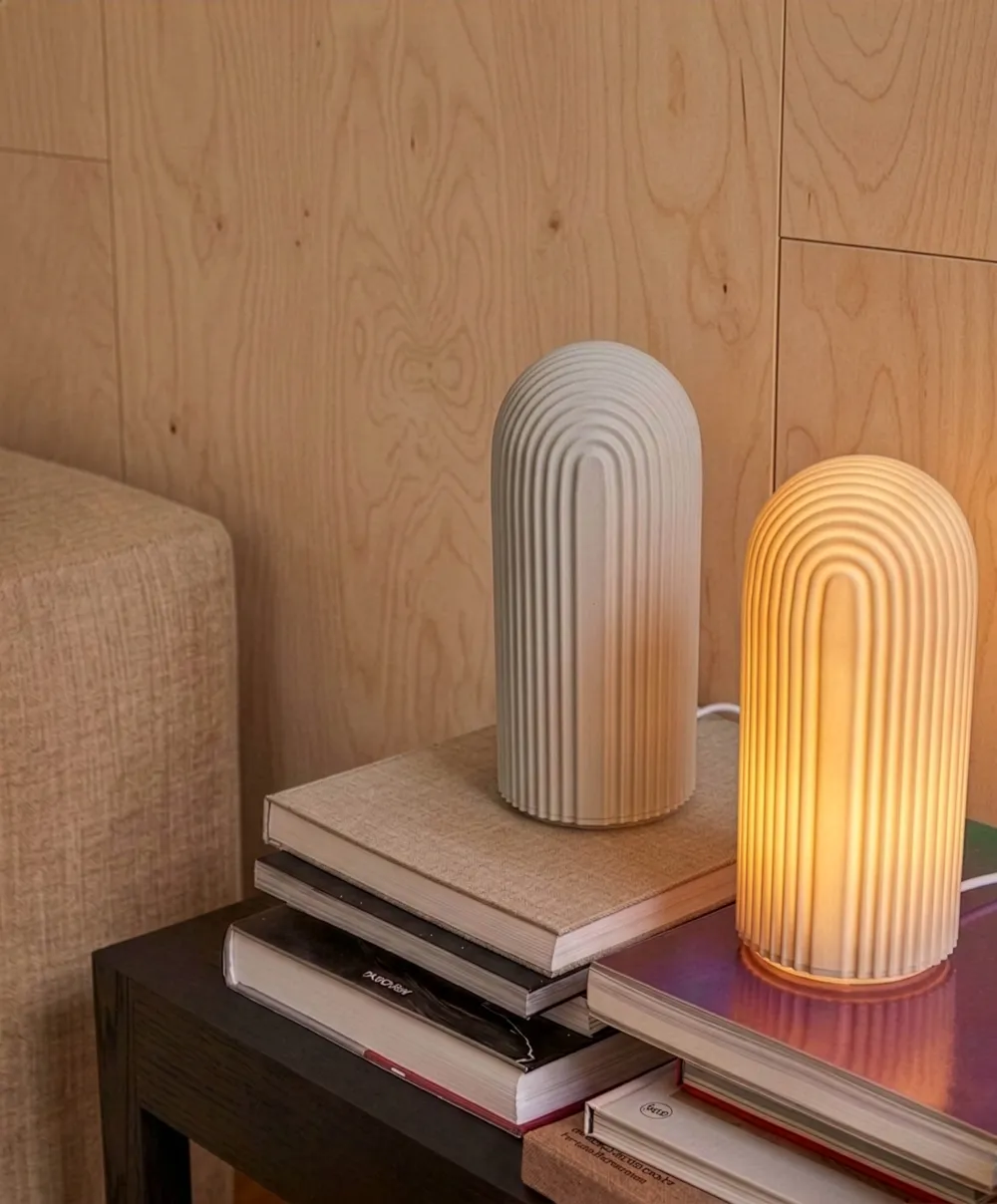

• Looks beautiful in your home with the light switched on or off
• Structural Decor piece
• Perfect as desk lighting or ambient decor
• Modern, minimalistic aesthetic goes with any style
• This makes a beautiful, low cost gift for your friends and family

Details:

Print Time: ~4.5-5h hours

Filament: PLA, PETG or any white, light grey or off white / cream will work

Supports: Yes, but very easy to remove using pliers and the included bed scraper

Assembly: 2 x Phillips head screws, included with the MH001 Kit

Electronics: MH001 Bambu LED Kit

Assembly:

The light uses the screws included in the lamp kit to connect the top and bottom pieces, and the 3M sticky pad to secure the light to the base.

1. Remove the supports from the base. I found using the scraper to be the easiest.

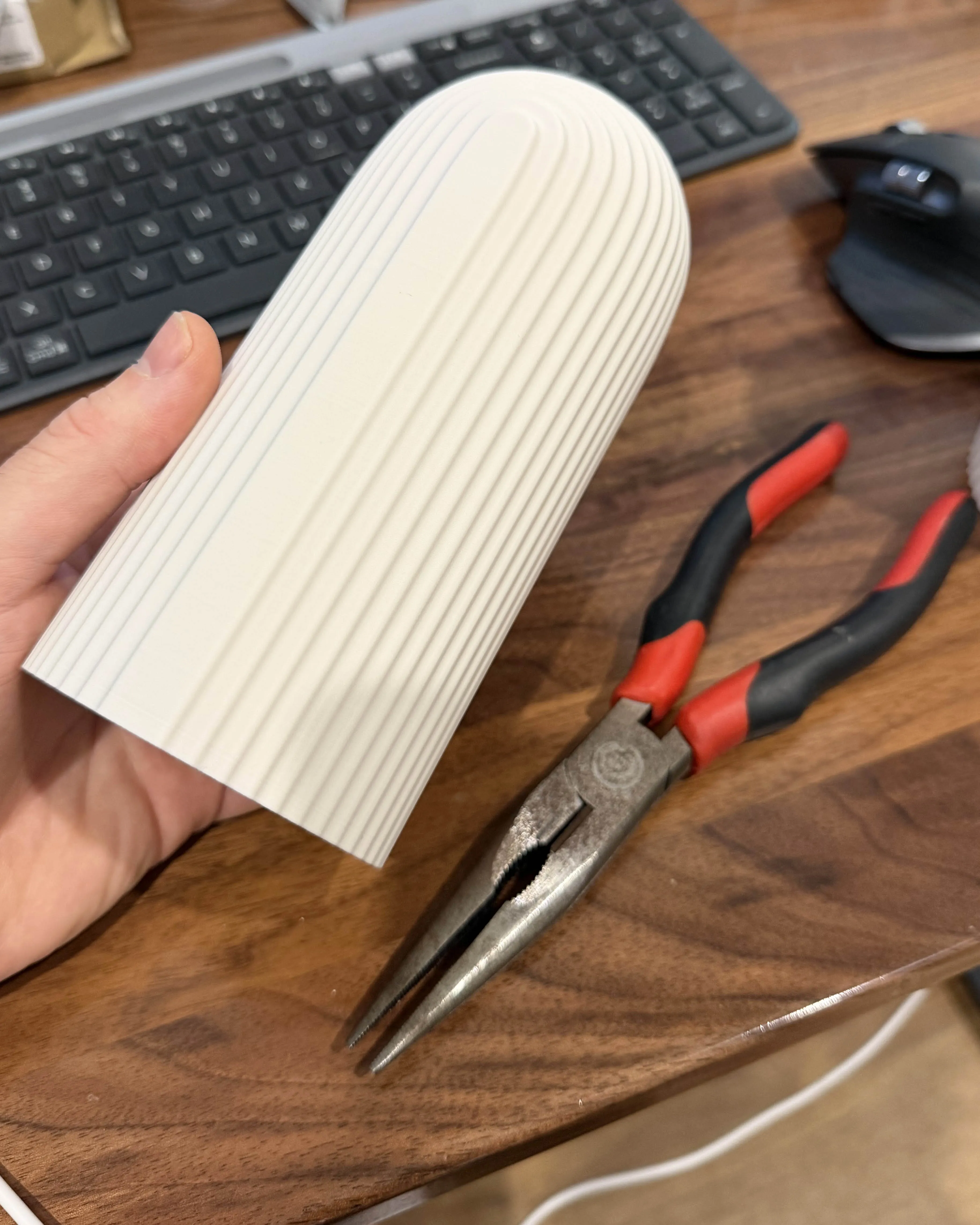

2. Remove the supports from inside the top lamp section. I found using long nose pliers easiest for this. Make sure you remove the interface layer as well, as any additional supports left inside will be visible when you turn the light on.

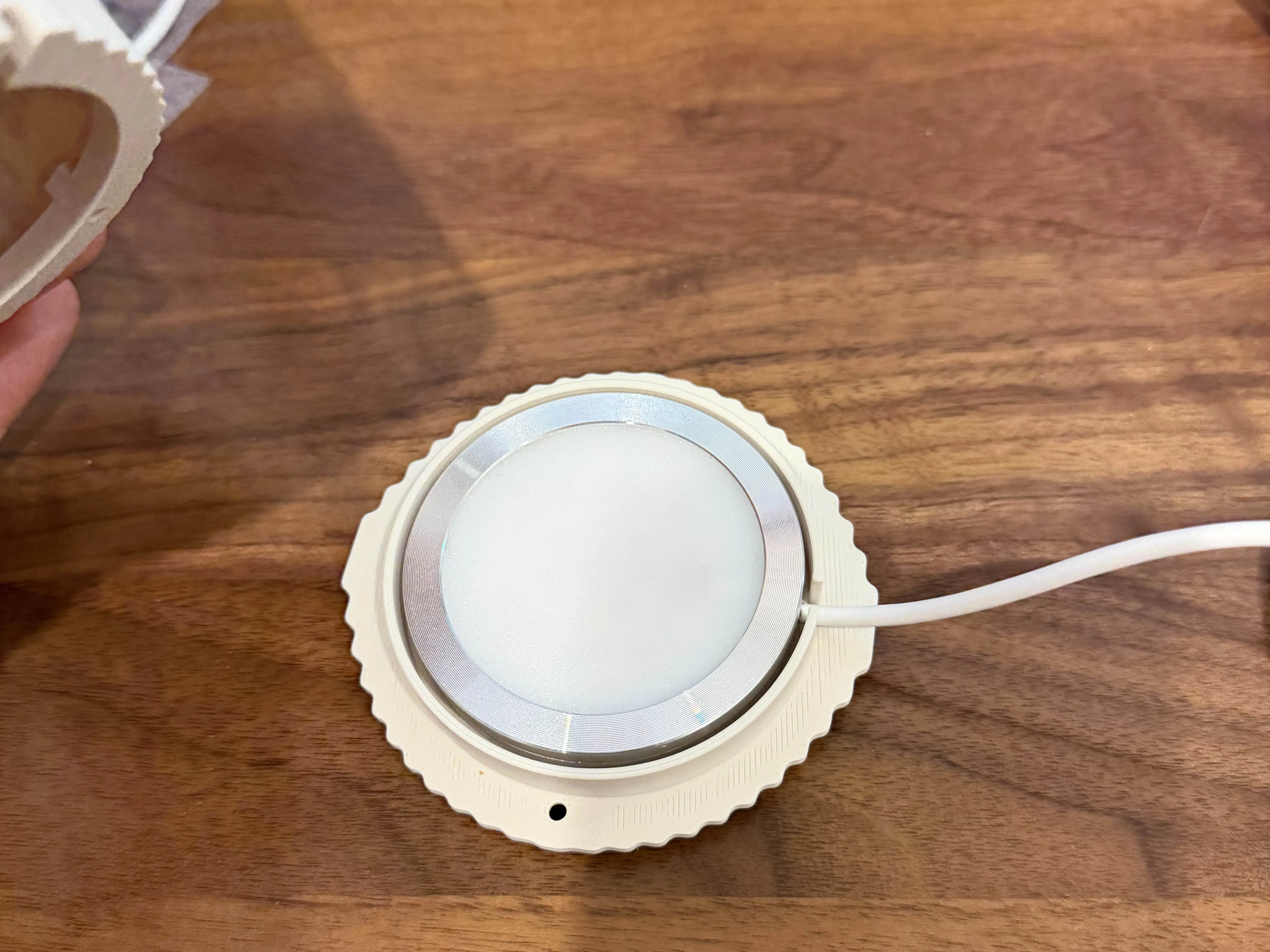

3. Using the included 3M sticky pad, attach the light to the inside of the base as shown.

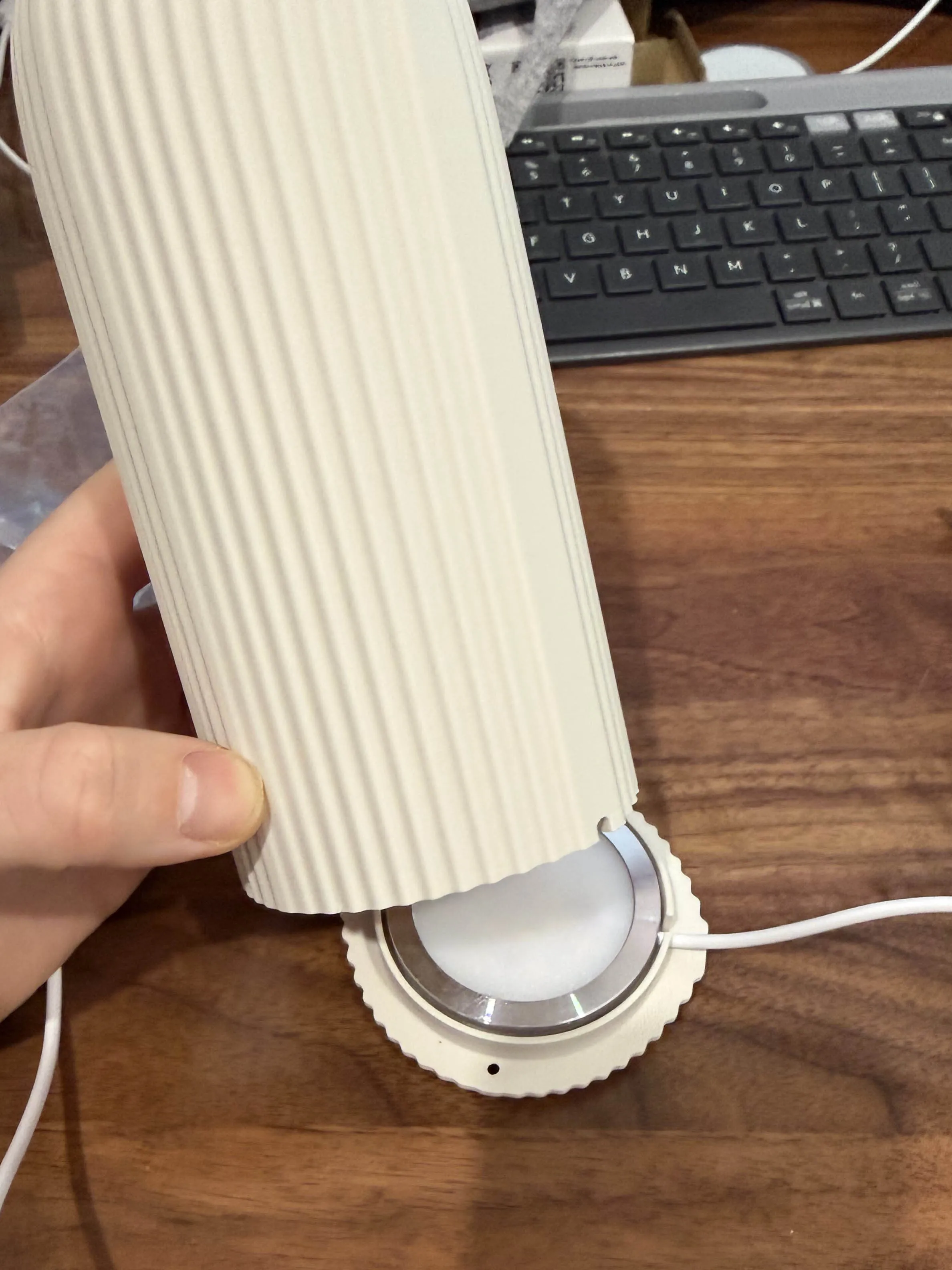

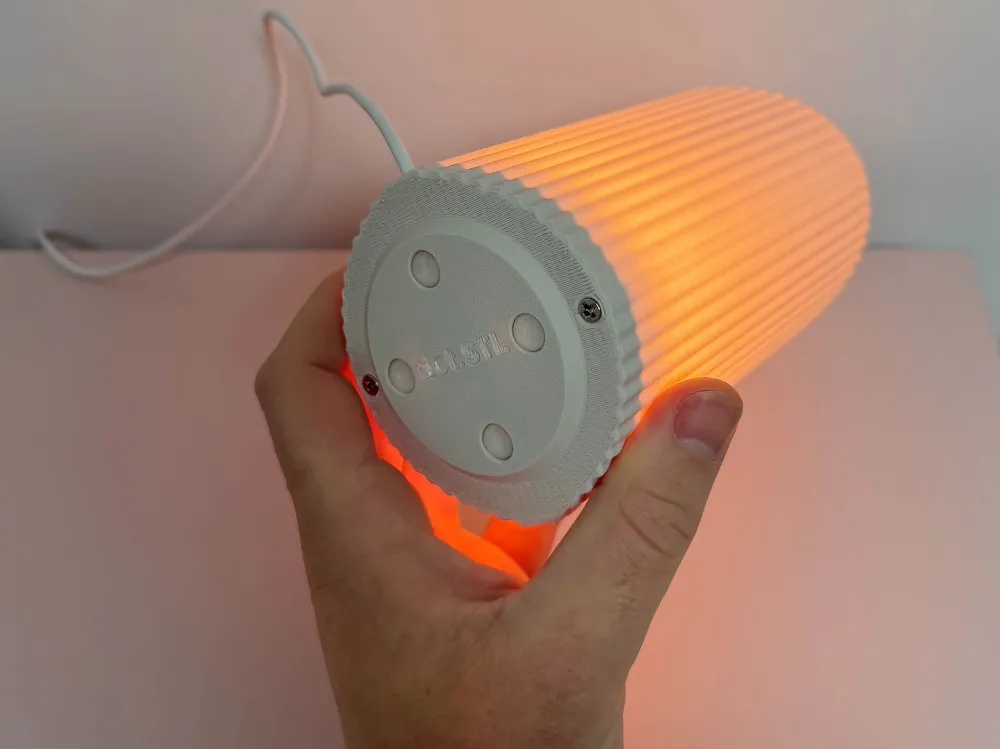

   4. Using the 3 x included countersunk screws, screw the base and top together as shown. Please make sure you line up the cable slot.





4.

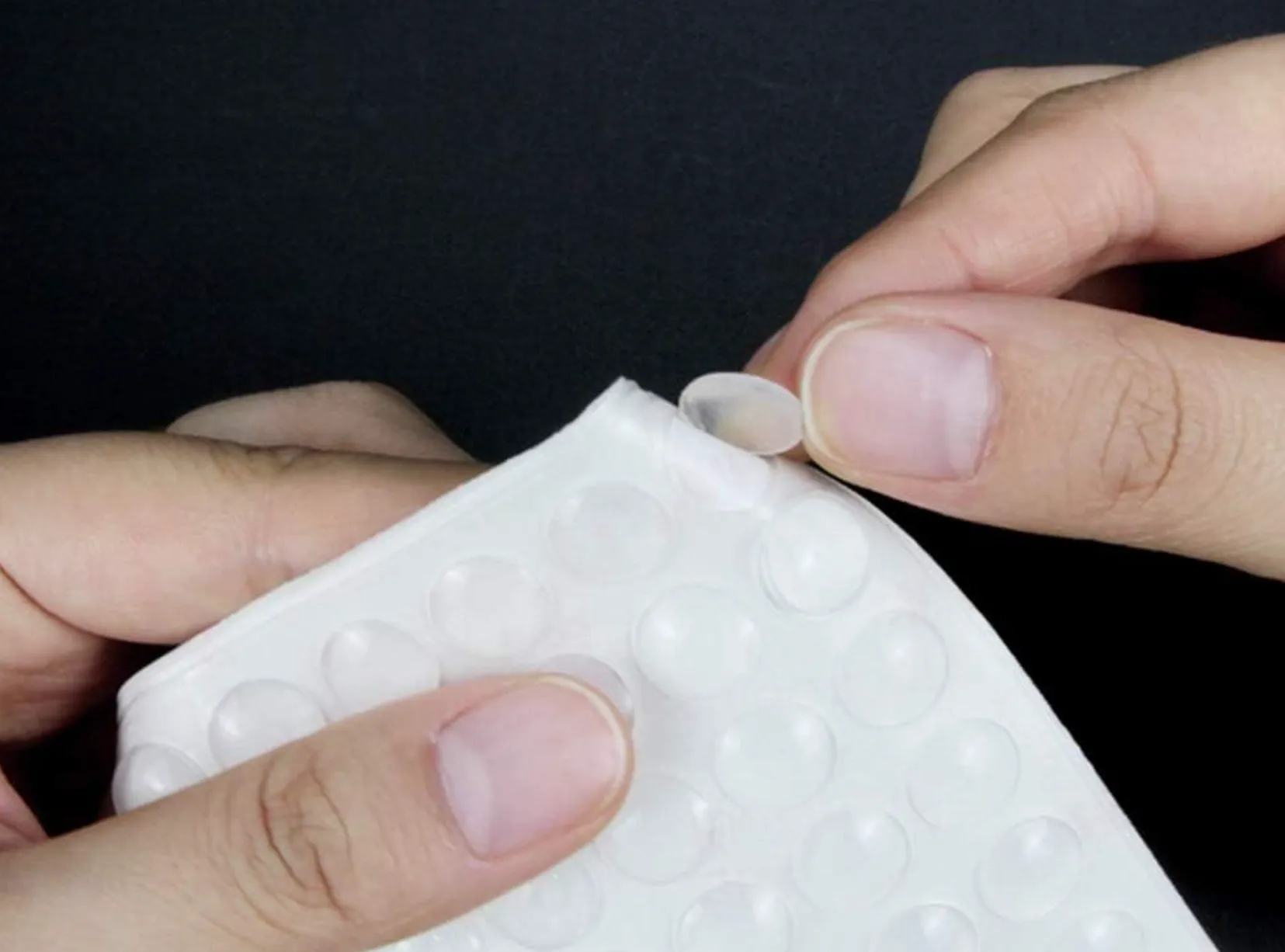

5. Optional Extra Step: I use anti-slip silicone feet on the base of a lot of my designs. This really helps to protect surfaces and prevent things sliding around / tipping over. These are 8mm x 3mm high and can be purchased from hardware shops, amazon etc. Just search Anti-Slip silicone feet and find something that's the right size. More info below:

Optional Anti-Slip Feet:

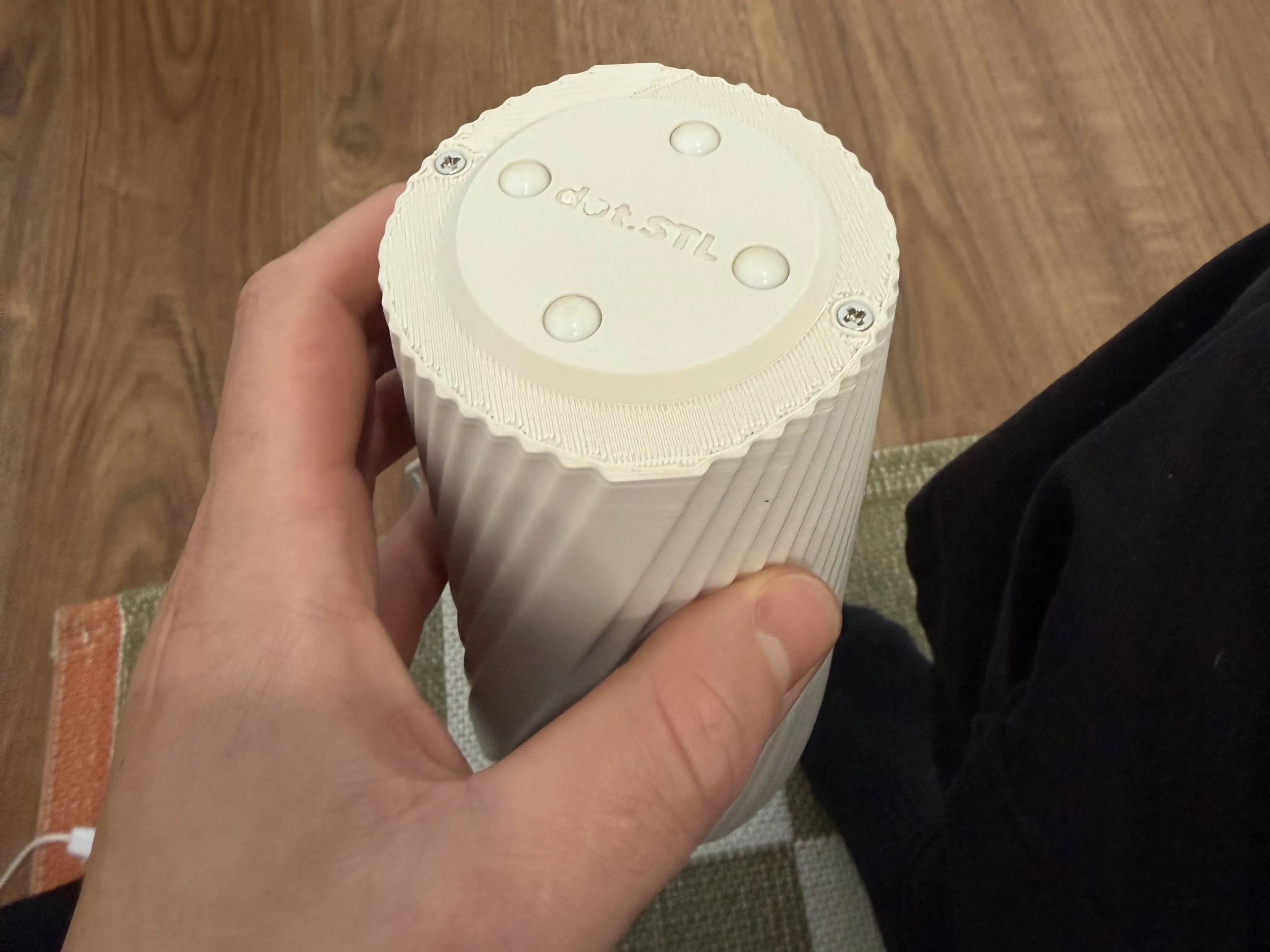

I like to protect my tables and benches. Mostly I hate the sound of plastic scraping across anything. As such, I added anti slip Silicone feet to my light to prevent it sliding across the surfaces. These are 100% optional and are not required. I use these in heaps of my designs, so if you like my work, you'll likely need to get a set for the other designs.

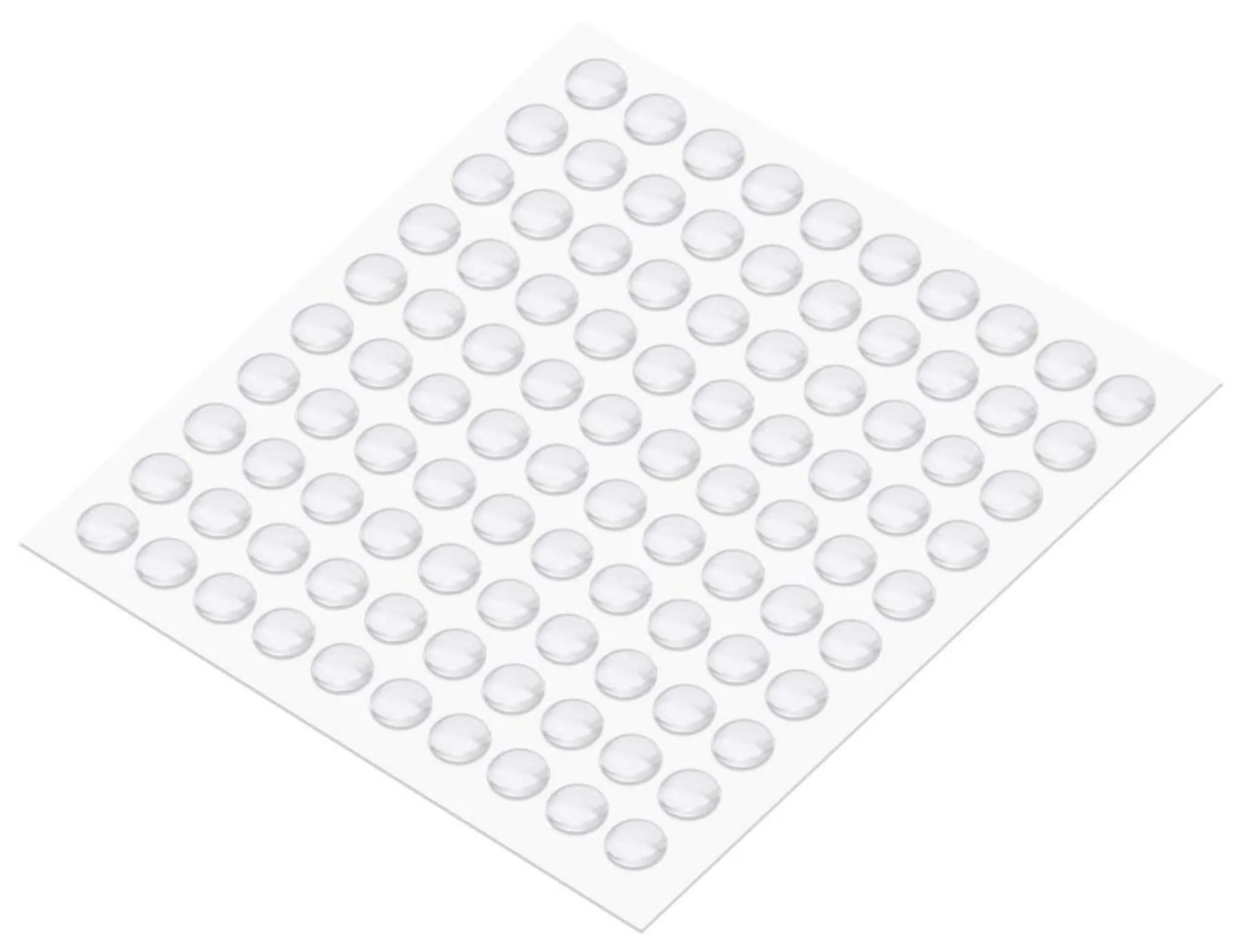

The ones I used are super cheap and regularly available. They are listed as 8mm Self-Adhesive Elastic Buffers. They measure 3mm in height and I'd suggest making sure yours are similar in height to this.

Anything 8mm in diameter and around 3mm in height will work for this design!

I purchased mine from Amazon here (Europe) 4 Euros for 100 pcs:

https://amzn.eu/d/ibWaKS4
