t-zeta 1/28 rc pan can mini-z
Print Profile(1)
Description

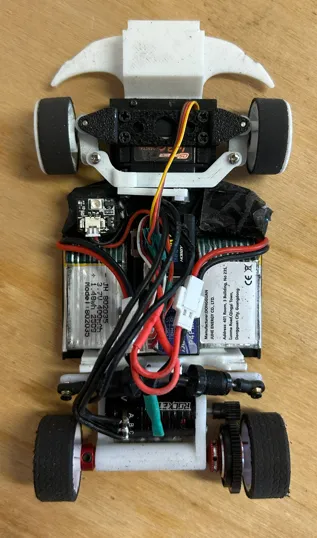

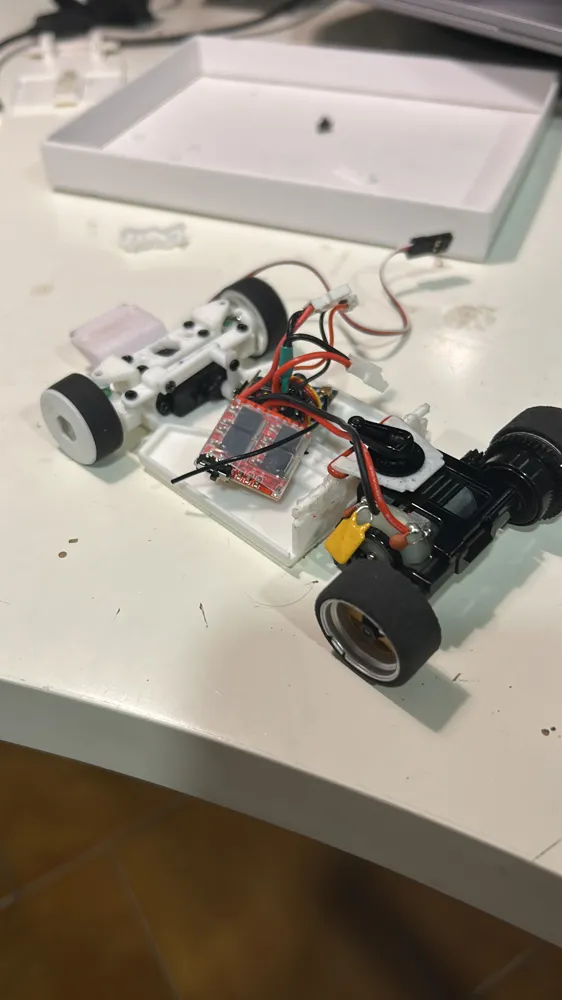

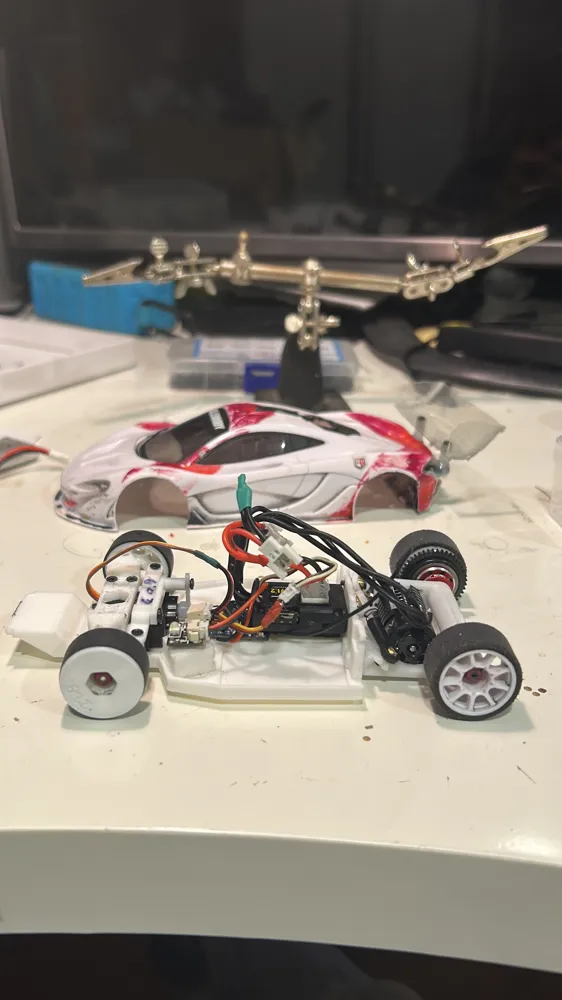

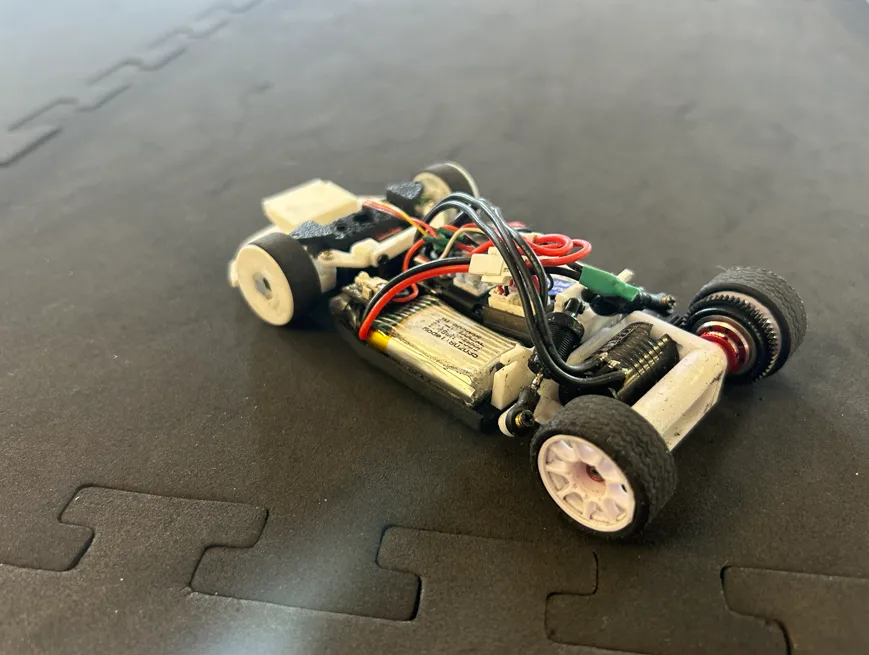

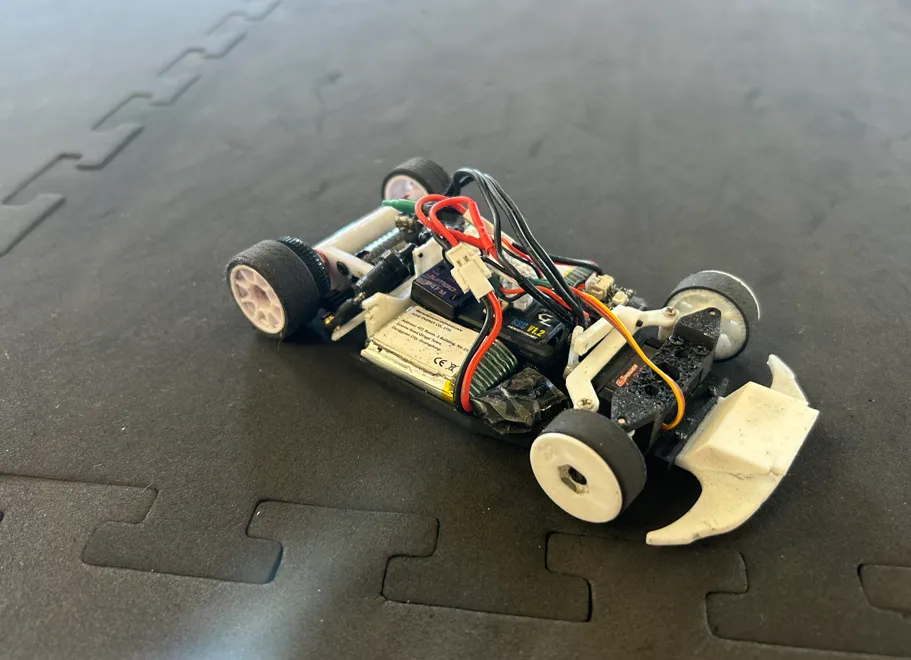

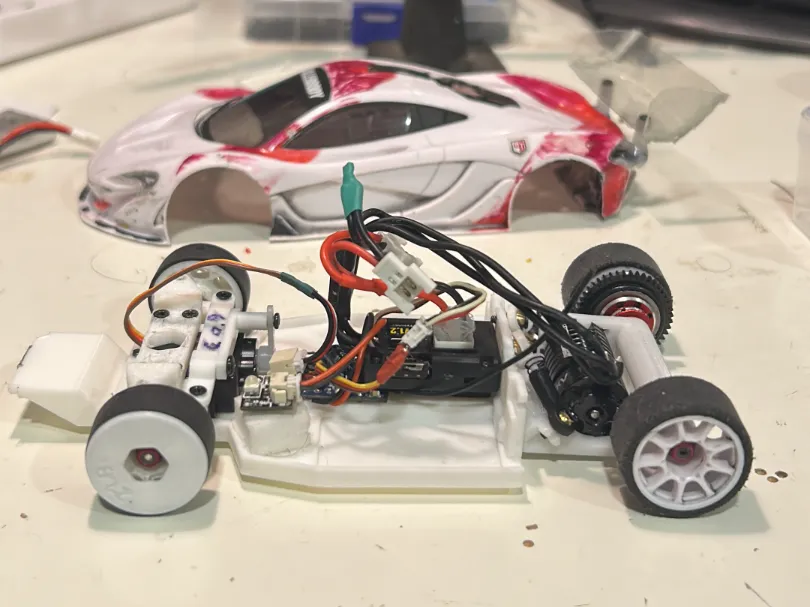

1/28 RC based on Mini-Z, the car uses Kyosho and similar bodies, featuring adjustments for camber, caster, and toe (settings from 1 to 3, where 1 is more open and 3 is more closed). The height can also be changed by inverting the steering knuckles

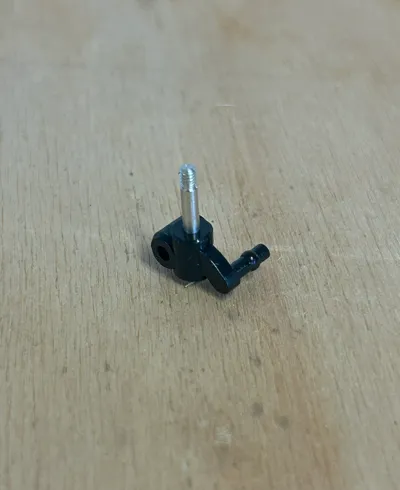

Built on a T-plate base, and for the wheel hubs and kingpins, I used MR-03 hub pins (MZ403B)
For the rear, three options are possible: one for the Kyosho LM motor mount (MZ305), or by using Reflex-type dampers
For the front springs, I used springs from a PN disk damper, but MR-02 springs can also be used
The car is a lot of fun and is designed to be built with parts you already have; modifications, improvements, or suggestions are welcome
Model updated with instructions
