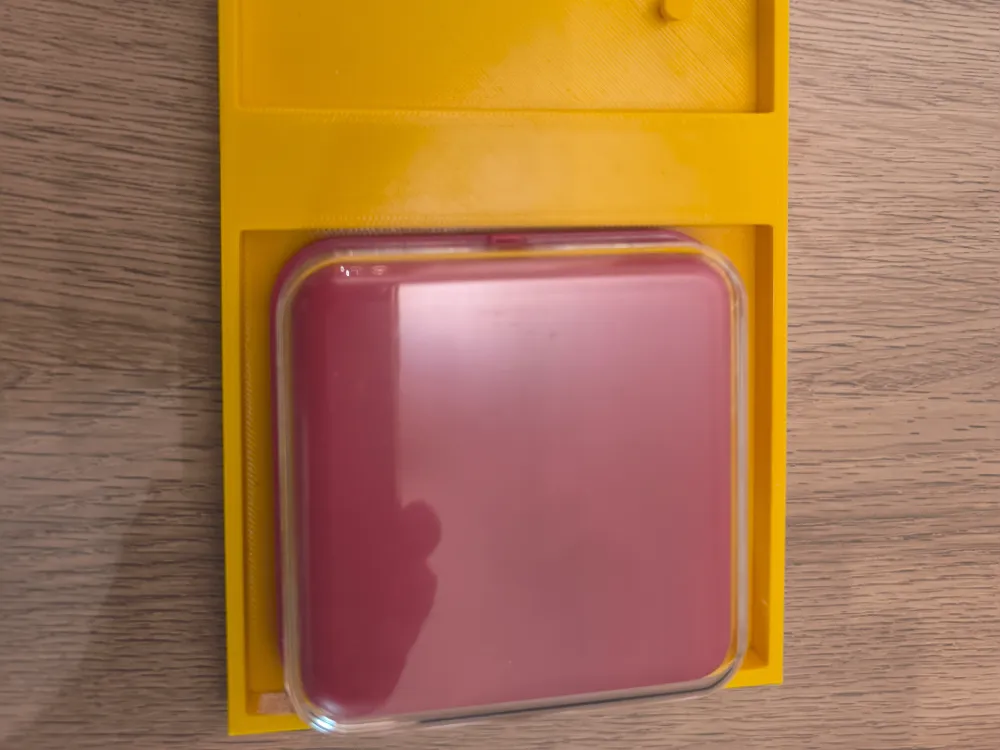

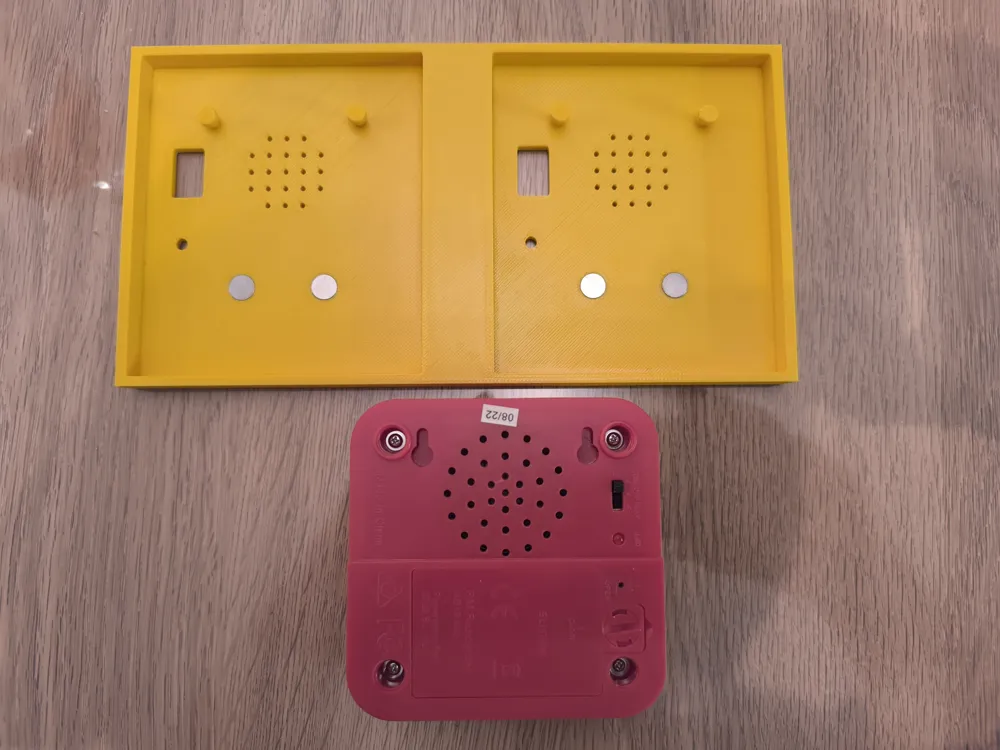

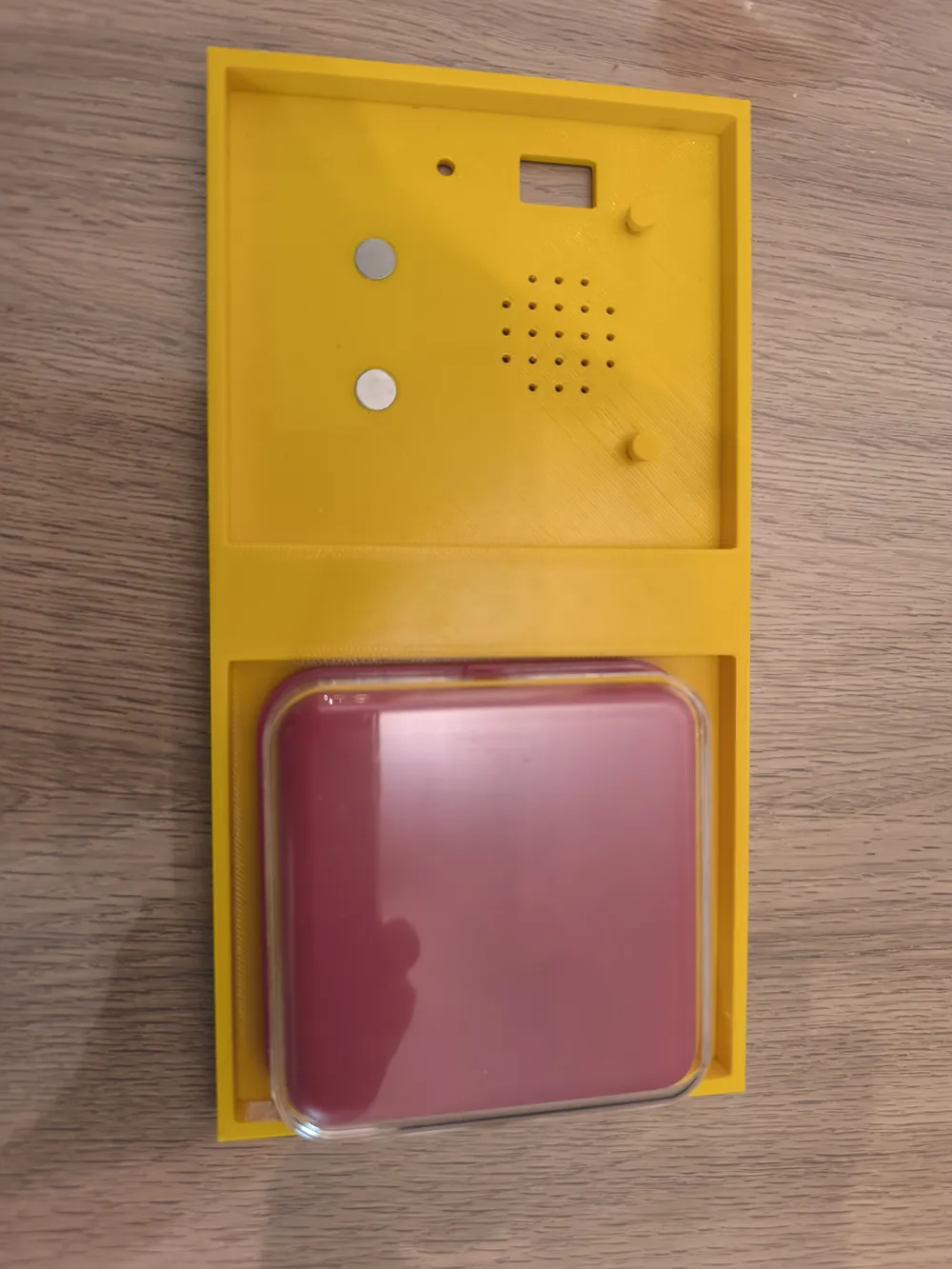

This is a holder for the speech buttons from the company TTS Big Point. The holder is designed for 2 buttons. To ensure they hold better on the plate, I have added 8x1mm recesses. You can then press suitable magnets into these. The two holes in the upper part have a diameter of 3mm. These are for receiving the pins from the other print file. However, it may be necessary to re-drill them with a 3mm drill bit after printing, as depending on the printer, these holes might be slightly too small for the 3mm pins. It's best to then glue the pins into the base plate. The microphone hole is not 100% aligned with the button. However, this should not be a problem for voice recording itself. I hope I could help someone with this model. (This is my very first self-designed model). I would be very grateful for feedback and support :-)
