Canyon Speedmax SP0049 Saddle Fin
Print Profile(1)
Bill of Materials
- M3 bolts x 17:
- female Garmin mount x 1:
- M3 melt-in threads x 17:
- M5 melt-in threads x 4:
Description
Boost Me (for free)
Please reward my selfless act of designing and posting it for everybody to enjoy with a “Boost” or 2 🚀🚀
If you found this, you are in luck 🍀

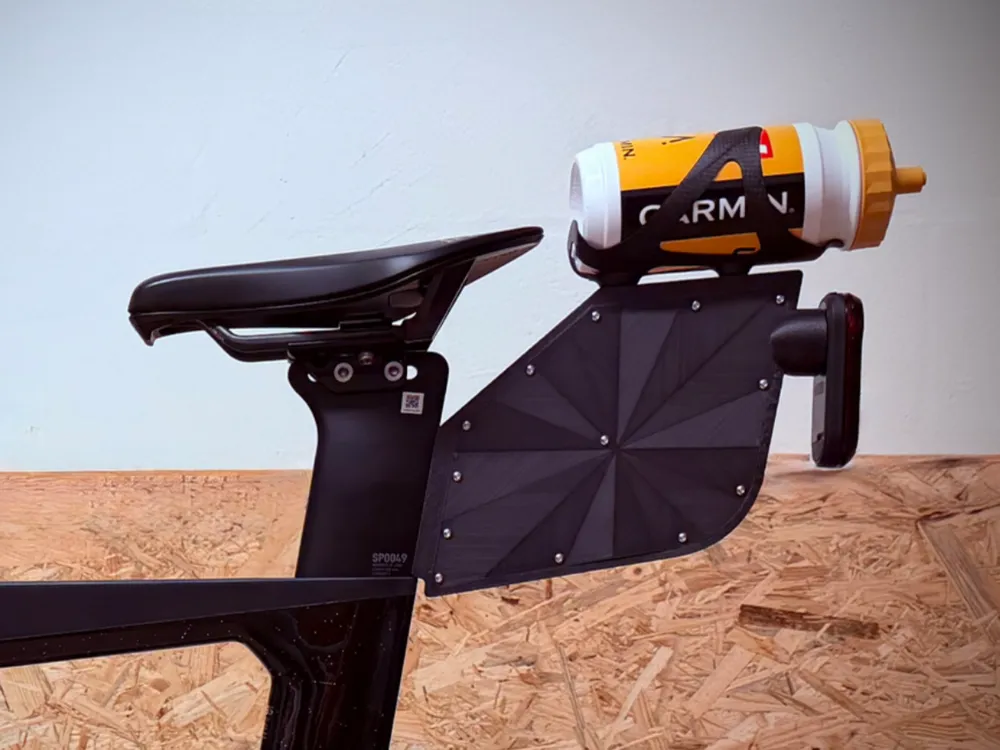

I always wanted a behind-the-saddle water bottle and Garmin-Holder solution for my Canyon Speedmax but either didn't find what I was looking for or didn't want to pay the astronomical price that comes with triathlon gear… so I designed it myself. And since in life and especially in triathlon, the spirit should be to help each other, I share my design with you 😇

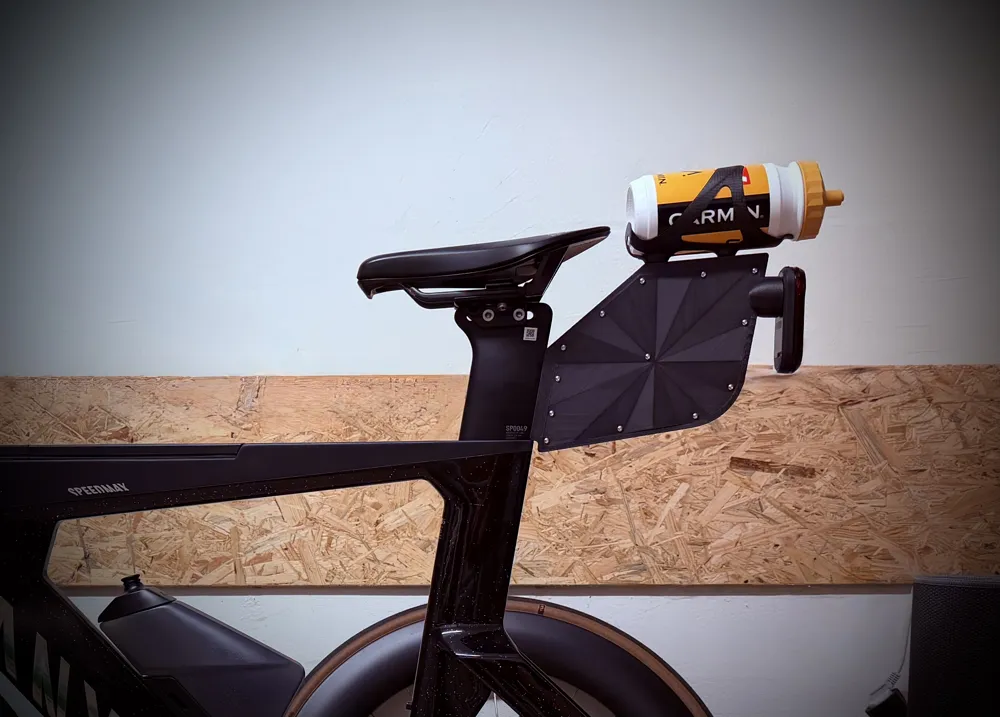

The holder bolts onto the SP0049 stem with M5 bolts & the saddle can still be lowered to the 25mm mark.
Printed in PLA-CF. Should hold for some time. If not, will print in a more adequate material.

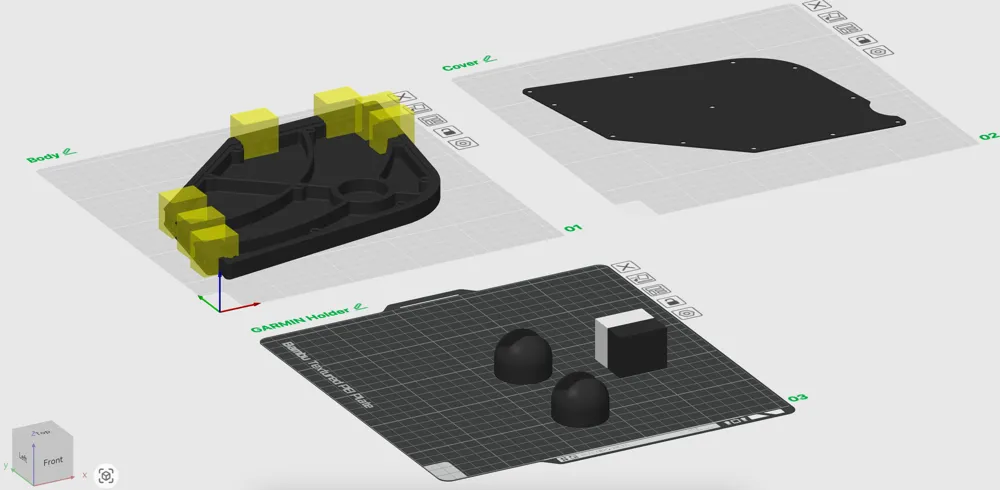

Included in my print profile are “modifiers”; don't delete them! The melt-in threads need 100% infill around to be secure.
You will need a little hardware:
- M3 and M5 bolts & corresponding melt-in threads
- female Garmin holder
- cheap carbon fiber bottle holder)

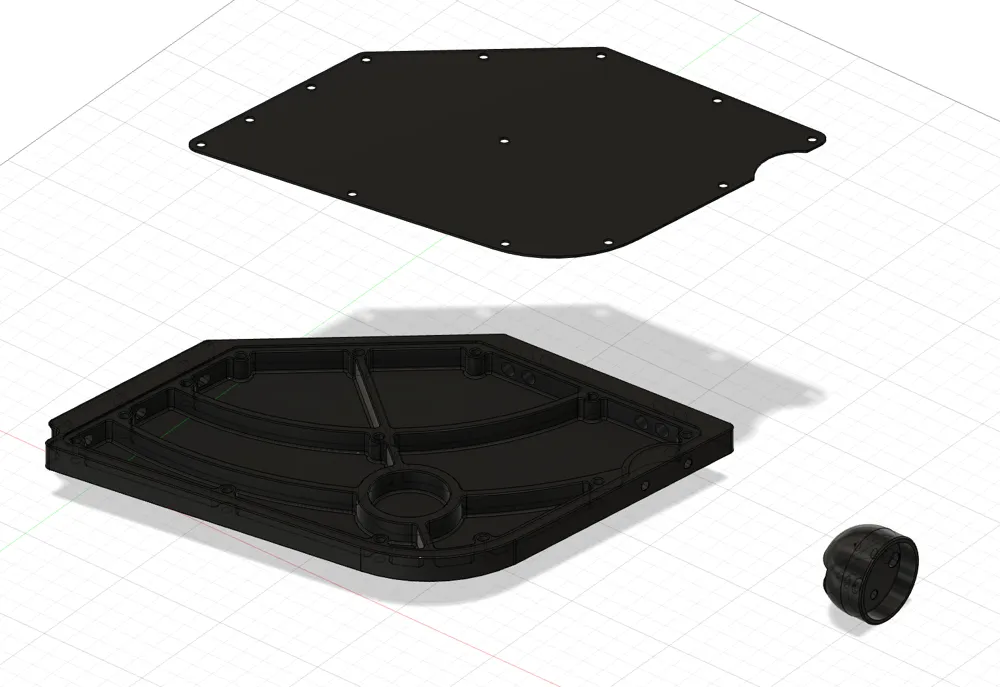

The assembly should be self explanatory 🤓
