Downlight converted to desk lamp fill light stand

Design Concept

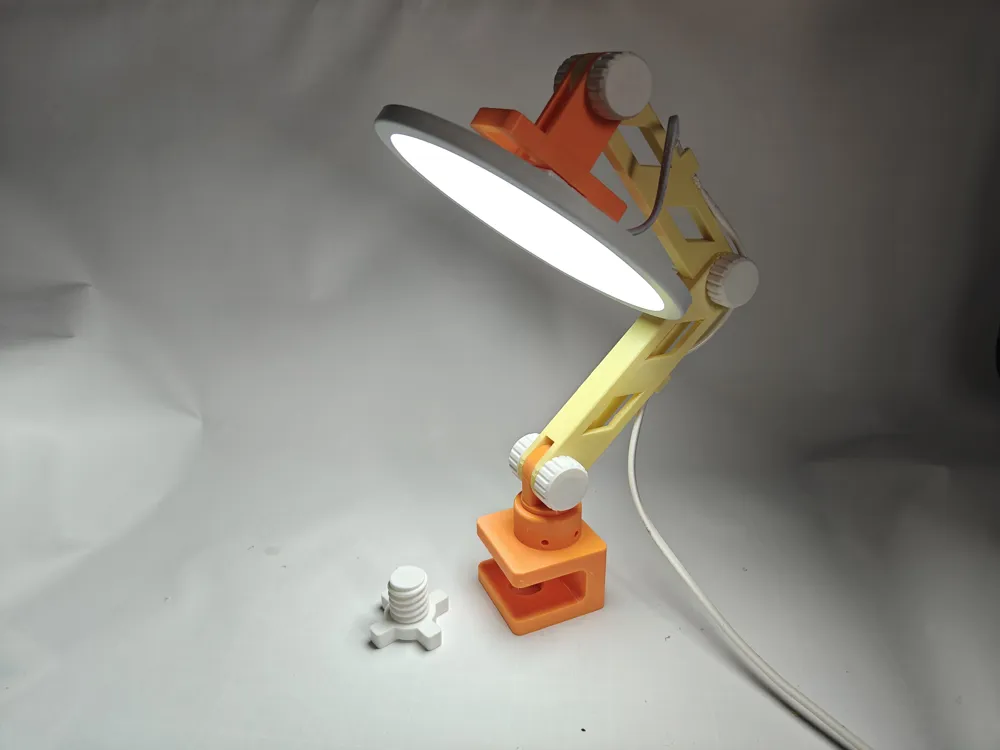

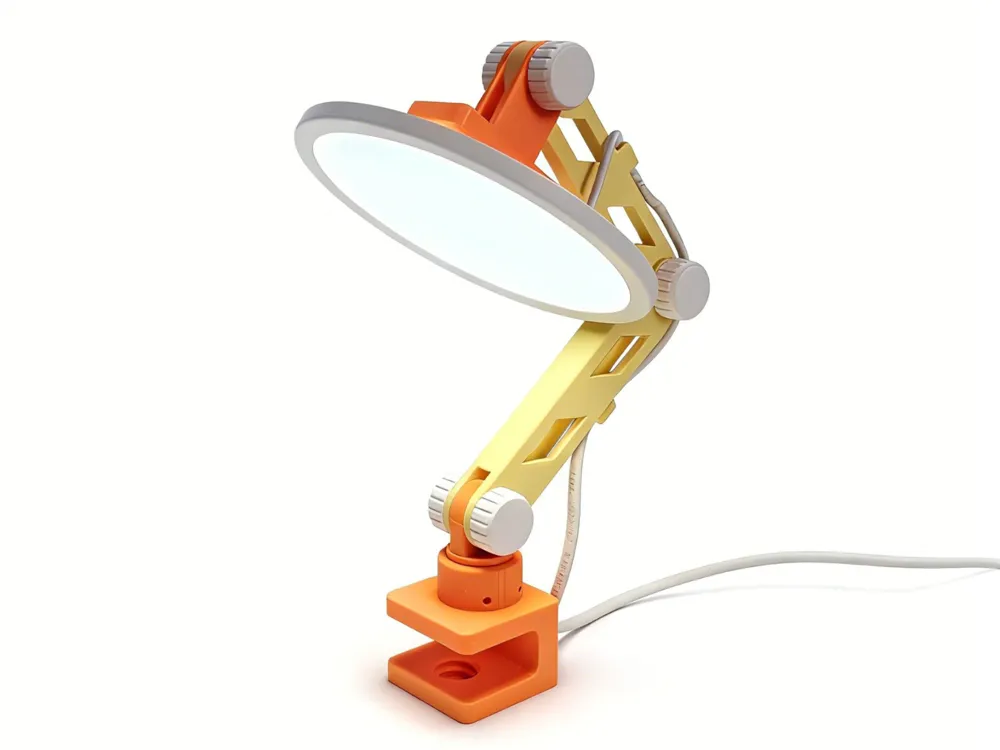

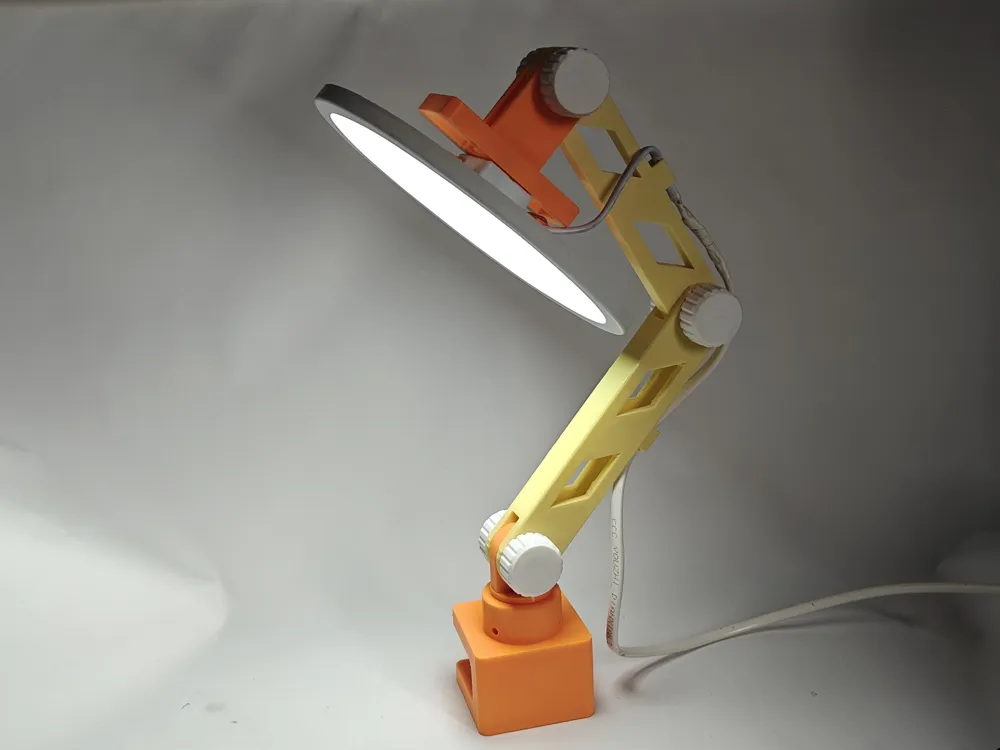

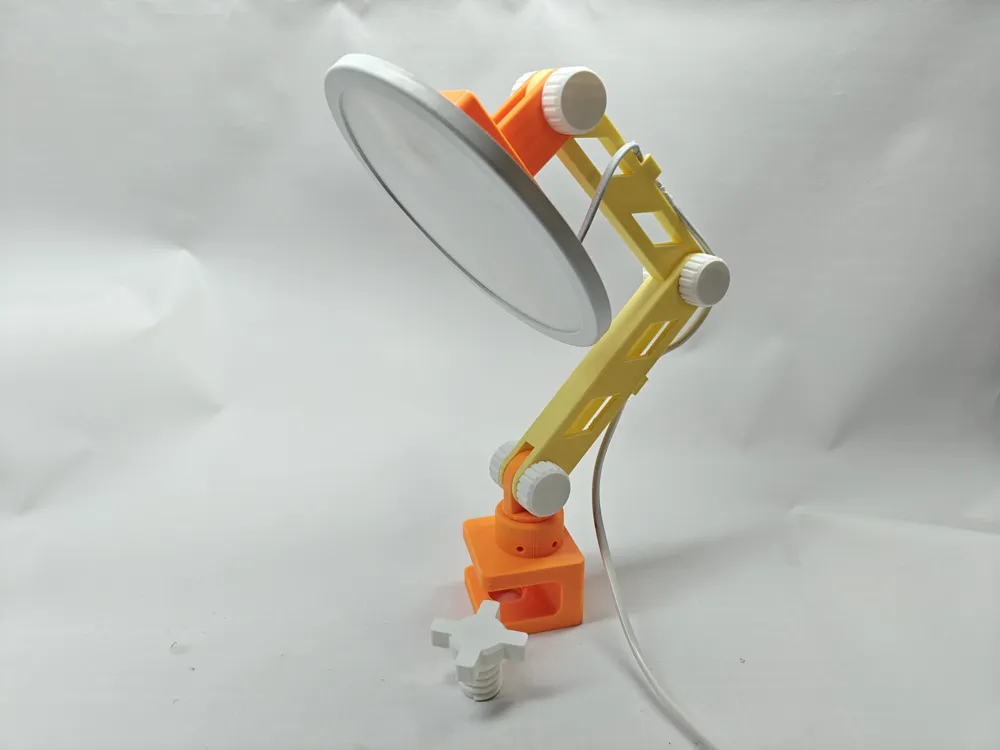

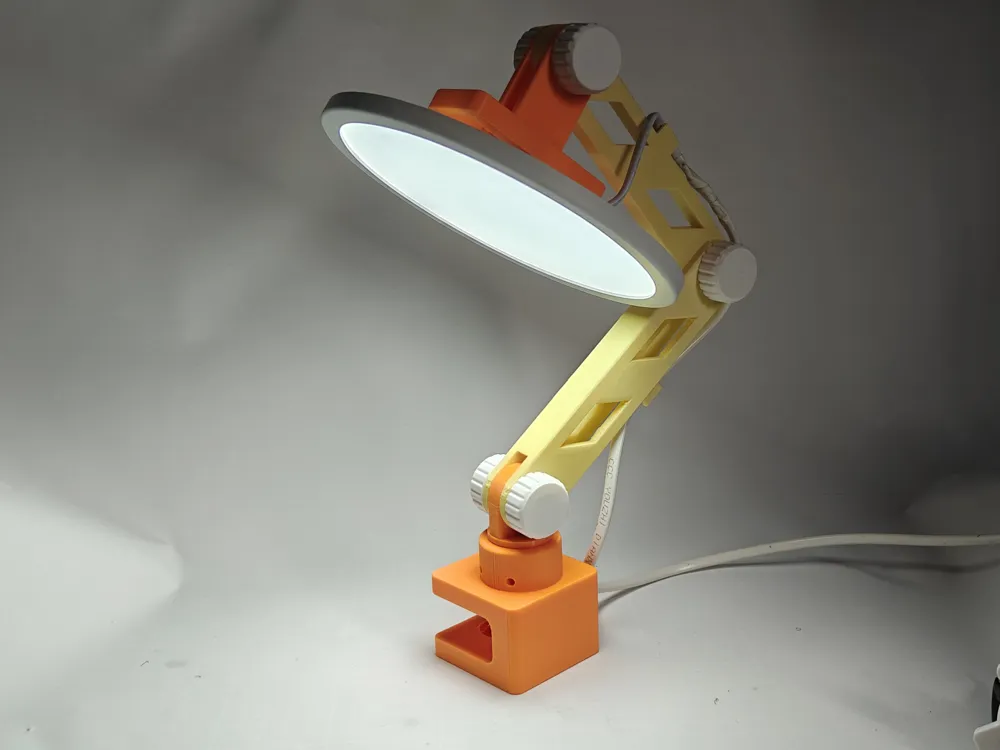

The design of this desk lamp combines simplicity with functionality, inspired by industrial aesthetics. It features a clip-on base for flexible placement, suitable for various scenarios.

Purpose

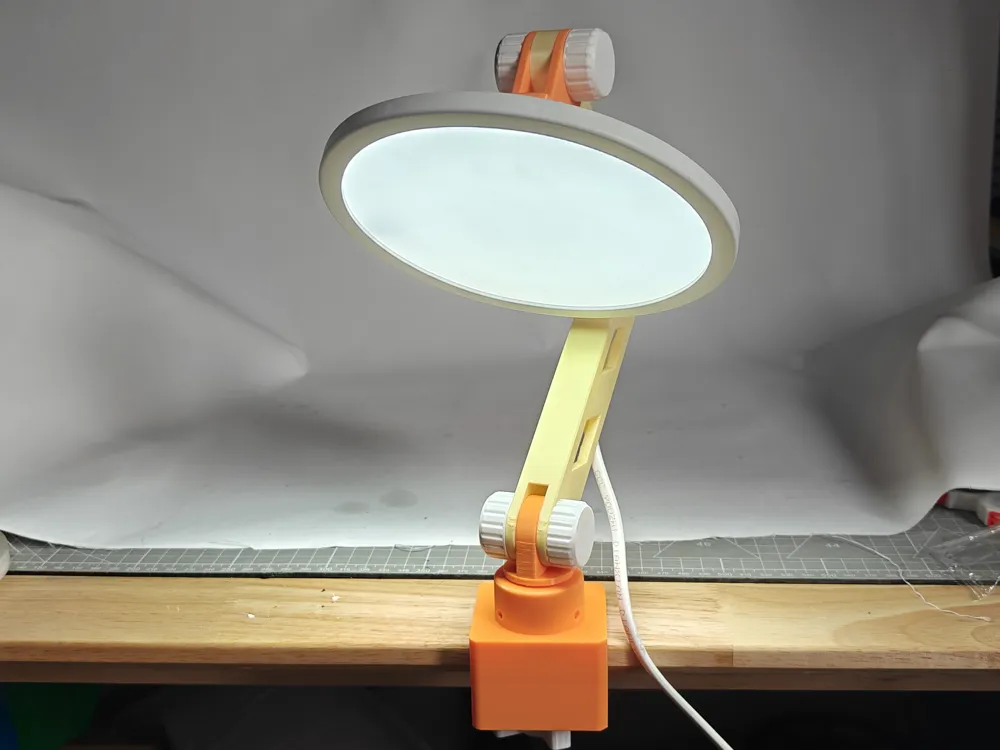

It aims to provide supplementary lighting for workspaces, enhancing clarity in task areas while creating a soft ambient glow. It can also be used as a fill light for small-scale photography.

Printing Suggestions

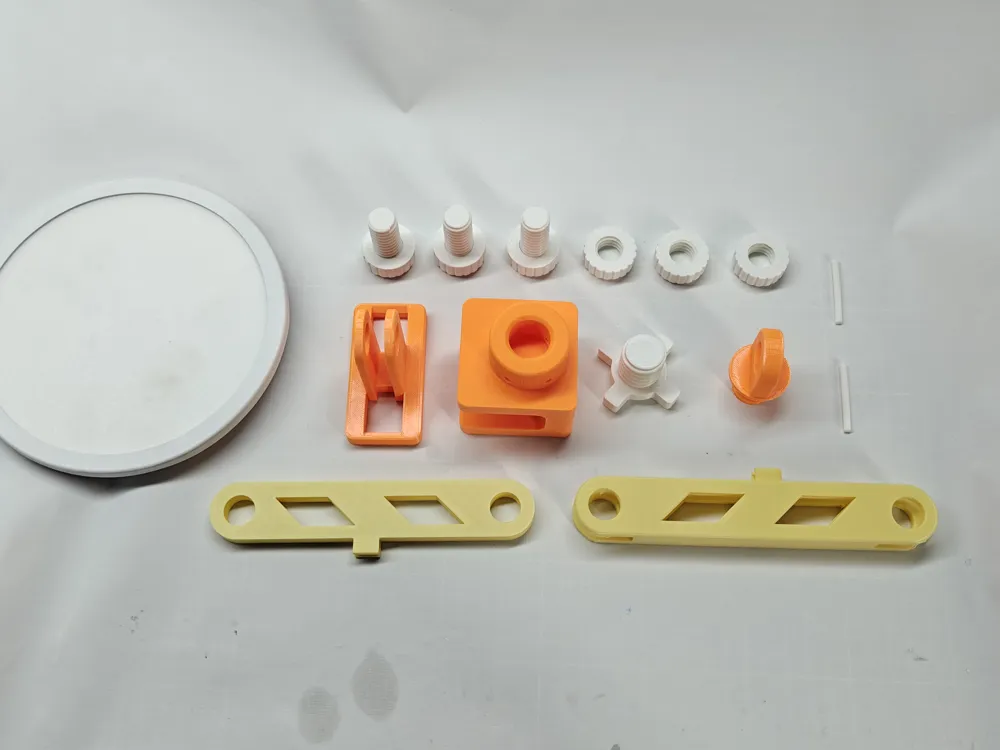

It is recommended to print in separate parts to ensure strength. The lamp arm can use a higher infill density for enhanced durability. Different colors or glow-in-the-dark filament can be chosen to add personalized customization.

Assembly Instructions

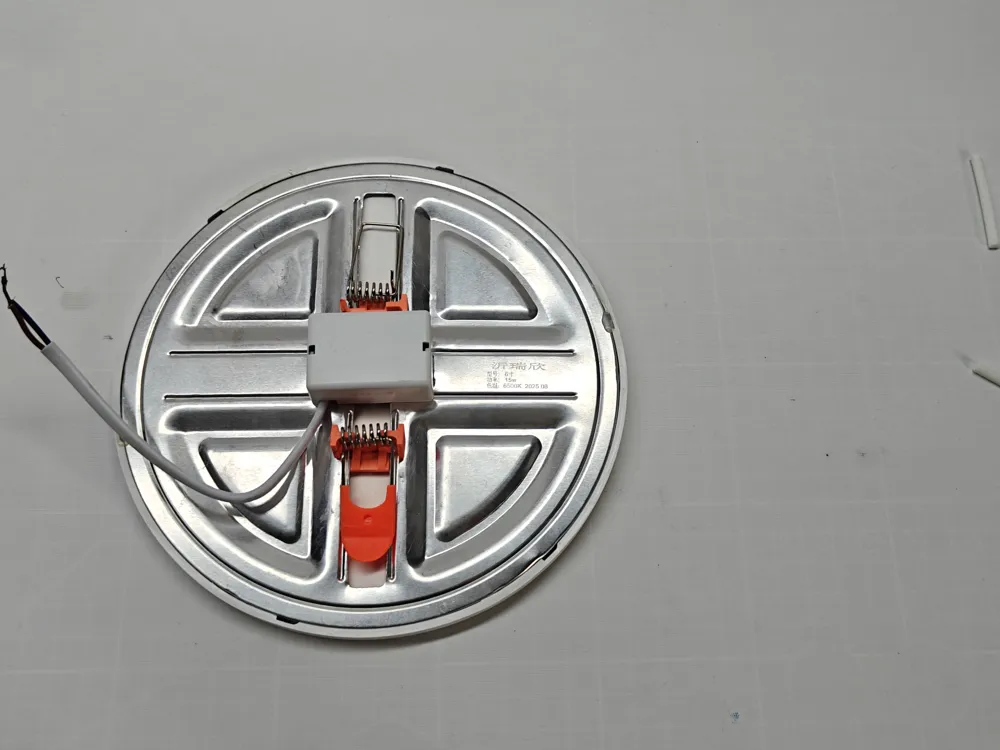

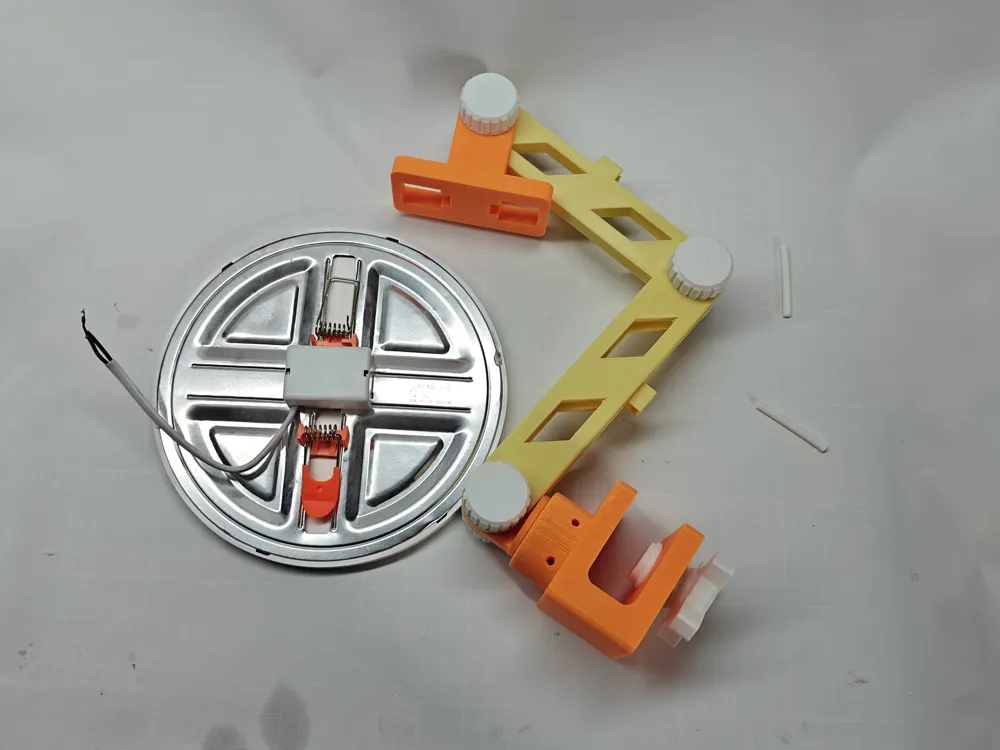

After printing, secure the lamp arm by tightening the nut. The base has two holes for fixing the swivel arm; if it's moved frequently, the pins can be omitted for easier removal and use. Prepare an additional downlight, specifically one with an adjustable aperture. Insert the downlight's clips through the mounting holes on the lamp holder to secure it. Connect the circuit according to specifications; it can be fastened to the two clips on the lamp arm. Before turning on the light, ensure the circuit is properly installed to guarantee safe use. The model also includes an alternative base design, allowing the lamp to be used as a regular desk lamp without needing the clamp.

Tips:

1 Due to differences in materials and printer types, print quality and tolerances may vary. After printing, if you find that the fit is too loose or too tight, you can scale parts of the model as needed.

2 If some connections are loose or fit too tightly, you can use some glue to secure them, or sand down the corresponding parts.

3 Due to variations in materials and printers, perfect compatibility with all models and materials cannot be guaranteed. We appreciate your understanding.
