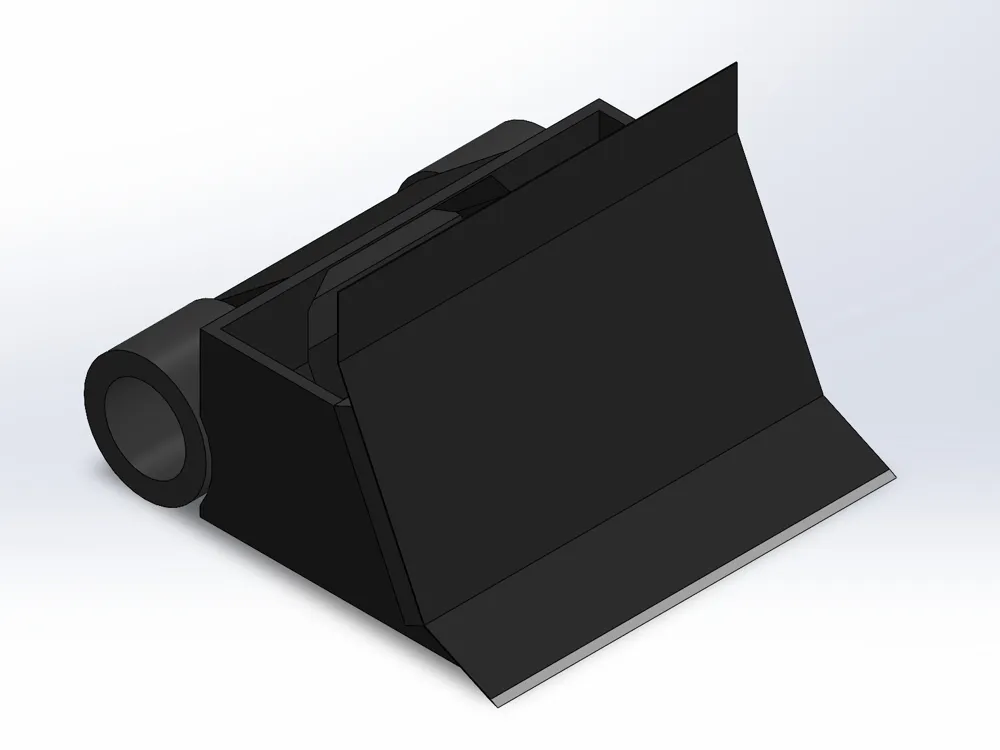

Professional Mini Sumo Robot Design
The design is a simplified version of my personal robots but engineered so that anyone can build a competitive robot

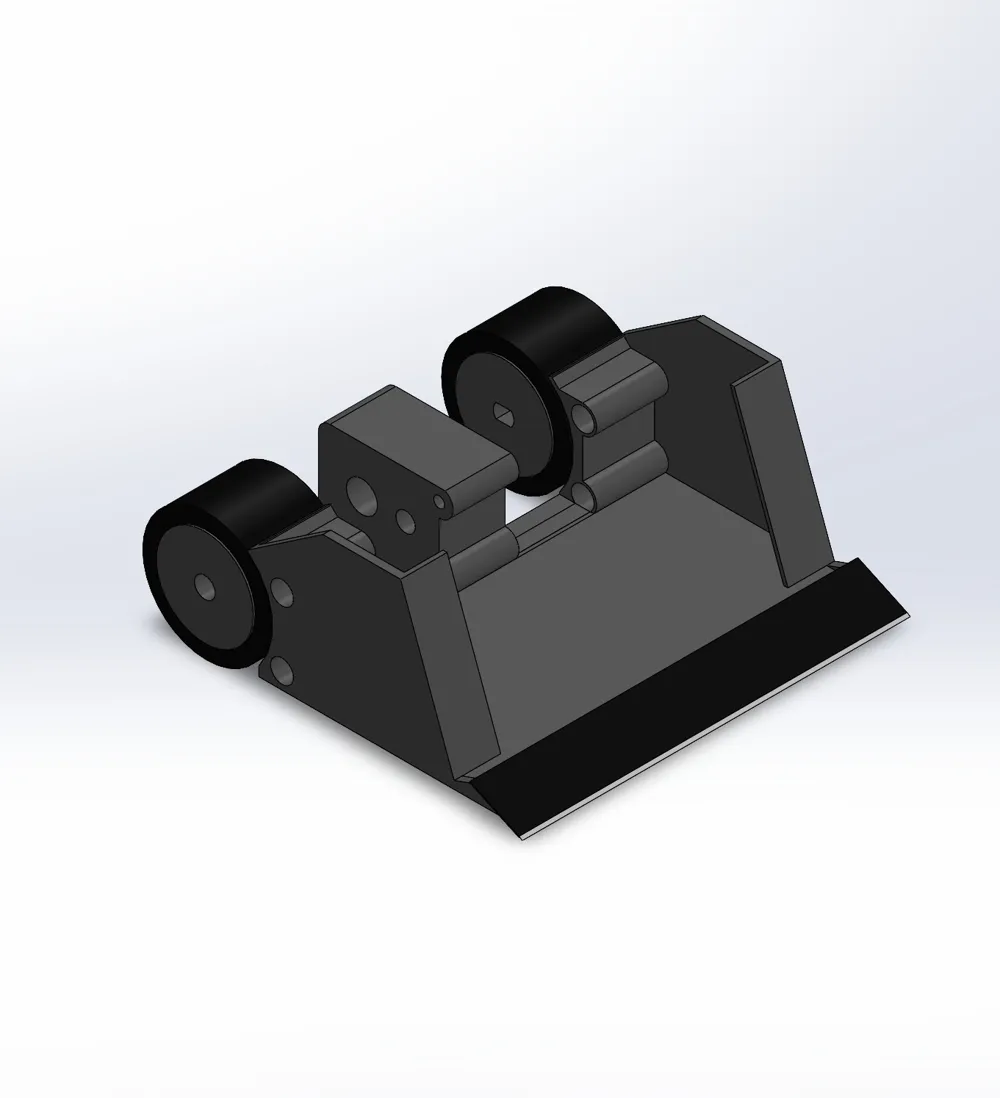

2 Motors are needed, they can be FINGERTECH, JSumo, Pololu or generic yellow geared motors as 3 different chassis models are included

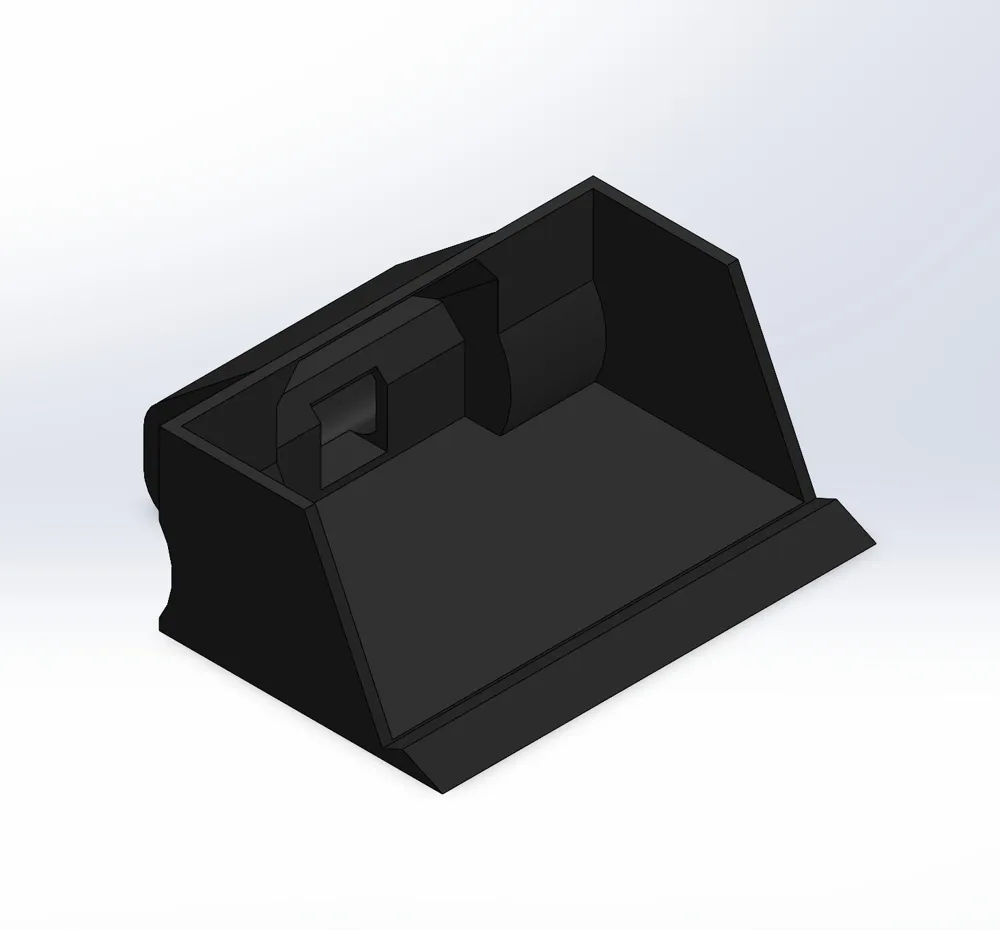

All three chassis versions have space for a 5x45x98mm metal plate at the front of the robot to add weight to the front
The JSumo and Pololu motor chassis versions need 4 M3x5mm set screws and the yellow geared motor version requires 4 M3x24mm screws
If you have any questions or suggestions for improvements, send me a message on my Instagram https://www.instagram.com/zamudei?igsh=a3BrbWMzYXZmOWY1
