Print Profile(1)
Bill of Materials
- Schraube 3 x 30 x 24:
- Holzbrett 16mm 18cmx18cm x 4:
Description

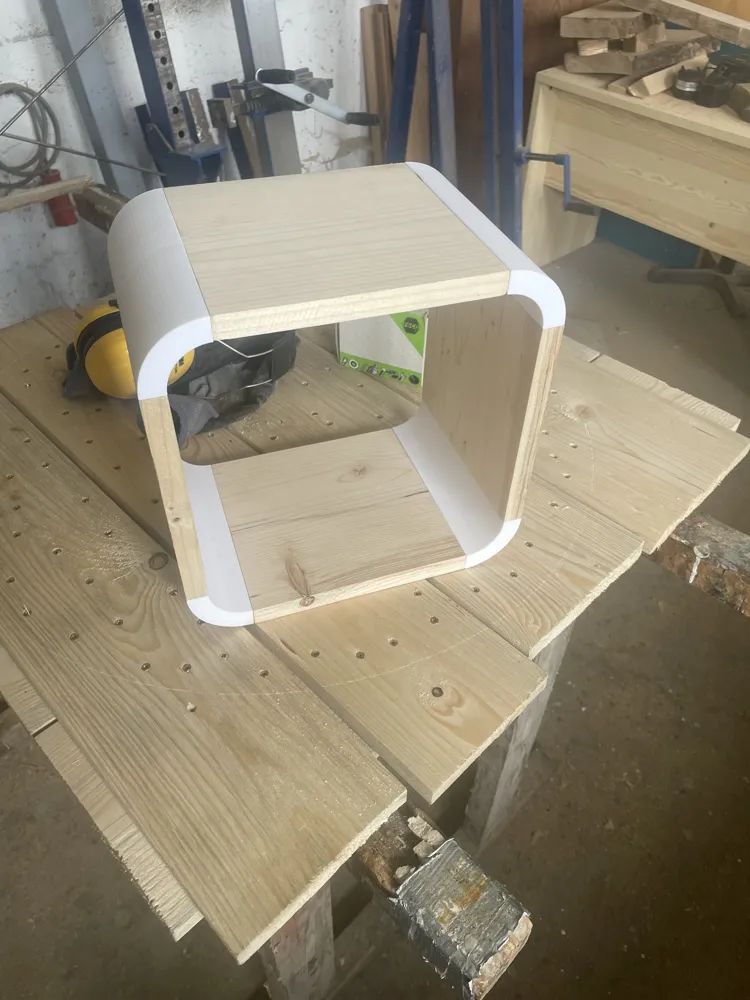

This is the new and improved version of the wooden shelf! Further parts and expansion options are already online on my profile (such as T or X connectors and a backplate) or will be coming soon (longer versions, drawers, or doors) feel free to write to me with your own requests!
Required:
- 16mm thick wooden board

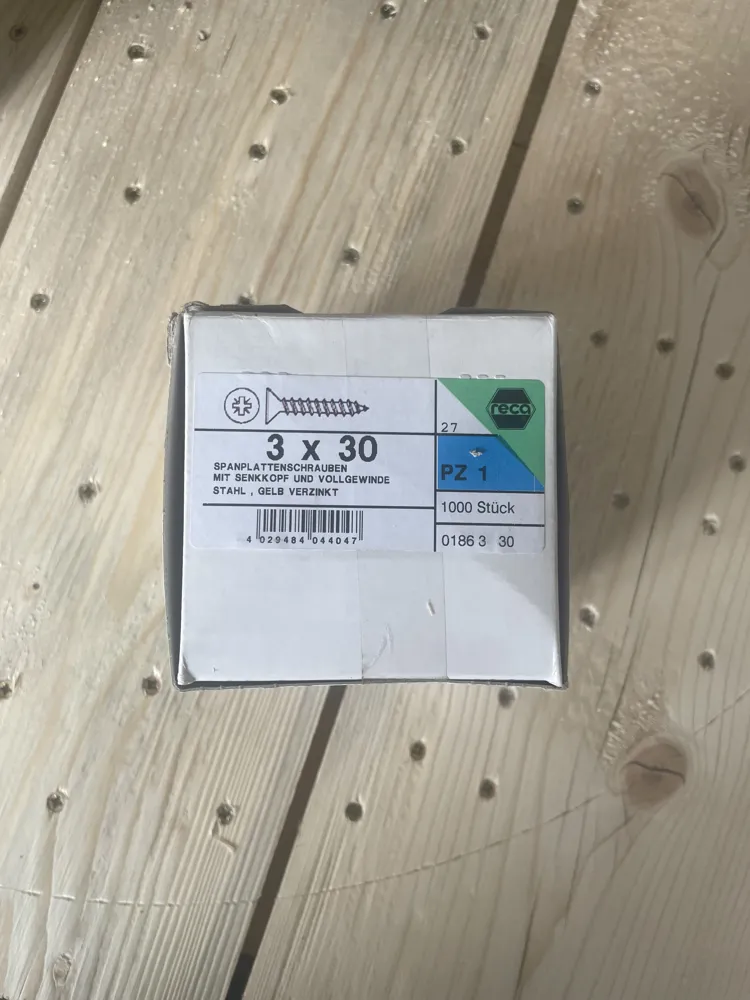

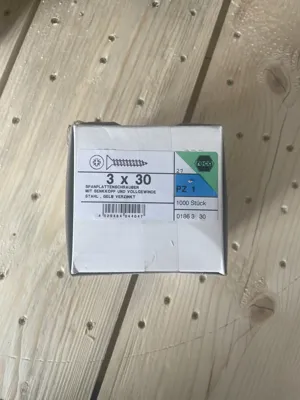

- 3x30 wood screws
The wooden board must be cut to 18 cm wide the length is customizable here it is also 18 cm.
(The width can also be different but then the file must be modified)

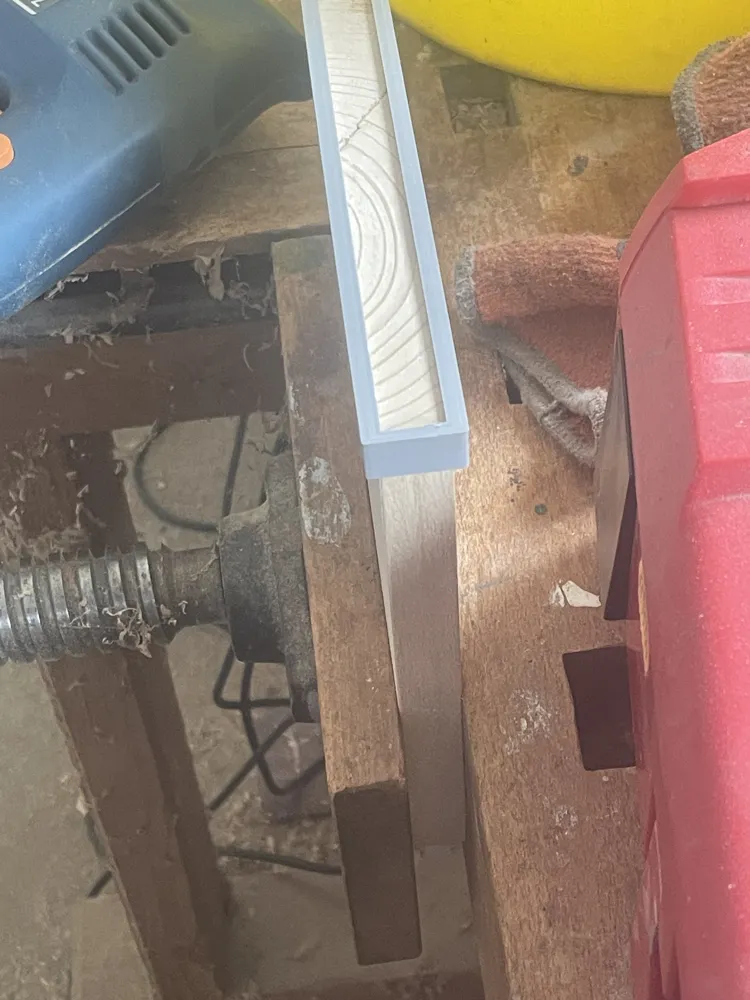

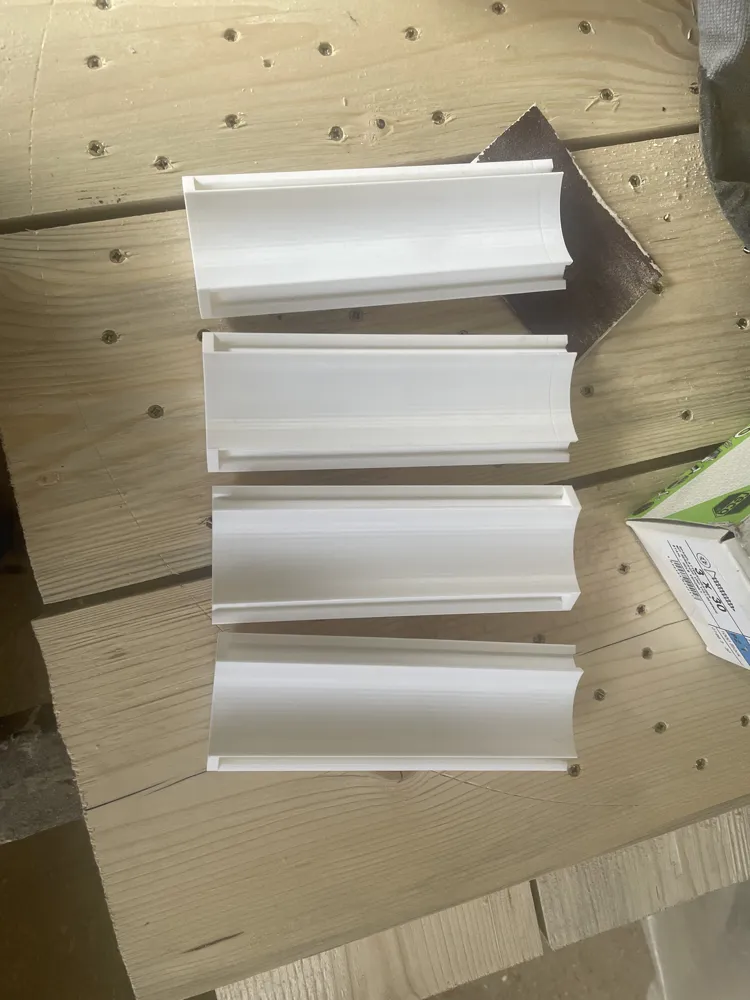

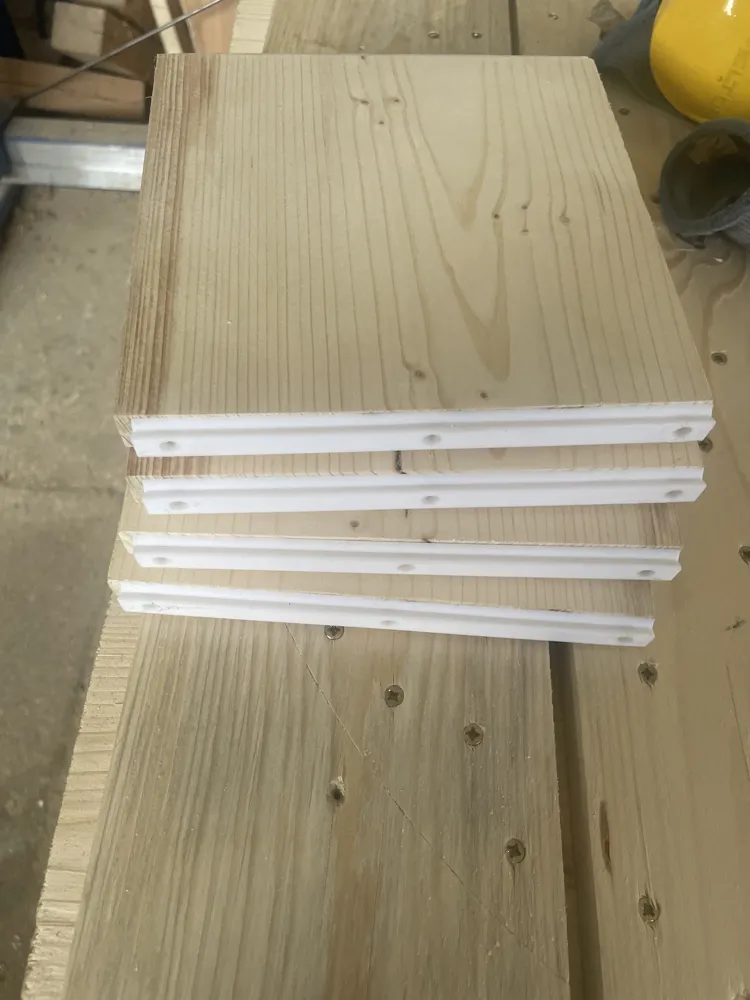

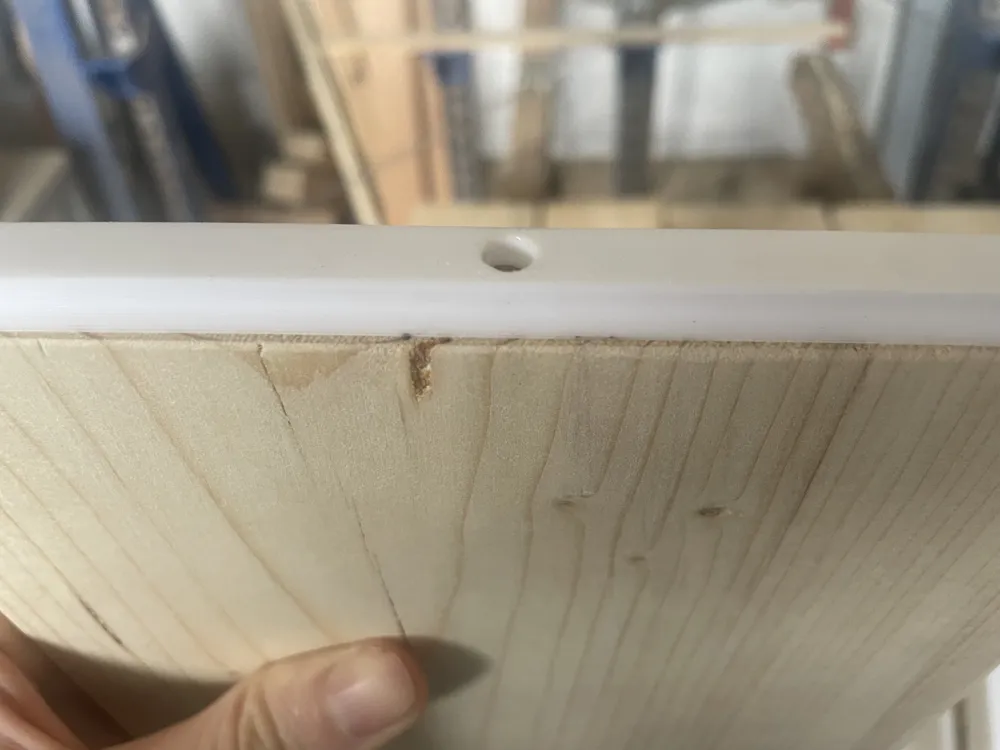

After that you can screw the guides onto the wooden board preferably on the end grain (visually probably the nicest but also otherwise possible). For this I recommend pre-drilling first so that assembly runs as easily as possible with the following tips:
- Secure the wood with a vice
- High drill speed
- Drill as perpendicularly as possible
- Attach a screw clamp in the center of the template

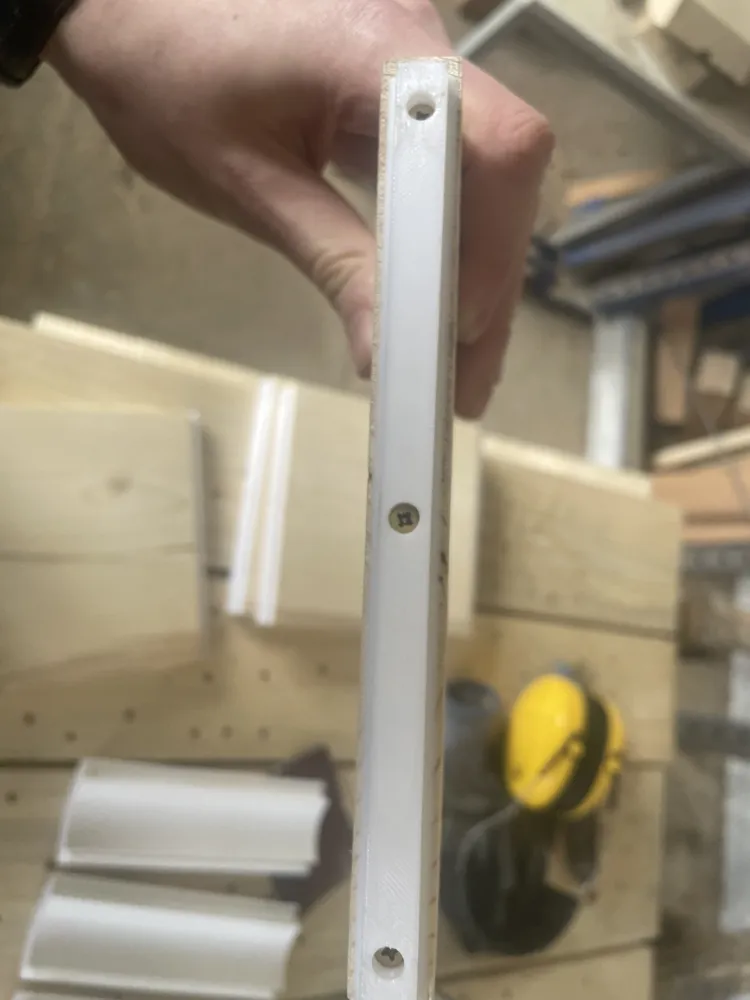

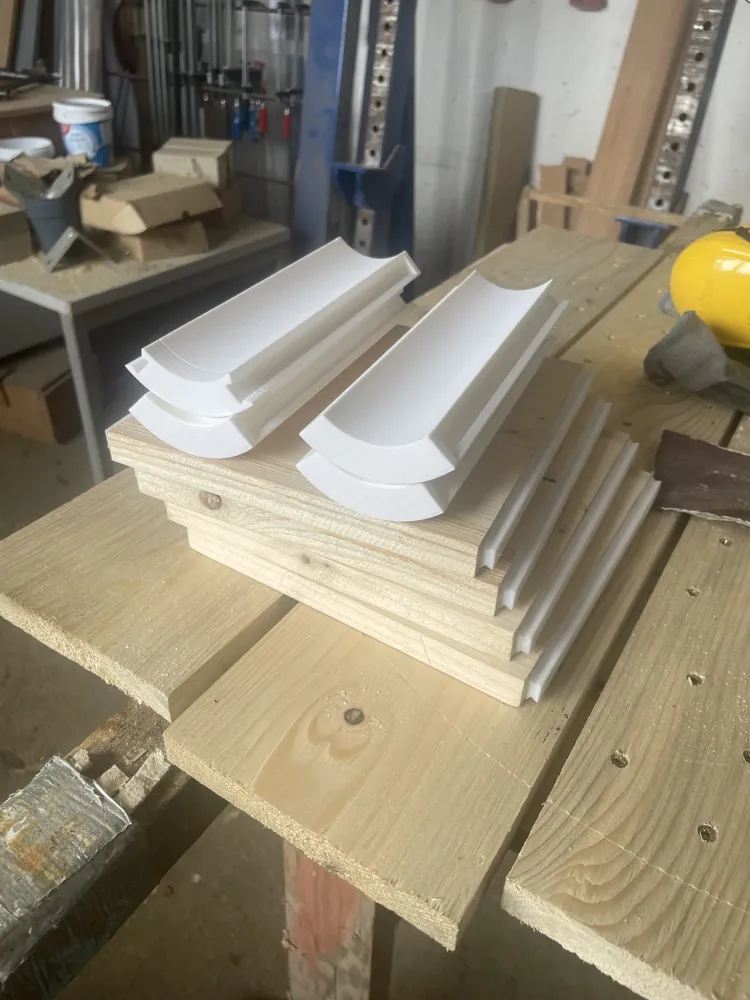

After that the guides can be screwed down.

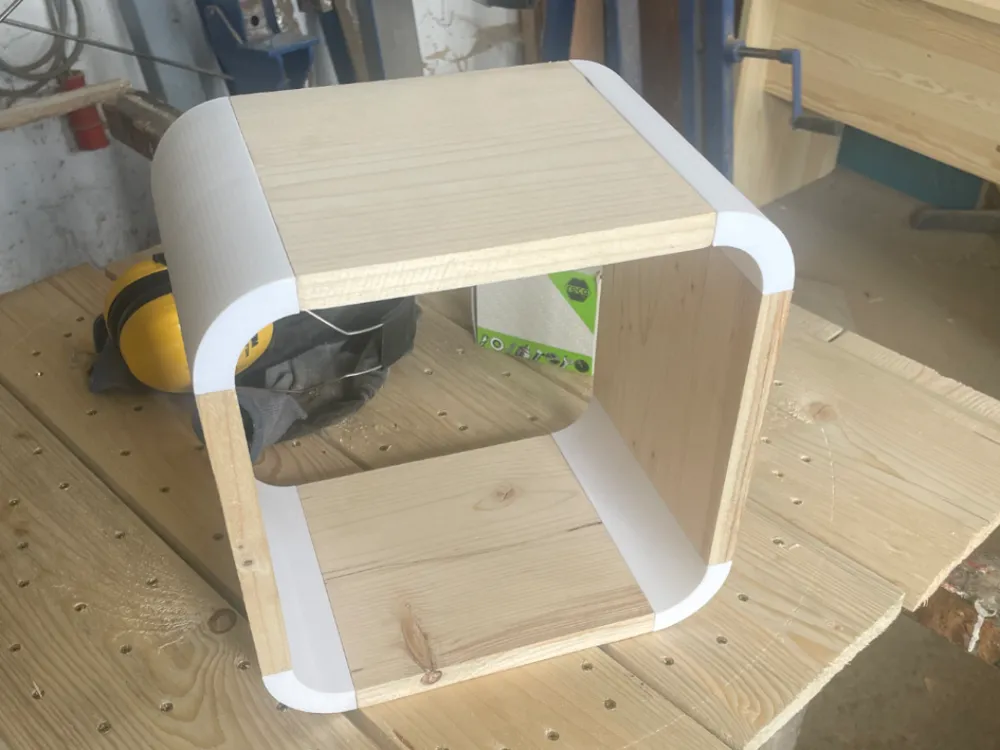

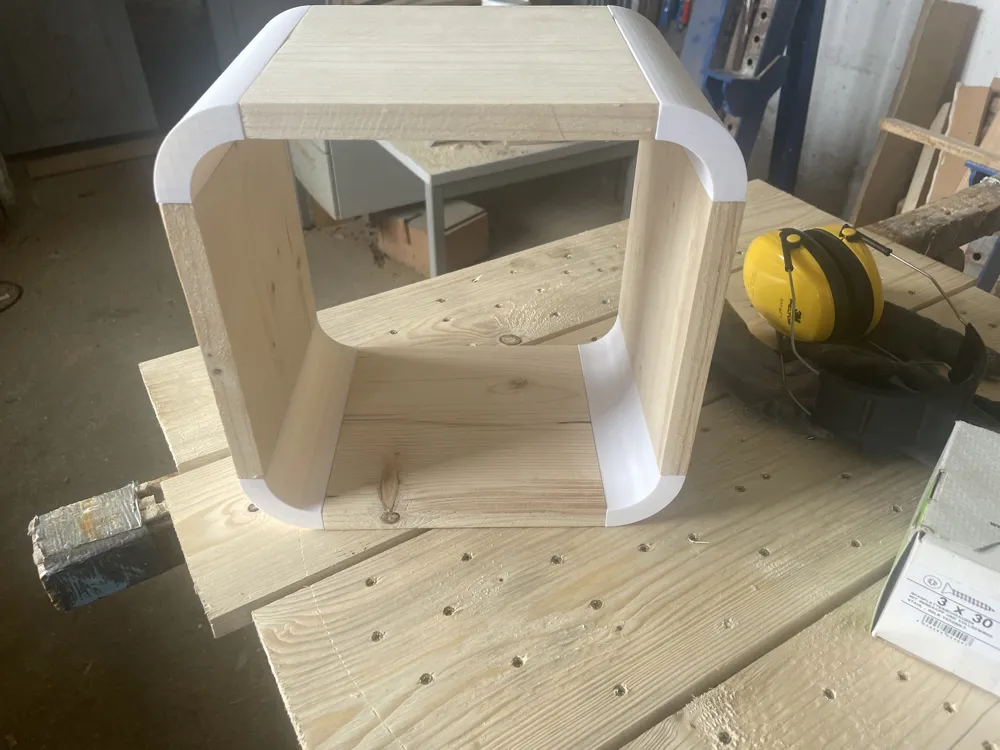

Assemble everything and you're done!
Have fun and please give feedback!
