PCB holder, with flat base
Print Profile(1)
Description
🛠️ Universal PCB Holder (Adhesive and Tool-Free)
Optimize your workspace and secure your electronic projects in seconds! This holder is specifically designed for those seeking a fast, clean, and professional solution for mounting PCB boards without the need to drill into surfaces.
Key Features:
Ultra-Fast Mounting: Designed to use 20mm 3M tape on its base, allowing for a firm attachment to almost any smooth surface.
Tool-Free: Forget the drill. Ideal for plastic enclosures, metal cabinets, or prototyping panels.

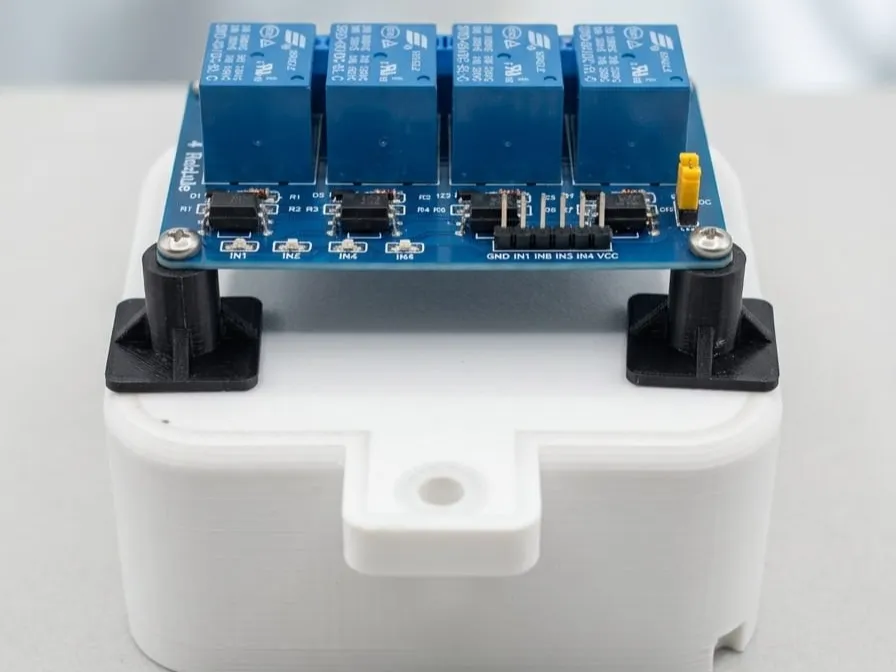

Compact and Versatile Design: Perfect for lightweight electronic boards, relay modules, microcontrollers, and more.

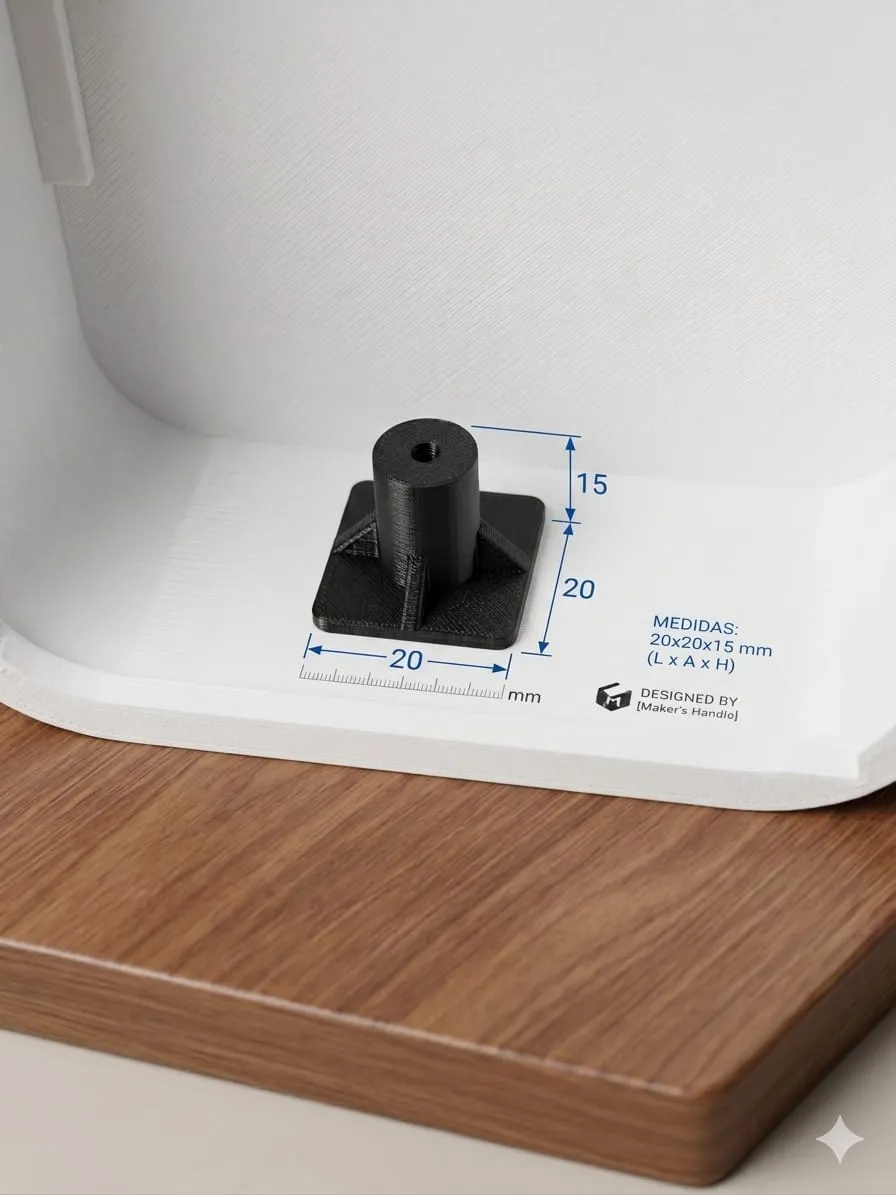

Holder Dimensions: Base of 20 *20 mm with a height of 15 mm.
Instructions for Use:
Print the necessary number of holders for your board.
Affix a piece of double-sided tape (3M VHB recommended) to the flat base.
Attach the holder to the desired surface.
Screw your PCB to the holder (the top hole is designed for a precise fit) use a self-tapping screw for better grip.
