3 Way Connector 1" (~25mm) Corrugated Conduit Tee
Print Profile(1)
Description

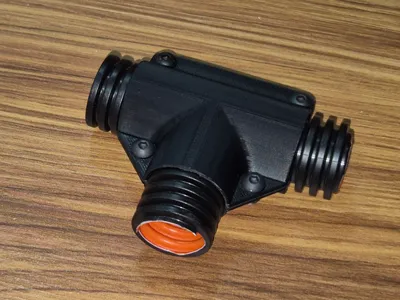

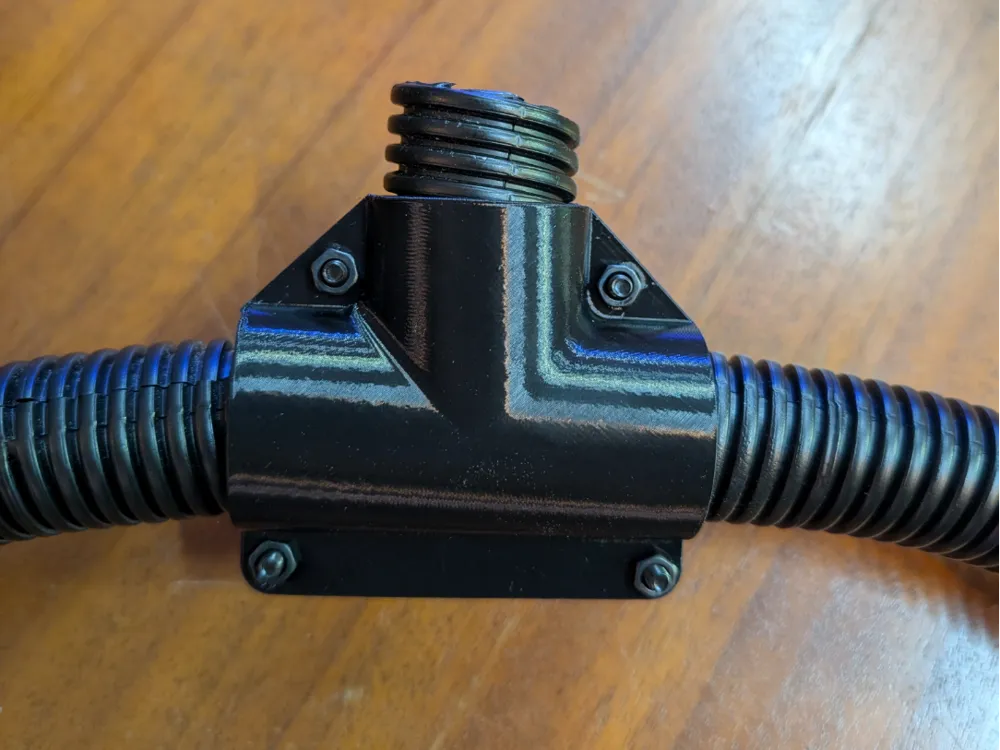

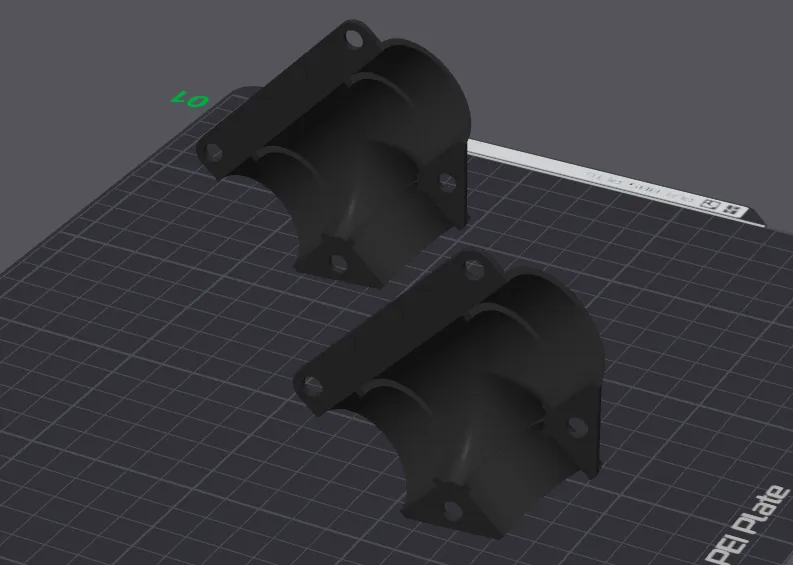

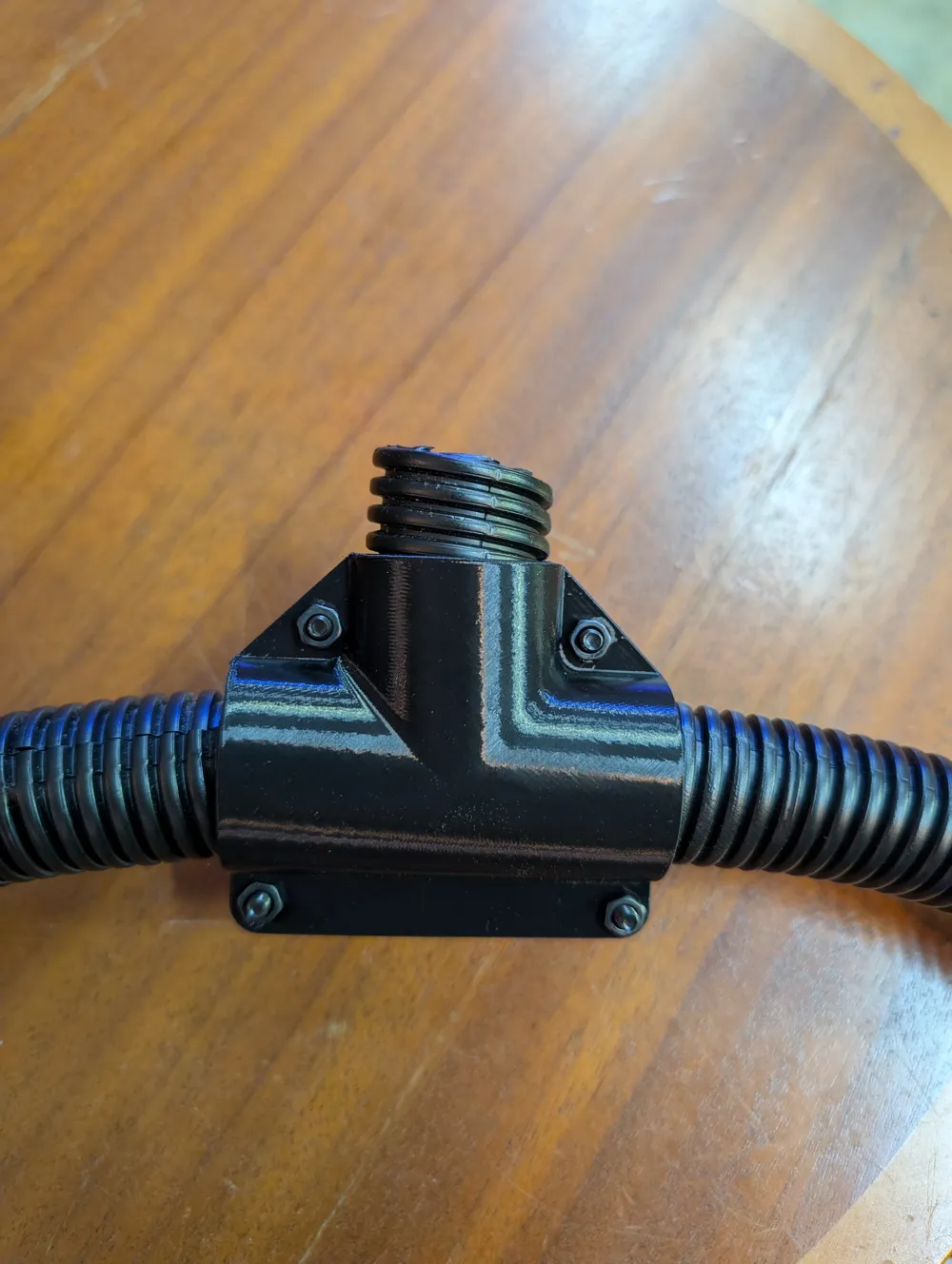

This is a 1 inch (25mm) remix of the ¾ inch (19mm) corrugated conduit 3-way tee by CarlitosCUU. This profile is for PETG and I rotated the model up on edge to optimize support usage and removal. I'm using it for 1" split corrugated polyethylene tubing (convoluted wire loom) from the hardware store. The original model was designed for ASA but I simply scaled it up (131.3%), so it should still work with ASA and other materials.
M4 flat head screws still work with this, but you may consider adding washers or using wider head screws.
Required hardware:
-4 M4 X 10 screws
-4 M4 nuts
-Silicone based sealant (Optional if you're using solid tubing and need a watertight seal)
