90° Hydraulic Elbow 3/4" M/F + F/F GAS BSP

🔧 Description

3D printable 90° hydraulic elbow with 3/4" GAS/BSP threading, designed to offer good compatibility with standard commercial fittings.

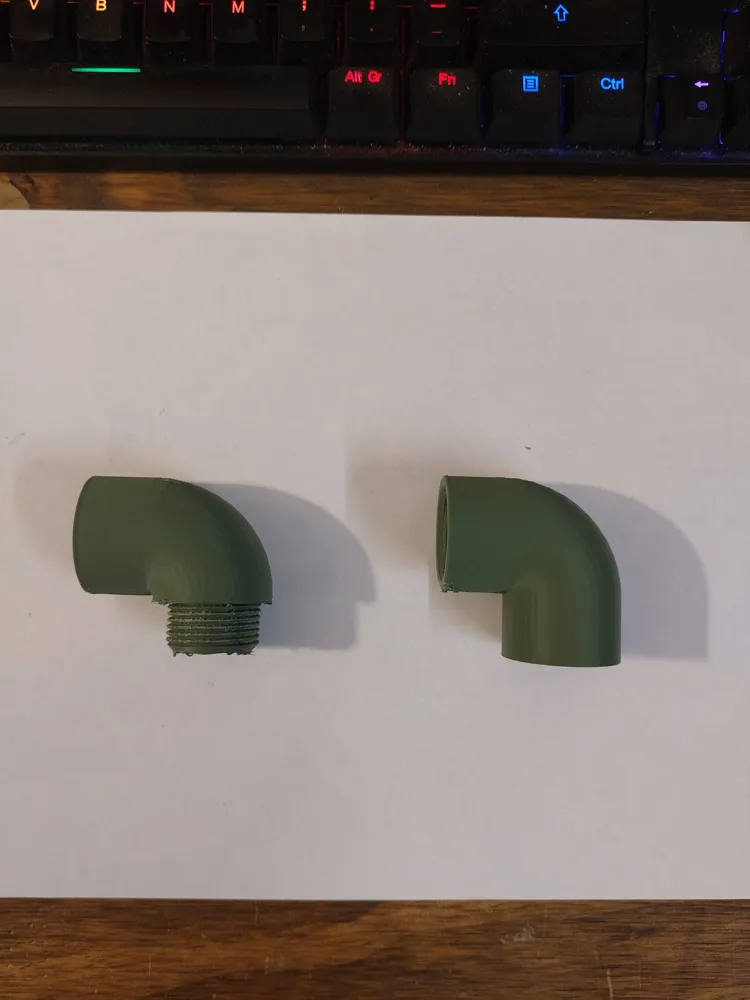

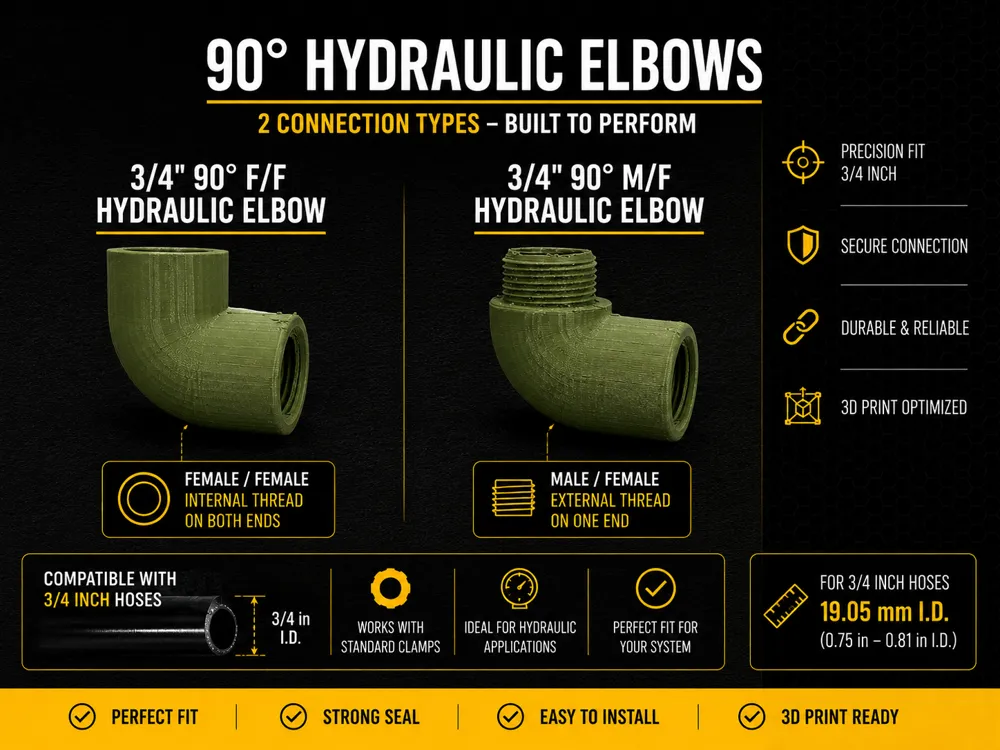

The project includes dual profiles:

• male → female (M/F)
• female → female (F/F)

So you can quickly choose the most suitable configuration for your use.

Ideal for:

• irrigation systems
• temporary connections
• tests and prototypes
• workshop and DIY
• thread compatibility verification

✔ Threads compatible with GAS/BSP hydraulic standard
✔ Dual configuration available (M/F + F/F)
✔ Geometry optimized for FDM printing
✔ Compact and robust structure
✔ Good compatibility with commercial fittings

⚠️ Important note

The double male (M/M) version was not realized because, after various attempts, it proved impossible to print correctly without internal supports, which would compromise the threads, making them unusable.

The male-female (M/F) version requires supports during printing, but:

• they do not interfere with the threads
• they are easily removable
• they do not compromise the functionality of the part

⚠️ Warning: Not suitable for high pressure, hot water, or critical systems.
To improve sealing, the use of PTFE tape (Teflon) is recommended.

📐 TECHNICAL SPECIFICATIONS

• Type: 90° hydraulic elbow
• Angle: 90°
• Thread: GAS / BSP
• Size: 3/4"
• Configurations: M/F + F/F
• Recommended technology: FDM printing
• Supports: only necessary for M/F version
• Recommended materials: PLA / PETG / ASA / ABS

🧾 Note

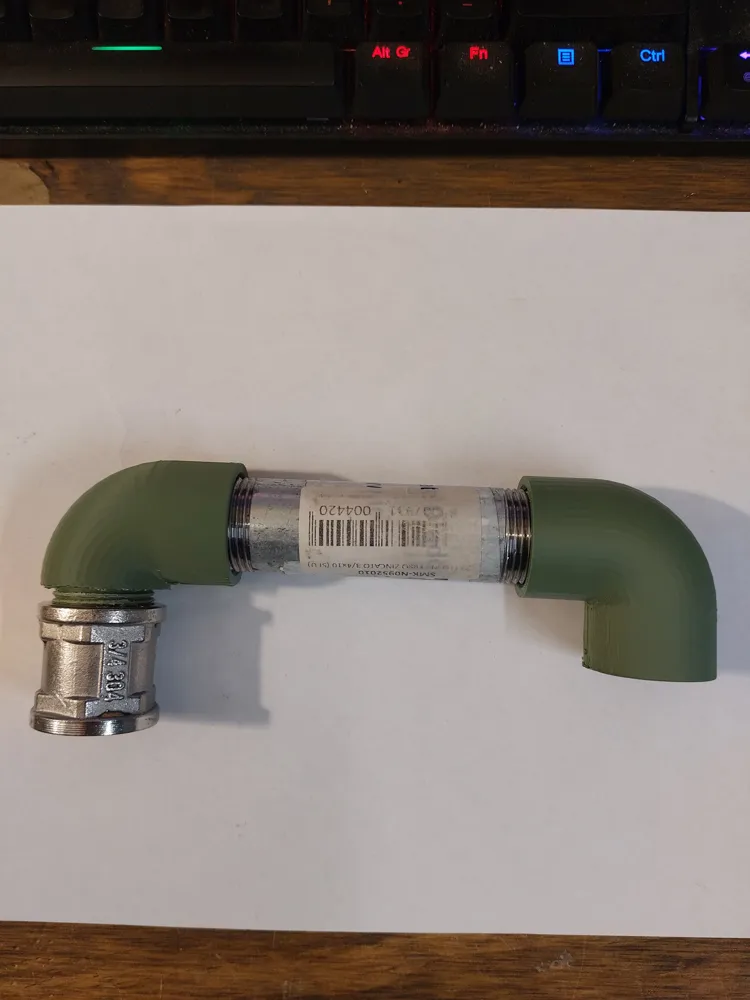

As with other models in my collection, this fitting has also been tested with commercial metal components and is designed to be practical, printable, and useful in technical, hobby, and workshop applications.
