Bessey F clamp (17F31xx) storage rack
Print Profile(3)
Description
Boost Me (for free)
Please like and boost it supports the creation of more models

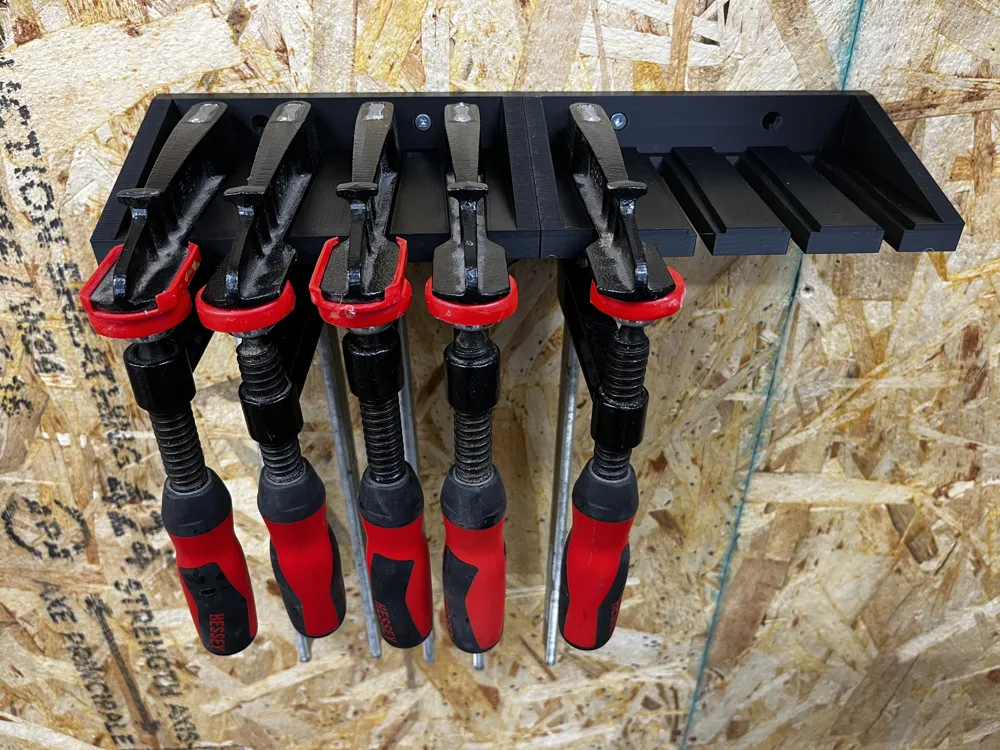

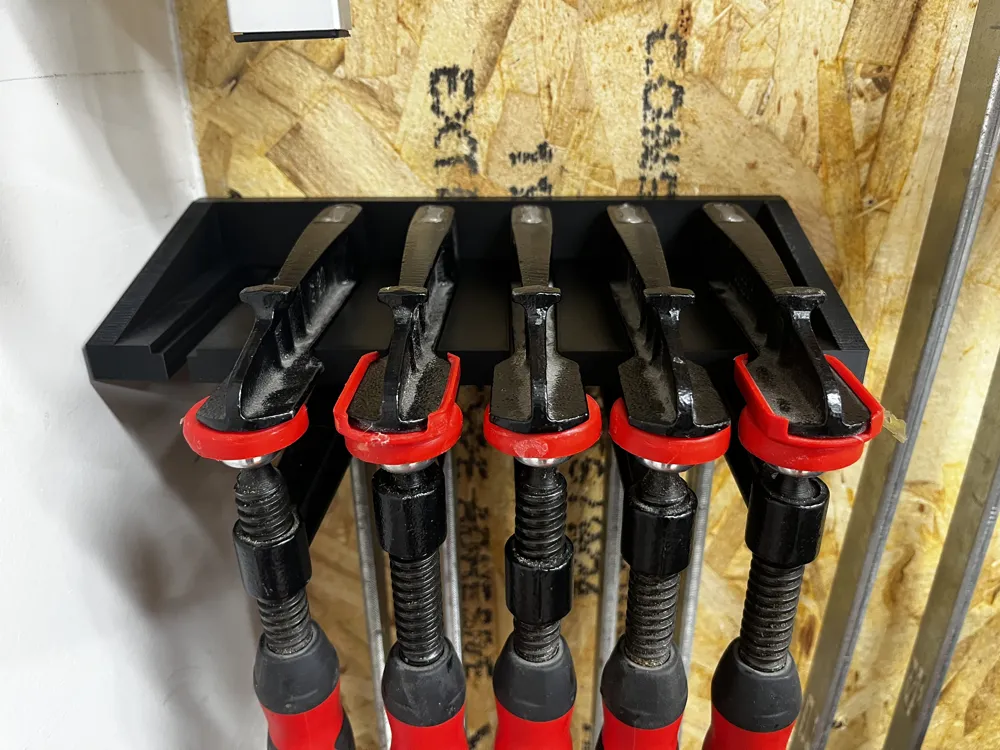

I got tired of my Bessey clamps constantly falling off the wall with generic clamp racks, so I measured the taper on my Bessey F‑style clamp (17F31xx) and designed a modular rack system around it.

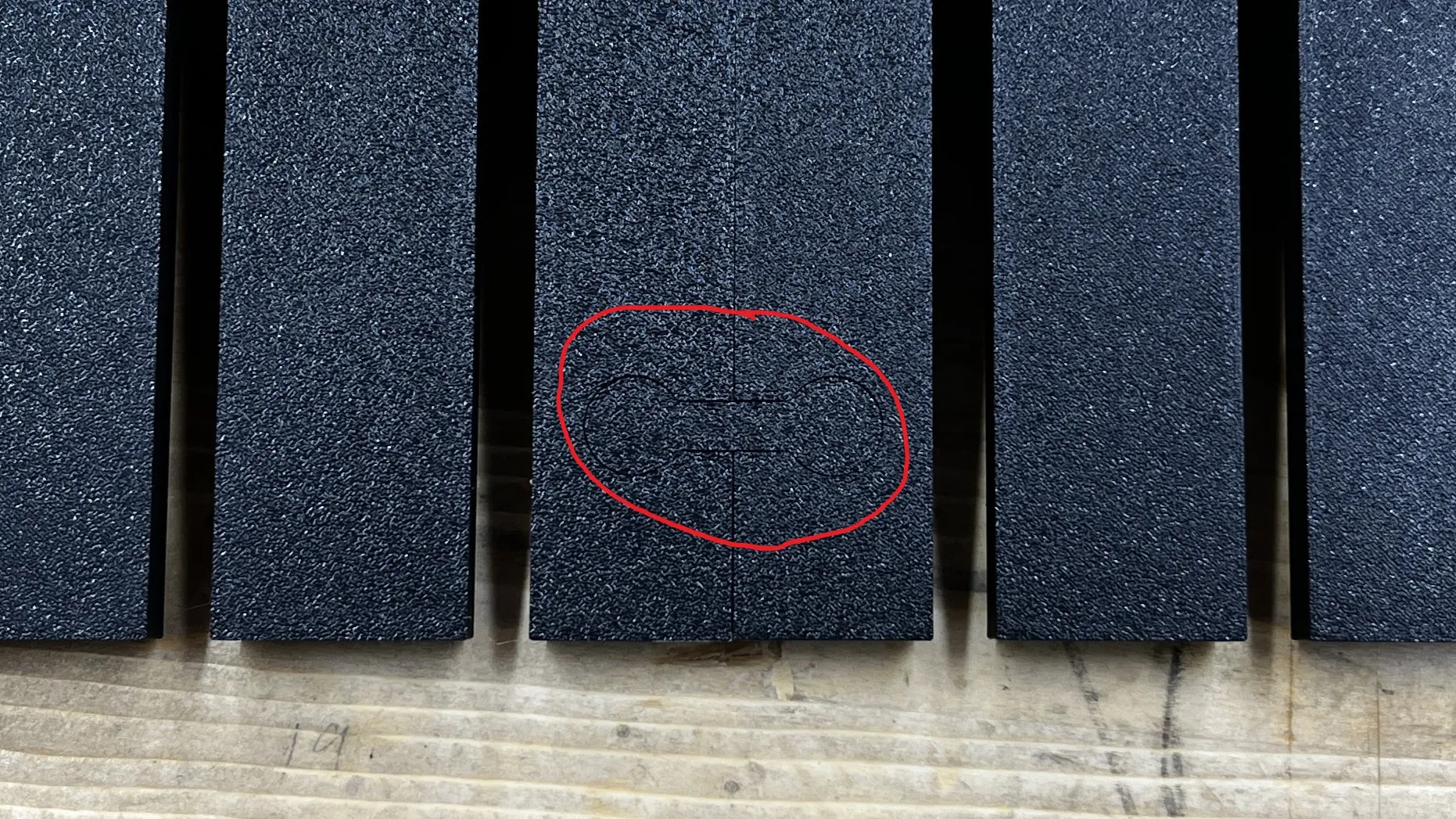

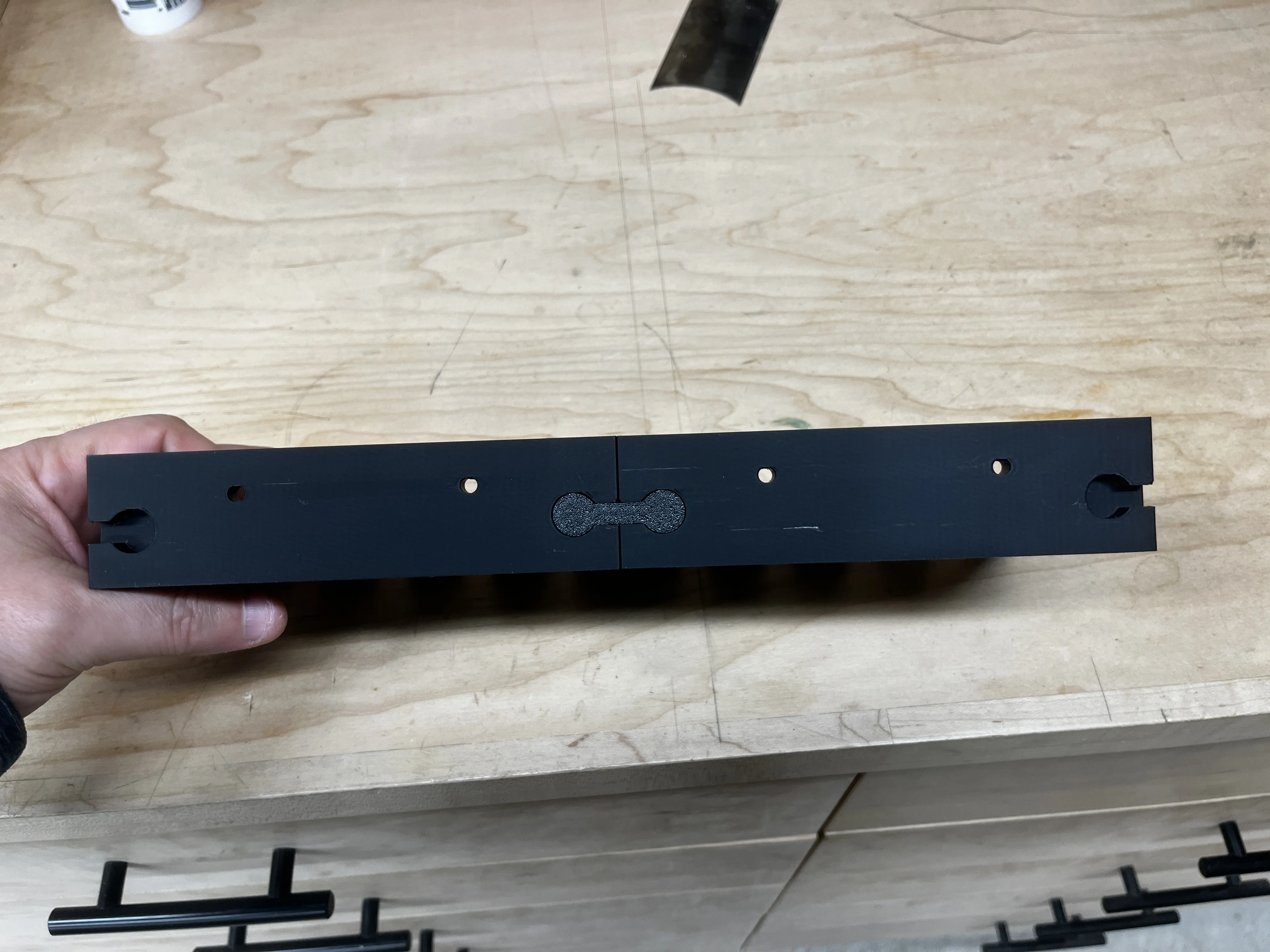

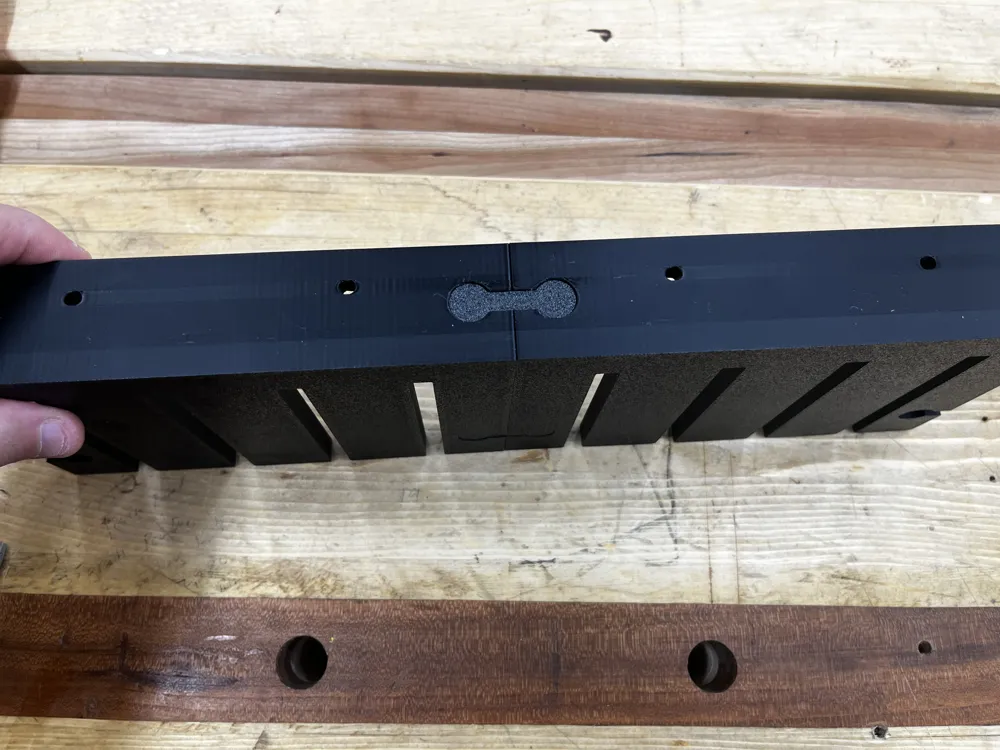

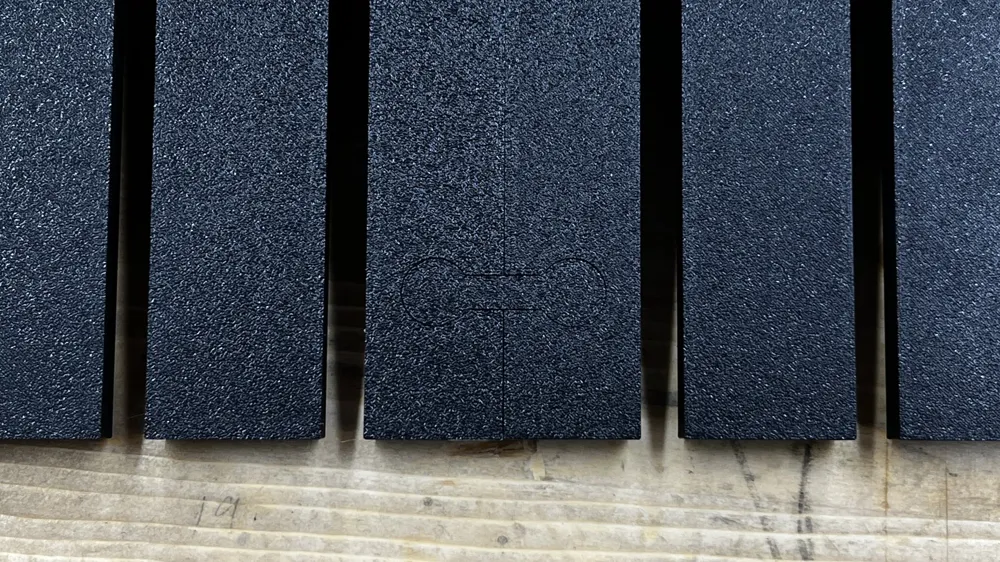

I created two versions one with four slots and one with six. Both models use a keyed connection system of two keys on each side, allowing multiple prints to lock together and form a seamless, expandable rack.
You can mount to the wall using two #8 screws per section
