TRIFECTA modular LED panels
Print Profile(3)
Description

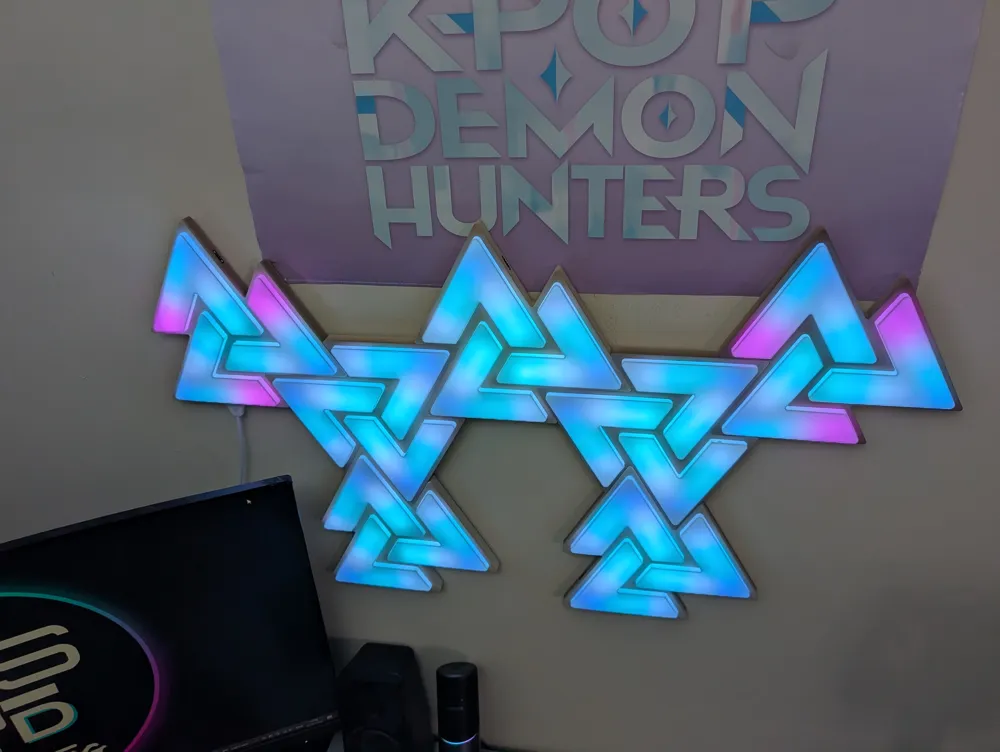

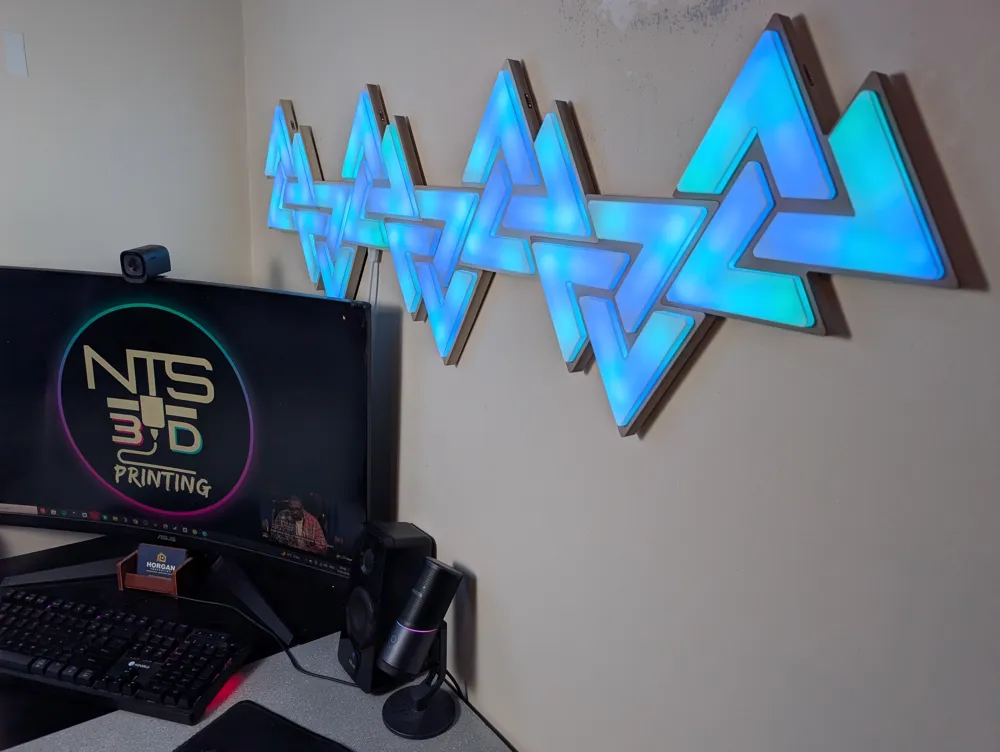

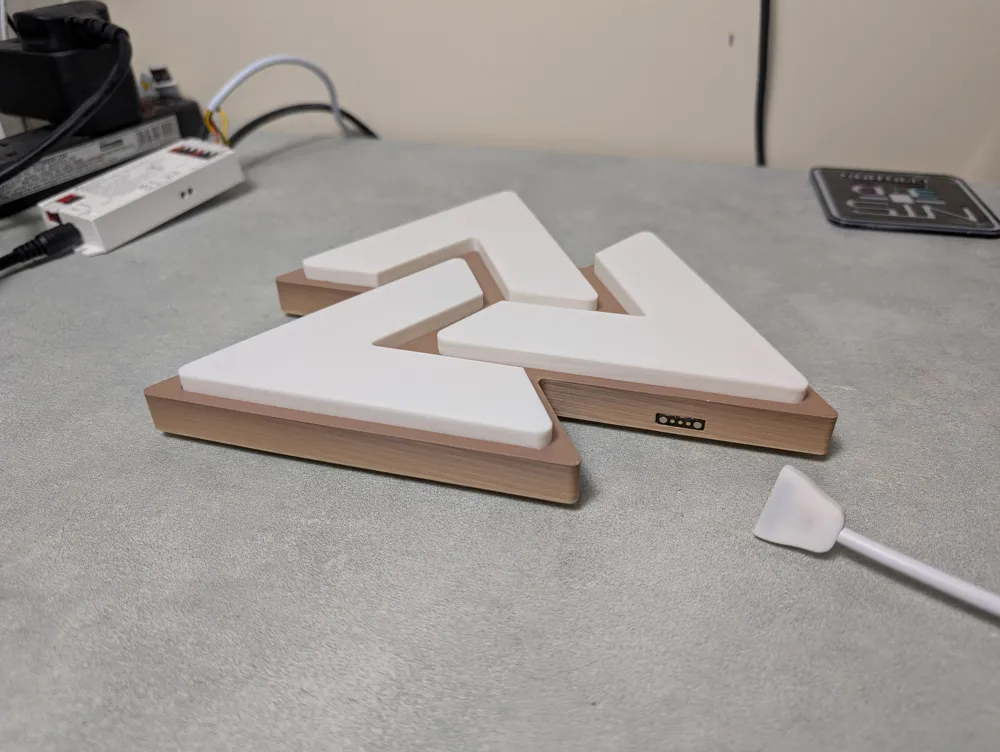

My second attempt at modular 3D printed LED panels.

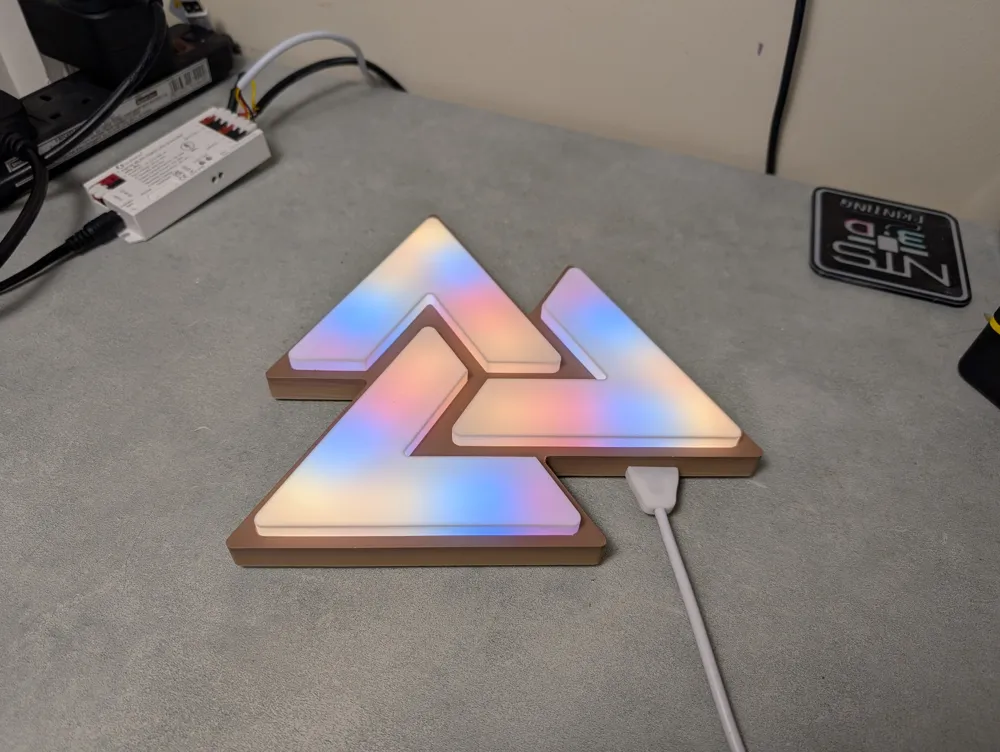

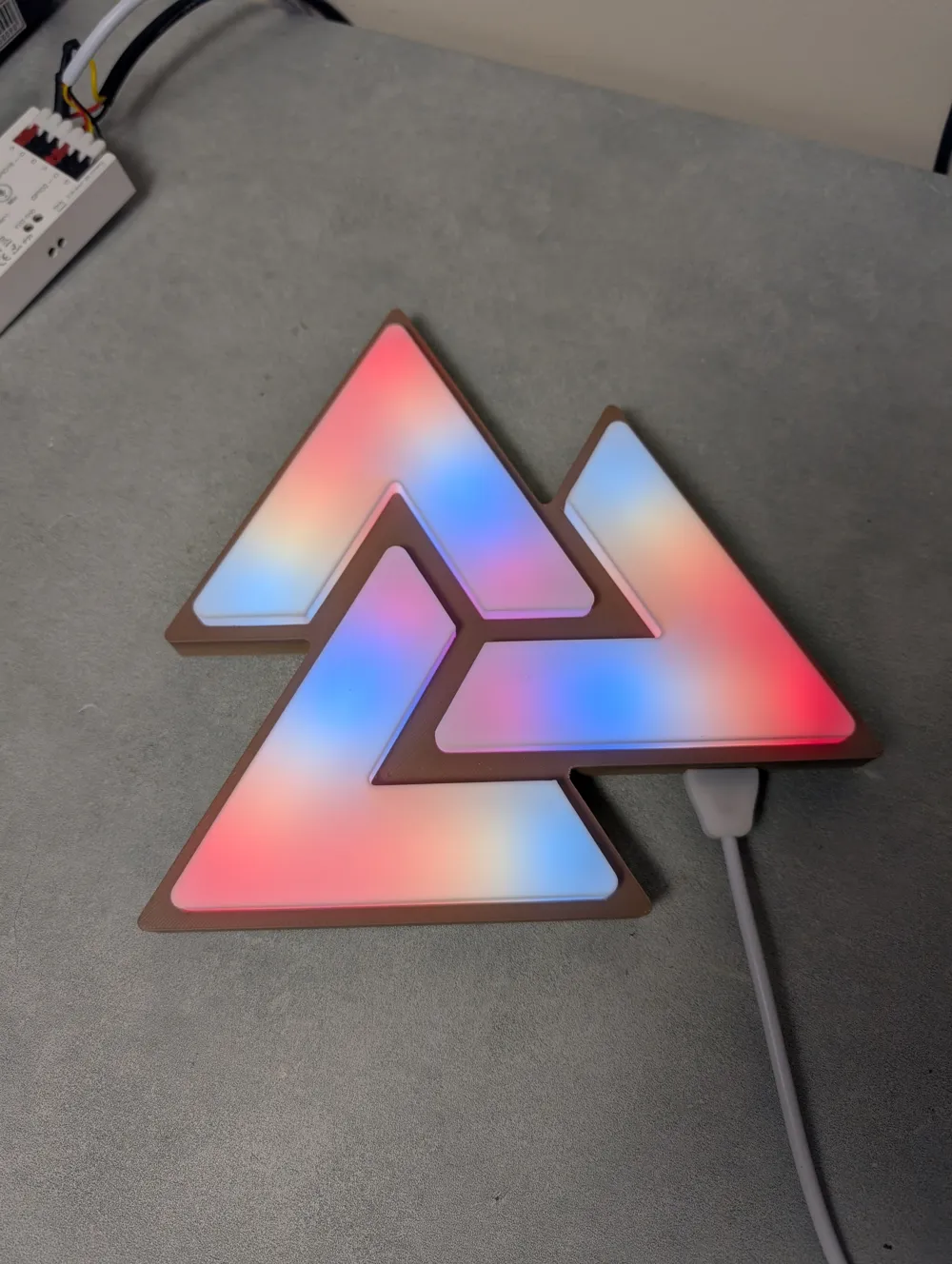

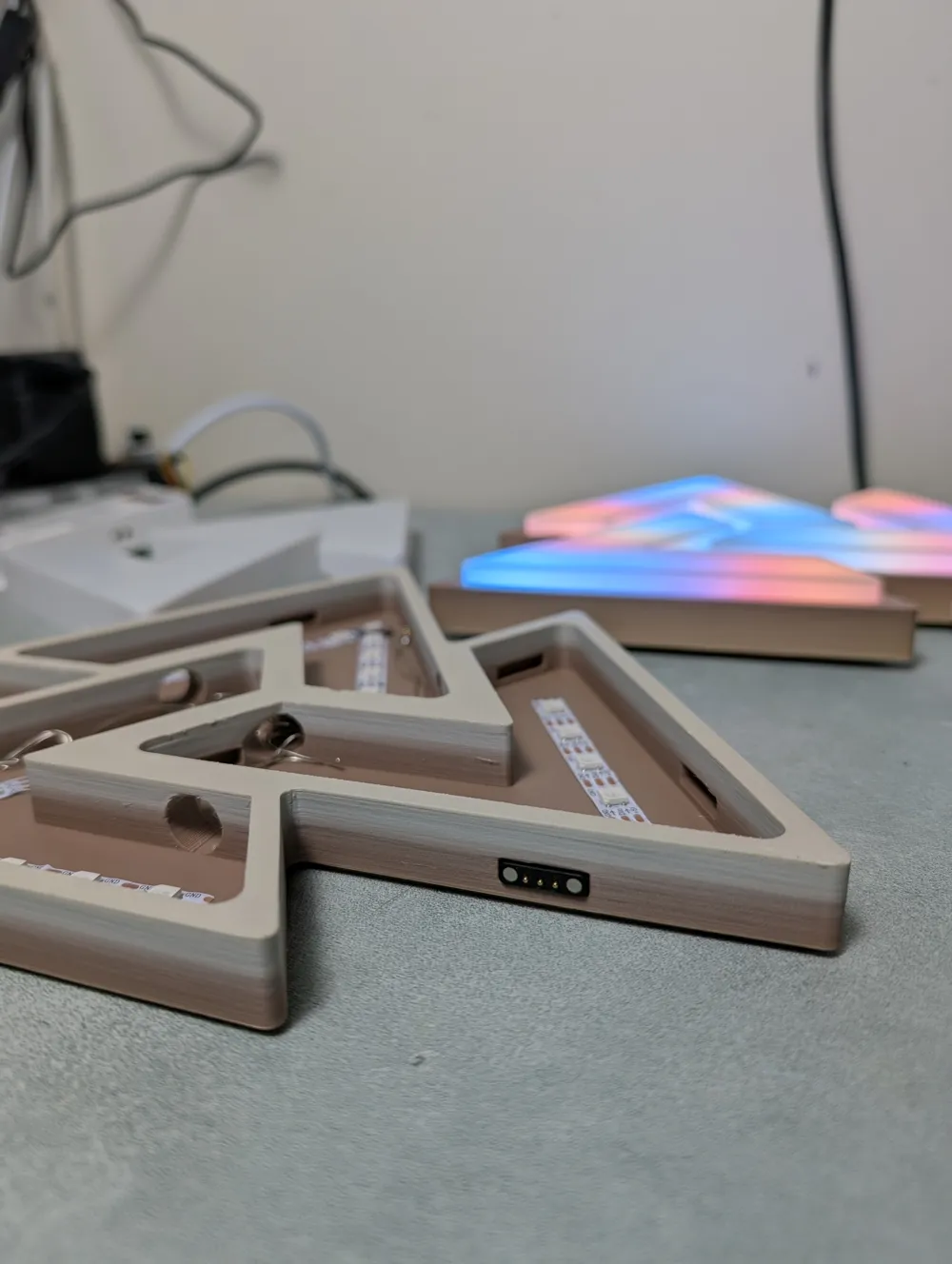

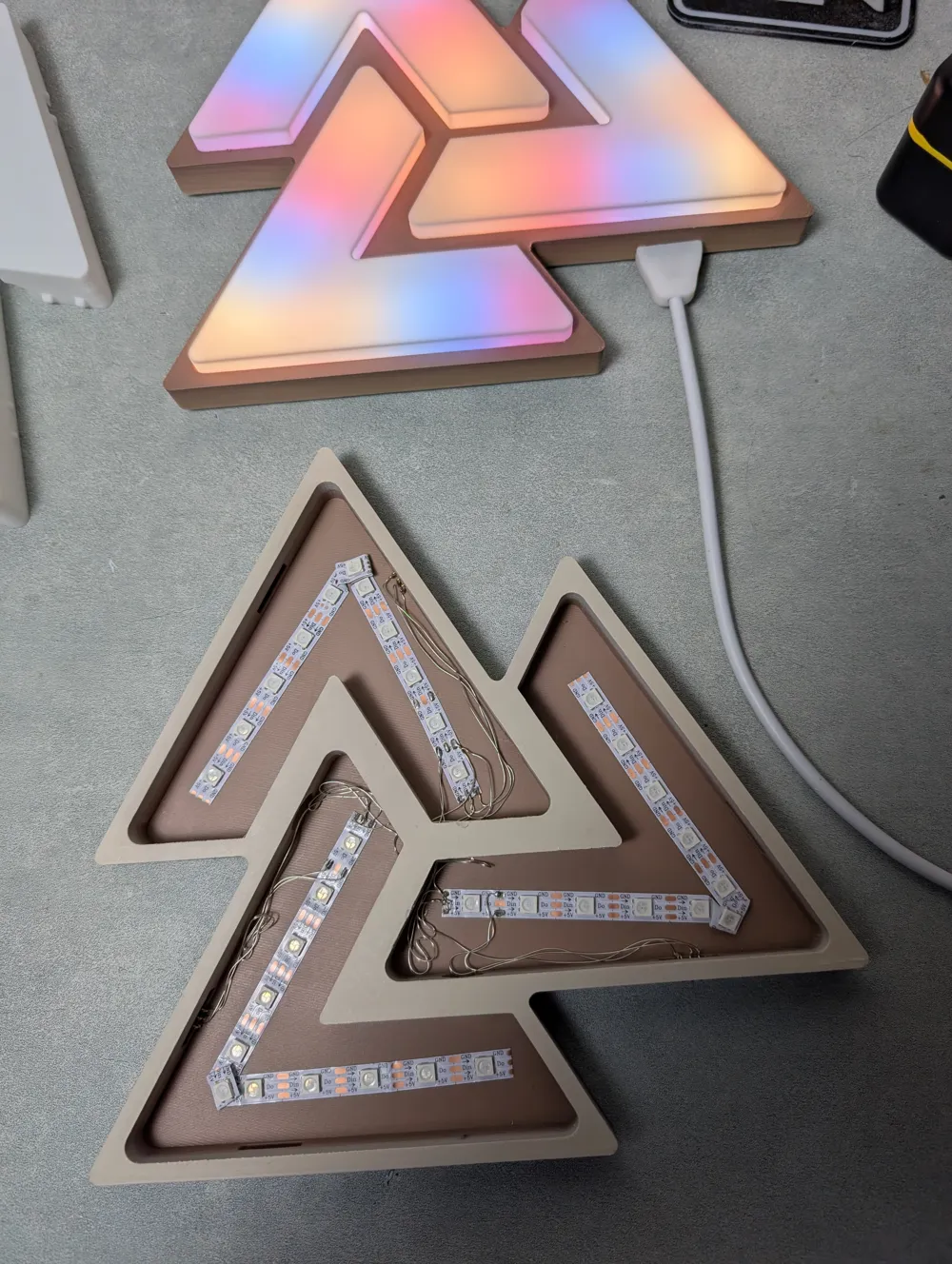

The LED panels are WLED powered and I used a prebuild GLEDOPTO wled controller as well as magnetic pogo pin connectors to make the magic happen.
The download contains Bambu studio .3mf file as well as STL files for all the parts and a PDF file with a wiring diagram and shopping list with links for the hardware. I have also included files for the pogo pin connector/ wire housing.
I have added a YouTube video that explains the wiring in more detail.
