BUILDING BLOCKS - A Retired Commercial Architect

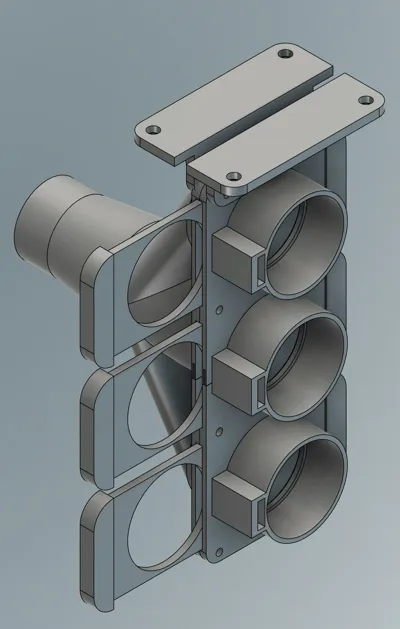

Had to reinvent this to allow for two gates for my miter saw (still makes a mess) and one for my band saw.

Special thanks to shoo for the inspiration to connect directly into the vacuum:

https://makerworld.com/en/models/137930-2-and-3-way-splitter-with-blast-gates-for-2-1-4-sh#profileId-150111

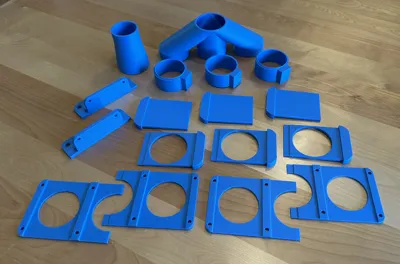

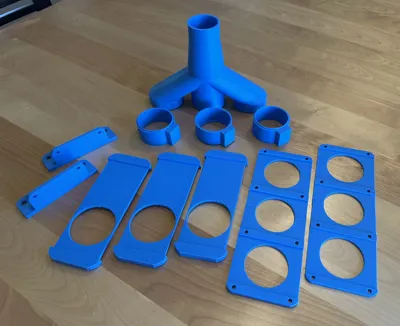

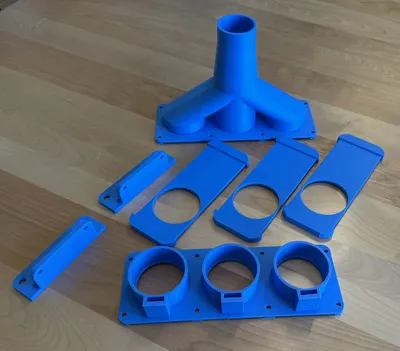

I did this all for A1 mini since I have two of them and allows me to get it done quicker. Does require some gluing though :(. If anyone wants A1 files (won't need to do any gluing) let me know and I'll add them.

If anyone needs different in and out sized ports I might be able to make it up for you. Just send me the size requirements.

Hardware:

(6) M4 x 16
(2) M4 x 40
(8) M4 nuts
(4) #8 x 1 ½ for mounting (or similar)

blast gate

dewalt

woodshop

woodworking accessory
