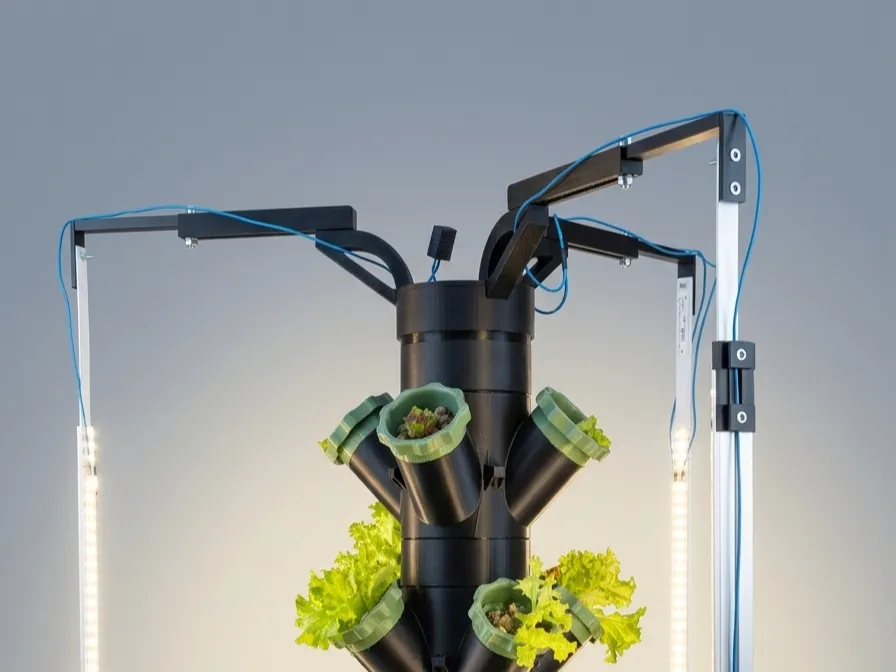

Adjustable 3-Arm LED Wing for Hydroponic Tower

Overview

This is a professional-grade lighting extension for the Hydroponic Tower (Revised). This remix introduces a heavy-duty, 3-arm system that is steplessly adjustable in distance and **fully swiveling**, allowing you to adapt the light intensity perfectly to your plants' growth stages.

Key Features:

• Stepless Adjustment: Slide the light bars closer or further away. (130-260mm)
• Swivel Function: Focus the light exactly on the plant pods.
• Heavy Duty: Designed for 20mm Aluminum flat bars to hold long LED strips securely.

Required Hardware (BOM):

To assemble this kit, you will need:

• Main Joints: 3x M6 Stainless Steel Bolts (with matching nuts and washers).
• Top Case Mount: M4 Screws to fix the bracket to the tower's top case.
• LED Bar Attachment: 20mm wide Aluminum Flat Bars (Length: 100cm).
• Fixing: M3 Screws and Nuts to secure the aluminum bars to the 3D-printed arms.
• LEDs: Optimized for Lientec 84cm LED Strips (https://www.lientec-led.com/products/led-strips-mit-samsung-lm301h?_pos=1&_sid=ddcc7dcf8&_ss=r&variant=31142836568177).
