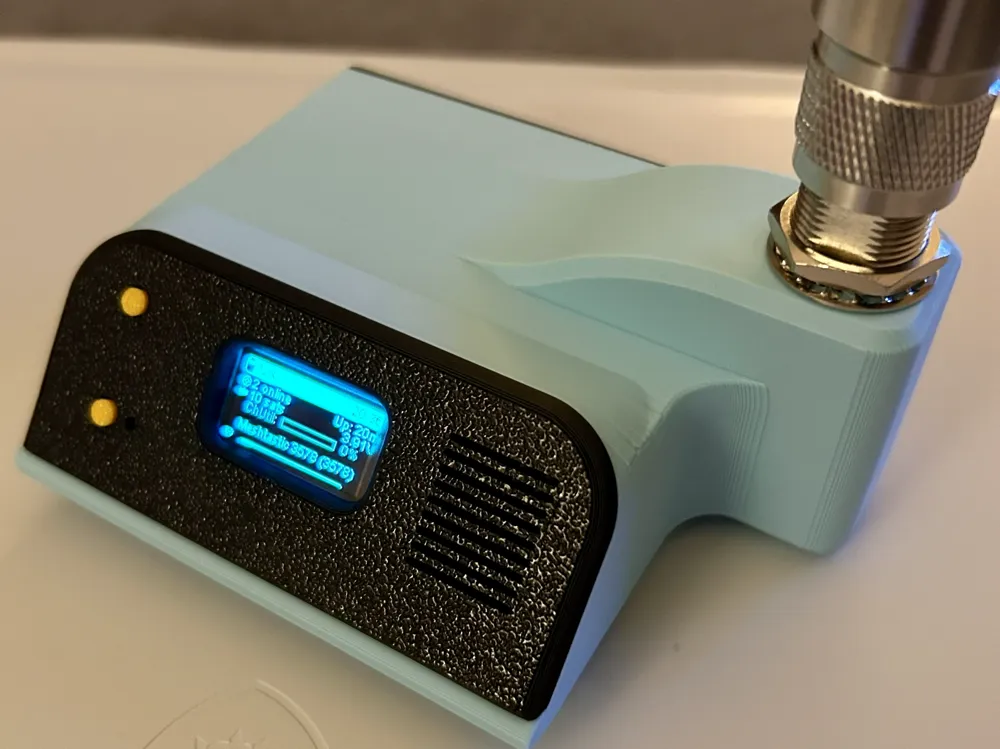

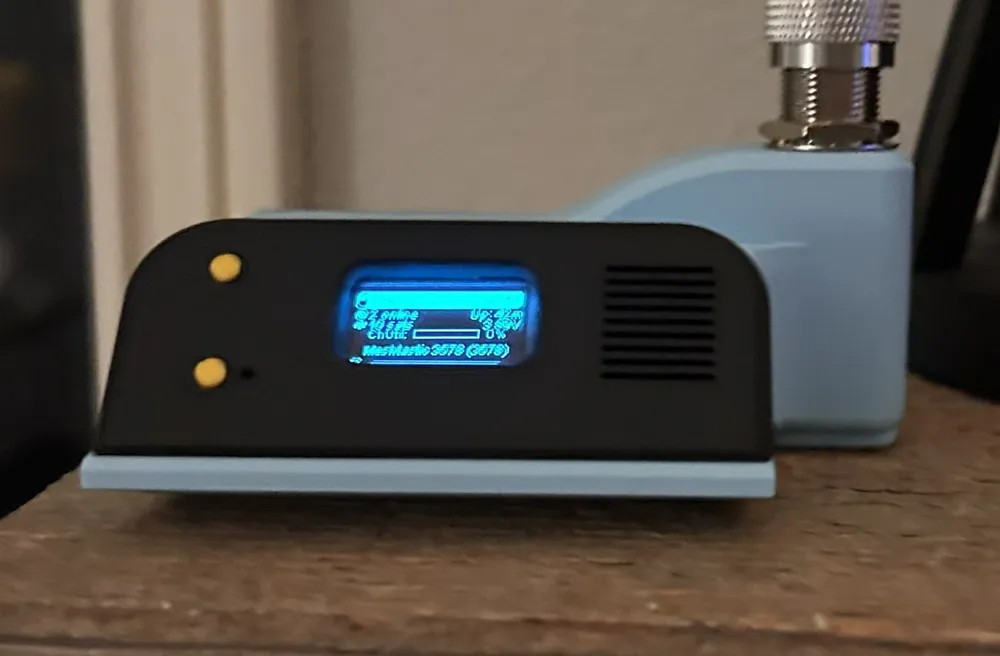

Heltec V4/V3 n-Type Snap Together - Free 3D Print Model

Search models, users, collections, and posts

LaroccaLoRa

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

X1 Carbon

P1P

X1E

H2S

A1 mini

H2C

H2D

P1S

H2D Pro

X2D

P2S

A2L

0.2mm layer, 2 walls, 15% infill

Designer

3.3 h

4 plates

4.9(9)

Open in Bambu Studio

Boost

170

157

103

Released

Description

I print the main body with a print orientation of the back opening flat on the plate and use tree supports. 2 sets of buttons are provided, 1 for the Heltec V4 and 1 for the V3.

Comment & Rating (23)

@JonX

great model! getting the connecter into the case is impossible… bit of cutting then hot glue fixed that though!

The designer has replied

@user_303282967

ok I think I will make a revision and raise the case a bit

@JonX

Replying to @user_303282967 :

Okay!

@user_2200994263

Printed this today and was able to get the connector in place - maybe a revision has been made. I had to push a bit but was able to get it without cutting and the antenna installed perfectly vertical. Pretty cool!

@JwK_

Boosted

Great model! a bit too tight when fitting connector as you have to forcefully bend the pigtail against the plastic to get it in way too tight. but best easiest base station model for N-type so far!

The designer has replied

@user_303282967

Good to know your experience. I think some pigtails may be longer than others and I wondered if this might be an issue for some folks. Thanks for commenting on this.

@LexMaker

Replying to @user_303282967 :

Definitely a bit tight for my pigtail, too, but a little coaxing did the trick Thank you for the print, I've deployed it in no time flat!

@user_303282967

Replying to @LexMaker :

cool, maybe I should bump up the antenna opening a bit.

@DuschdrBabbe

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_2606920789

Print Profile

0.2mm layer, 2 walls, 15% infill

The N bulkhead cutout was a bit tight, could have used an extra mm or two bottom clearance so my pigtail didn't have to bend at such an extreme angle. I don't have a screen on my V4, so I filled in the space with a cube to flatten everything out. Snap fit is great. Zero tools needed except to tighten bulkhead.

The profile uploader has replied

@user_303282967

I am going to raise this up

@firecop

This is an incredibly well thought out and generated case, WOW! Thank you. My only question is, what kind of antenna connector are you using as that hole is much larger than a standard SMA.

The designer has replied

@user_303282967

this is for n-type antenna, if you want sma I have another design, very similar to this.

@kebre001

Print Profile

0.2mm layer, 2 walls, 15% infill

I put all parts on one plate and it turned out awesome.

@user_3389235651

Print Profile

0.2mm layer, 2 walls, 15% infill

Just what i needed. Thank you.

@Cascade3D

Print Profile

0.2mm layer, 2 walls, 15% infill

Super great unit. Great for a stand alone set up.

@user_2278215648

Boosted

Nice print

@Duo_3D_Print

great
