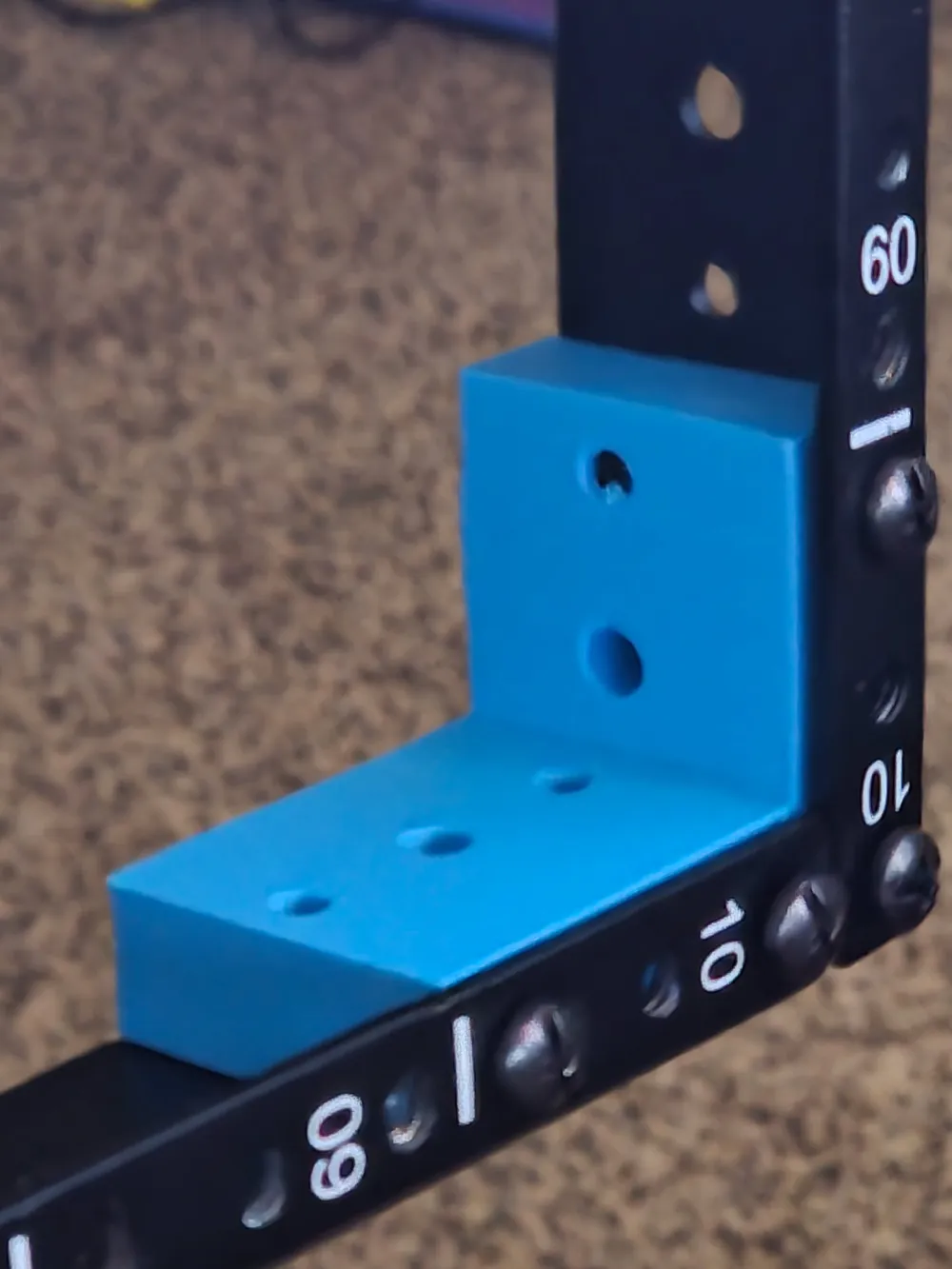

19-inch to 10-inch Server Rack Bracket

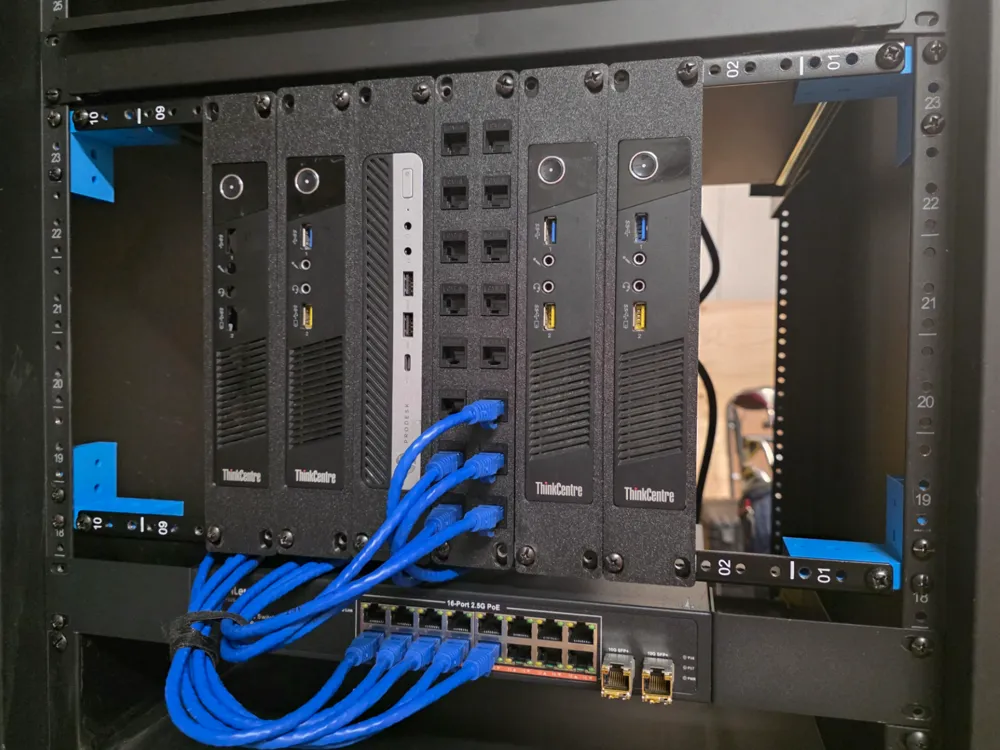

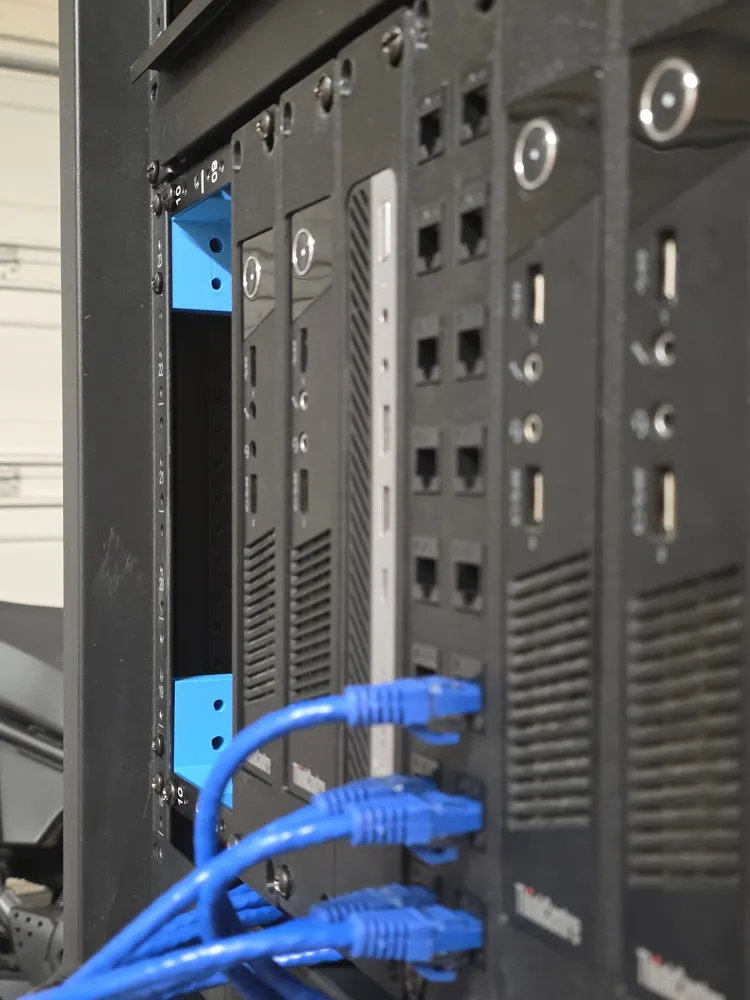

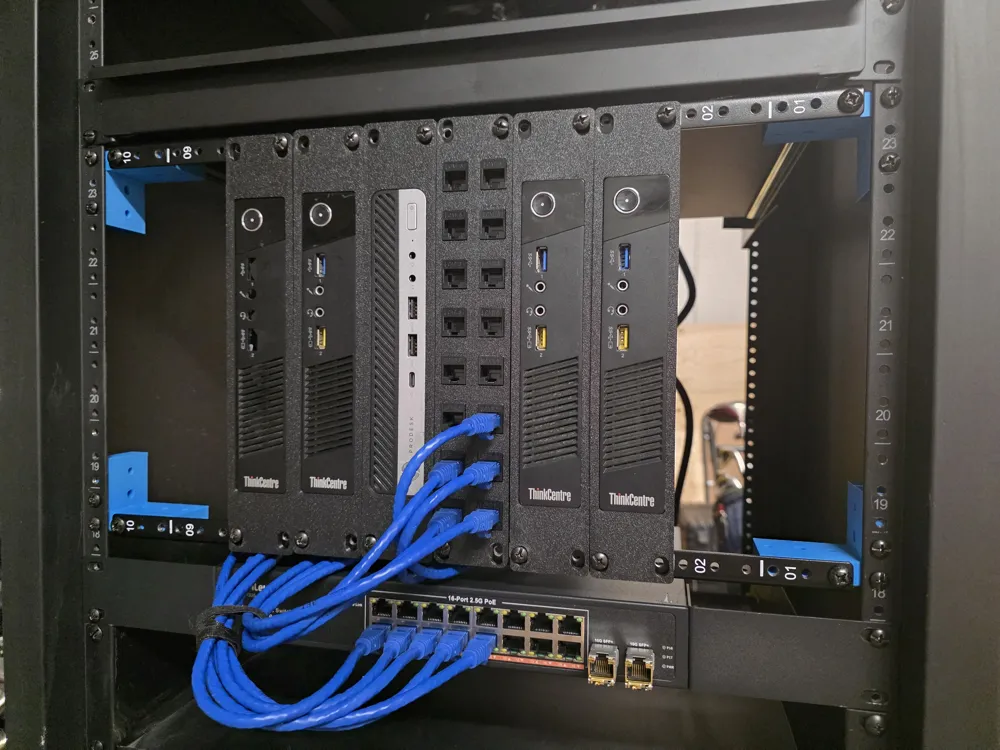

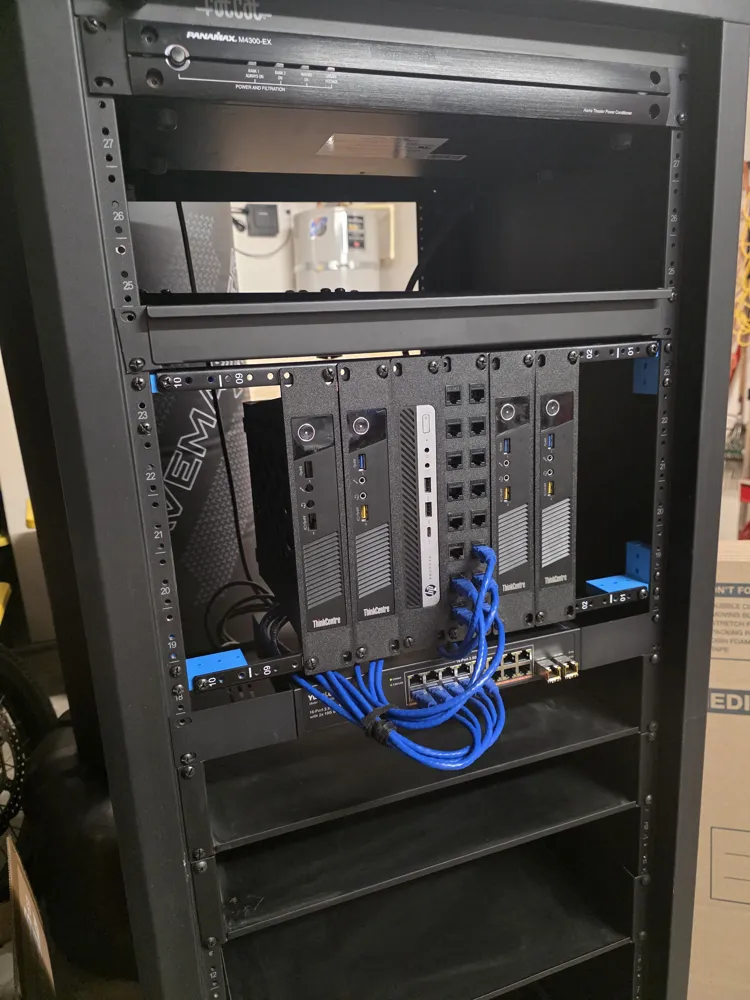

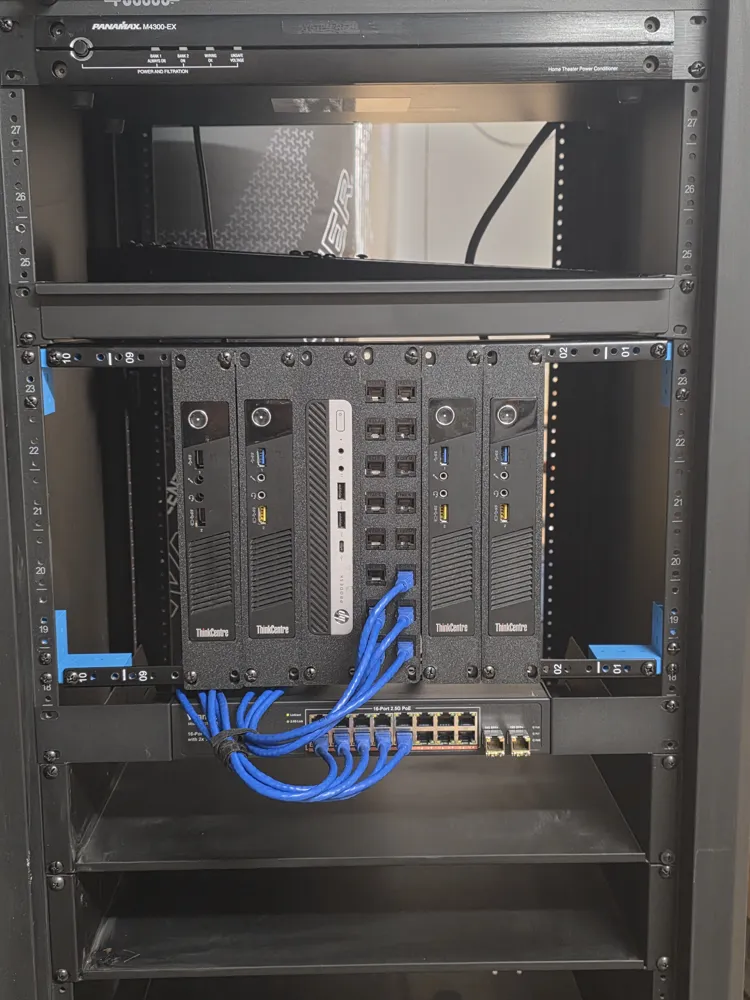

There have been a lot of 10-inch rack builds going around and they're super impressive. But you know what's more impressive? Still being able to keep your 19-inch rack, or servers, all in one.

I haven't seen anyone else put their 10-inch rack inside of their 19, and the one that I did see needed a whole custom rail milled out of metal. I'm not all about that life.

What I already had was a DIY rail from Amazon, and wouldn't you know, a 10U rail fits JUST inside the 19-inch rack. So, It's already made for it, I just had to make this solution to marry the two together.

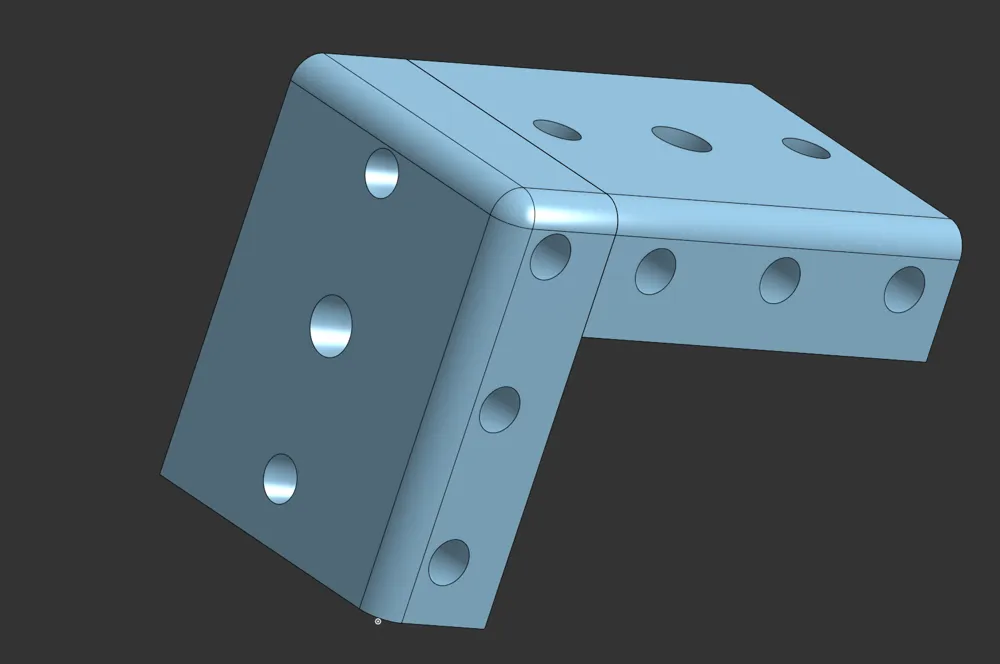

I measured this to match the specified rails, but it should work with most standard racks. you have the option to either mount these from the side or directly as part of the 1U mount.

Parts List:

Rails I use: Here

Screws I use: Here

Lenovo Print: Here

HP Print: Here
