Single 3ml Vial Case (M3x16 Hardware)
Print Profile(1)
Description

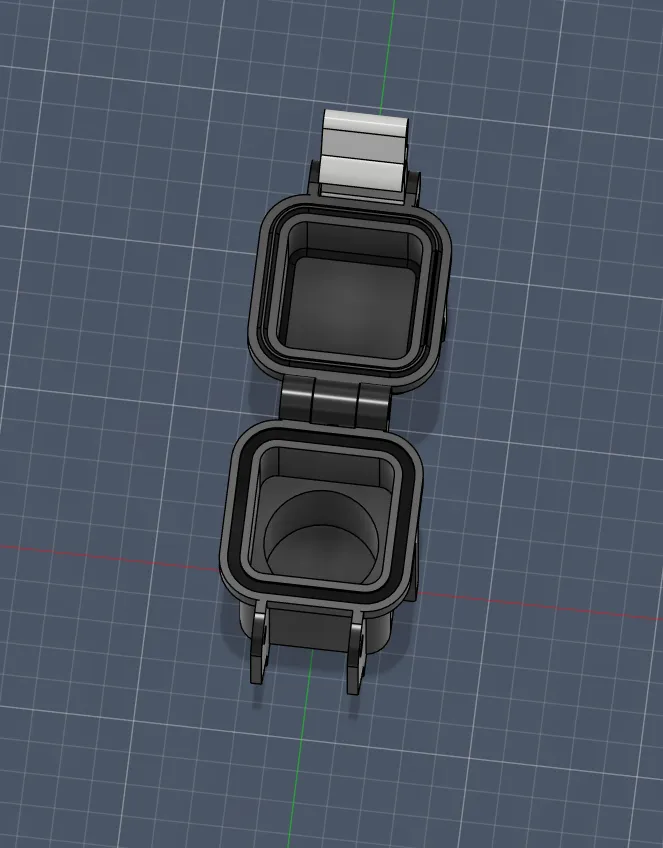

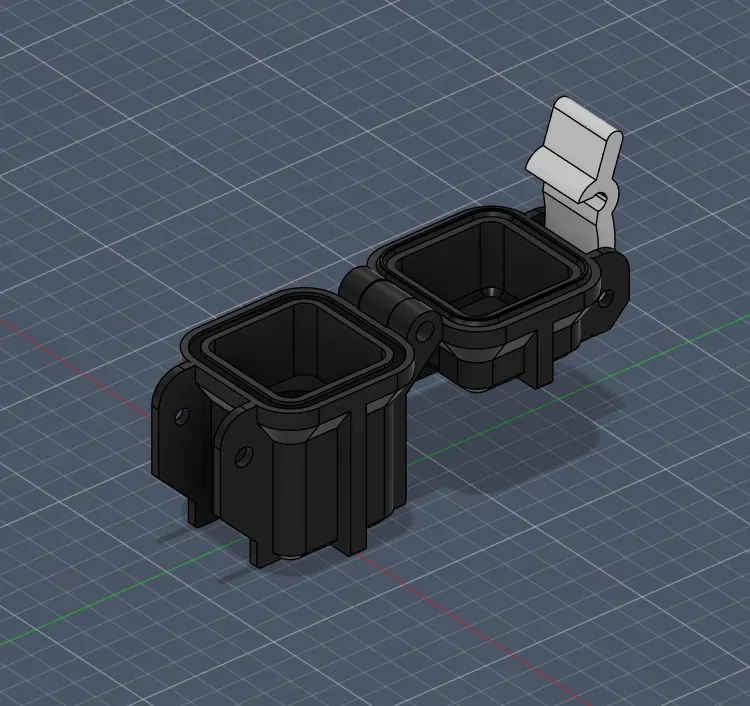

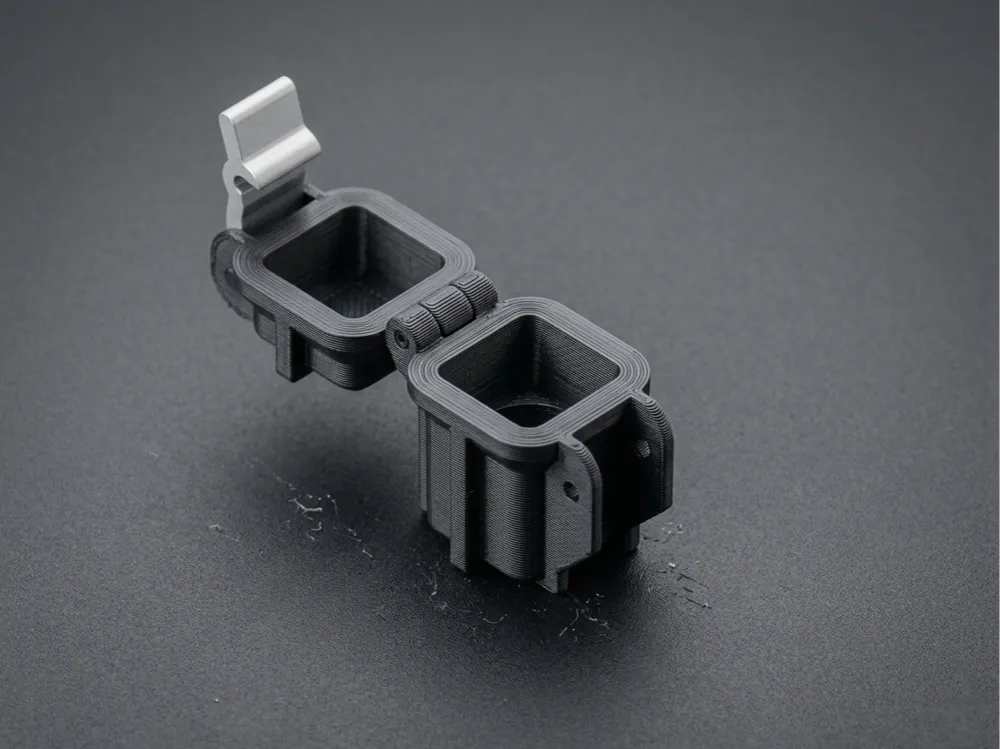

This is a Single 3ml Peptide Vial Case. I modified the original concept to achieve more compact scaling, saving space in the fridge. I also created a custom insert to keep the vials from rattling or clinking.
The case uses mechanical hardware for strength and durability, making it well-suited for frequent opening and closing in a refrigerated environment.
Design Details
- Fits 1 Vial: Sized for a Single 3ml vial (16mm diameter) with caps.
- Hardware Assembly: Uses (3) M3x16 screws
- (1) screws for the hinges
- (2) screws for the latches
- Secure Insert: Custom internal layout keeps vials upright.
- Compact Scaling: Slimmed down to fit easily in side doors.
- Material: Printed in PLA+, PLA, or PETG
- PLA+/PETG recommended for durability.
- Regular PLA is the default profile as a baseline for any one new to 3D printing.
- Has an optional seal that can be printed in TPU (not required by any means, just added peace of mind).
Print Settings
- Filament: PETG, PLA+, or PLA (PLA Silk not recommended)
- Supports: Tree supports used (likely printable without supports, but used to ensure clean overhangs)
- Walls: 3
- Infill: 15% (Gyroid recommended)
Assembly
Once printing is complete, align the lid and base at the hinge points and secure them using one of the M3x16 screws. Install the remaining two M3x16 screws into the latch mechanisms.
