Description

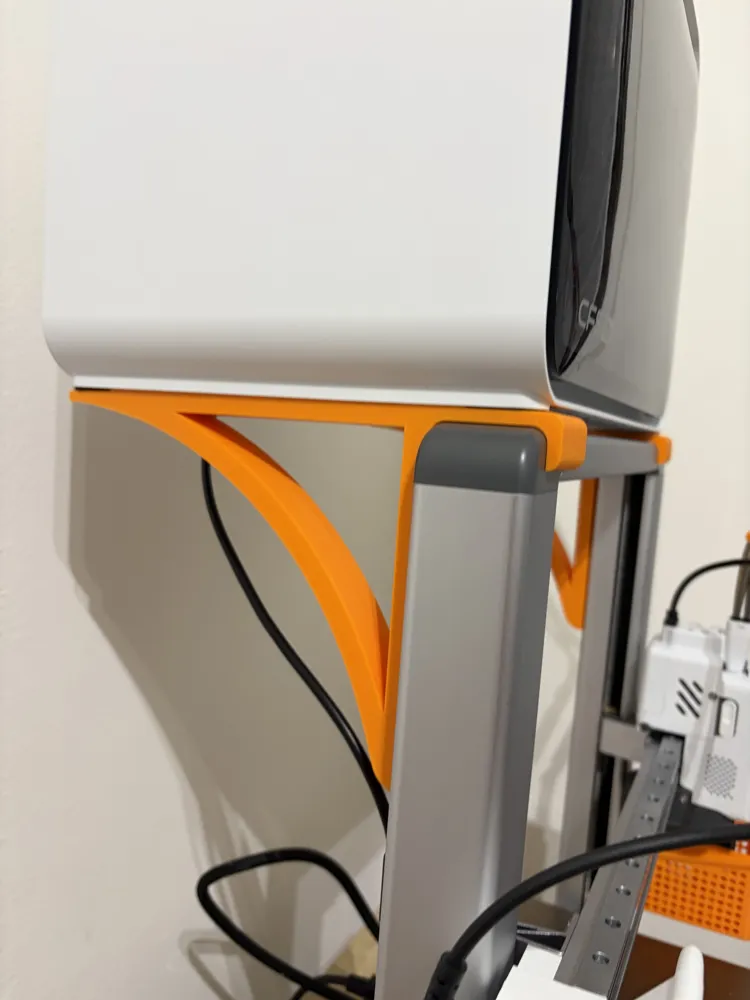

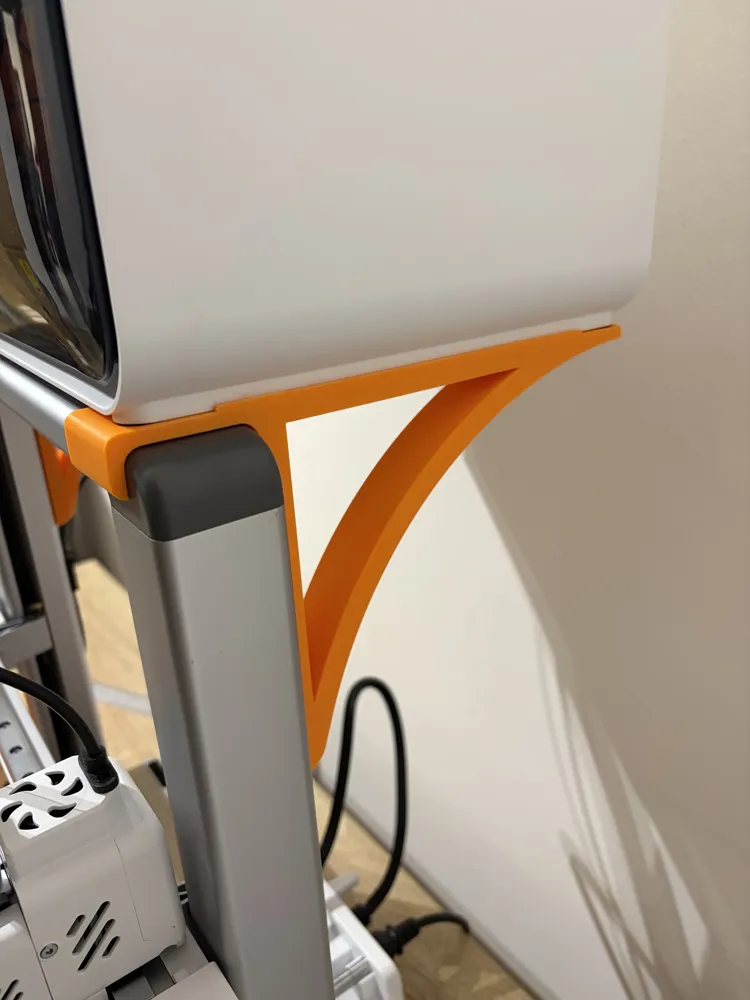

This CFS Lite Holder for the SparkX i7 allows you to securely mount the CFS Lite unit directly on top of the printer frame.

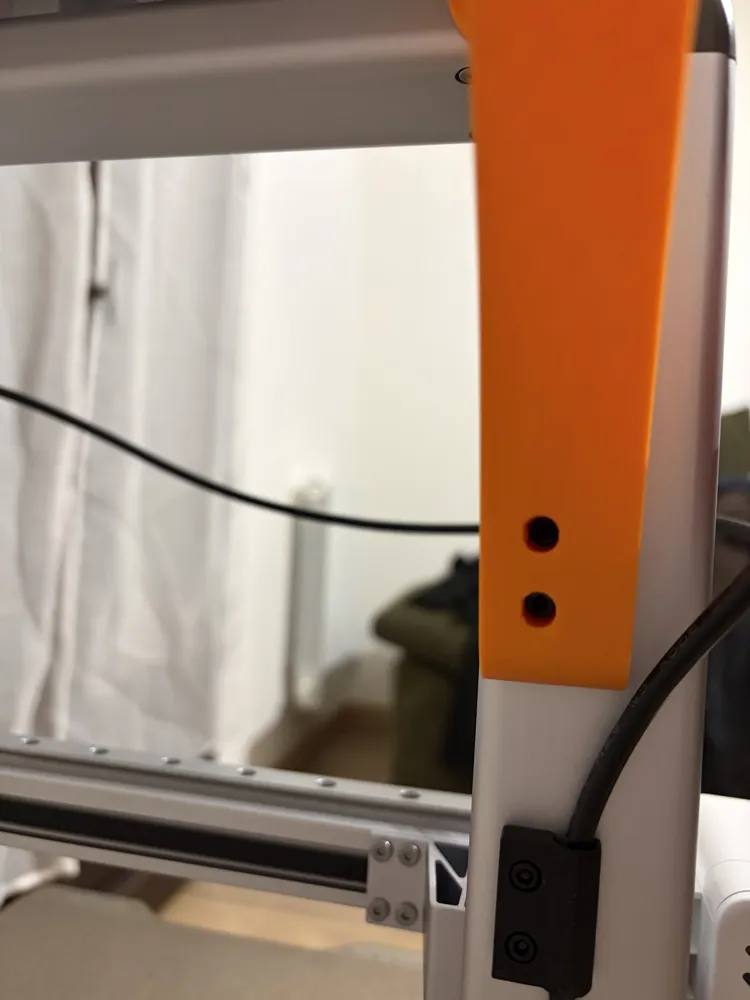

The holder is designed to simply rest on the printer structure, then be secured using two M3 screws per side for maximum stability.
Installation
1. Place the holder on top of the SparkX i7 frame
2. Insert 2 × M3 screws on each side
3. Tighten the screws to secure the holder
Total required hardware:
4 × M3x12 or M3x16 screws

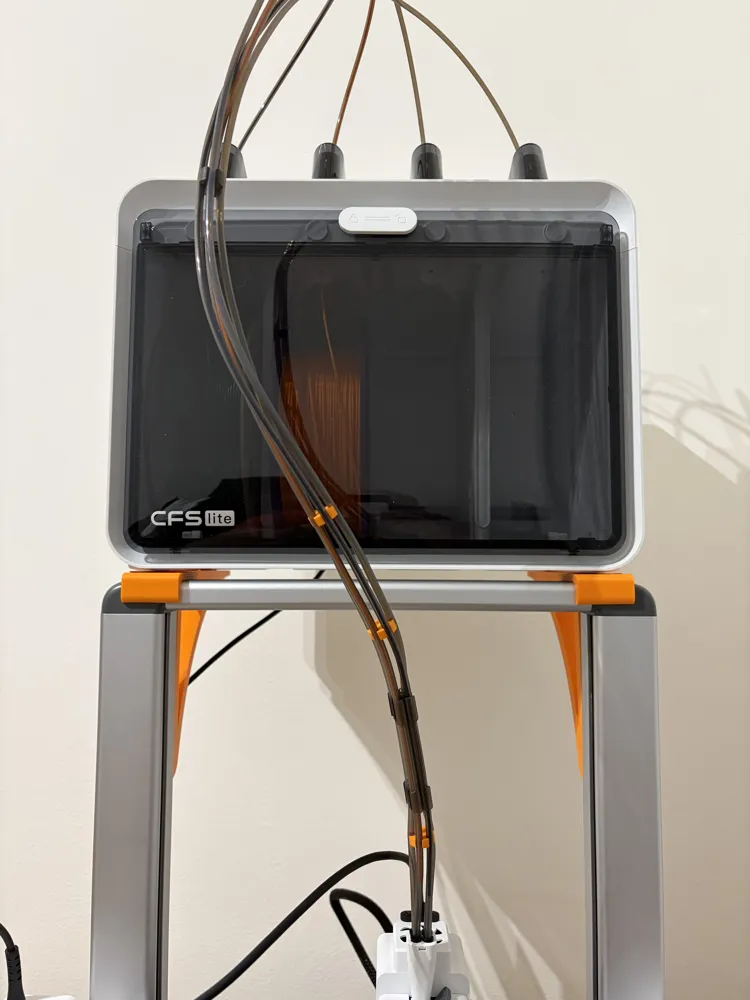

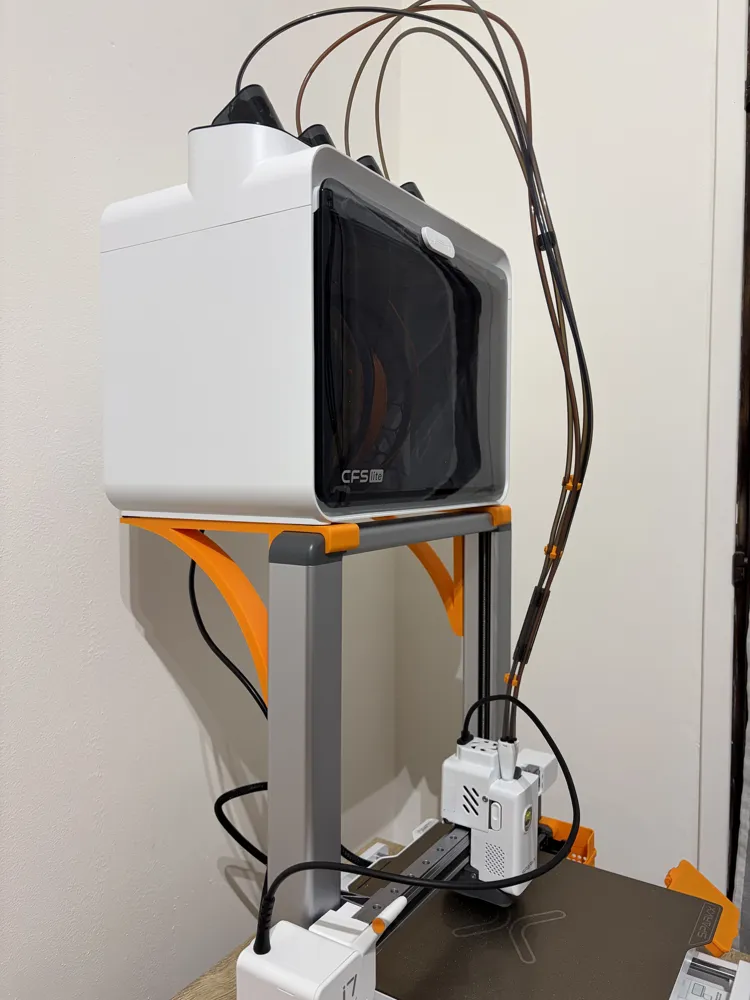

Once installed, the holder keeps the CFS Lite stable and perfectly aligned with the printer.

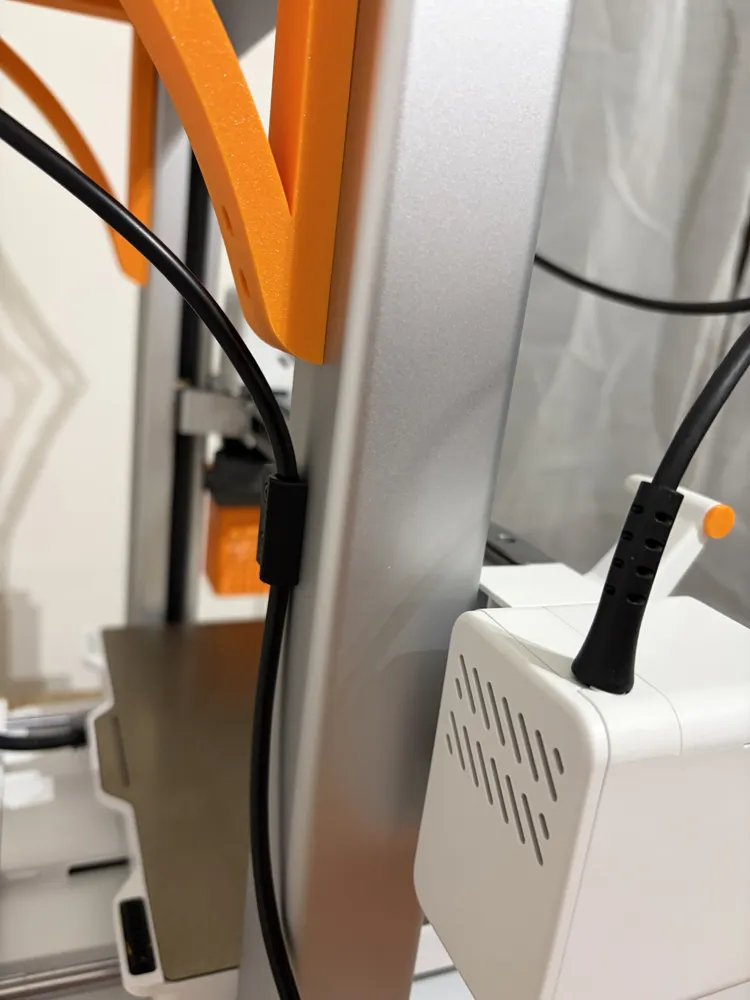

Cable management
For optimal cable routing you can use the companion model:
CFS Lite Cable Holder
⸻
Features
• Designed specifically for SparkX i7
• Secure mounting system
• Simple installation
• Compatible with CFS Lite
• Optional cable management accessory
