3 x 3 Keycap Fidget Clickers

--------------------

Please like and follow to be notified of all of my designs - some more exciting stuff in the pipeline!

--------------------

*** YOU WILL NEED KEYBOARD SWITCHES - SUCH AS https://amzn.to/4rum85Q (UK) or https://amzn.to/3OaodW7 (US) ***

Overview

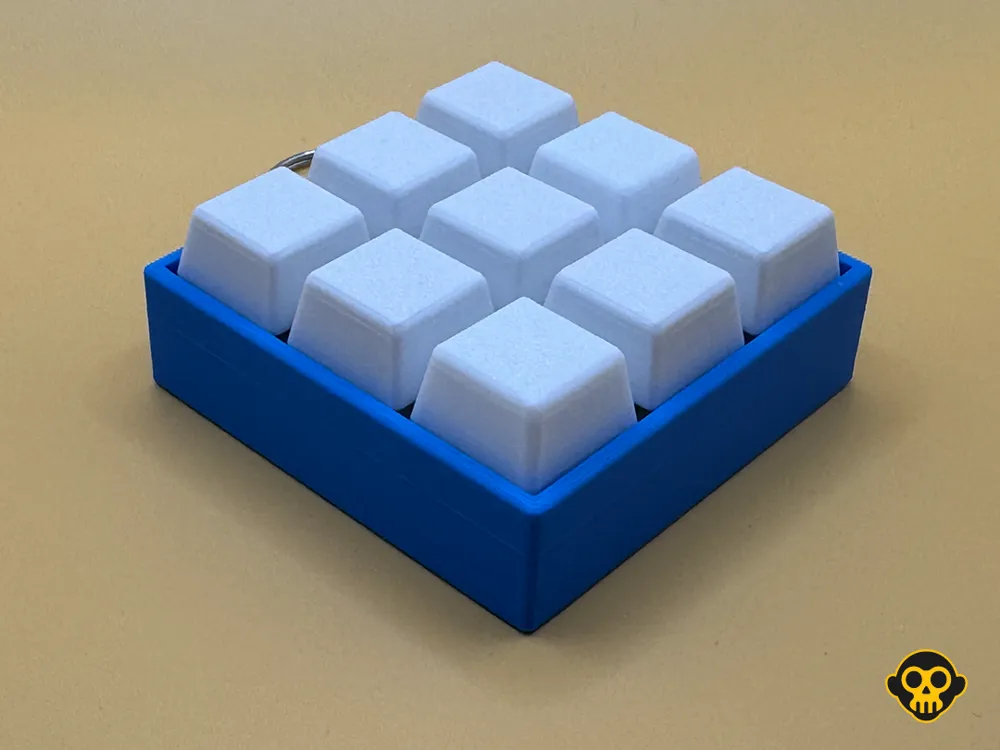

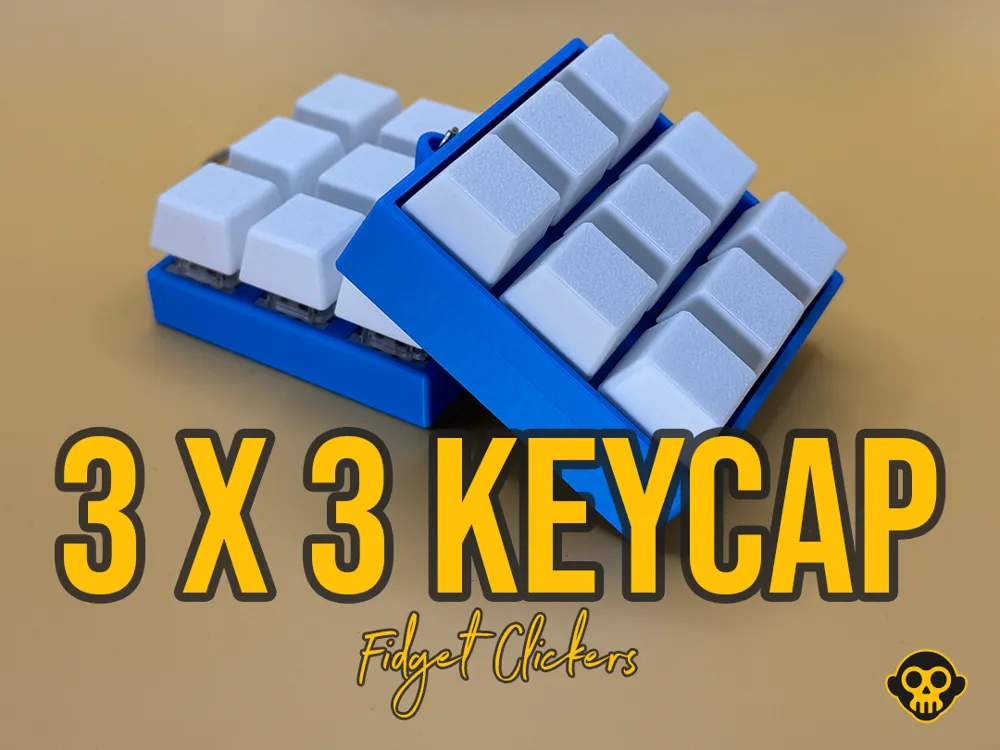

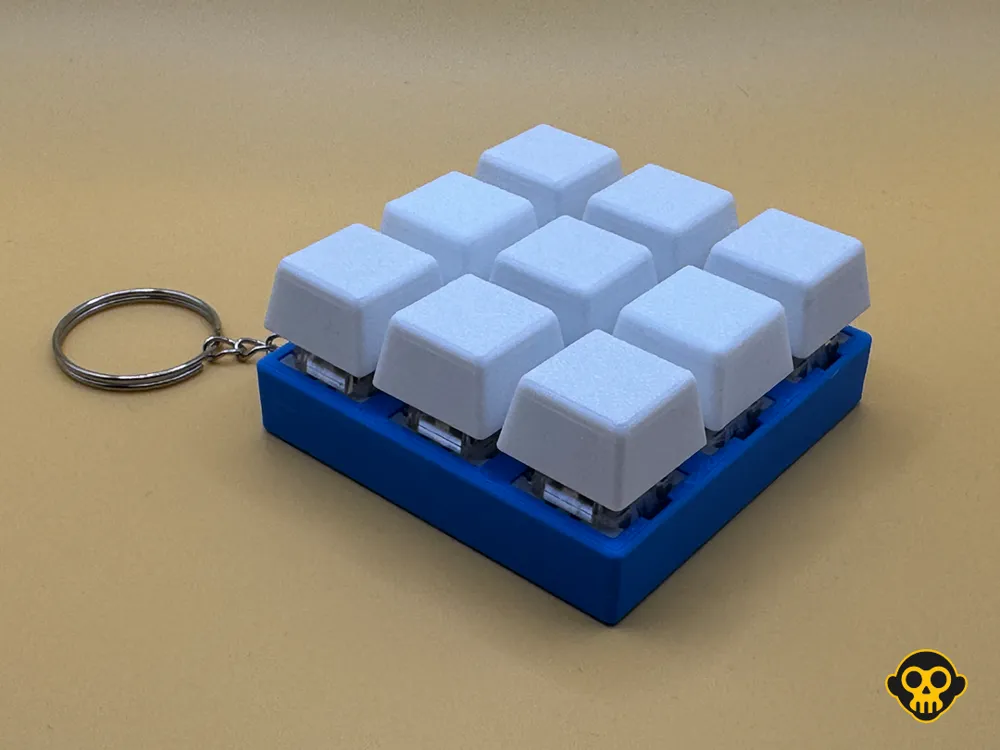

A satisfying 3 x 3 keycap clicker that uses Cherry MX-style switches (user-supplied) to create a chunky, pocketable fidget that can also be used as a keychain. Includes two body styles, each with an integrated keyring hole.

Tested on a Bambu Lab P1S.

Also available in single and double row options:


https://makerworld.com/en/models/2244161

https://makerworld.com/en/models/2329387

Printing Details

• Print difficulty: Easy–Medium (press-fit tolerances)
• Supports: None
• Brim: None
• Layer height: 0.16 mm
• Infill: 15%
• Recommended filament: PLA or PETG (PLA gives a crisp click; PETG is a bit tougher)

Keycap orientation note:
The included keycap is set up to print with the stem facing up for better bed adhesion. If you prefer a cleaner top surface or want to add top text, you can flip the keycap—but you’ll need to ensure strong adhesion (brim/glue/plate choice as needed).

File Formats Included

• 3MF only (includes the two print profiles)

Variations

Two body variants:

• High Wall – more enclosed sides for a sturdier feel.
• Exposed – more open sides so you can see the switches.

Each variant includes this size:

• 3 x 3

Plates included:

• One plate for High Wall
• One plate for Exposed
• One plate with 9 keycaps

Assembly

1. Press your Cherry MX-style switches into the body until fully seated - no need to cut off the metal parts.
2. Press the printed keycaps onto the switch stems.
3. Add a split ring/keychain through the built-in hole if desired.

Licence Notes

• MakerWorld Exclusive
• Personal use only (no commercial use / no selling prints)

Please like and follow for more…
