Dewalt Deep Pro Organizer Slider Brackets

Overview

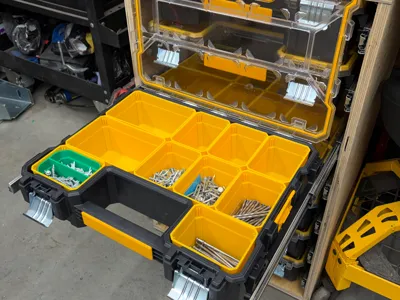

Dewalt Deep Pro organizers are very robust and versatile. I've seen them used for parts, tools, cards, toys etc..

I hated having to stack/unstack them, cause every time you need something, it's on the bottom one.

So, here's the version I came up with.

• Fully support the organizer
• A single bracket for both left/right
• Adjustable front/back
• Support for pretty much any 16in drawer slides regular or soft-close

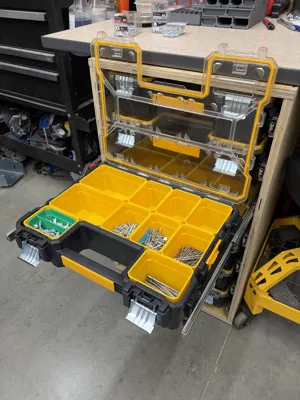

• Easy to take the organizer out and back in

Compatibility

Dewalt Deep Pro - DWST14825

Stanley FATMAX Deep Pro - FMST14820

Other brackets available

Dewalt/Stanley Shallow Pro Organizer Slider Brackets
MAXIMUM Deep/Shallow Organizer Slider Brackets

Craftsman XL Pro Organizer Slider Brackets

Print & Durability

I printed mine in PETG HF, 0.6mm nozzle, 2 walls, Gyroid 30% infill and used PLA basic as support.

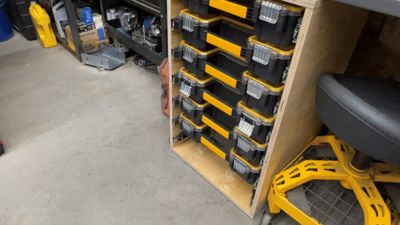

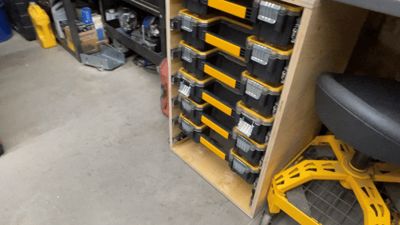

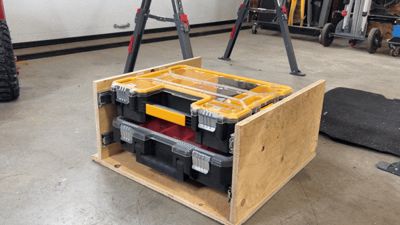

You can see in the video that I was able to stand on them without any issues and I weight 200lbs. That's more than the slides are rated for.

I chose PETG cause it less brittle and more solvent/oil resistant.

You can also print these in single material with tree support on plate only. The small inside overhang will be cosmetic.

Hardware

6x Round Head #8-32 x 1/2" machine screw + nuts + 1/8" washers
or

6x M4 x 12mm Button Head screw + nuts and washers


1x Pair of 16in drawer slides. Any Regular or soft close should work just fine.

Installation

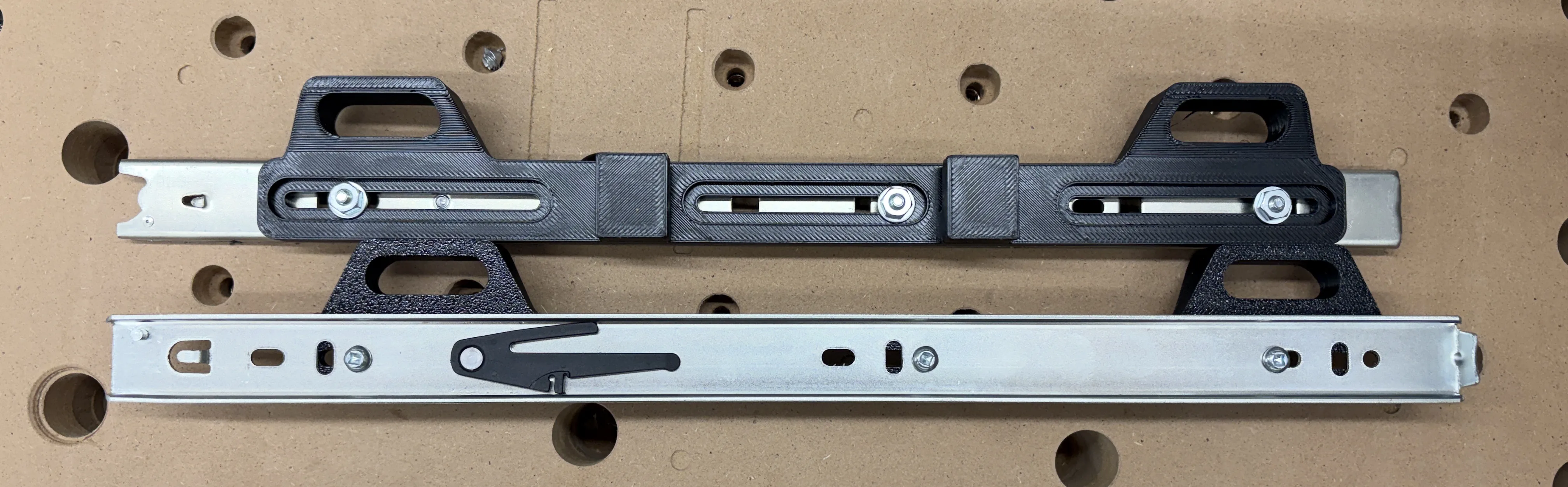

Bracket installation is simple, screw goes on the slide side, and washer/nuts on the bracket.

TIP: Leave them loose for the first slides so you can adjust the drawer depth. Then replicate for the rest.

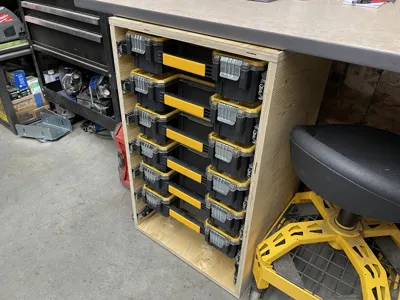

Interior cabinet width should be 19"1/8, but you have about +/- 1/8" play. This was to have multiple brands sharing the same cabinet.

I made a Planner here so you could mix and match different drawers.

https://djonz.github.io/drawerplanner/

Feel free to share any suggestions/improvements.
