Locking lever for CULLMANN Alpha 2500
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
19 min
1 plate
Open in Bambu Studio
Boost
0
1
0
0
3
2
Released
Description
The locking level on my alpha2500 got broken and no replacement is available making the whole camera stand useless.

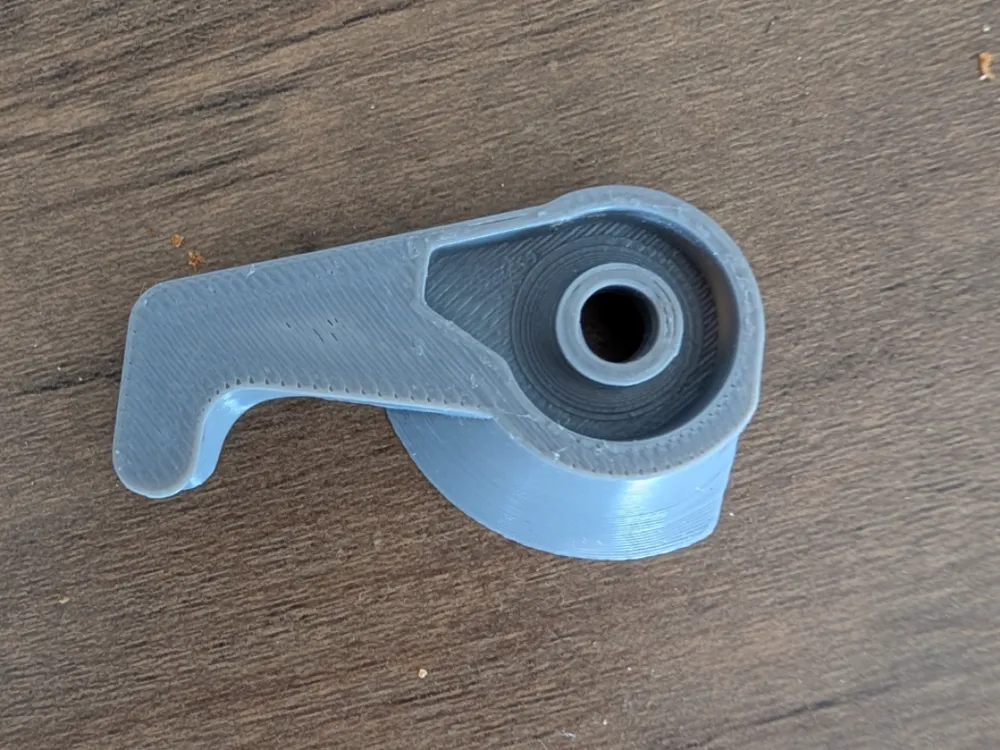

So I designed a replacement part trying to match the original part as much as possible. And it work well on my stand.
Given that the lever is one of the two attach points for the camera it needs to be solid. So I recommand PETG or ASA/ABS with at least the strength preset.
To be clear I will take no responsability if your camera end up broken because this part failed.
From the original part you will need all the metalic parts, the spring, the bolt and nut.

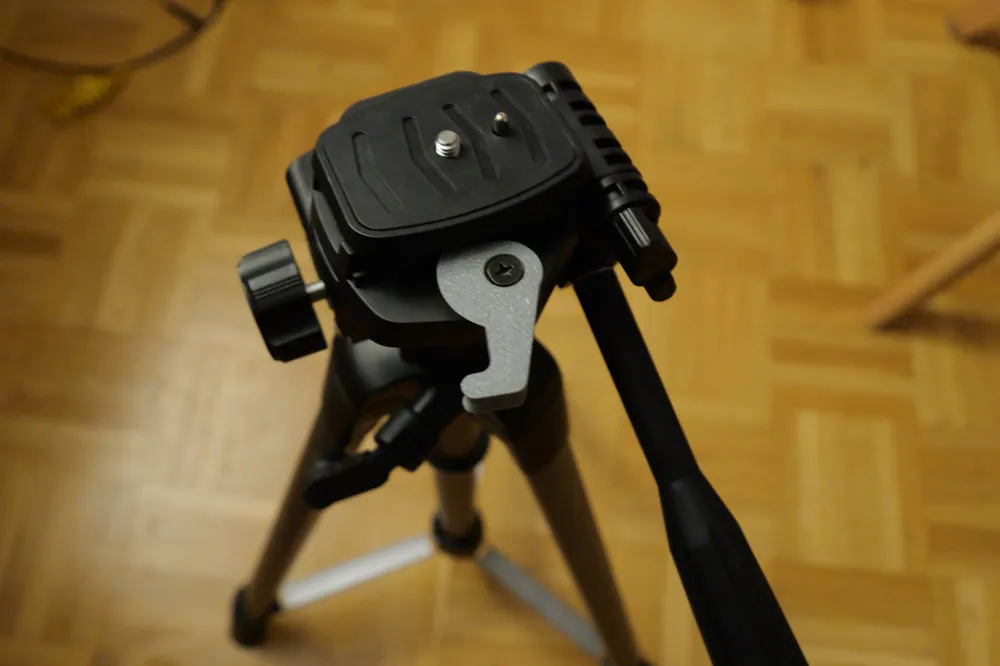

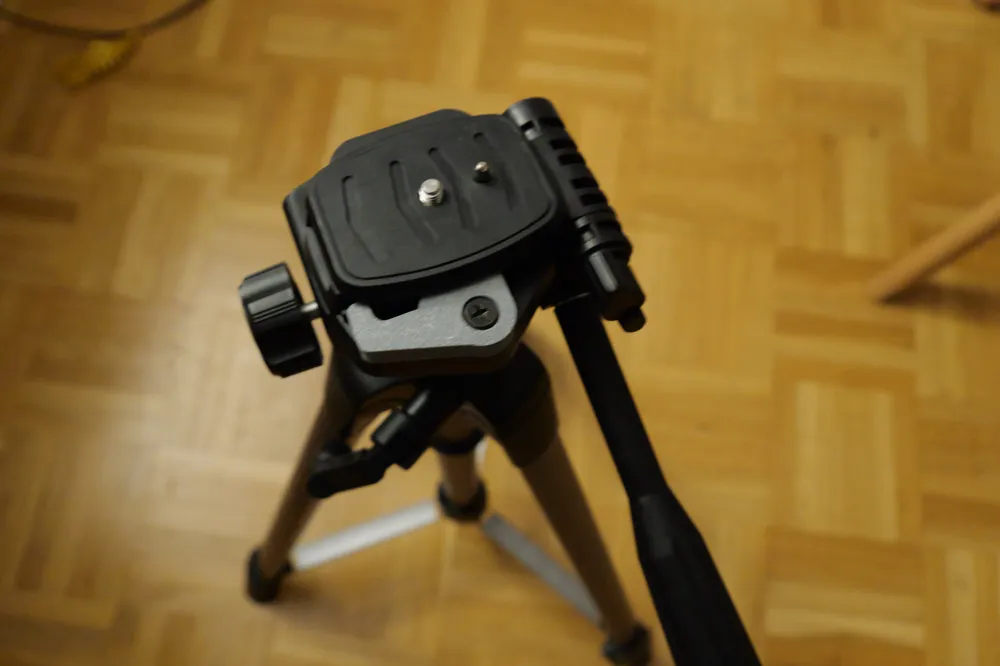

Then you can just screw the 3D printed part instead of the original one.
It is also probably compatible with other stand model from the Alpha family but I didn't try.
