Moza R3 and R5 Dashboard Phone Holder for SimHub

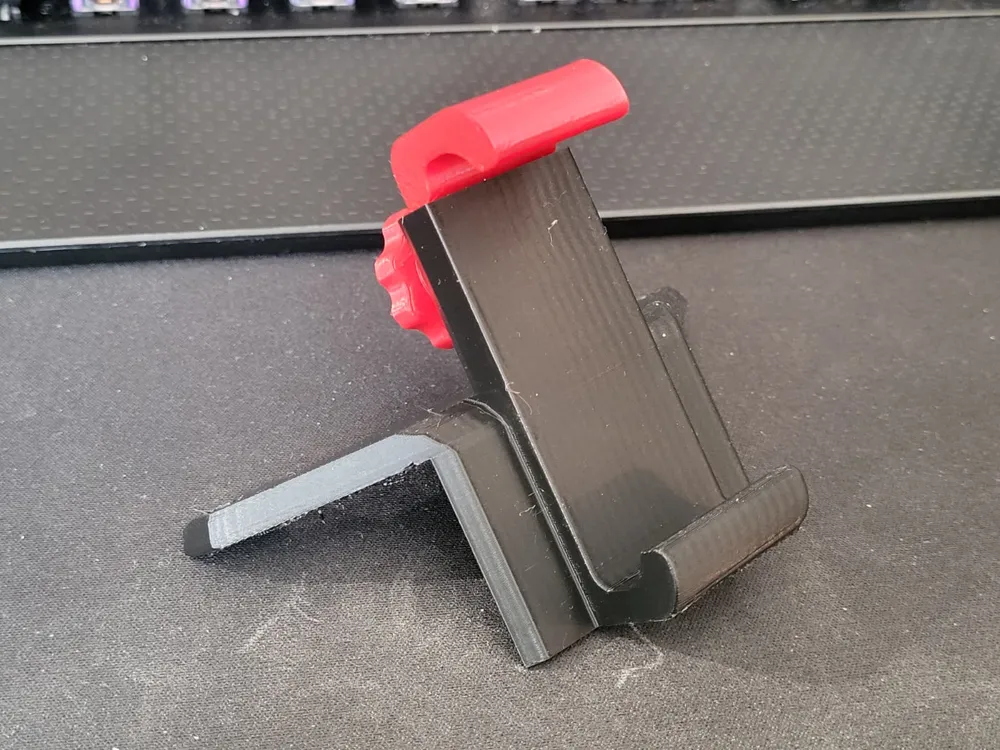

Moza R3 & R5 Lightweight Phone Mount (Optimized Remix)

This is a functional and material-saving remix of the Moza R5 Phone Mount (originally by Unpixelt, based on the design by Angelman55).

The goal of this remix was to create a sleek, less bulky version that maintains perfect stability while being more efficient to print.

Key Improvements:

• Reduced Mass: Less material used without sacrificing structural integrity.
• Faster Print Time: Optimized geometry for quicker production.
• Low Profile: Not as massive as the original, providing a cleaner look for your sim rig.

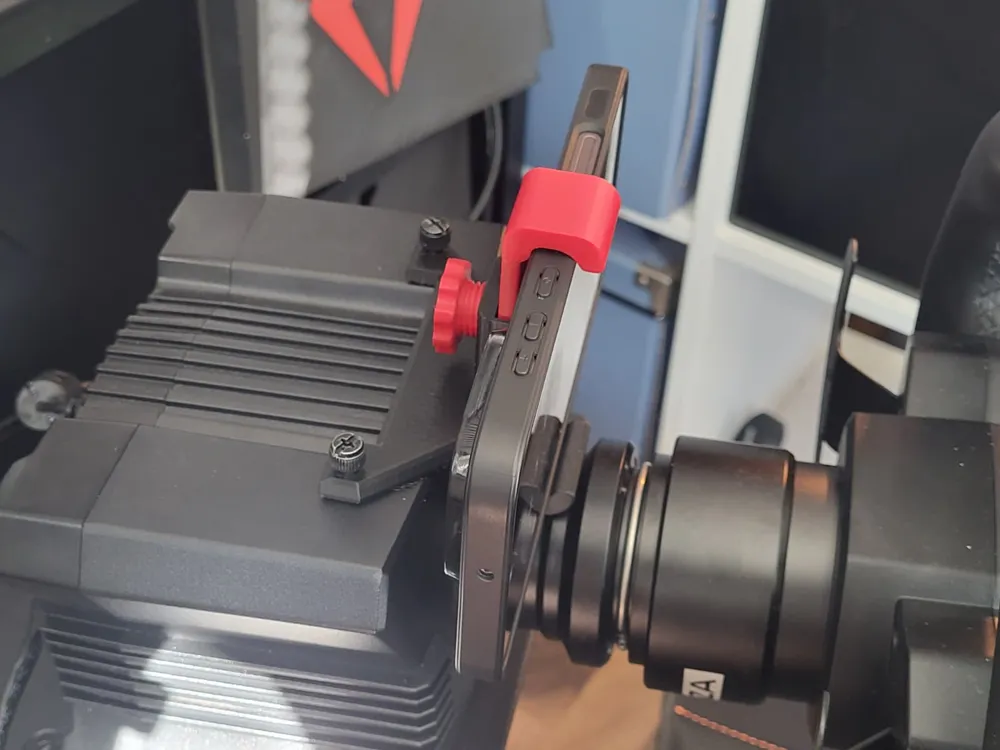

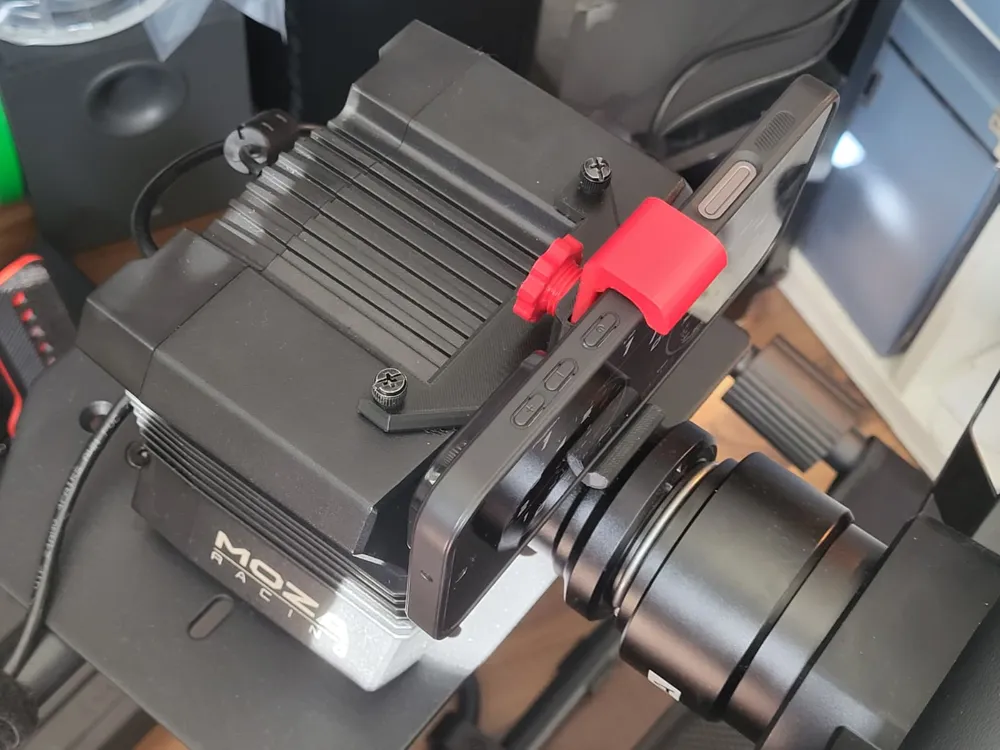

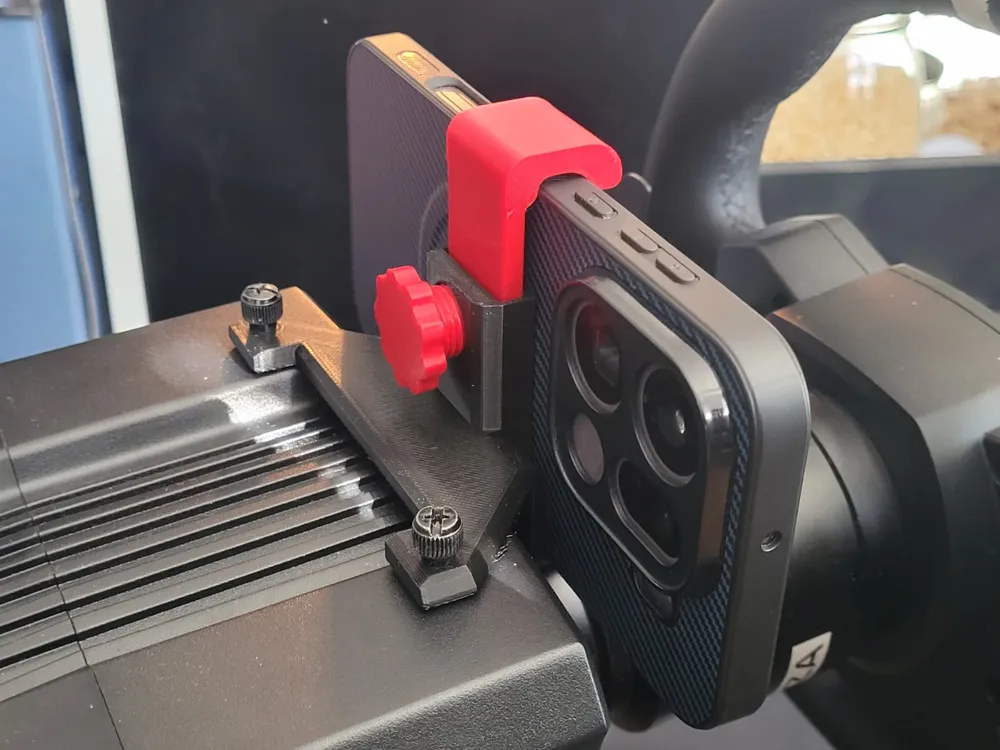

• Perfect Fit: Specifically designed for Moza R3 and R5 wheelbases.

Recommended Print Settings:

• Layer Height: 0.16 mm (for smooth curves and detail)
• Infill: 20–30% (Grid or Gyroid recommended)
• Material: PETG (recommended for durability) or PLA+

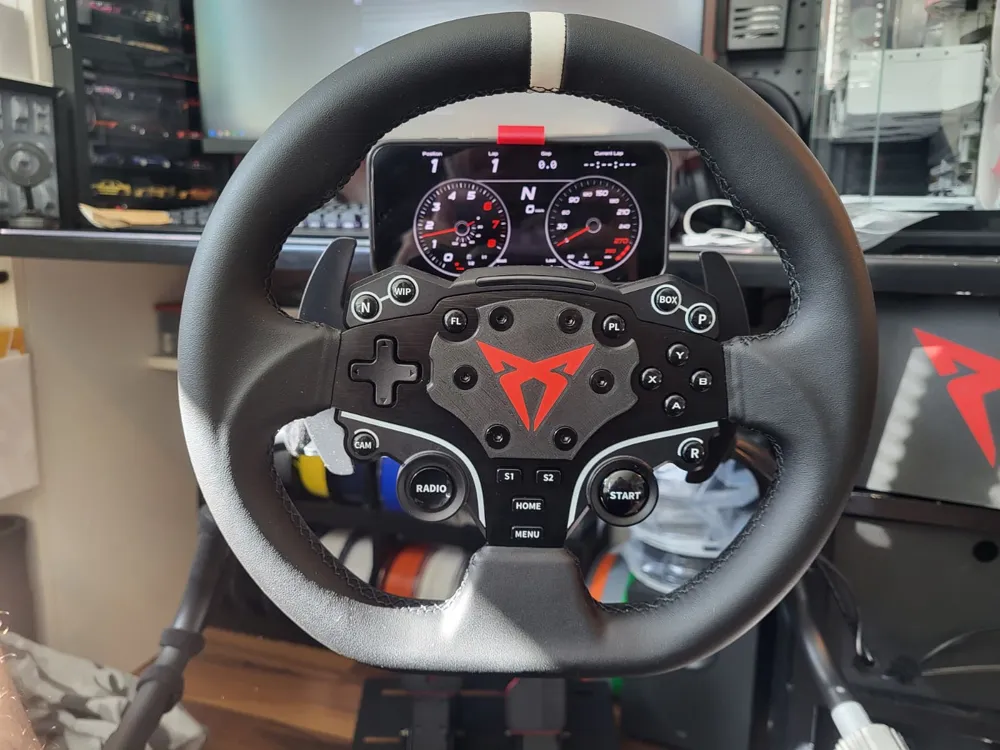

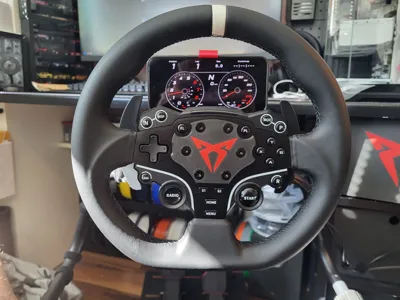

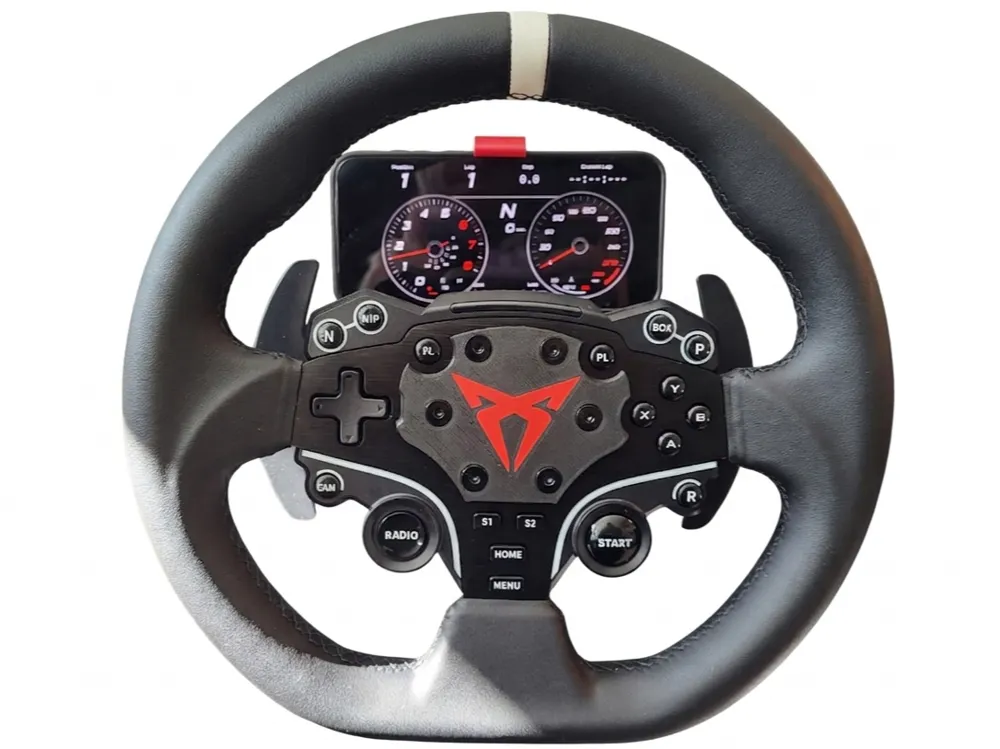

How to use your phone as a Dashboard (SimHub)

To turn your smartphone into a professional racing dashboard, you will need the SimHub software on your PC.

Quick Setup Guide:

1. Install SimHub: Download and install the application from simhubdash.com.
2. Connect to Network: Ensure both your PC and Phone are connected to the same Wi-Fi network.
3. Open Dash Studio: In the SimHub PC app, go to the "Dash Studio" tab on the left.
4. Start the Web Access: Click on "Open in phone or tablet" (top right). A QR code and a local IP address (e.g., 192.168.x.x:8888) will appear.
5. Connect your Phone:
   • Scan the QR code with your phone camera.
   • OR Type the provided IP address into your phone's web browser.
6. Select Dashboard: Choose your favorite dashboard layout from the list on your phone, and you’re ready to race!
