Cupholder



Combined



Tested in PETG for my 2001 BMW Z3 3.0L LHD. Includes 3 plates:<ul><li>separate cup holder</li><li>separate storage tray</li><li>combined one-piece version</li></ul>No supports, no brim. Originally printed at 0.12 mm layer height, but 0.20 mm also works well.<h2>Print settings</h2><ul><li>Material: PETG</li><li>Layer height: 0.12 mm recommended, 0.20 mm acceptable</li><li>Walls: 5</li><li>Infill: 25%</li><li>Infill pattern: Gyroid</li><li>Supports: No</li><li>Brim: No</li><li>Orientation: As provided on the plates</li></ul> I originally printed this in PETG at 0.12 mm, but 0.20 mm is also fine.If you want the cup holder portion stronger, print the parts separately and use the dedicated cup holder plate.No supports or brim were needed in my testing. Recommended for automotive use: PETG or better. PLA is not recommended for hot interior conditions.

PETG 0.12 / 0.20mm | No Supports | 5 Walls | BMW Z3 Tested

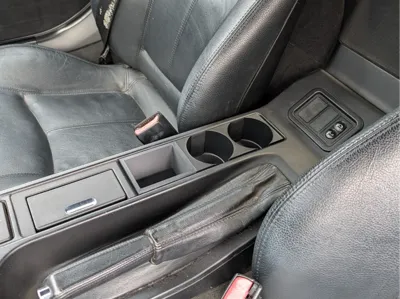

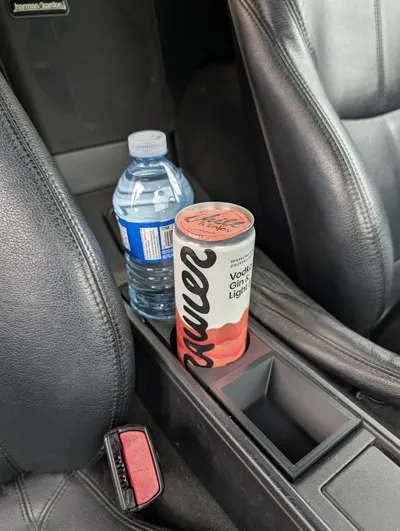

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost if you find this useful :)</boostcontent></boostme>Custom center console insert for the BMW Z3 that adds two cup holders and a small storage pocket. Designed to clean up the interior and give the car something it should have had from the factory. Does not include screw hole. Should remove stock carpeting to make it fit properly. This model was designed and tested on my 2001 BMW Z3 3.0L LHD with a stock center console. Fitment on other years, trims, or interior variations may differ slightly. Please verify dimensions before printing.

BMW Z3 Center Console Cup Holder + Storage Tray
