MagSafe Heltec T114 Case - Meshtastic & MeshCore

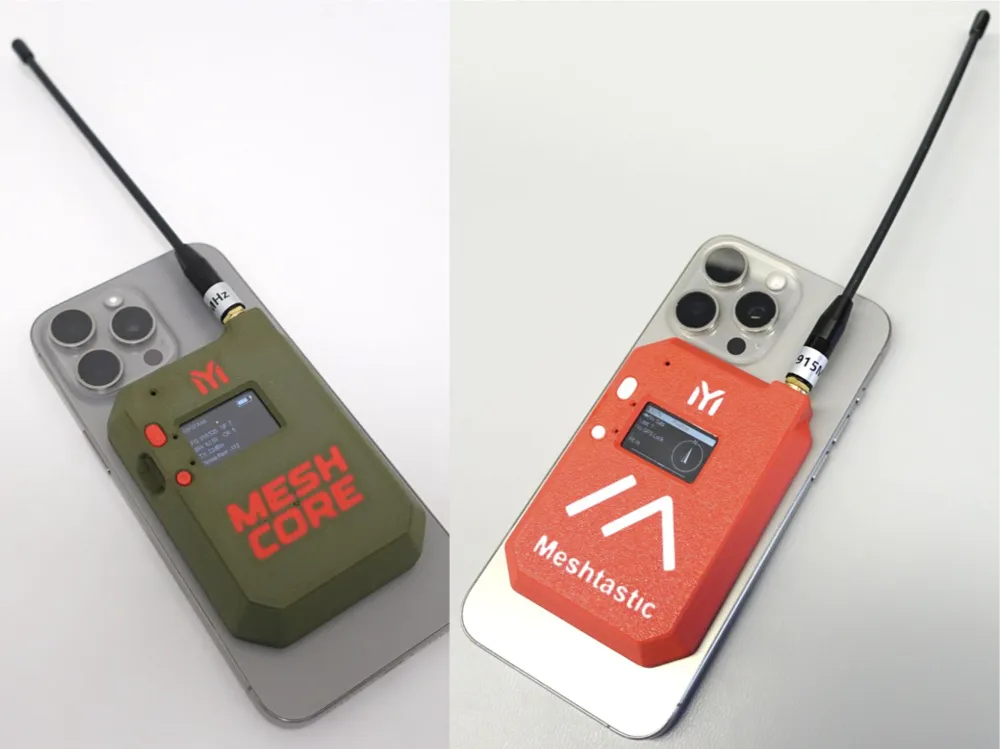

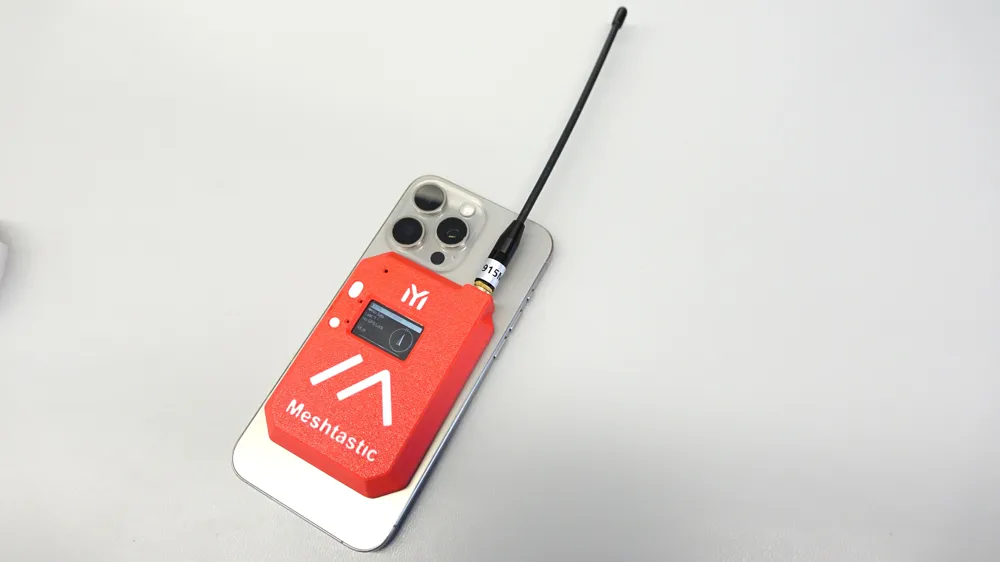

Take your off-grid communication to the next level with this MagSafe / Qi2 compatible enclosure. Designed specifically for the Heltec T114 V2, this low-profile case snaps directly onto the back of your phone, turning your mobile device into a powerful, integrated off-grid mesh communication hub.

Whether you are hiking, at a festival, or prepping for emergencies, this design keeps your node secure and accessible without the bulk of a traditional handheld enclosure.

Features

• Integrated MagSafe / Qi2 magnets

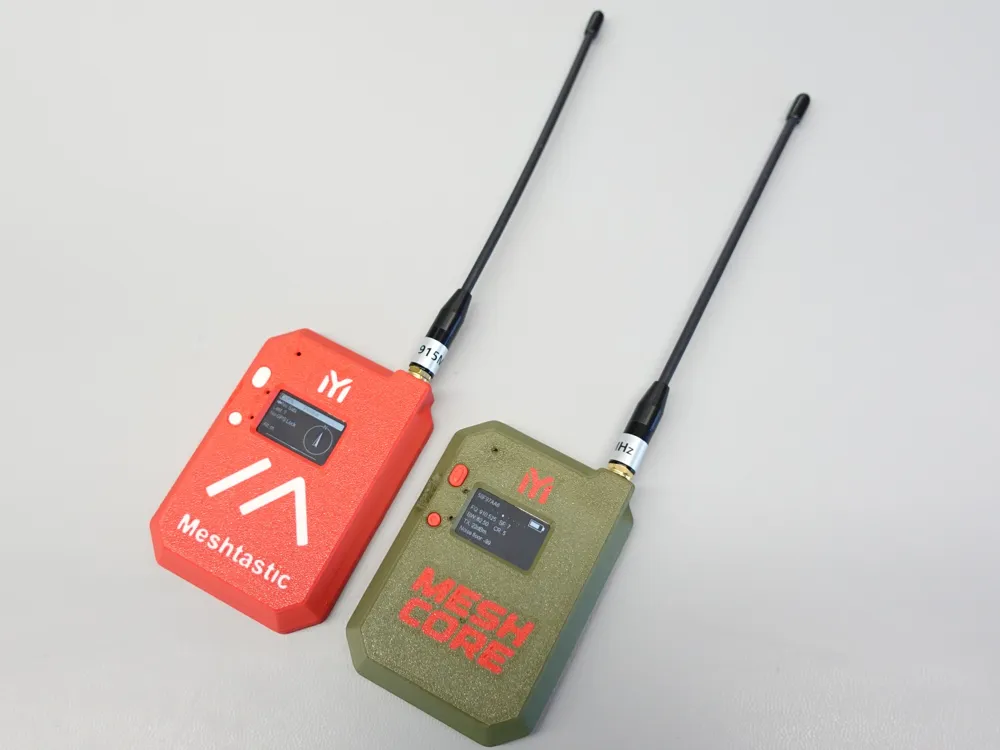

• Dual Branding for Meshtastic and MeshCore - pick your team!
• Internal spacing is optimized for a GPS module, a buzzer, and a 104245 2000mAh 3.7V LiPo battery
• Includes a mount for an external whip antenna

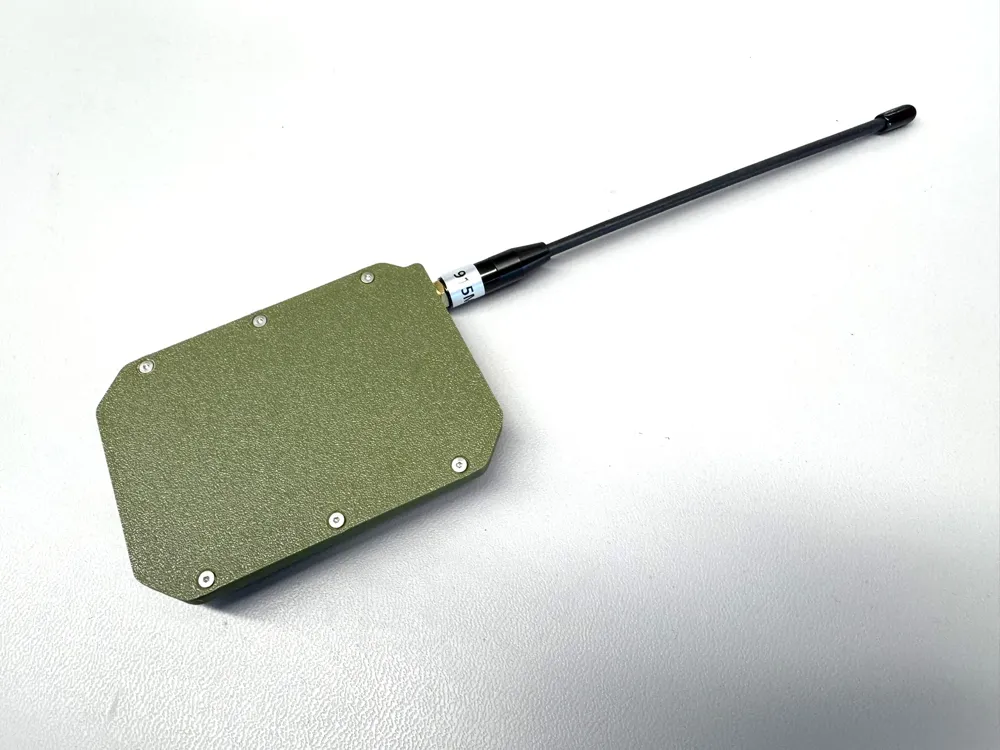

• The case is held together by six M2x6mm flat head screws for a flush look
• Works on all MagSafe / Qi2 compatible phones and cases

Magnet ring used here: https://www.aliexpress.us/item/3256806263306581.html

Printing Notes:

• Material: PET-CF, PETG or ASA recommended for UV resistance and durability.
• Walls/Perimeters: 3+ for structural integrity.
• You must pause the print midway to insert the magnet ring.
• Stop printing right before the MagSafe magnet cavity is fully closed. Insert magnets with correct polarity (if flipped, the case won’t attach!)
• Layer to pause depends on your chosen layer height, so please pay attention
• Minimal supports needed for the port cutout and antenna mount
• You can place a small piece of foam on the battery to prevent it from rattling in the case while still accommodating thermal expansion and contraction.

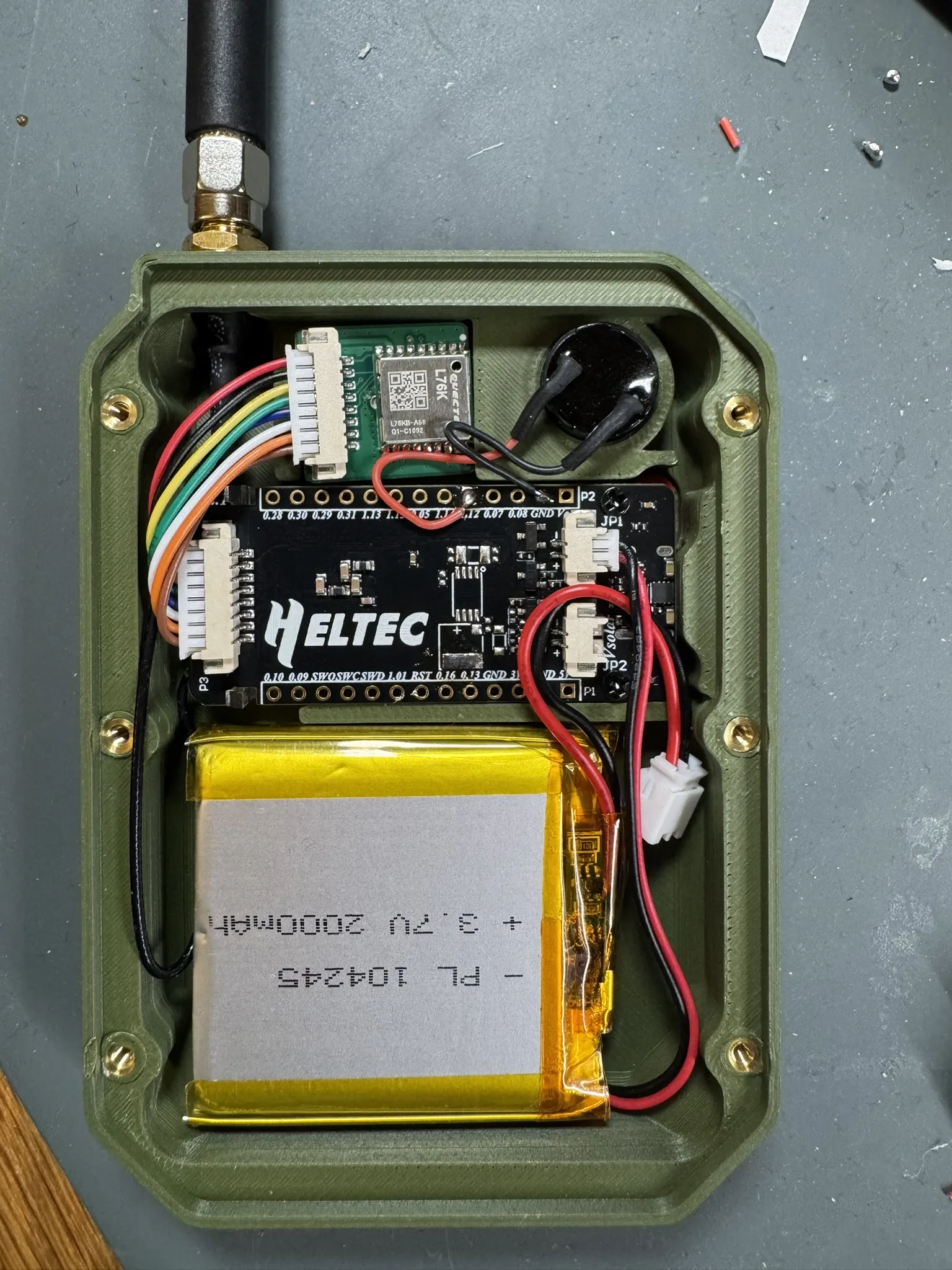

Internal Wiring
